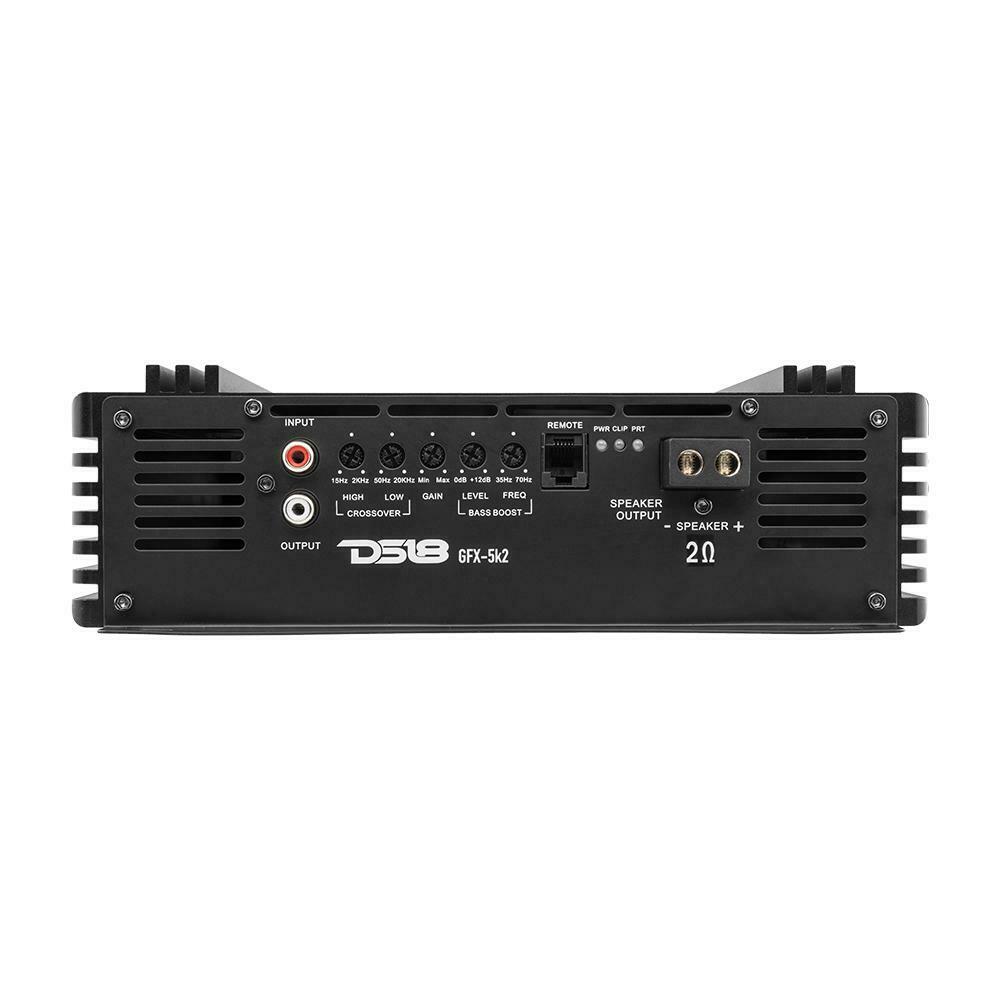

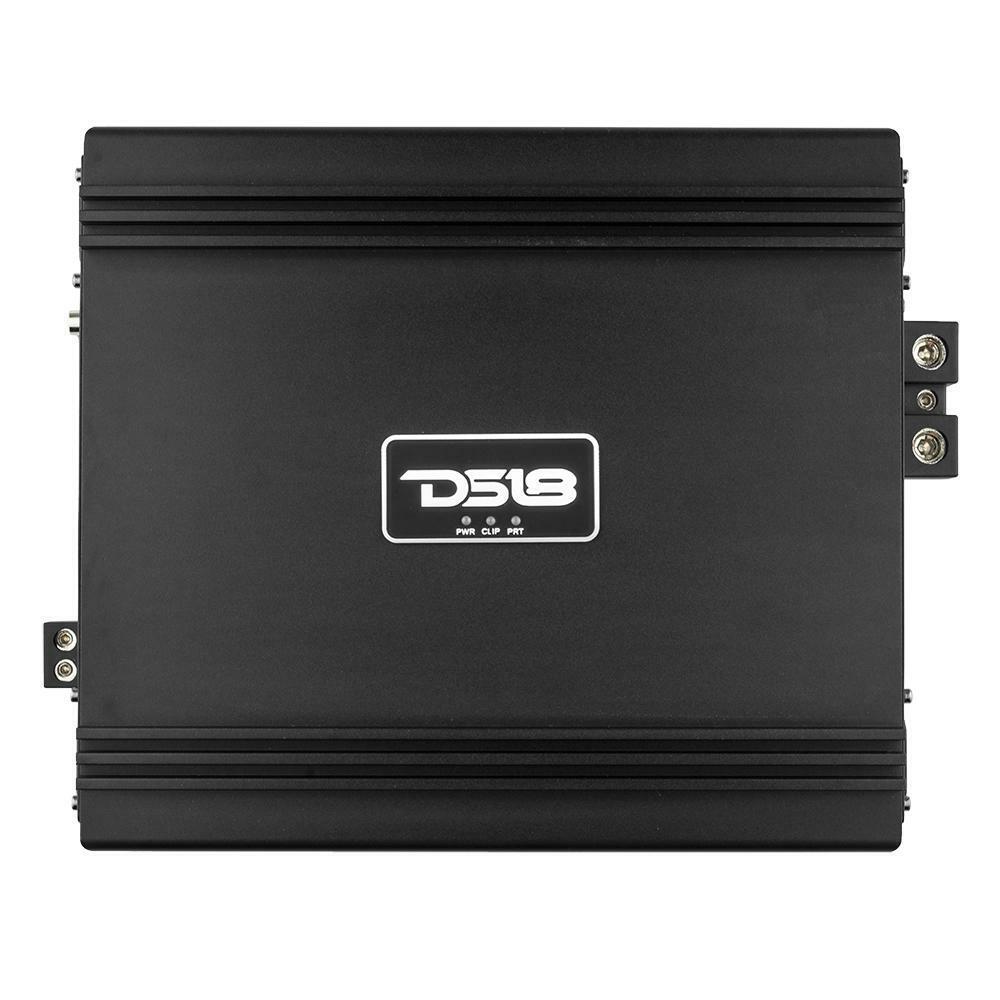

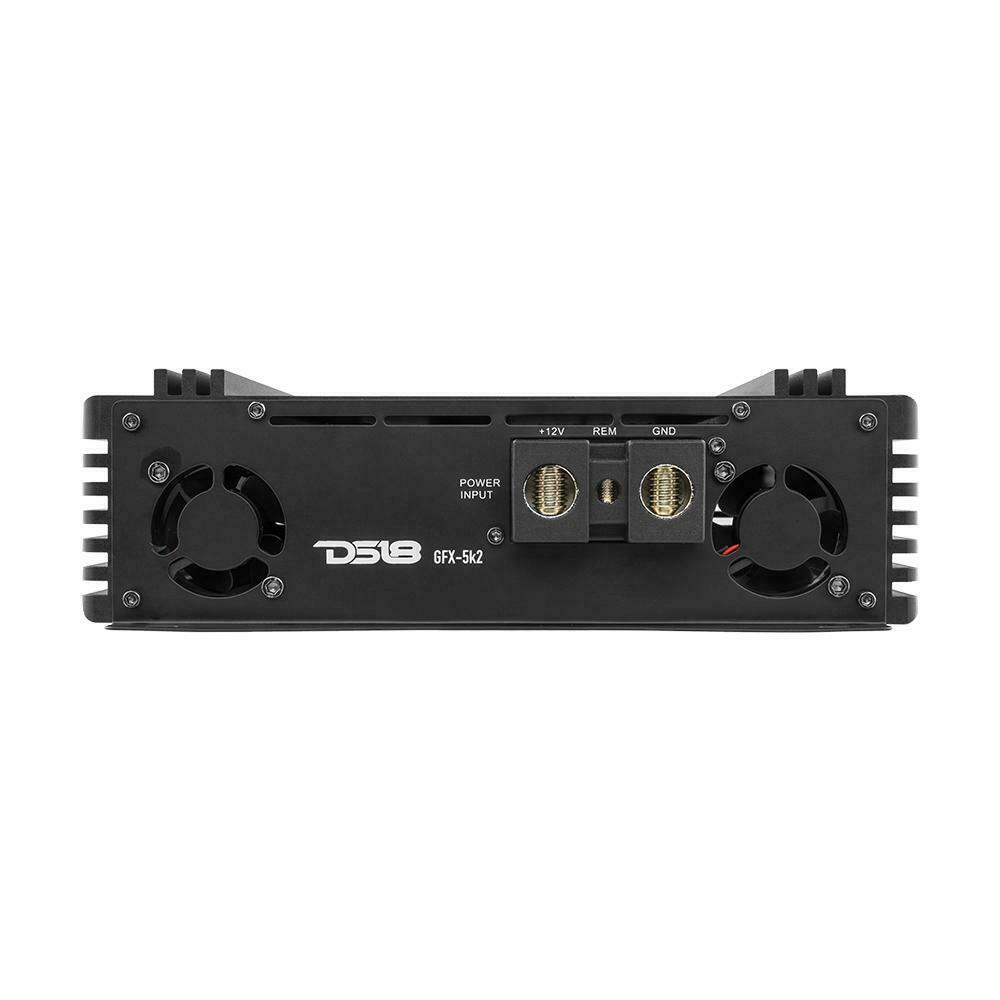

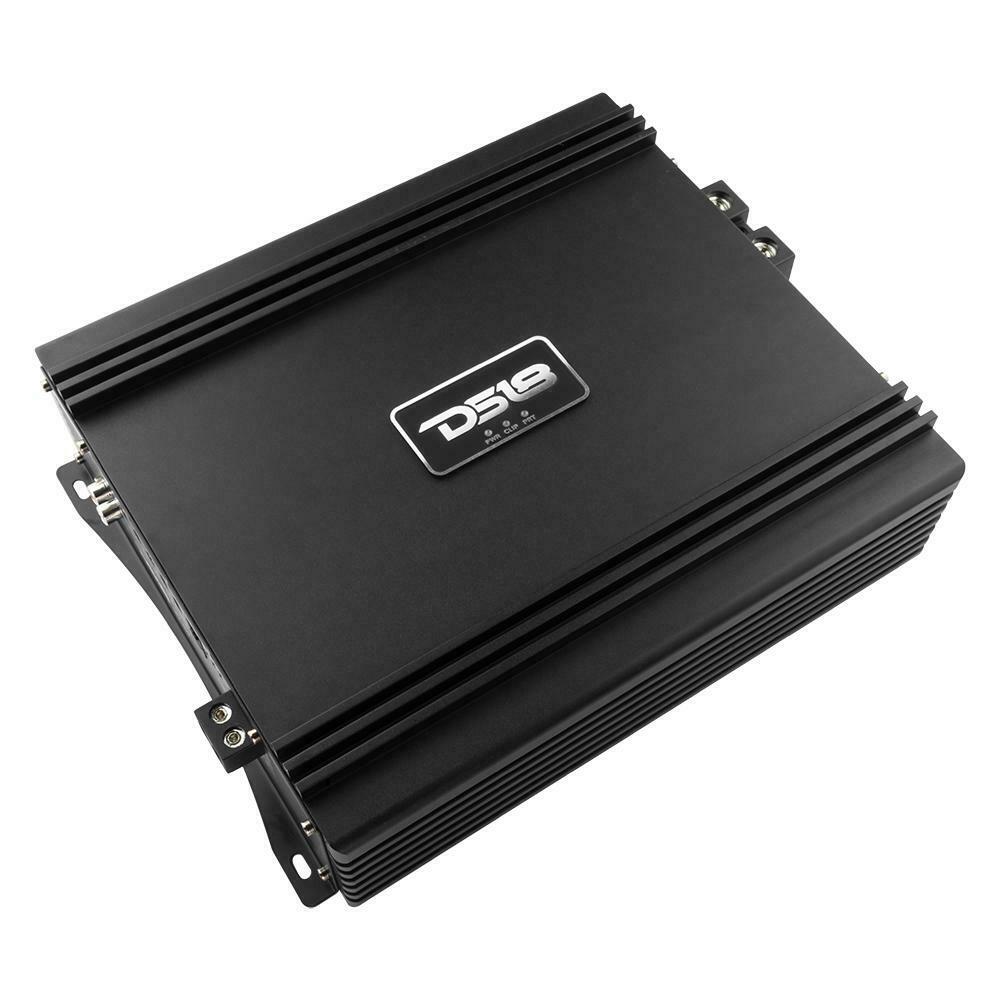

DS18 5000 Watts Monoblock Amplifier Full Range Class D with Bass Knob GFX-5k2

DS18 5000 Watts Monoblock Amplifier Full Range Class D with Bass Knob GFX-5k2

DS18 strives in getting our customers the latest and greatest technology with every product we produce. Now we have developed our latest series of full-bridge high wattage amps, the GFX series. These amps are guaranteed to give you an amazing punch for your money. These full-range amps are perfect for playing all types of speakers and subs. They have that high wattage rating to get maximum Xmax and decibels from your subs while with just a quick flip of a few switches, and the same amp can be rewired for amazing ear-shattering midrange speakers and highs. These amps come on multiple configurations and both have models so you can get maximum output from your sound system.

This Listing Includes:
(1) Amplifier

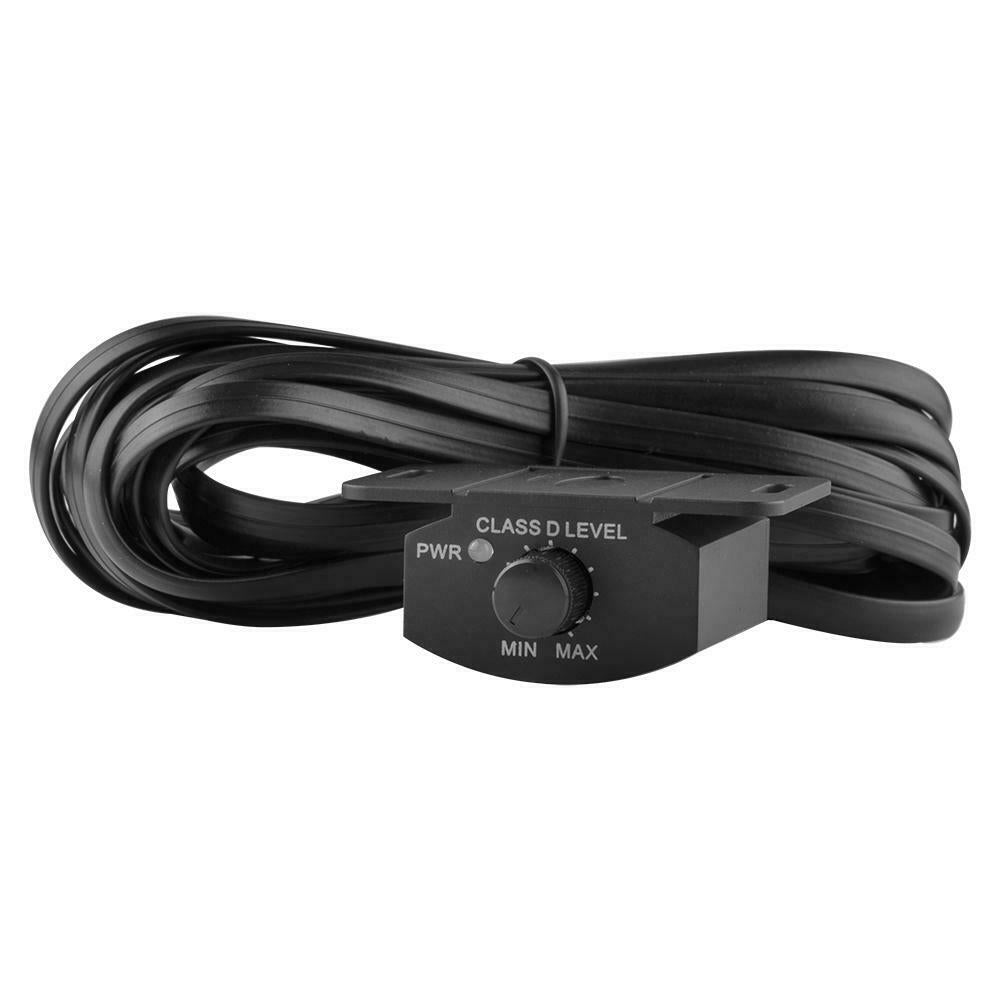

(1) Bass Knob

Features:
- Full range Capable Class - D Amp
- Compact Size and wide Band Crossover for more applications
- Variable Full Crossover Filter
- Surface Mount Component
- Audio Precision Quality Control Verification
- Stable & Reliable Four Layers PCB Trace Layout
- Heavy Duty Heat-sink Chassis and Forced Cooling System Build In

Specifications:
Model: GFX-5K2
Power @ 2 ohms (14.4V): 5000W
Power @ 4 ohms (14.4V): 3500W
Minimum Speaker Load: 2 OHM
THD: 1%
Input Sensitivity: 0.5-8V
Hi Pass Crossover (12dB/Oct): 15Hz-2KHZ
Lo Pass Crossover (12dB/Oct): 50Hz-20KHZ
Frequency Response: 15Hz-20KHZ
Bass Boost: 0-12dB
Bass Boost Frequency: 35Hz-70Hz
Working Voltage: 9-15V
Input Terminal Size: 1/0AWG
Output Terminal Size : 8 AWG

Dimensions (mm): 291 x 236 x 72
