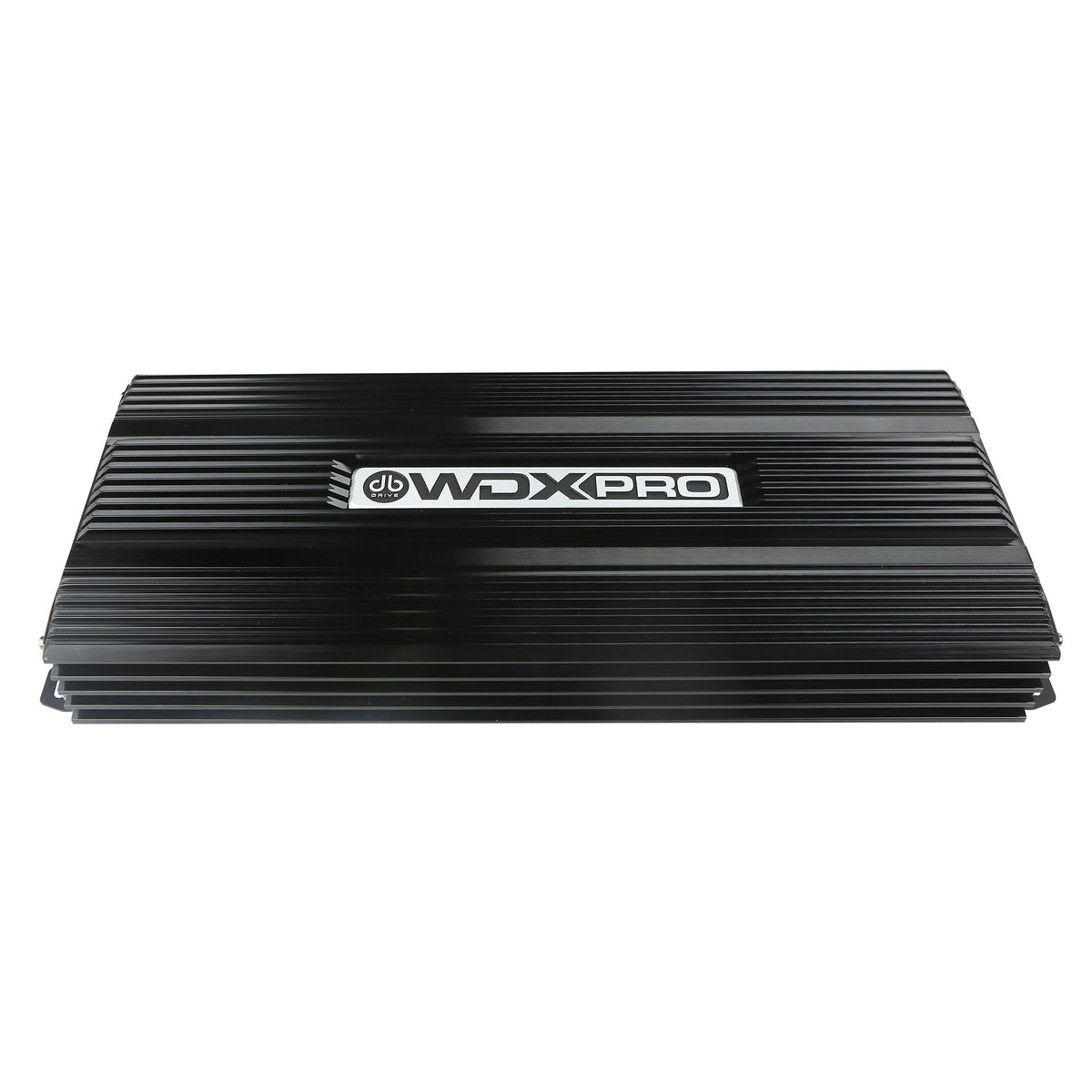

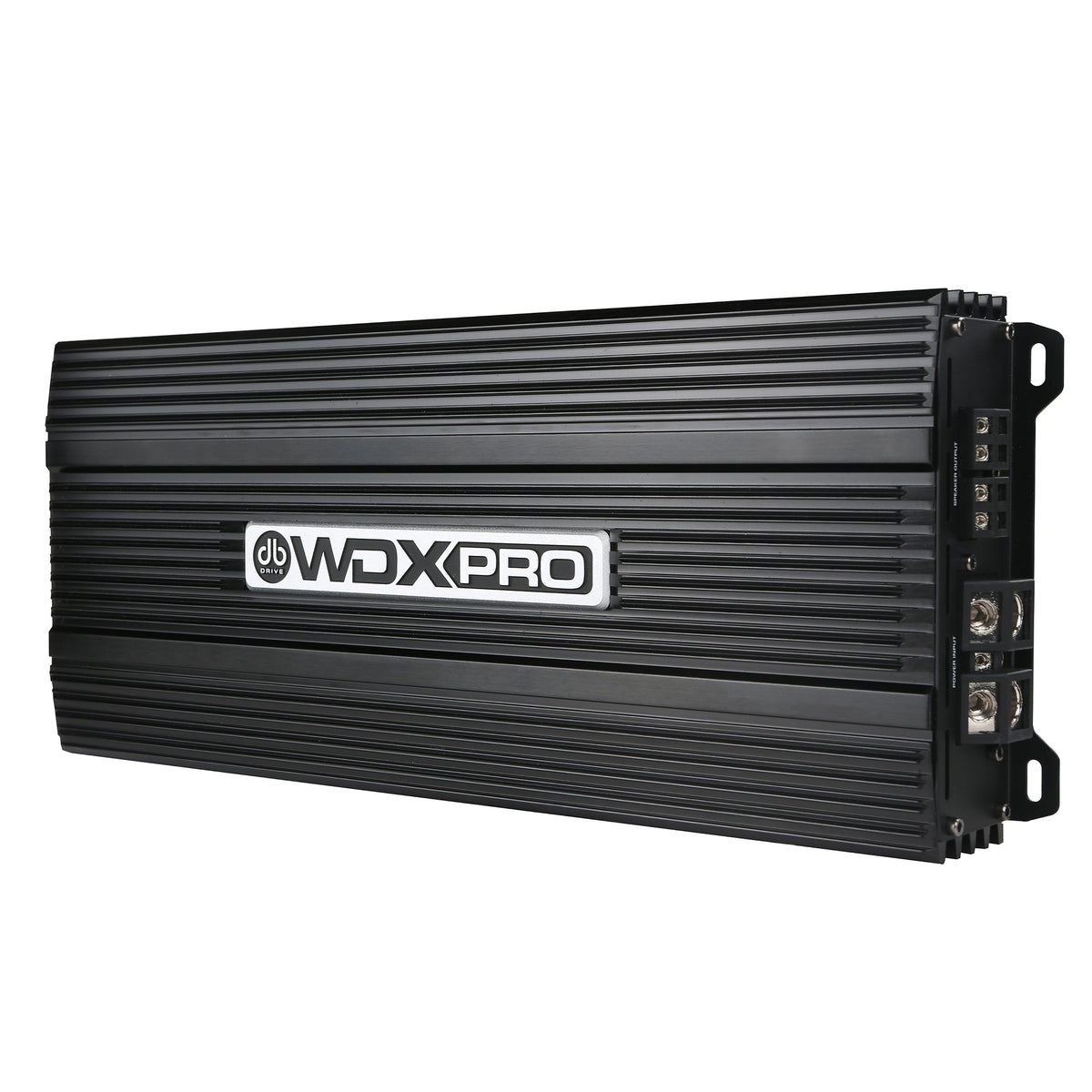

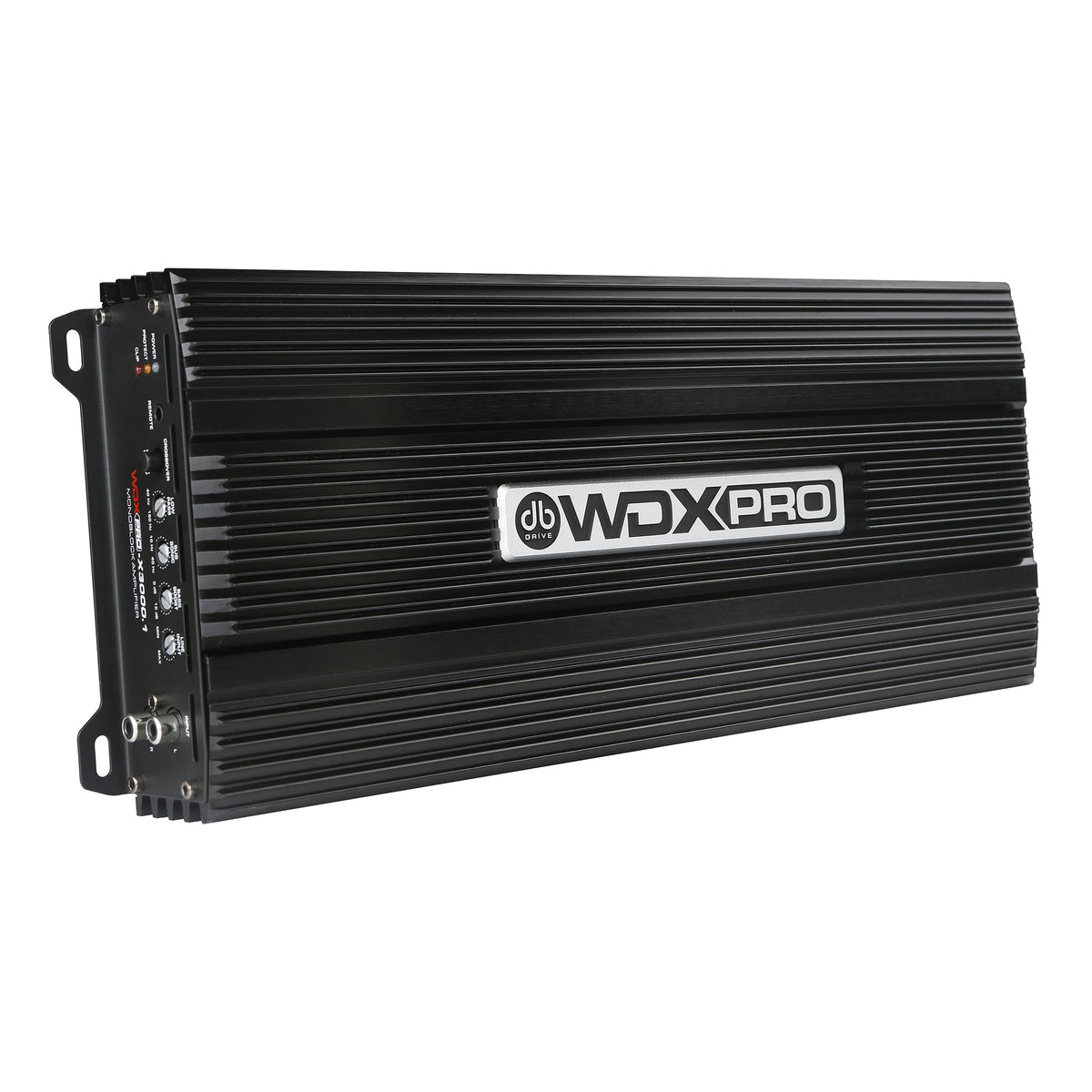

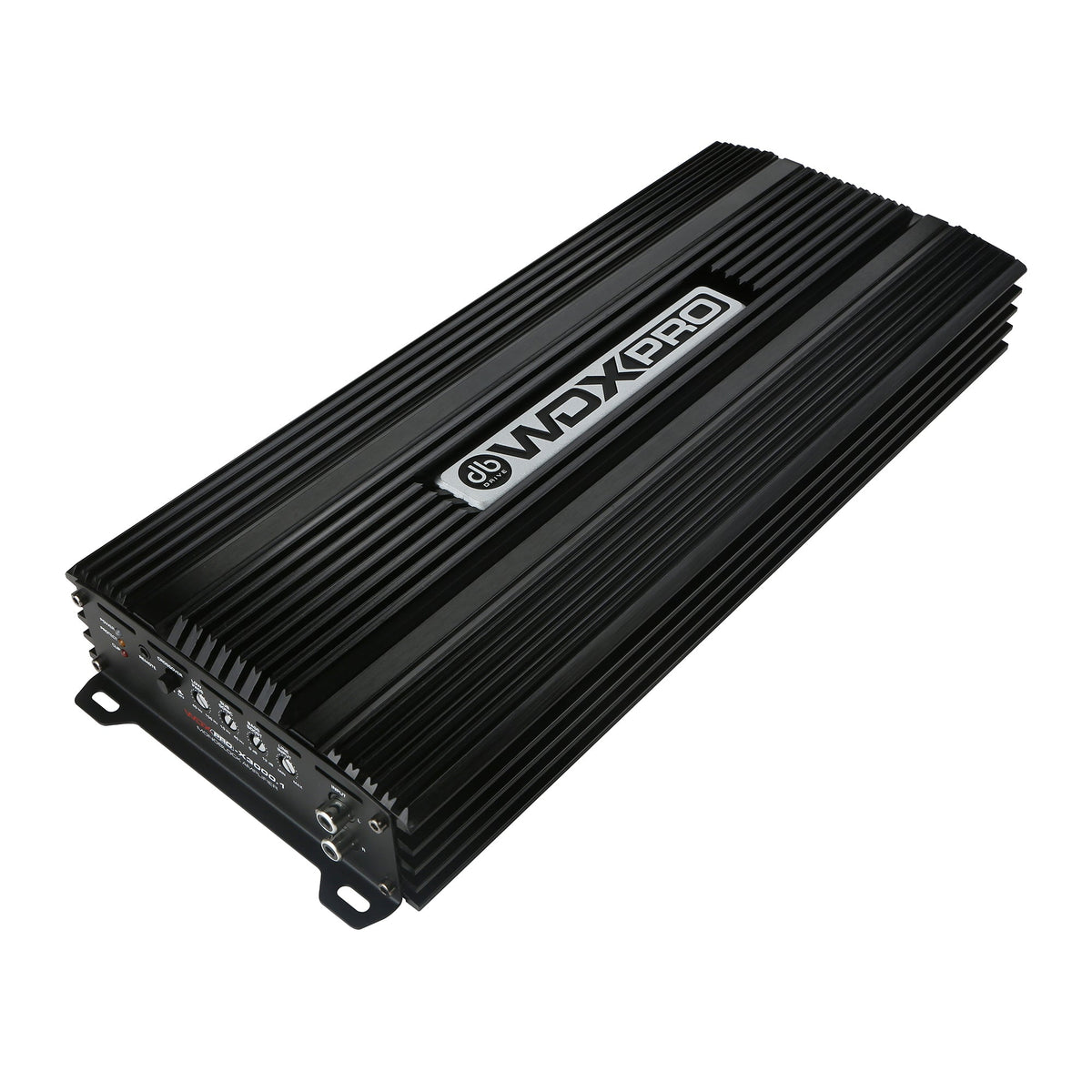

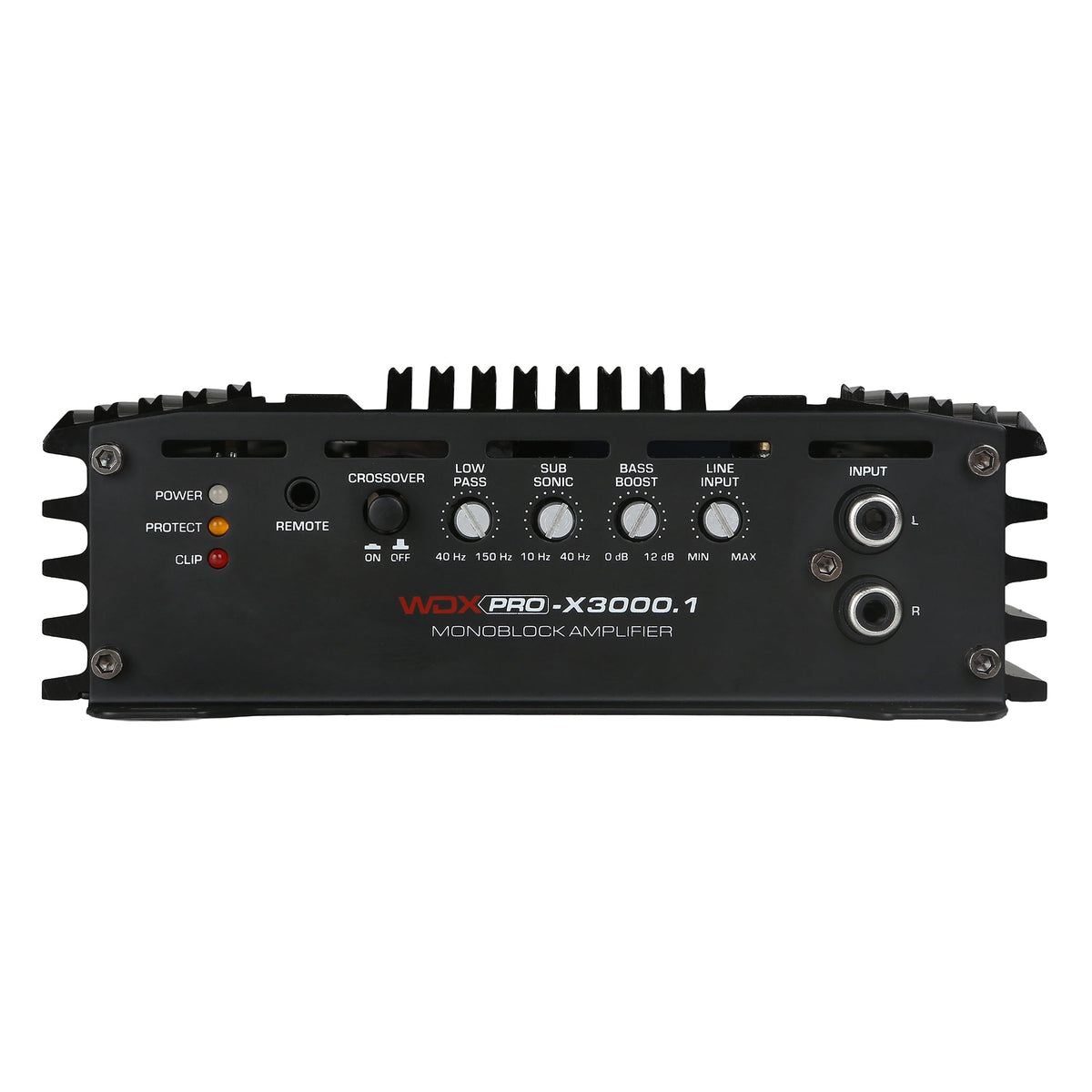

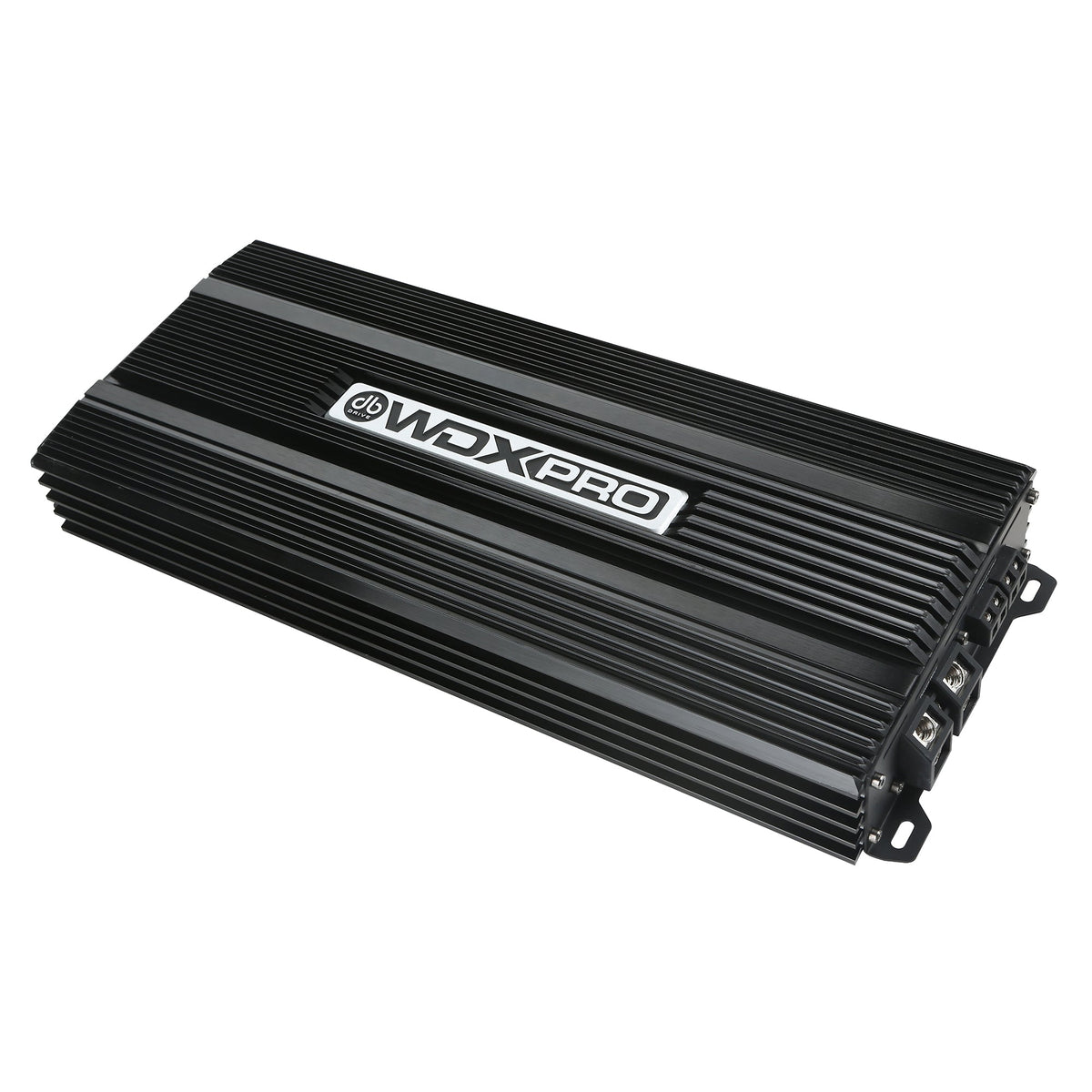

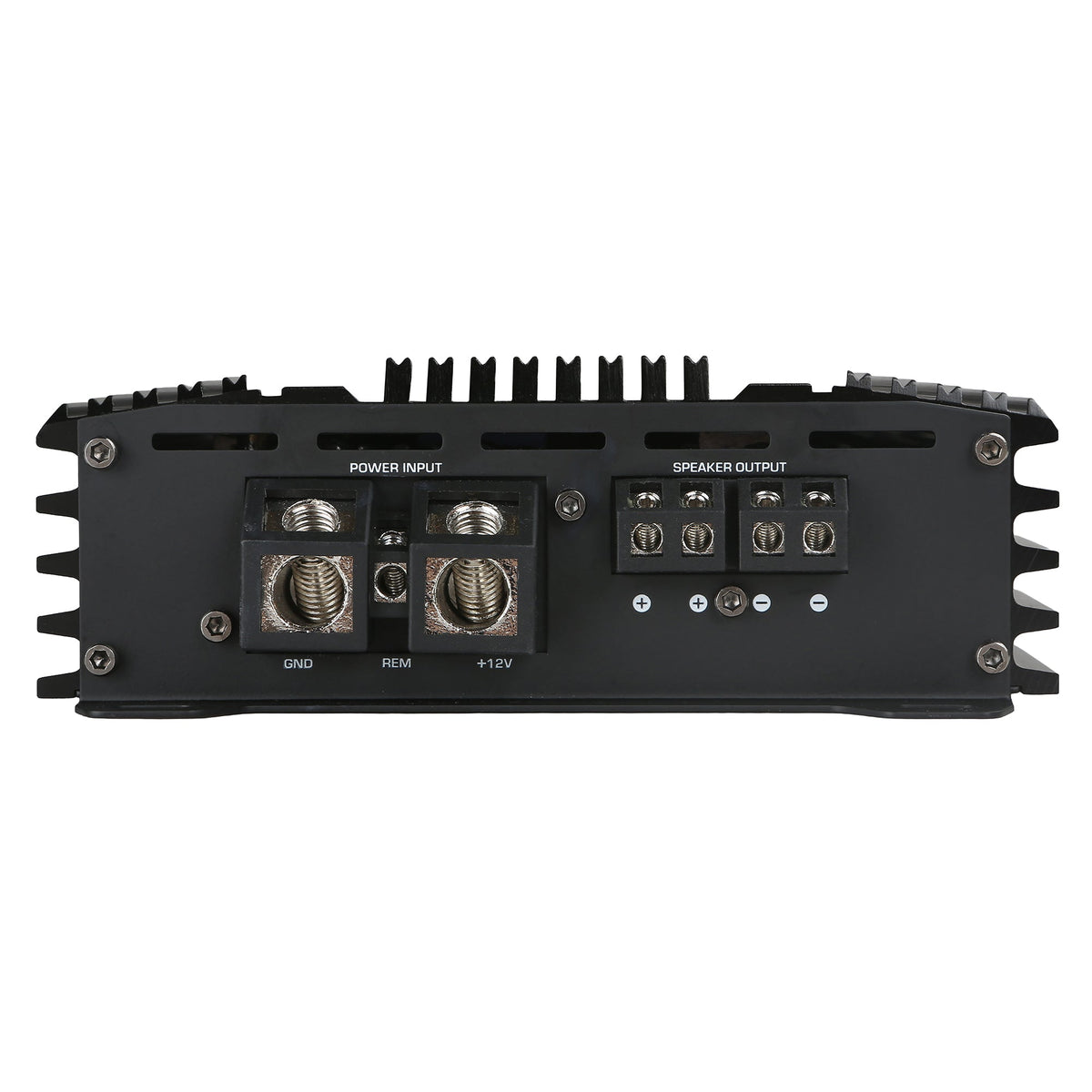

DB Drive WDX PRO-X3000.1 : WDX PRO-X 1 x 3000W Class D Mono amplifier

Features

• ATC – Audiophile RCA Connectors
• ACT – Adaptive Crossover Technology
• High Efficiency Full Range Class D Technology

• Dual 0 Gauge Power Wire Inputs
• APC – Audio Protection Circuit
• SESI – Signal Evaluation Status Indicator
• CHM – Collective Heat Management
• Bass Remote Control

Specifications

• 1 × 3000 Watts @ 1 Ohm
• 1 × 1500 Watts @ 2 Ohms
• 1 × 750 Watts @ 4 Ohms
• Working Voltage: 9–16 Volts
• Frequency Response: 10Hz–13kHz
• Signal-to-Noise Ratio: >95dB
• Low-Level Input: 0.250–8V
• Variable Bass Boost Frequency: 35Hz–70Hz
• Bass Boost EQ Gain: 0dB–12dB
• Subsonic Filter: 10Hz–40Hz
• Low-Pass Filter Variable: 40Hz–150Hz
• Minimum Working Impedance: 1 Ohm Stereo


Dimensions

• Width: 14.17" / 360 mm
• Height: 6.14" / 156 mm
• Depth: 2.06" / 52.25 mm


Product Manual

Product Manual PDF
