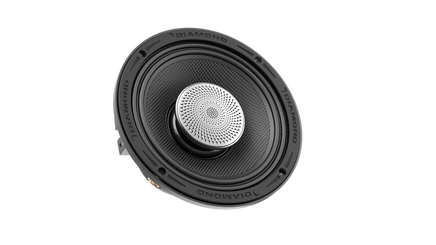

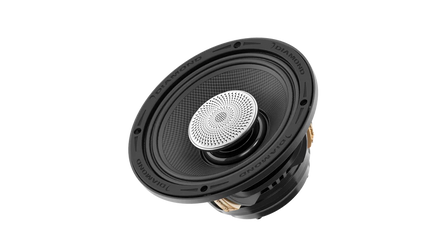

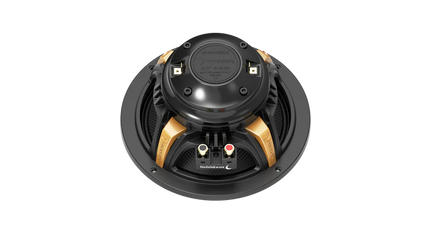

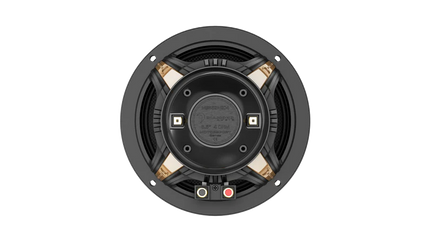

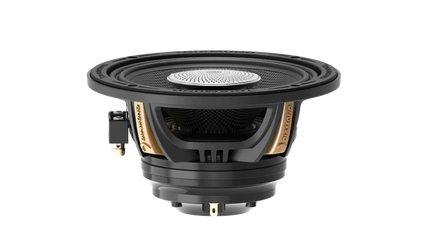

Diamond Audio MS652NEO 6.5" 2-Way Coaxial Neo Speakers (2Ω or 4Ω)

ALL WEATHER 6.5 PRO COAXIAL DRIVER SPEAKER

SPECIFICATIONS:

MS652NEO2 (2Ω)

• SPEAKER SIZE – 6.5"
• SPEAKER TYPE – HORN LOADED CO AXIAL
• BI-AMPABLE – YES
• OHMS (PER COIL) – 2
• NUMBER OF VOICE COILS – DUAL
• FIELD SERVICABLE VOICE COIL – YES
• CONE MATERIAL – CARBON FIBER
• DIAPHRAGM MATERIAL – (PEN) POLYETHYLENE NAPHTHALATE
• BASKET MATERIAL – CAST ALUMINIUM
• MAGNET TYPE – NEODYMIUM
• WATER RESISTANCE – -
• VOICE COIL DIAMETER – 2"
• SENSITIVITY (1W/1M) – 93
• RE (Ω) [SERIES] – 3.2
• FS (HZ) – 151
• POWER HANDLING RMS – 200
• POWER HANDLING MAX – 400
• MOUNTING DEPTH – 3.43" (87.13MM)
• CUT OUT DIAMETER – 5.63" (143MM)
• OVERALL DIAMETER – 6.65" (169MM)
• OVERALL HEIGHT – 3.79" (96.33MM)

MS652NEO4 (4Ω)

• SPEAKER SIZE – 6.5"
• SPEAKER TYPE – HORN LOADED CO AXIAL
• BI-AMPABLE – YES
• OHMS (PER COIL) – 4
• NUMBER OF VOICE COILS – DUAL
• FIELD SERVICABLE VOICE COIL – YES
• CONE MATERIAL – CARBON FIBER
• DIAPHRAGM MATERIAL – (PEN) POLYETHYLENE NAPHTHALATE
• BASKET MATERIAL – CAST ALUMINIUM
• MAGNET TYPE – NEODYMIUM
• WATER RESISTANCE – -
• VOICE COIL DIAMETER – 2"
• SENSITIVITY (1W/1M) – 93
• RE (Ω) [SERIES] – 3.2
• FS (HZ) – 151
• POWER HANDLING RMS – 200
• POWER HANDLING MAX – 400
• MOUNTING DEPTH – 3.43" (87.13MM)
• CUT OUT DIAMETER – 5.63" (143MM)
• OVERALL DIAMETER – 6.65" (169MM)
• OVERALL HEIGHT – 3.79" (96.33MM)
