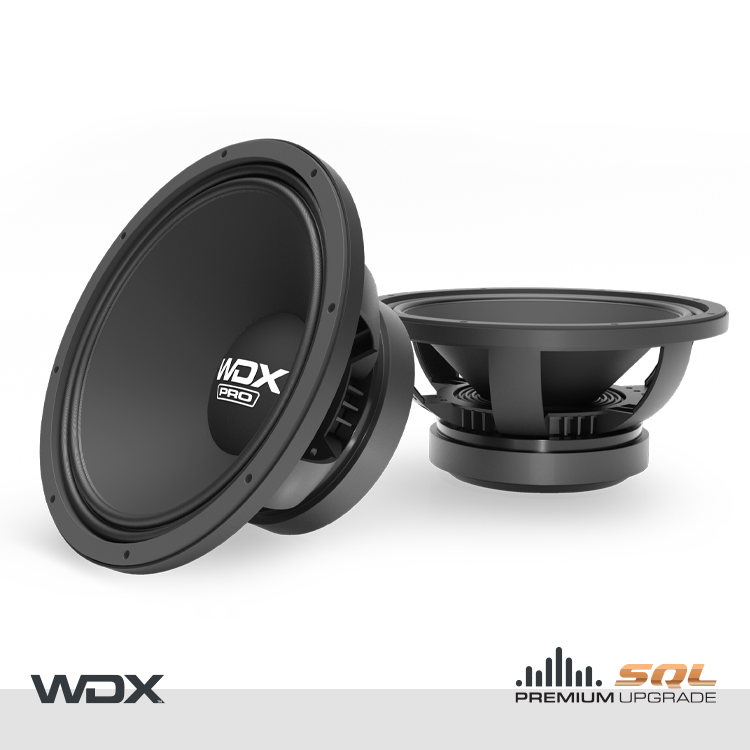

DB Drive WDX10-MB12-8 : 12" PRO Audio Midbass
DB Drive WDX10-MB12-8 : 12" PRO Audio Midbass is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 24 hours
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
DB Drive WDX10-MB12-8 : 12" PRO Audio Midbass
DB Drive WDX10-MB12-8 : 12" PRO Audio Midbass is backordered and will ship as soon as it is back in stock.
Description
Description
Features
- 3.5" High Temperature Voice Coil
- High Strength Ferrite Oxide magnet
- Treated Paper Cone with Cloth Surround
- Die-Cast Aluminum basket
- EVA Mounting gasket
- Compression Speaker terminals
Specifications
| Dynamic Power Handling: 1200 Watts |
| Nominal Power Handling: 600 Watts |
| Impedance: 8Ω Voice Coil |
| Resonant Frequency (fs): 52.8 Hz |
| D.C. Voice Coil Resistance (Re): 8Ω |
| Mechanical Quality Factor (Qms): 2.94 |
| Electrical Quality Factor (Qes): 0.44 |
| Total Quality Factor (Qts): 0.38 |
| Equivalent Air Volume to Cms (Vas): 44.9 L |
| Mass of Diaphragm/Coil (Mms): 77.4 g |
| Force Factor (BL): 17.7 |
| Sound Pressure Level (SPL): 96.1dB |
| Dimensions |
| Outside Diameter: 12.36"/ 314 mm |
| Cutout Diameter: 11.02"/ 280 mm |
| Mounting Depth: 5.26"/ 133.50 mm |
Description
The WDX10-MB12-8 is a 12-inch midbass speaker engineered for high-output car audio systems. It features a 3.5" high-temperature voice coil with shorting ring , paired with a ferrite oxide magnet for high efficiency and enhanced power handling . The treated paper cone with a cloth surround is designed to optimize midbass frequency response, delivering exceptional output performance. . With a dynamic power handling of 1200 watts and a nominal power rating of 600 watts, this speaker is built for unmatched performance and durability.
Product Manual
Product Manual PDF
