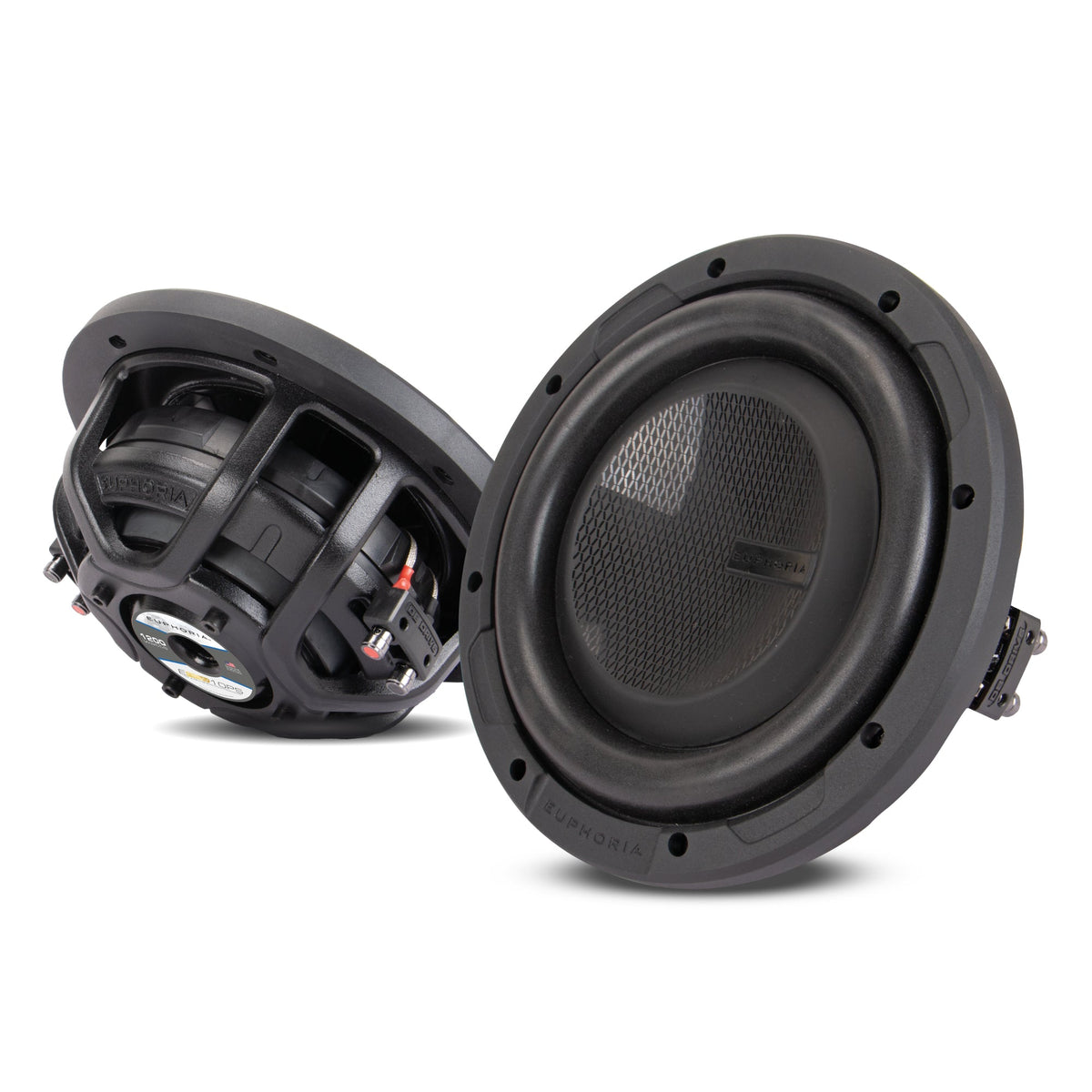

Euphoria ERFW10PS : 10” Shallow-Mount Powersports Subwoofer

Overview

A Higher Standard of Sound. Compact subwoofer delivering controlled bass through efficient cooling and precise cone movement.

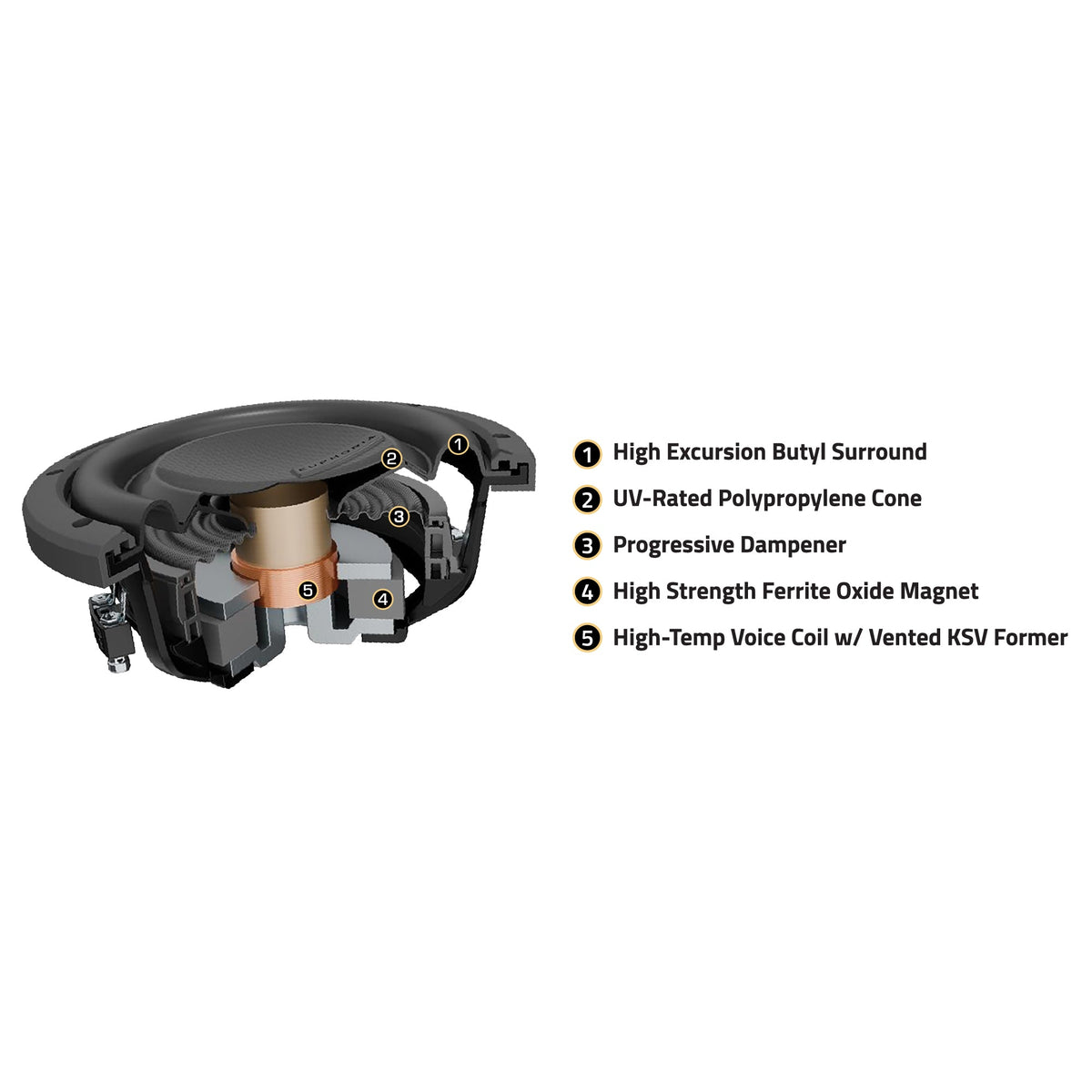

Features

• High-Temp Voice Coil w/ Vented KSV Former – Stays cool under high power
• Radial Basket Venting – Enhances airflow for extended play
• Large Gauge Push Terminals – Secure, high-power connection
• UV-Rated Polypropylene Cone – Resistant to water, mud & UV
• High Excursion Butyl Surround – Deep bass with lasting durability
• Progressive Dampener – Smooth, controlled excursion
• Stealth Mount Gasket – Tight seal, clean install
• Die-Cast Anti-Resonance Basket – Rigid, low-vibration design
• Low-Frequency Optimized – Delivers deep, hard-hitting bass

Specifications

• Nominal Power Handling: 600 Watts
• Peak Power Handling: 1200 Watts
• Impedance: Dual 4Ω Voice Coil
• D.C. Voice Coil Resistance (Re): 6.400Ω
• Mechanical Quality Factor (Qms): 4.679
• Electrical Quality Factor (Qes): 0.565
• Total Quality Factor (Qts): 0.504
• Equivalent Air Volume (Vas): 19.141 L
• Mass of Diaphragm/Coil (Mms): 221.565 g
• Moving Mass of Diaphragm (Mmd): 218.118 m Kg
• Force Factor (BL): 21.892 TM
• Sound Pressure Level (SPL): 81.7 dB
• Free Air Resonance (Fo) 30.396 Hz
• Effective Diaphragm Area (Sd): 33.006 m
• Compliance of Mechanical Suspension (Cms): 123.738 mm/N
• MMd: 218.118 g

DIMENSIONS

• Overall Diameter: 10.71"/272 mm
• Mounting Depth: 3.68"/93.5 mm
• Cutout Diameter: 9.13"/232 mm
