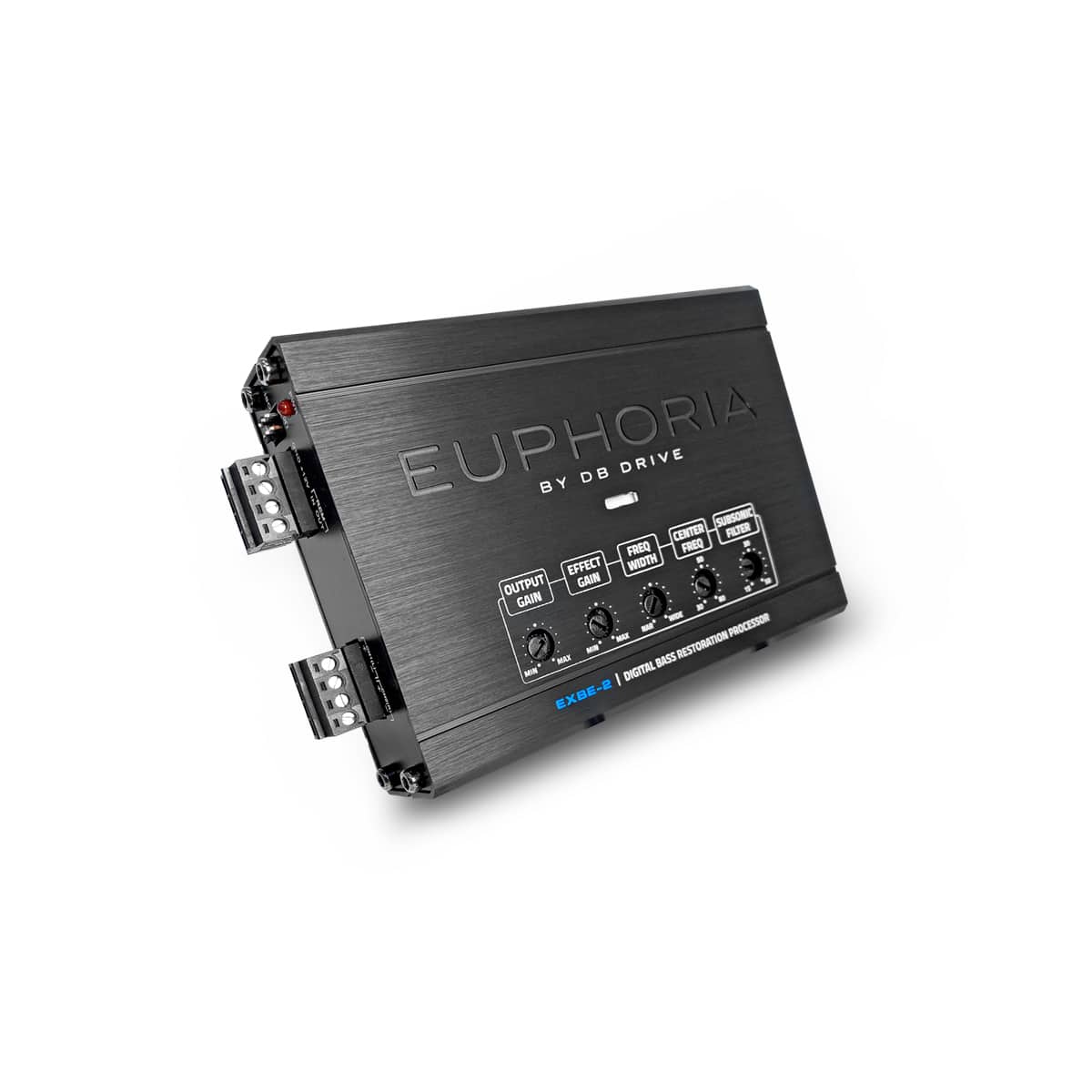

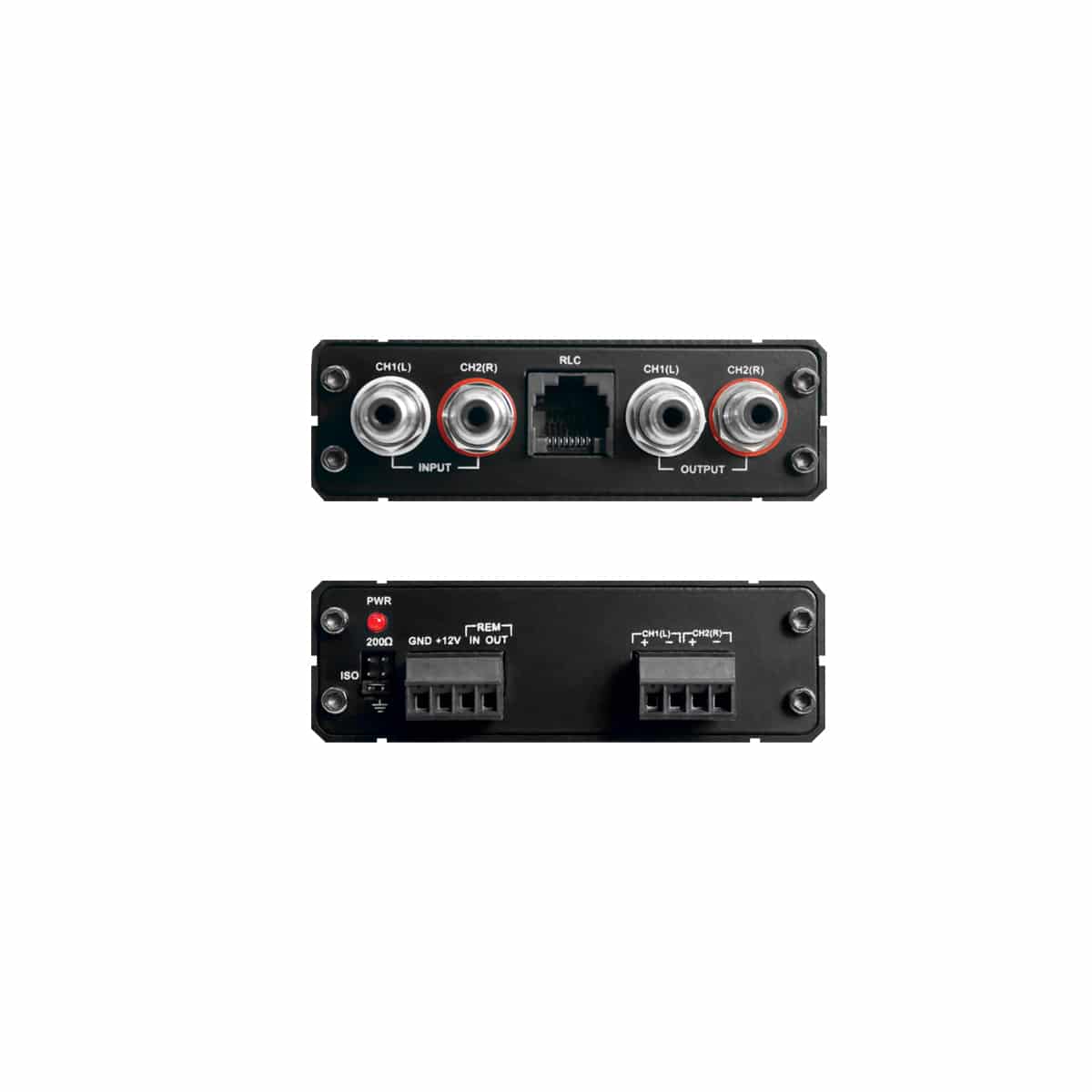

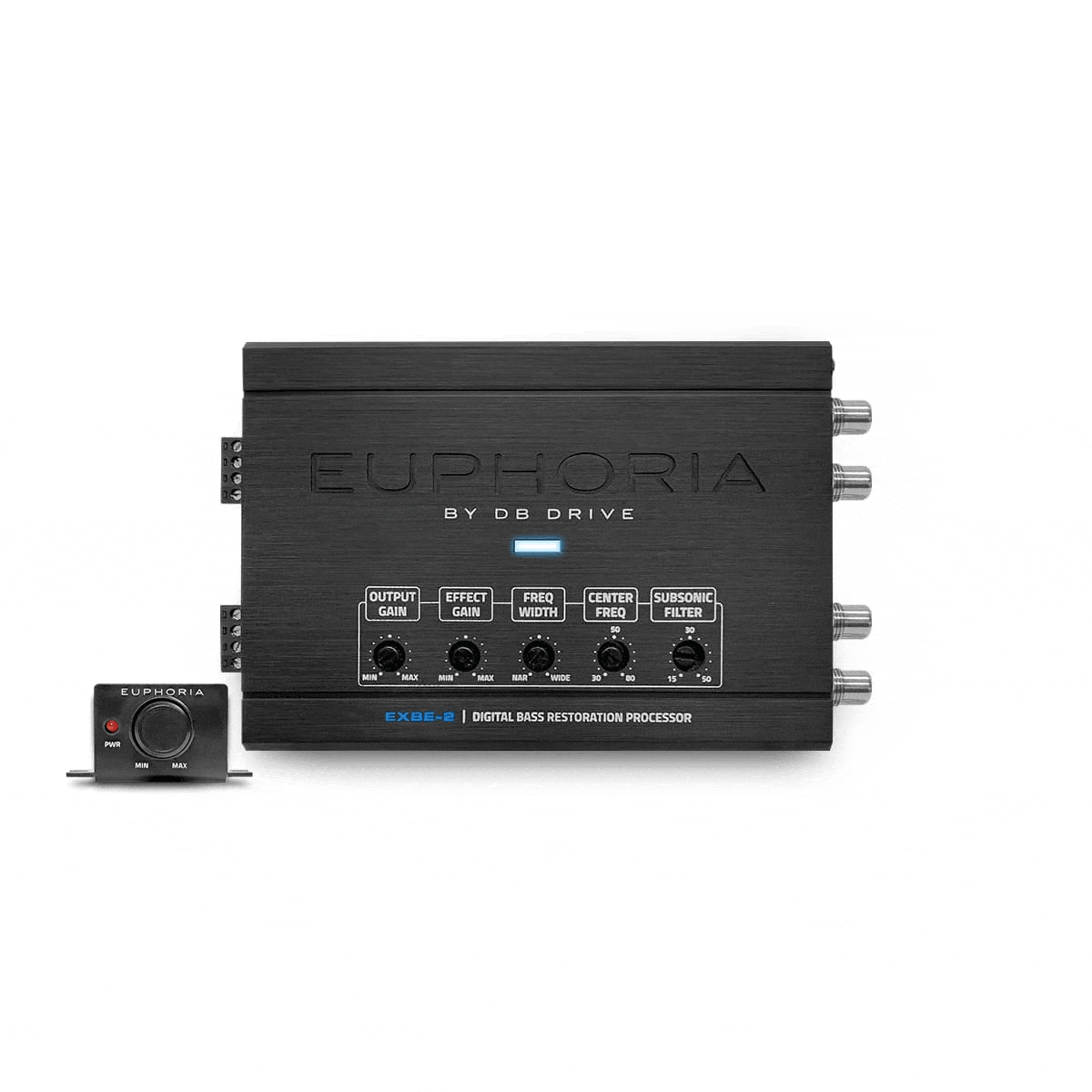

Euphoria EXBE-2 : Bass Restoration Processor

Features

• Factory Radio Speaker Hi-level inputs
• Balanced Inputs RCA Low-Level inputs
• Integrated Line Driver output
• Variable Subsonic Filter
• Variable Gain Adjustment with Clip LED indicator
• Auto Turn-On Audio Signal Detect
• +12V Remote Output (for factory radio integration)
• Selectable Ground Isolation
• Removable Power/Speaker Terminals
• Audiophile Tiffany RCA inputs

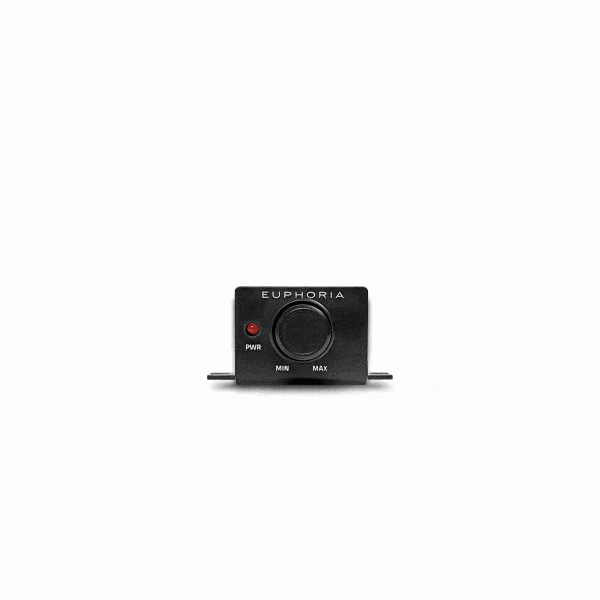

• Includes Remote Level Control with Effect Defeat

Specifications

Input Sensitivity
Hi-Level	2-20Vs - 4-40V (internally selectable)
RCA	4KHz - 22.5KHz0.5-5V-1-10V (internally selectable)
Maximum Hi-Level Input Voltage	40Vrms
Frequency Response	15Hz to > 25kHz
THD+N (SPK/RCA)	<0.05% / <0.1%
Maximum Output Voltage	-10Vrms
Bass Restoration
Effect Gain	0 - 18dB
Width	Nar-Wide
Freq	30 - 80Hz
Variable Subsonic Filter	15Hz - 50Hz
+12V Remote Output	500mA
Chassis Dimensions	1.1" x 3.5" x 5.2" (29 x 90x 133mm)

Description

Pump up the bass and feel the Euphoria!

Introducing the EXBE-2 Bass Restoration Processor by Euphoria, the ultimate game-changer for bass enthusiasts. This innovative device is engineered to breathe new life into your factory radio speakers with high-level inputs and balanced RCA low-level inputs. With a frequency response from 15Hz to over 25kHz, you’ll experience bass like never before. The EXBE-2 features an integrated line driver output, variable subsonic filter, and variable gain adjustment with a clip LED indicator for precision tuning. It also includes a remote level control with effect defeat, making it versatile for any setup. Plus, with +12V remote output for factory radio integration and selectable ground isolation, installation is a breeze. Get ready to elevate your audio experience and immerse yourself in the Euphoria of unparalleled bass!

Product Manual

Product Manual PDF
