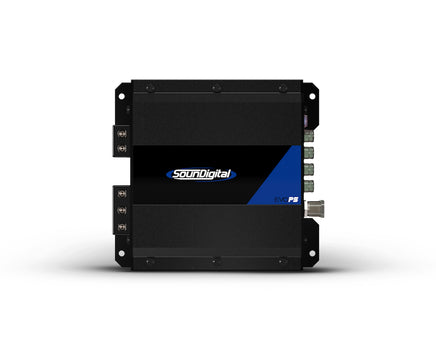

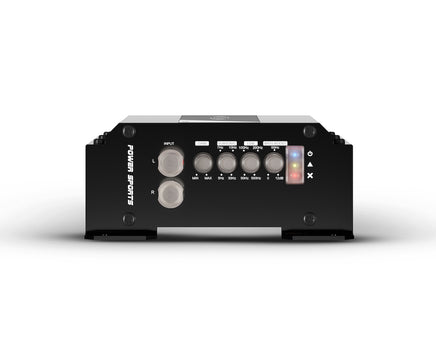

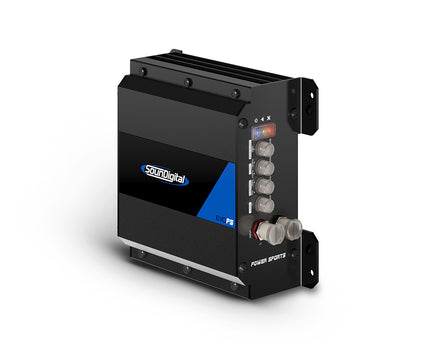

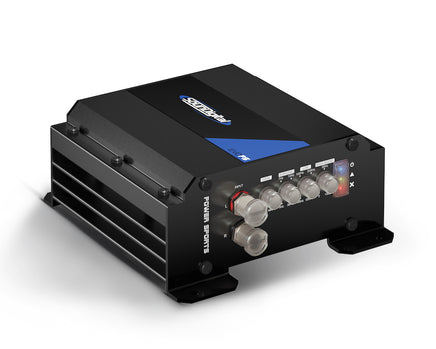

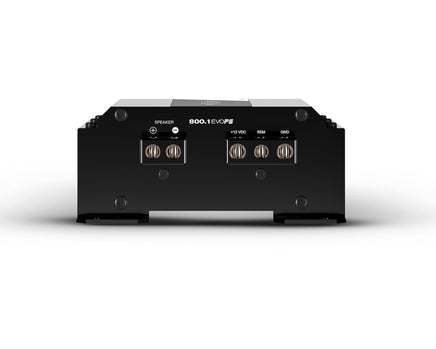

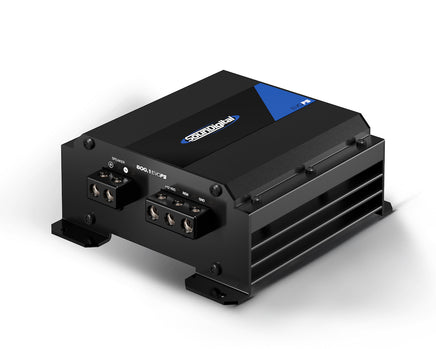

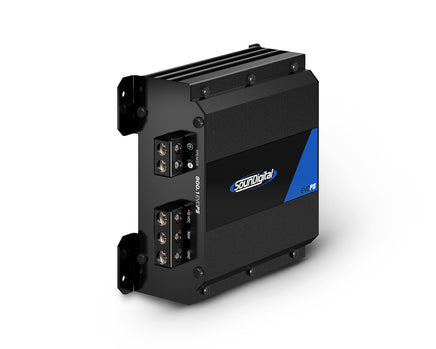

SOUNDIGITAL 800.1 EVOPS – 2Ω OR 4Ω

$449.99



TECHNICAL SPECIFICATIONS

800.1 EVOPS – 2Ω
Power @ 4Ω: 1 X 528 WRMS
Power @ 2Ω: 1 X 800 WRMS
Power @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 32 A
Current Draw (Max): 65 A
Recommended Fuse (Music): 40 A
Total Efficiency: 85%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500 Hz
SNR: 90dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Bass Boost: 0-12 dB @ 50Hz
Product Dimensions: 5.7 x 5.1 x 2.2 in
Product Dimensions: 14.4 x 13 x 5.6 cm

800.1 EVOX – 4Ω
Power @ 4Ω: 1 X 800 WRMS
Power @ 2Ω: N/A
Power @ 1Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 32 A
Current Draw (Max): 65 A
Recommended Fuse (Music): 40 A
Total Efficiency: 85%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500 Hz
SNR: 90dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.1%
Bass Boost: 0-12 dB @ 50Hz
Product Dimensions: 5.7 x 5.1 x 2.2 in
Product Dimensions: 14.4 x 13 x 5.6 cm
