B&C

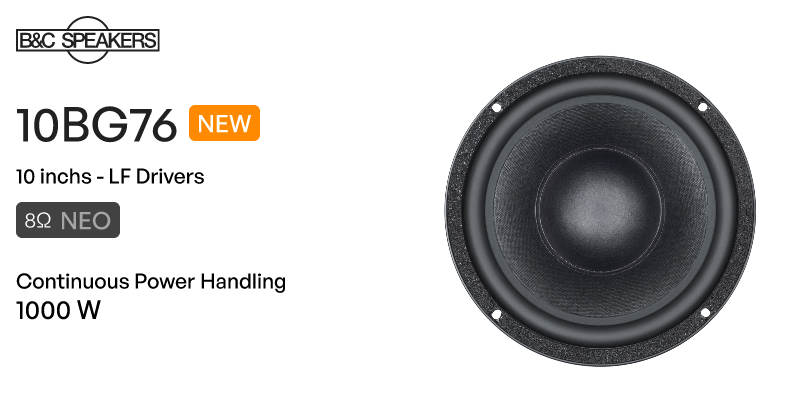

B&C 10BG76

$362.64
Impedance

Pickup available at Audio Hoggz

Usually ready in 1-3 days

Delivery and Shipping

Please allow 2-3 business days for shipments to process.

Description
  • New 10" High Power Bass/Low Mid Speaker
  • Lightweight Neodymium Magnet
  • 4 & 8 Ohms
  • 3" Voice Coil
  • Half Roll Rubber Surround
  • High Xmax Of 9.6mm
  • 500 Watts AES Standard
  • 1,000 Watts Program
  • 49Hz - 800Hz
  • Weighs Only 10.58 lbs.
  • Designed For Bass & Low Mids

Specifications

Nominal Basket Diameter 10" / 250mm
RMS Power Rating 500 Watts
Program Power 1,000 Watts
Frequency Response 49Hz - 800Hz
Sensitivity (1W/1m) 91.5dB
Voice Coil Diameter 3 / 76mm
Winding Material Copper
Former Material Glass Fibre
Winding Depth 1.0" / 25mm
Magnetic Gap Depth .45" / 11.5mm
Flux Density 1.22T
Overall Diameter 10.28" / 261mm
Bolt Circle Diameter 9.69" / 246mm
Baffle Cutout Diameter 9.17" / 233mm
Depth 5.16" / 131mm
Flange & Gasket Thickness .55" / 14mm
No. Of Mounting Holes 8
Net Weight 10.58 lbs./ 4.8 kg.
Shipping Weight 11.9lbs./ 5.4 kg.
Basket Cast Aluminum
Cone Waterproof Paper (Front & Back)
Cone Shape Curvilinear
Surround Shape Half Roll
Demodulation Ring Aluminum
Voice Coil Copper
Spider Dual
Magnet Neodymium
Resonant Frequency (fs) 49 Hz
Electrical Factor(Qes) .23
Mechanical Q (Qms) 5.74
Total Q (Qts) .22
Compliance Equiv. Vol. (Vas) 16.7 Liters/.59cu. ft.
Surface Area of Cone (Sd)m2 0.0320m2
Voice Coil Overhang (Xmax) 9.6mm
Reference Efficiency .86%
Diaphragm Mass (Mms) 91.4 Grams
BL Factor 22.4 T-M
