B&C | SKU:
B&C 12NW100-4
Regular price
$443.82
Unit price
B&C 12NW100-4 is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 1-3 days
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
B&C 12NW100-4
Regular price
$443.82
Unit price
B&C 12NW100-4 is backordered and will ship as soon as it is back in stock.
Description
Description

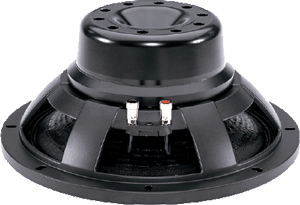

- 12" High Power Woofer
- Lightweight Neodymium Magnet
- 4 Ohms - 92dB SPL
- 1,000 Watts AES Standard
- 2,000 Watts Program
- 45Hz - 1.5kHz
- 4" Voice Coil
- Large Xmax of 9.0mm
Specifications
| 4 OHMS | 12NW100-4 |
| SPEAKER MODEL | 12NW100-4 |
| Nominal Basket Diameter | 12" / 319mm |

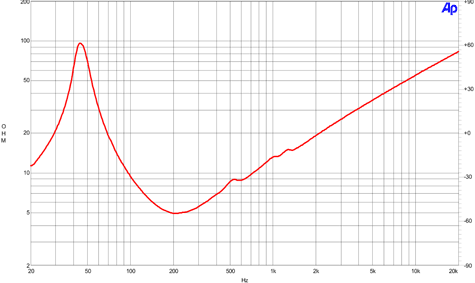

| Impedance | 4 ohms |
| RMS Power Rating | 1,000 Watts |
| Program Power | 2,000 Watts |

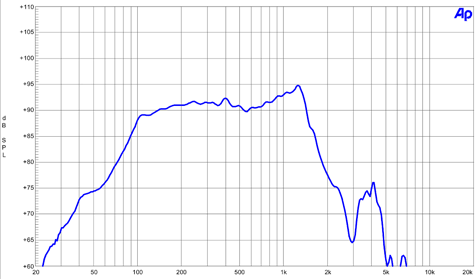

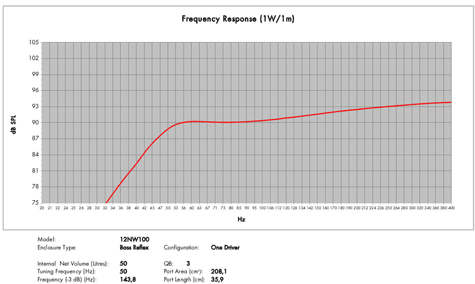

| Frequency Response | 45Hz - 1.5kHz |
| Sensitivity (1W/1m) | 92dB |
| Voice Coil Diameter | 4" / 100mm |
| Winding Material | Copper |
| Former Material | Fiberglass |
| Winding Depth | 1.0" / 25mm |
| Magnetic Gap Depth | .5" / 12mm |
| Flux Density | 1.2T |
| Overall Diameter | 12.56" / 319mm |
| Bolt Circle Diameter | 11.8" / 299mm |
| Baffle Cutout Diameter | 11.1" / 282mm |
| Depth | 5.4" / 137mm |
| Flange & Gasket Thickness | .5" / 13mm |
| No. Of Mounting Holes | 8 |
| Net Weight | 18 lbs./ 8.2 kg. |
| Shipping Weight | 20.06 lbs./ 9.1 kg. |
| Resonant Frequency (fs) | 44 Hz |
| Impedance (Re) | 3.8 ohms |
| Electrical Factor(Qes) | .21 |
| Mechanical Q (Qms) | 3.6 |
| Total Q (Qts) | .20 |
| Compliance Equiv. Vol. (Vas) | 43.3 Liters/1.53 cu. ft. |
| Surface Area of Cone (Sd)m2 | 0.0531m2 |
| Voice Coil Overhang (Xmax) | 9.0mm |
| Reference Efficiency | 1.69% |
| Diaphragm Mass (Mms) | 120 Grams |
| BL Factor | 24.38 T-M |
| Coil Inductance (Le) | 1.79mH |
