Beyma

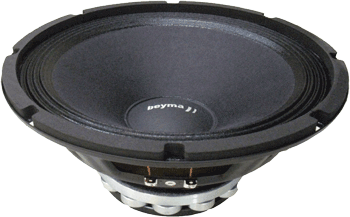

Beyma 10M/Nd-4

$379.95

Pickup available at Audio Hoggz

Usually ready in 1-3 days

Delivery and Shipping

Please allow 2-3 business days for shipments to process.

Description
  • 10" Midrange Speaker
  • Lightweight Neodymium Magnet
  • 8 Ohms
  • 100Hz-8.0kHz
  • 250 Watts AES
  • 500 Watts Program
  • High Efficiency of 101dB SPL
  • Lightweight Cone of 33 Grams For Fast Accurate Midrange
  • Loud Clean Midrange

Specifications

Nominal Basket Diameter 10" / 250mm
Impedance 4 ohms
AES Power Rating 250 Watts
Program Power 500 Watts

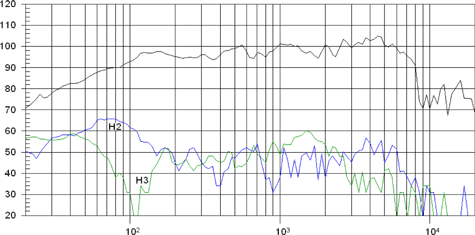

Frequency Response 100Hz - 8kHz
Sensitivity (1W/1m) 101dB
Voice Coil Diameter 2.5" / 62.4mm
Recom. Enclosure Volume .7-2.6 ft3 / 20-70 Liters
Voice Coil Length 10 mm
Air Gap Height 10 mm
Overall Diameter 10.12" / 257mm
Bolt Circle Diameter 9.61" / 244mm
- Front Mount 9.33" / 237mm
- Rear Mount 9.25" / 235mm
No. Of Mounting Holes 8
Volume Displaced By Driver 0.07 ft3 / 2 Liters
Overall Depth 4.74" / 120.4mm
Net Weight 6.5 lb. / 2.95 kg.
Shipping Weight 7.36 lb. / 3.34 kg.
Basket Cast Aluminum
Cone High Stiff Paper
Surround Treated Cloth
Surround Shape Triple Roll
Voice Coil Copper
Metal Parts Anti-Corrosion Coated
Magnet Neodymium

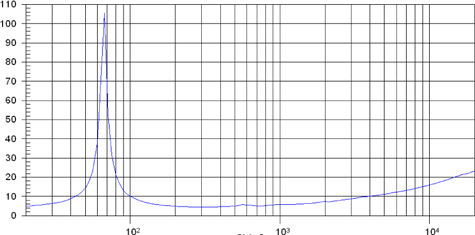

Resonant Frequency (fs) 66 Hz
Impedance (Re) 2.8 ohms
Coil Inductance (Le) .5 mH
Mechanical Q (Qms) 14.35
Electrical Factor(Qes) .36
Total Q (Qts) .35
Comp. Equivalent Vol. (Vas) 1.21 ft3 / 34.28 Liters
Voice Coil Overhang (Xmax) 2.8mm
Effective Surface Area (Sd) .0350 m2
Moving Mass (Mms) 33 Grams
Reference Efficiency 2.69%
BL Factor 10.4N/A
Displacement Volume (Vd) 227 cm3
