Ciare | SKU:
Ciare CXPA-4
Regular price
$157.38
Unit price
Ciare CXPA-4 is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 1-3 days
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.

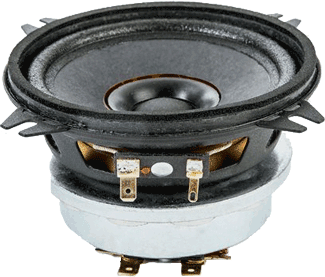

Ciare CXPA-4
Regular price
$157.38
Unit price
Ciare CXPA-4 is backordered and will ship as soon as it is back in stock.
Description
Description
- New 4" Coaxial Speaker
- Lightweight Neodymium Magnet
- 8 Ohms LF & 4 Ohms HF
- 150Hz-20kHz
- 100 Watts AES
- 200 Watts Program
- Xmax of 2.75mm
- HF Driver Has A Polyester Diaphragm For A Smooth Sound!
- Really Nice Coaxial Speaker To Be Used In Motorcycles, HiFi Speakers, Small Monitor Speakers, Etc.
- Clean Midrange & Smooth Highs
- Weighs Only 1.78 lbs.
Specifications
| SPEAKER MODEL | CXPA-4 |
| Nominal Basket Diameter | 4" / 101.6mm |
| Impedance | 8 ohms |
| AES Power Rating | 100 Watts |
| Program Power | 200 Watts |
| Frequency Response | 150Hz - 2.0kHz |
| Sensitivity (1W/1m) | 89.2dB SPL |
| Voice Coil Diameter | 1.5" / 38mm |
| Flux Density | .95T |
| Throat Diameter | .79" / 20mm |
| Impedance | 4 ohms |
| AES Power Rating | 10 Watts |
| Frequency Response | 20 Watts |
| Sensitivity (1W/1m) | 95dB SPL |
| Frequency Response | 2kHz - 20kHz |
| Voice Coil Diameter | .79" / 20mm |
| Overall Diameter | 3.98" / 101mm |
| Bolt Circle Diameter | 4.33" / 110mm |
| Baffle Cutout Diameter | 3.58" / 91mm |
| Depth | 2.13" / 54mm |
| No. Of Mounting Holes | 4 |
| Net Weight | 1.78 lbs./ .81 kg. |
| Basket | Cast Aluminum |
| Cone | Paper |
| Cone Shape | Exponential |
| Surround Shape (LF) | Double Roll |
| Suspension Material | Treated Paper |
| Voice Coil (HF) | Polyester |
| Former (LF / HF) | Fiberglass / Kapton |
| Winding Material (LF / HF) | Copper |
| HF Diaphragm | Polyester |
| Connector | Faston |
| Magnet (HF & LF) | Neodymium |
| Resonant Frequency (fs) | 198 Hz |
| Impedance (Re) | 5.26 ohms |
| Electrical Factor(Qes) | .86 |
| Mechanical Q (Qms) | 4.9 |
| Total Q (Qts) | .73 |
| Compliance Equiv. Vol. (Vas) | 3.9 Liters/.1 cu. ft. |
| Voice Coil Overhang (Xmax) | 2.75mm |
