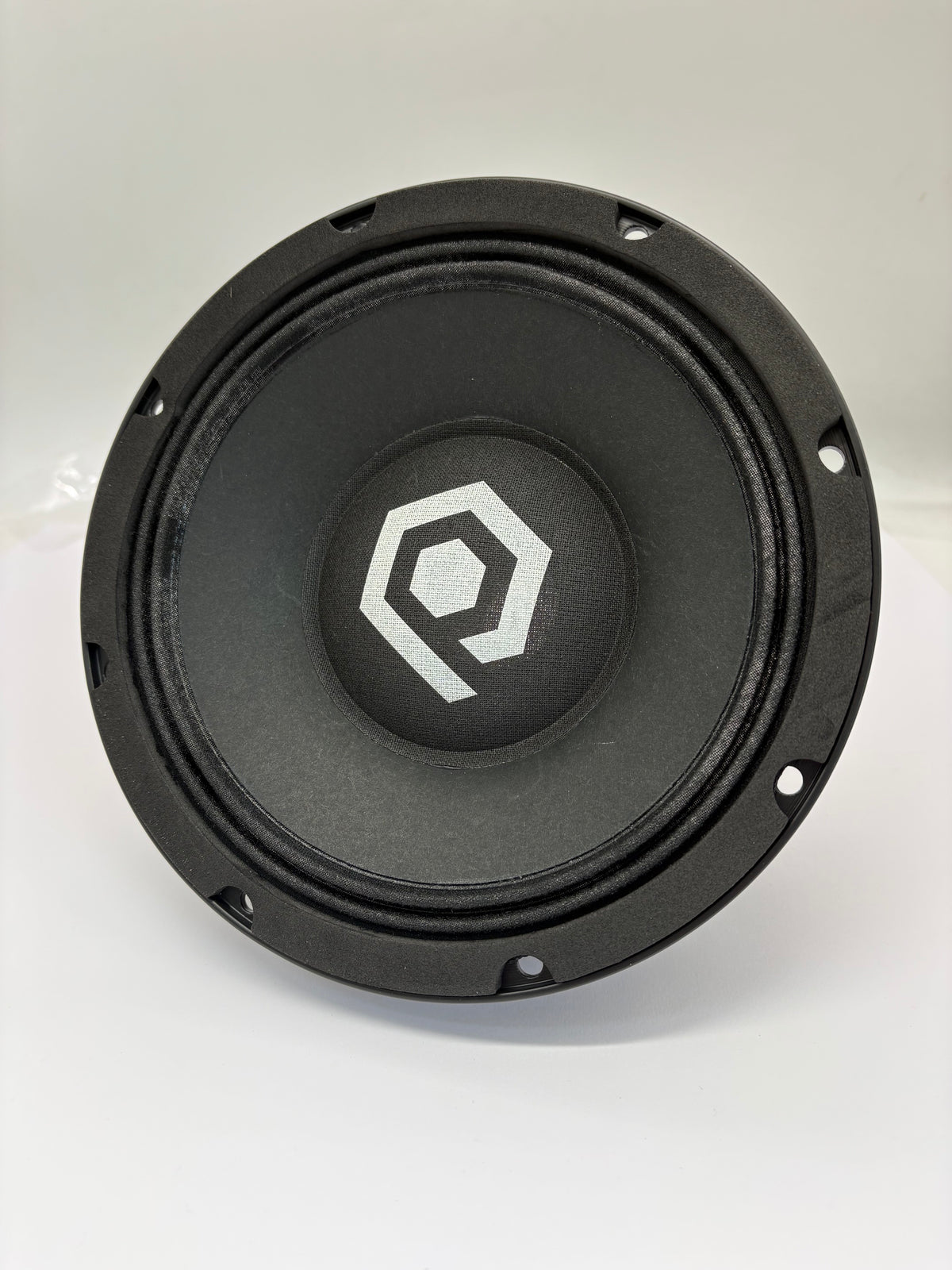

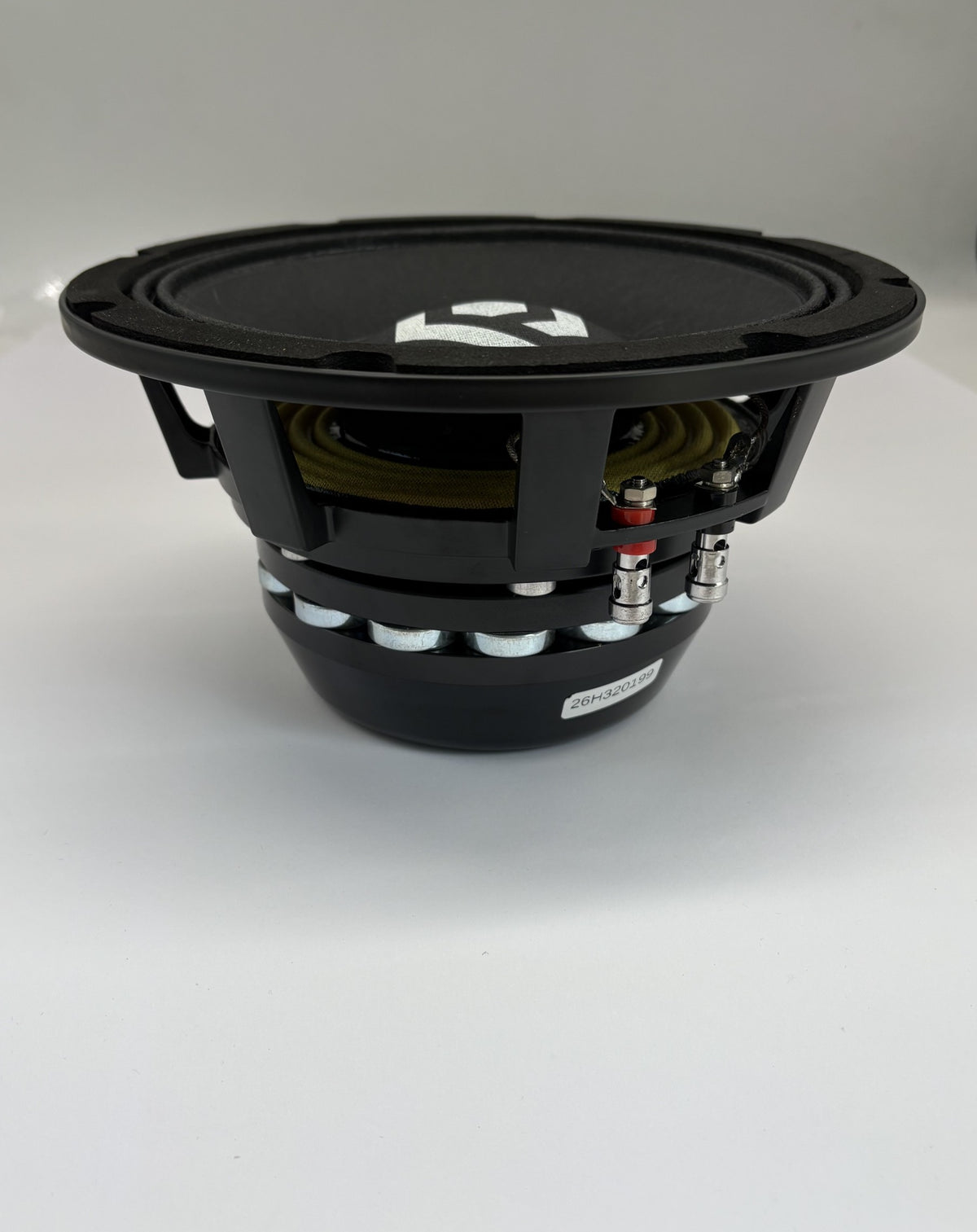

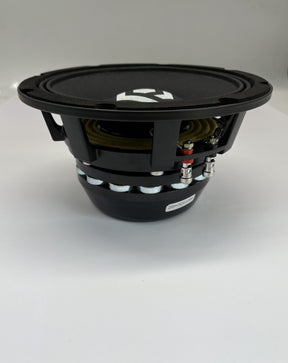

SoundQubed HDC 8" Midbass Speaker, 4 Ohm, 400W RMS / 800W Max

SoundQubed HDC 8" High-Power Midbass Speaker (HDCMB084)

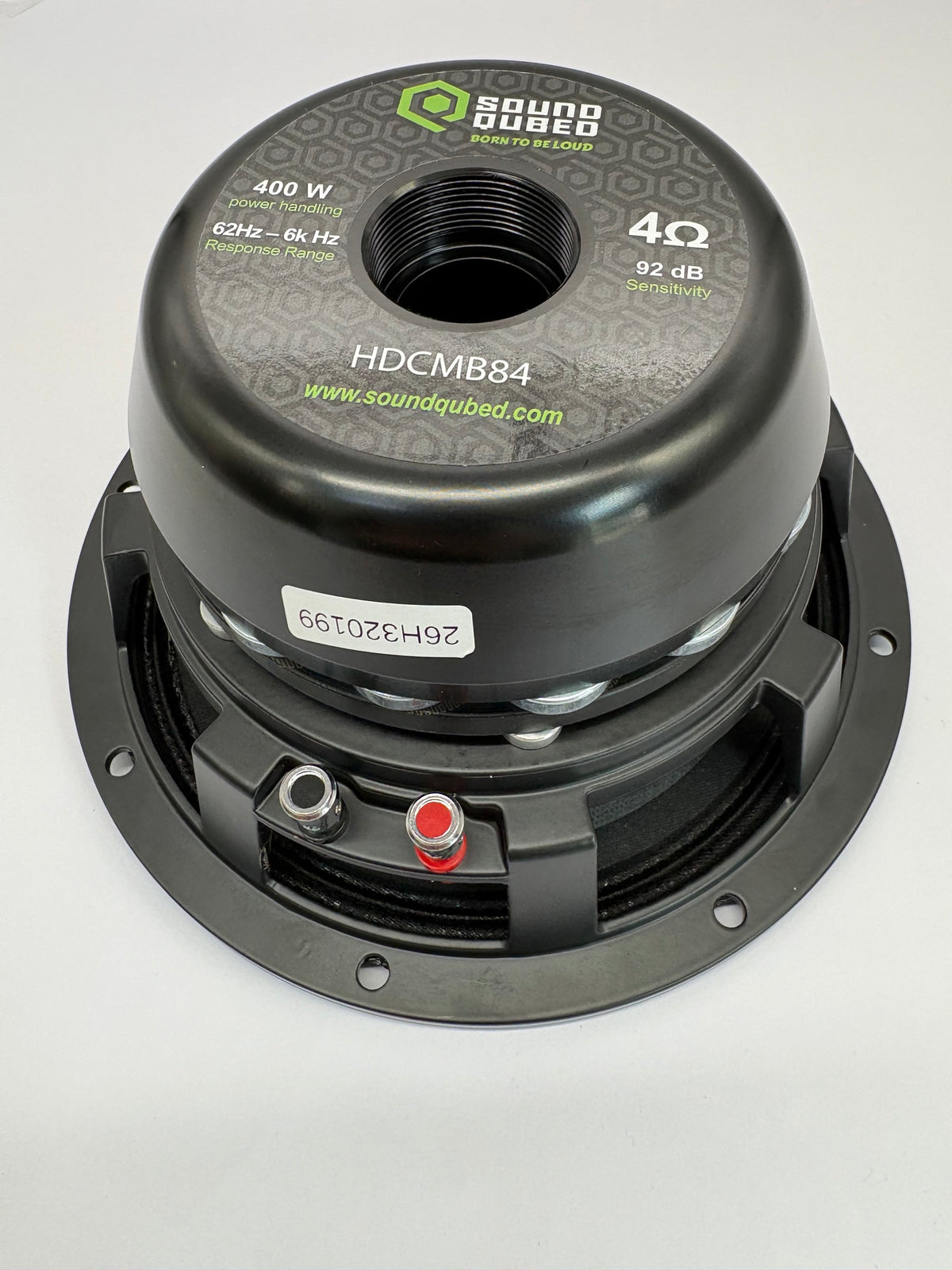

Coaxial enabled: the magnet is threaded to accept a 1" driver. The vocally transparent dust cap lets sound pass through while staying water resistant.

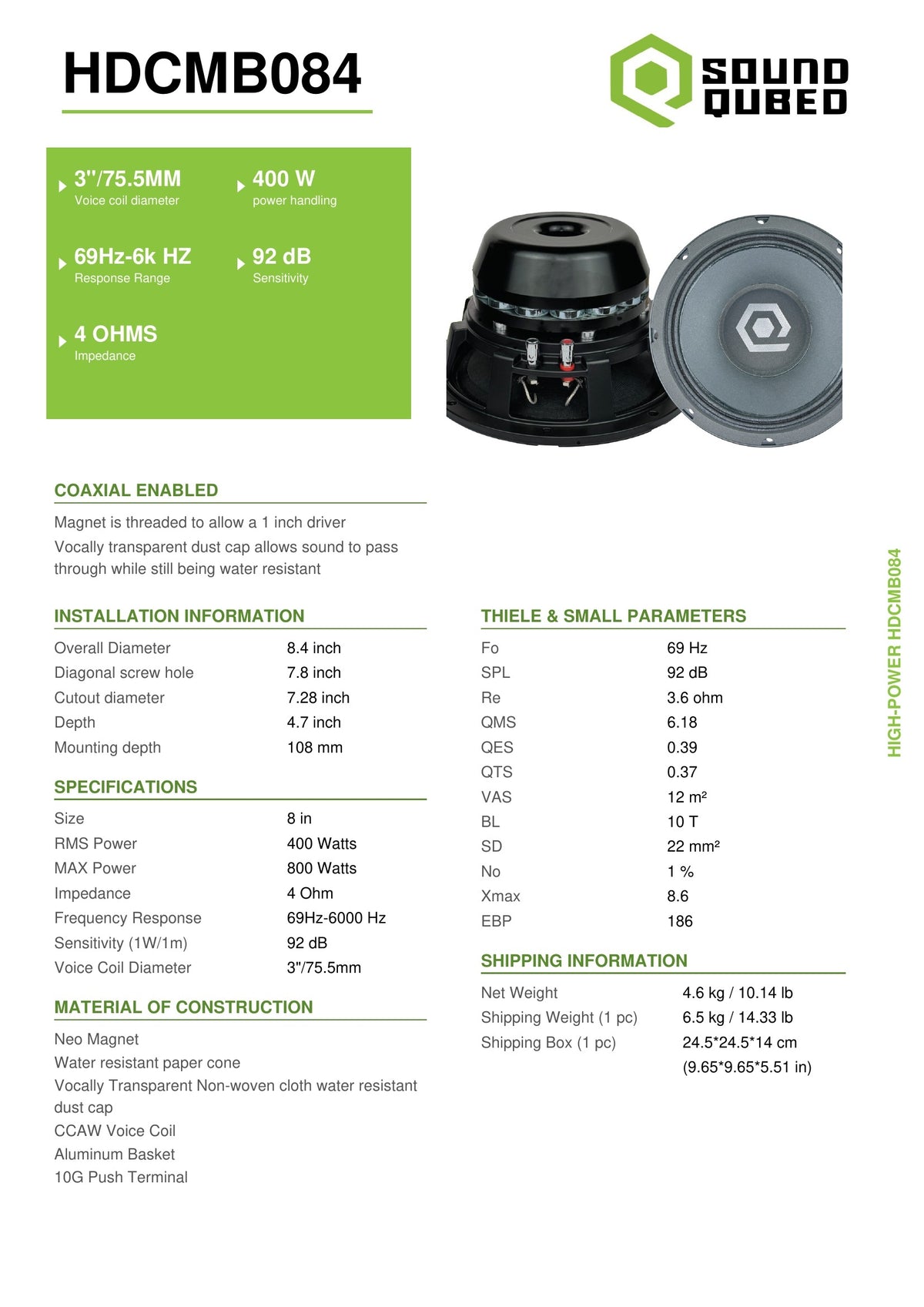

Specifications

• Size: 8 in
• RMS Power: 400 Watts
• Max Power: 800 Watts
• Impedance: 4 Ohm
• Frequency Response: 69 Hz - 6,000 Hz
• Sensitivity (1W/1m): 92 dB
• Voice Coil Diameter: 3" / 75.5 mm

Installation

• Overall Diameter: 8.4 in
• Diagonal Screw Hole: 7.8 in
• Cutout Diameter: 7.28 in
• Depth: 4.7 in (mounting depth 108 mm)

Construction

• Neo magnet, aluminum basket
• Water-resistant paper cone
• Vocally transparent, water-resistant non-woven cloth dust cap
• CCAW voice coil, 10 gauge push terminals
• Net Weight: 10.14 lb

Thiele/Small Parameters

• Fs: 69 Hz | Re: 3.6 ohm | Qms: 6.18 | Qes: 0.39 | Qts: 0.37
• BL: 10 T | Xmax: 8.6 | EBP: 186
