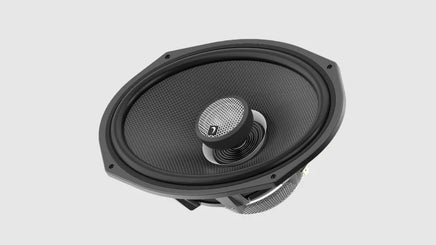

Diamond Audio HXM69FBK

6X9" 2-WAY HIGH OUTPUT MARINE SPEAKERS (2Ω OR 4Ω)

ALL WEATHER 6X9" MARINE SPEAKERS

SPECIFICATIONS:

HXM69FBK (2Ω OR 4Ω)

• SPEAKER SIZE - 6X9"
• POWER HANDLING RMS: 150
• POWER HANDLING MAX: 300
• SPEAKER TYPE - HORN LOADED Procoaxial
• OHMS (PER COIL) - 4Ω or 2Ω
• NUMBER OF VOICE COILS - SINGLE
• CONE MATERIAL - CARBON FIBER
• DIAPHRAGM MATERIAL - TITANIUM
• BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
• MAGNET TYPE - NEODYMIUM
• SURROUND MATERIAL - RUBBER
• WATER RESISTANCE -
• VOICE COIL DIAMETER - INCH (MM) - 2"
• THIELE/SMALL PARAMETERS
• SENSITIVITY (1W/1M): 94
• RE (Ω) [SERIES]: 2
• QMS: 3.759
• QES: 0.471
• QTS: 0.419
• FS (HZ): 69
• VAS (L): 23.014
• CMS (MM/N): 0.343
• MMS (G): 15.599
• SD (M2): 217.28
• BL (T*M): 5.348
• XMAX (MM): 3.25
• MOUNTING DEPTH: IN.(MM):3.10" (78.81MM)
• CUT OUT DIAMETER IN.(MM):8.51" (216.03MM)
• OVER ALL DIAMETER IN.(MM):9.46" (240.29MM)
• OVER ALL HEIGHT IN.(MM):3.58" (90.81MM)
