Stinger SRK-JK11HX : Wrangler Jk HORIZON10® Integration & Installation Kit

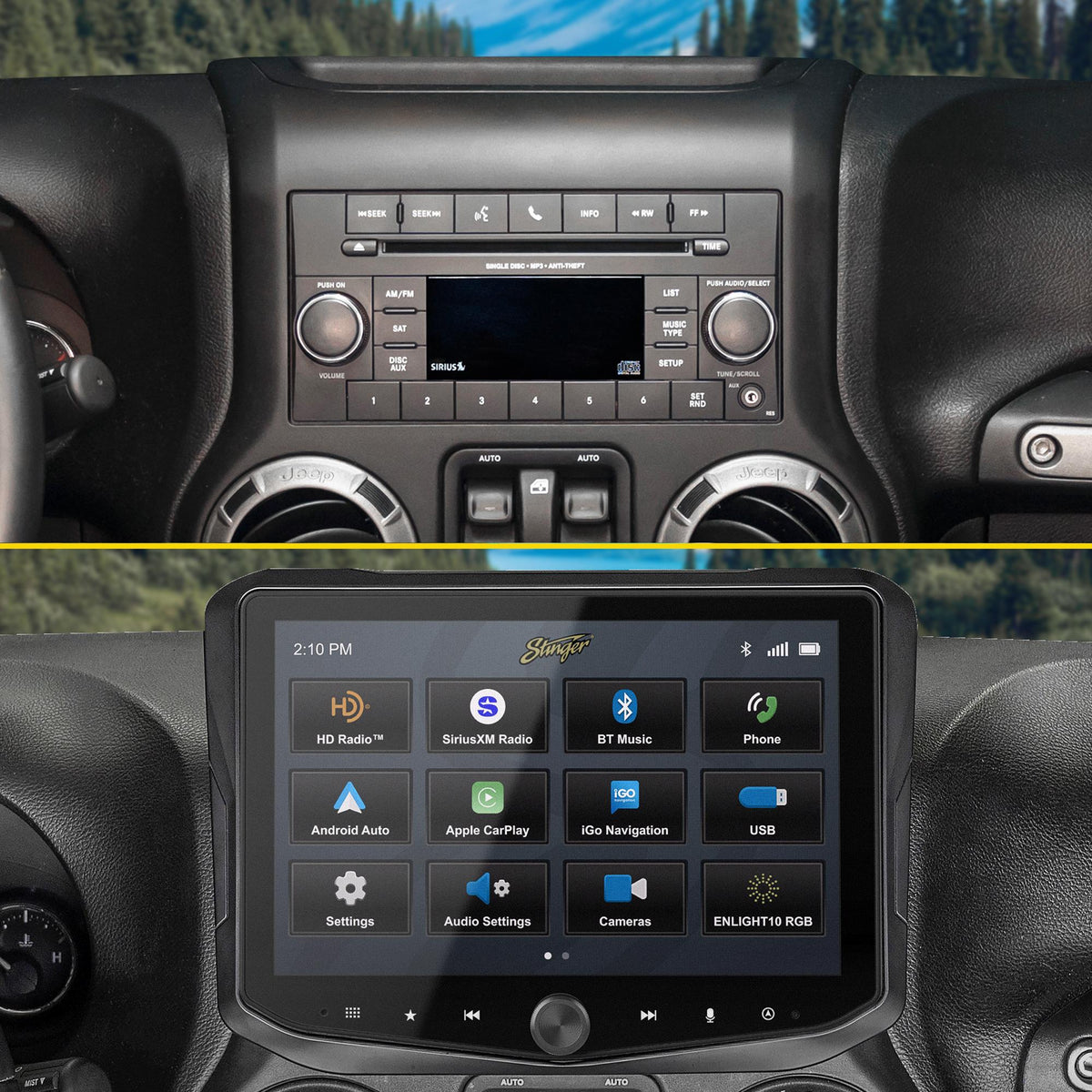

Introducing PAC’s RadioPRO Jeep Wrangler kit for Stinger’s HORIZON10 multimedia head unit. The SRK-JK11HX kit enables you to replace a Jeep Wrangler factory radio with a show-stopping HORIZON10 while
retaining OEM features and maintaining a flush, factory look and feel!

*IX210/HORIZON10 sold separately

*Compatible with UN1810/HEIGH10 head-unit

KEY FEATURES

• Enables on-screen gauges to monitor vehicle vitals such as battery voltage and coolant temp
• Enables off-road screen featuring pitch and roll
• Complete feature retention: warning chimes, steering wheel mounted radio controls, factory amplifier (if equipped)
• Vehicle-to-radio connectivity: vehicle speed, llumination, reverse, and parking brake signals
• USB and HDMI flush mount connection ports
• Complete plug-n-play system: no vehicle modifications needed!
• Flush-mounted plastics for a seamless OEM experience

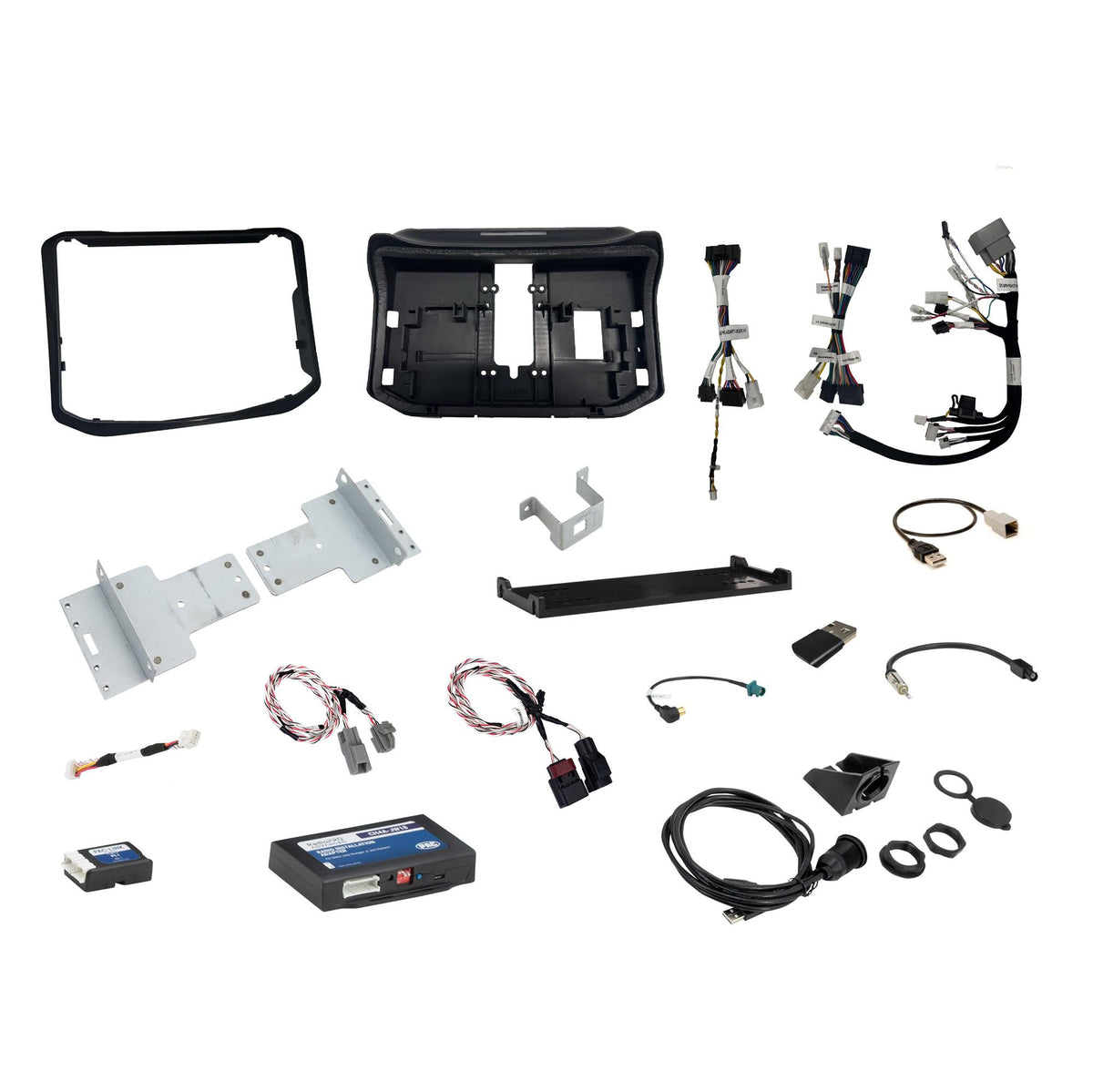

KIT INCLUDES EVERYTHING NEEDED FOR THE INSTALLATION

• Factory-matched radio mounting panels for HORIZON10 or HEIGH10
• CH1A-SRK RadioPRO for Jeep vehicles
• Complete plug-and-play installation harnesses
• Dash-mount USB and HDMI cable
• Adapters for satellite, AM/FM radio and factory USB retention (if equipped)

VEHICLE-SPECIFIC APPLICATION THAT ALLOWS USER CUSTOMIZATIONS

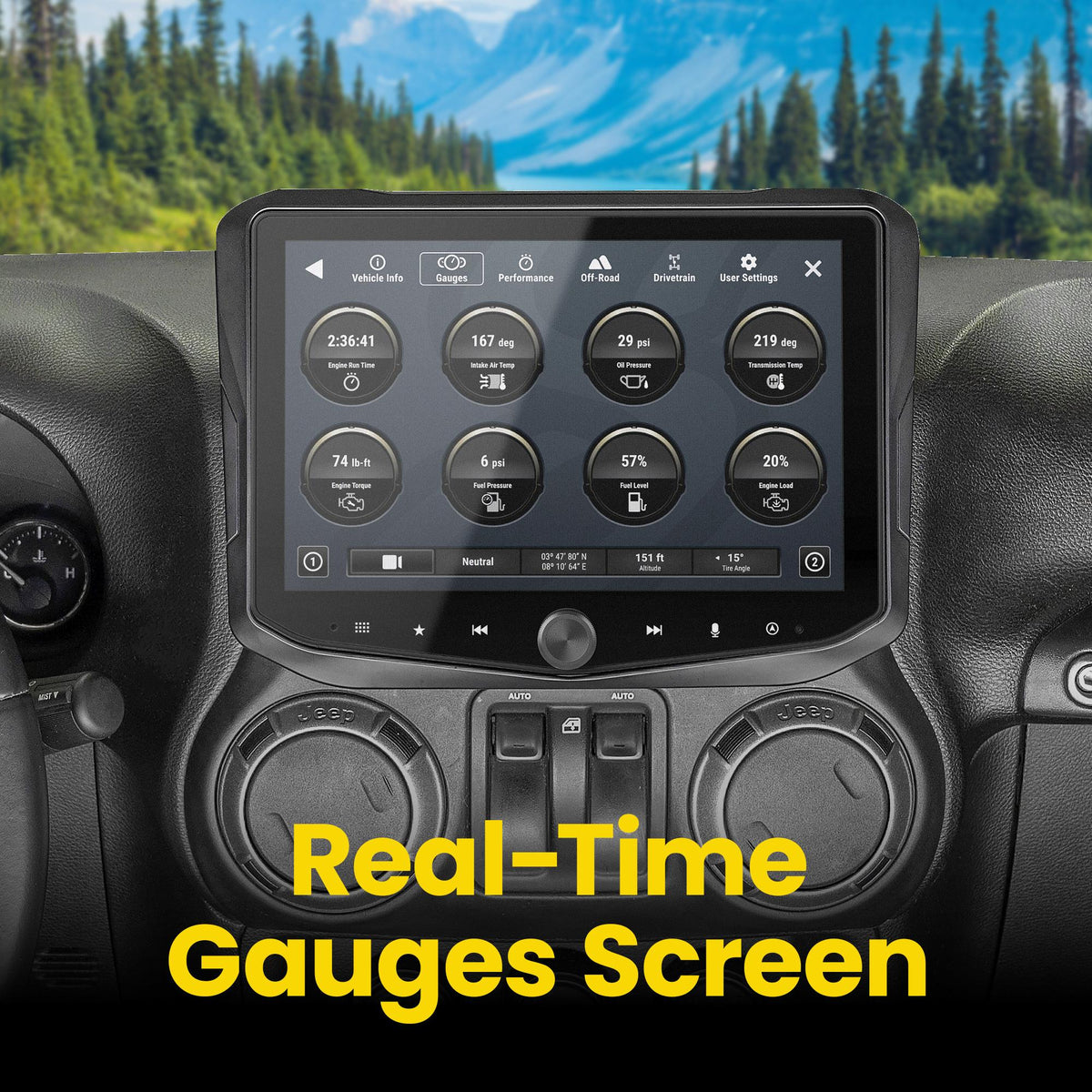

VEHICLE GAUGES*

• Eight gauges on screen, save up to 2 presets
• Battery Voltage
• Coolant Temperature
• Fuel Level

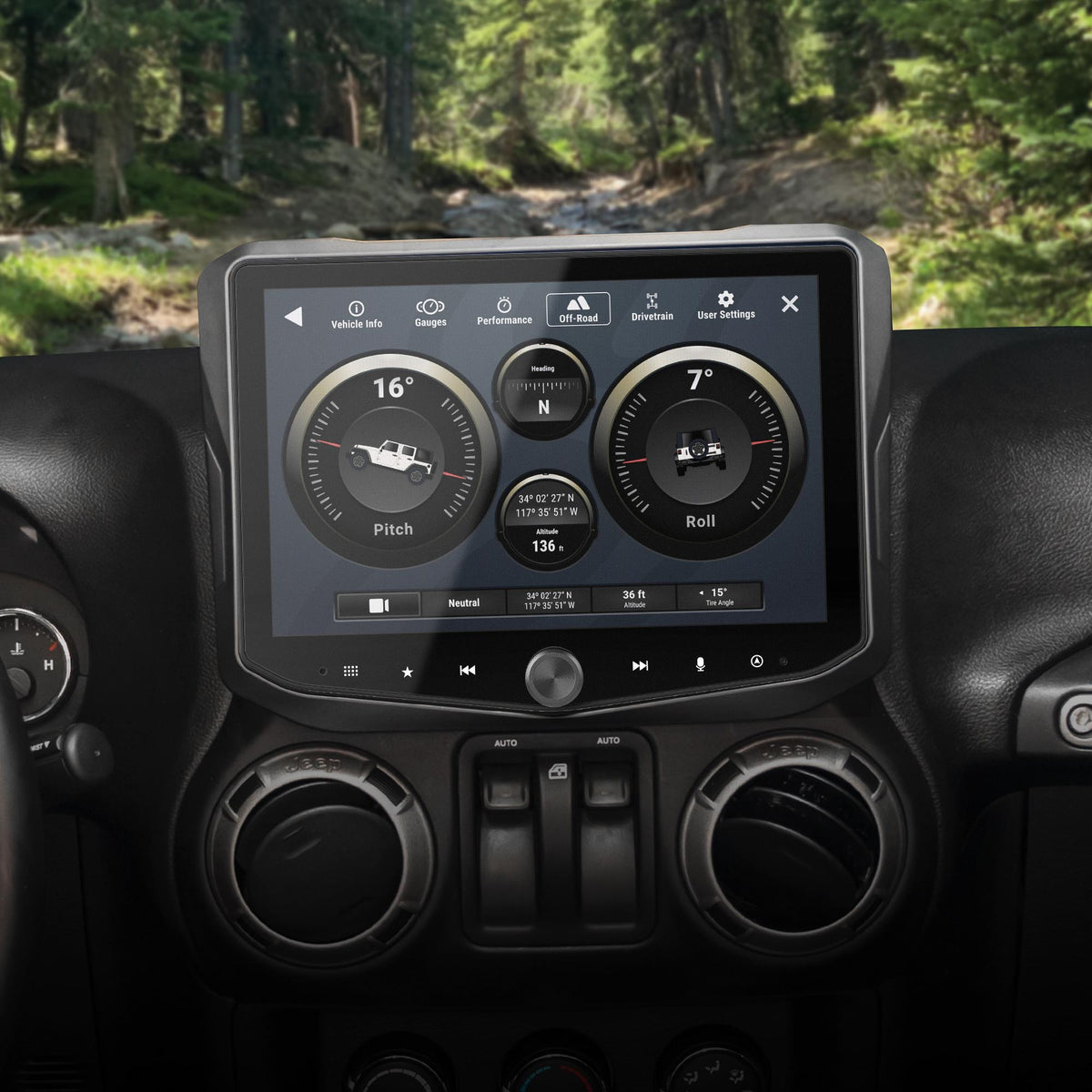

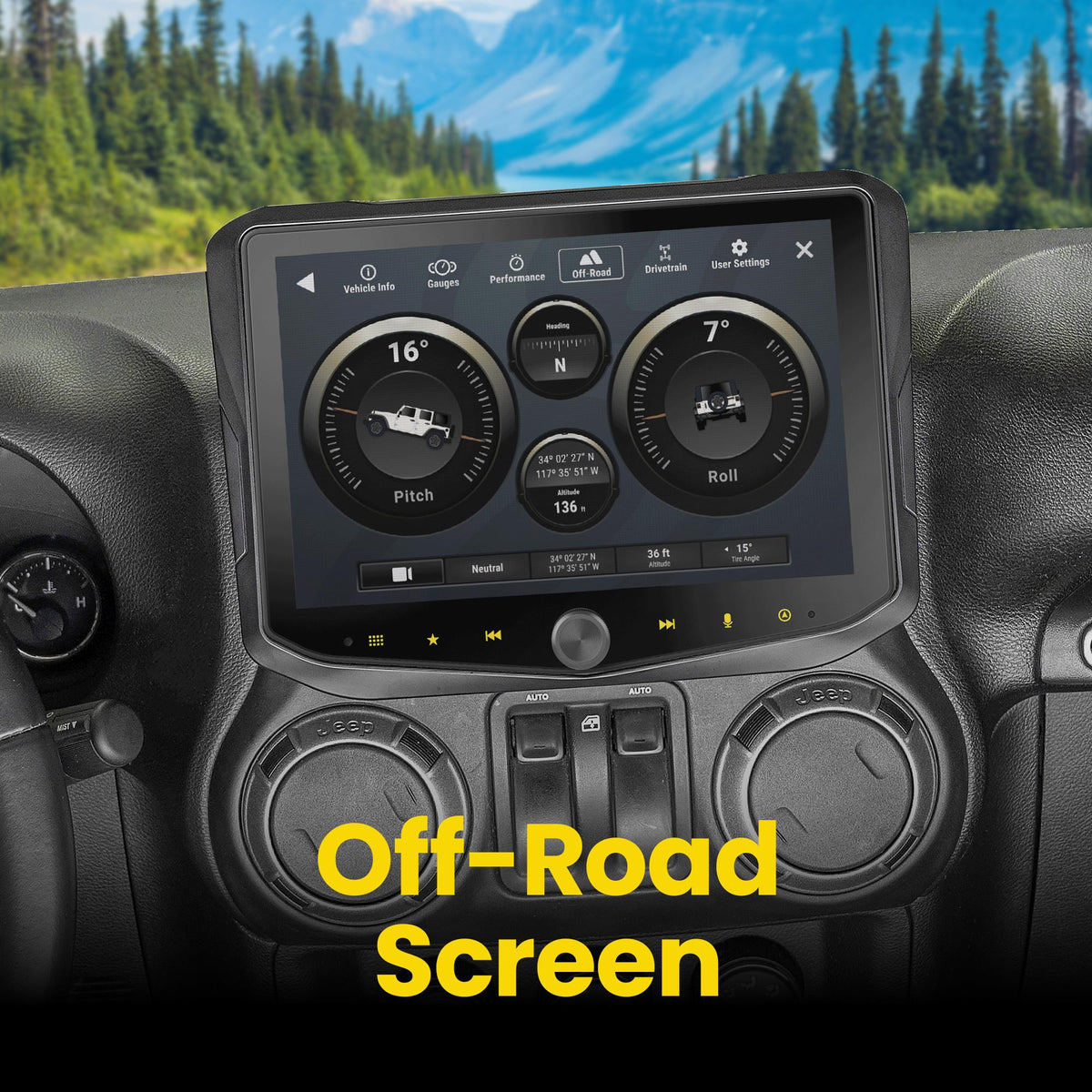

VEHICLE OFF-ROAD SCREEN

• Pitch
• Roll
• GPS coordinates
• Compass

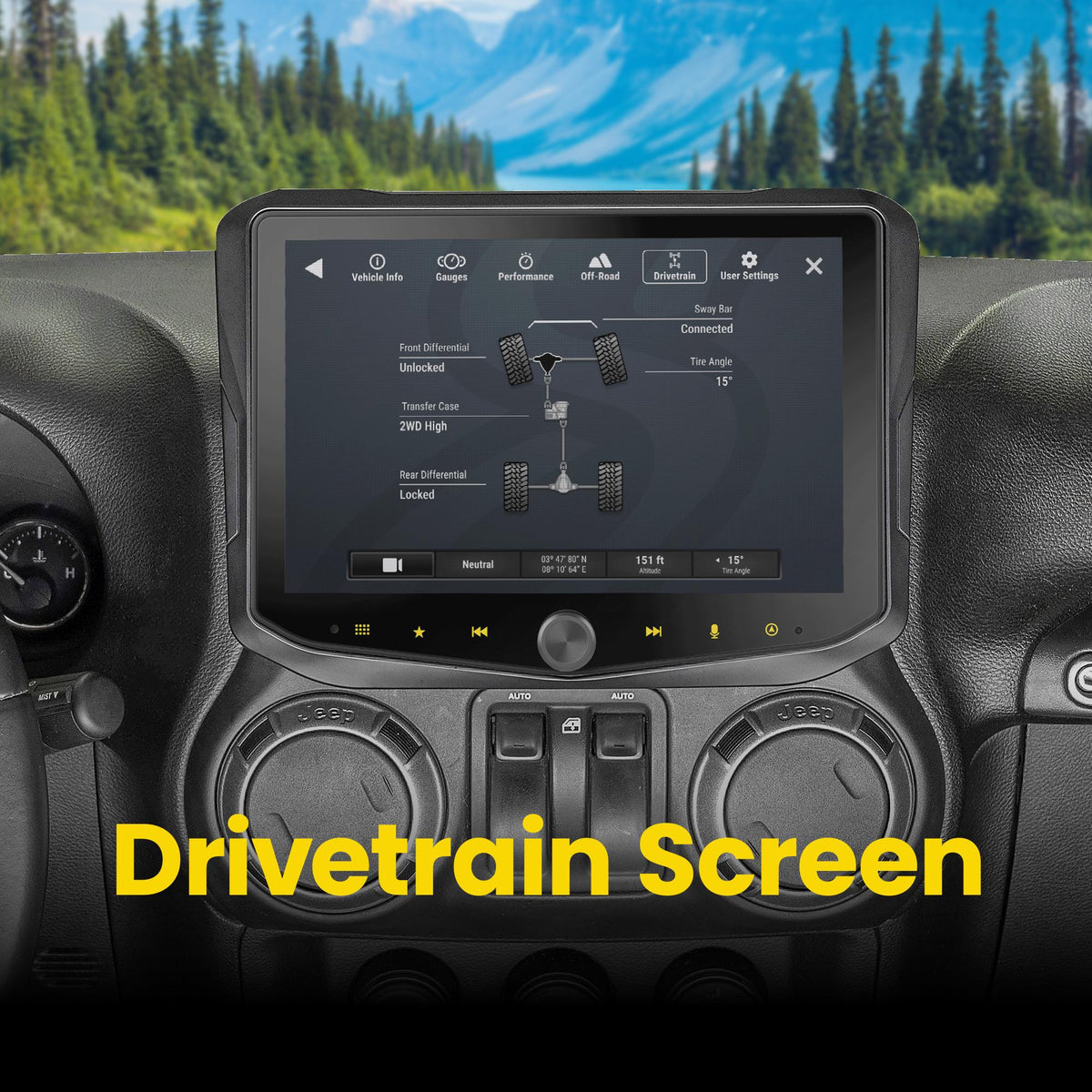

VEHICLE DRIVETRAIN SCREEN

• Enhanced with Jeep off-road data including:
• Axle and sway bar status
• Steering angle
• Current position (latitude/longitude)
• Altitude

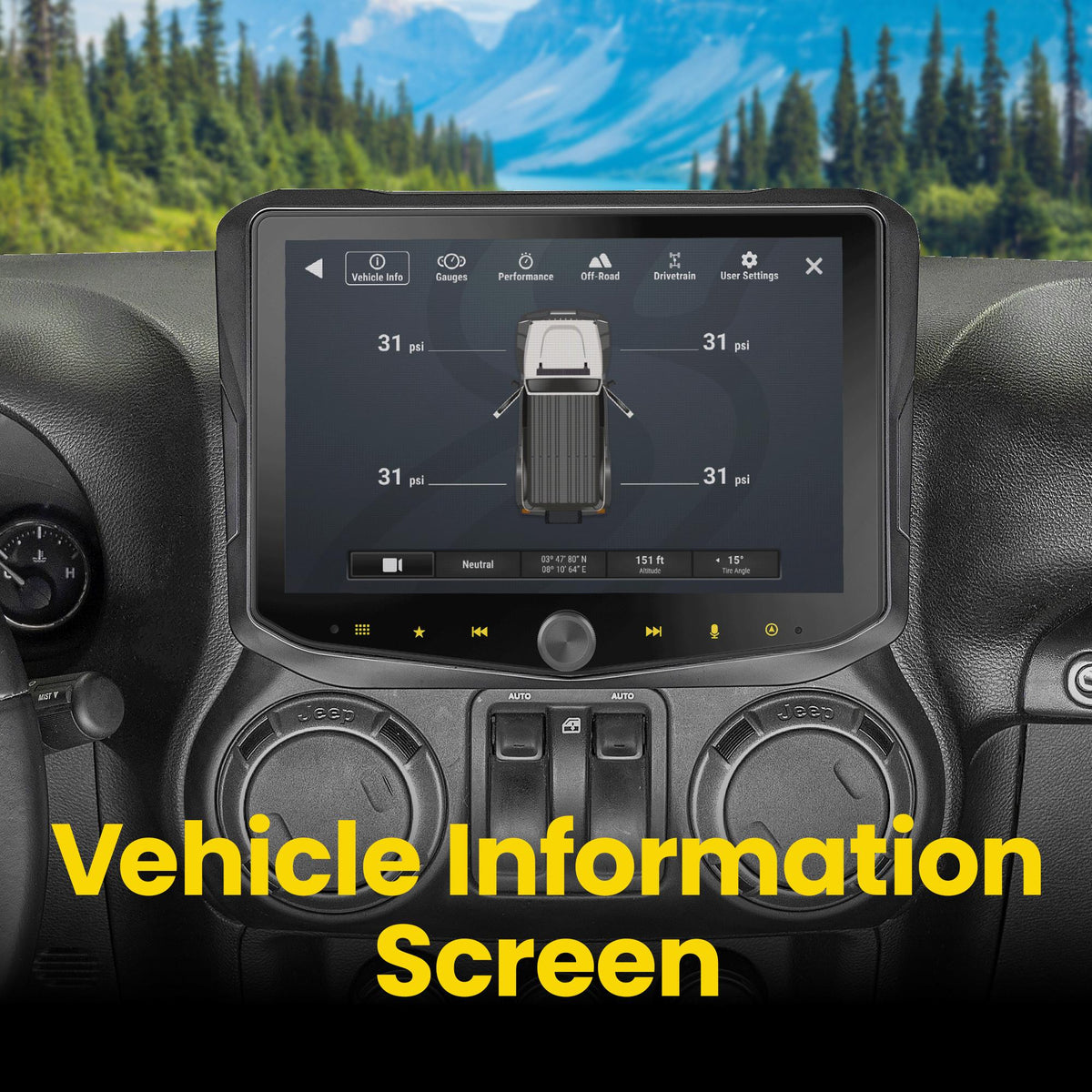

VEHICLE INFORMATION SCREEN

• Tire pressure
• Current vehicle status - door open/closed
• View and clear check engine status

ADDITIONAL FEATURES

• Turn-signal trigger override (touch display)
• Millisecond adjustment on time correction
• Graphical audio settings (X-over, factory EQ)
• Gain adjustment on crossover
• EQ-band level indicator (pop-up)
• Camera identification icons
• Apple CarPlay and Android Auto
• RGB tuning for color-matching illumination

*The following gauges are only available on 2012+ when data is present:
Engine Oil Pressure, Engine Oil Temperature
*Transmission Temperature only available with automatic transmission
Transmission Temp shows N/A when in Park and Neutral
Due to continual development, features and specifications are subject to change.
