Beyma | SKU:
Beyma 10G40
Regular price
$183.50
Unit price
Beyma 10G40 - 4 Ohm is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 1-3 days
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Beyma 10G40
Regular price
$183.50
Unit price
Beyma 10G40 - 4 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
- New Improved 10" Low Frequency Speaker
- 4 or 8 Ohms
- 45Hz-4.0kHz
- 400 Watts AES
- 800 Watts Program
- High 7.0mm Xmax
- Deep Warm Bass Sound With A Mellower Mid Sound
- Works Great In High Quality Bass Guitar Cabinets!
Specifications
| Nominal Basket Diameter | 10" / 250mm |
| AES Power Rating | 400 Watts |
| Program Power | 800 Watts |

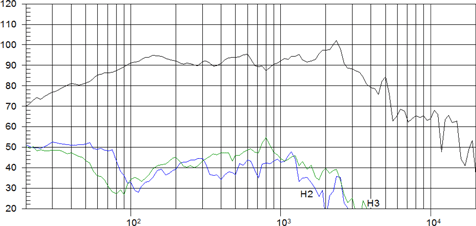

| Frequency Response | 45Hz - 4.0kHz |
| Sensitivity (1W/1m) | 95dB |
| Voice Coil Diameter | 3" / 77mm |
| Recom. Enclosure Volume | .7-2.6 ft3 / 20-70 Liters |
| Voice Coil Length | 17.5 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 28 mm |
| BL Factor | 17 N/A |
| Magnetic Assembly Weight | 11 lb. / 5 kg. |

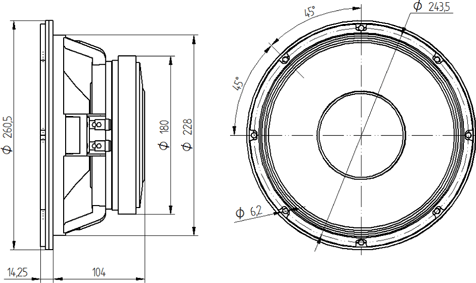

| Overall Diameter | 10.26" / 260.5mm |
| Bolt Circle Diameter | 9.59" / 243.5mm |
| - Front Mount | 8.98" / 228mm |
| - Rear Mount | 9" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.10 ft3 / 3 Liters |
| Overall Depth | 4.72" / 120mm |
| Net Weight | 12.5 lb. / 5.7 kg. |
| Shipping Weight | 13.2 lb. / 6 kg. |
| Basket | Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Copper Wire |
| Magnet | High Currie Temperature Ferrite |
| Resonant Frequency (fs) | 45 Hz |
| Coil Inductance (Le) | .6 mH |
| Mechanical Q (Qms) | 7.1 |
| Electrical Factor (Qes) | .32 |
| Total Q (Qts) | .3 |
| Comp. Equivalent Vol. (Vas) | 1.73 ft3 / 49 Liters |
| Voice Coil Overhang (Xmax) | 7.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0380m2 |
| Diaphragm Mass (Mms) | 52 Grams |
| Mechanical Compliance of Suspension (Cms) | .24mm/M |
| Reference Efficiency | 1.4% |
| Displacement Volume (Vd) | 266 cm3 |
