Beyma | SKU:
Beyma 10NMFS
Regular price
$434.75
Unit price
Beyma 10NMFS is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 1-3 days
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.

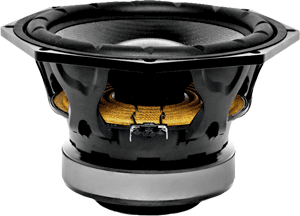

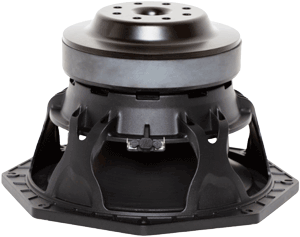

Beyma 10NMFS
Regular price
$434.75
Unit price
Beyma 10NMFS is backordered and will ship as soon as it is back in stock.
Description
Description
- New Powerful 10" Mid-Bass / Bass Speaker
- 8 Ohms
- DUO Inner/Outer Voice Coil
- 30Hz-2kHz
- 350 Watts AES
- 700 Watts Program
- High 14.5mm Xmax
- Triple Aluminum Demodulation Rings For Low Distortion
- Carbon Fiber Cone & Dustcap
- X Damage of 50mm(Peak To Peak)
- Very Tight Strong Bass & Clear Loud Mids!
Specifications
| Nominal Basket Diameter | 10" / 250mm |
| Impedance | 8 ohms |
| AES Power Rating | 350 Watts |
| Program Power | 700 Watts |
| Frequency Response | 30Hz - 2kHz |
| Sensitivity (1W/1m) | 90dB |
| Voice Coil Diameter | 2.5" / 62.4mm |
| Voice Coil Length | 32 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 50 mm |

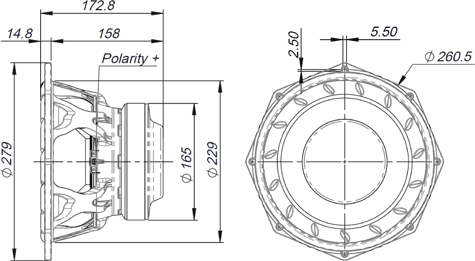

| Overall Diameter | 10.98" / 279mm |
| Bolt Circle Diameter | 10.26" / 260.5mm |
| - Front Mount | 9" / 229mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.07 ft3 / 2 Liters |
| Overall Depth | 6.8" / 172.8mm |
| Net Weight | 14.33 lb. / 6.5 kg. |
| Shipping Weight | 15.9 lb. / 7.2 kg. |
| Basket | Cast Aluminum |
| Cone | Carbon Fiber |
| Dustcap | Carbon Fiber |
| Spider | Copper |
| Voice Coil | Quattro Inside/Outside Aluminum |
| Spider | Double Bimax |
| Surround | NBR |
| Demodulation Ring | 3 Aluminum & Copper |
| Magnet | Ferrite |
| Resonant Frequency (fs) | 35 Hz |
| Impedance (Re) | 5.9 ohms |
| Coil Inductance (Le) | 1.49 mH |
| Mechanical Q (Qms) | 5.9 |
| Electrical Factor(Qes) | .45 |
| Total Q (Qts) | .42 |
| Comp. Equivalent Vol. (Vas) | 1.459 ft3 / 45 Liters |
| Voice Coil Overhang (Xmax) | 14.5mm |
| Moving Mass (Mms) | 89 Grams |
| Effective Surface Area (Sd) | .0370 m2 |
| Reference Efficiency | .42% |
| BL Factor | 16N/A |
| Displacement Volume (Vd) | 536 cm3 |
