Beyma

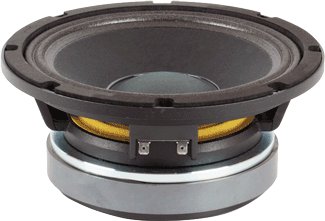

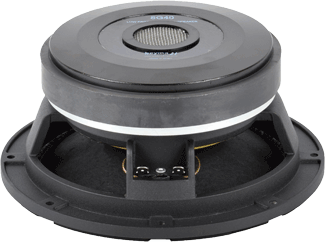

Beyma 8G40

$133.95

Impedance

4 Ohm 8 Ohm

Pickup available at Audio Hoggz

Usually ready in 1-3 days

Delivery and Shipping

Please allow 2-3 business days for shipments to process.

Nominal Basket Diameter	8" / 200mm
AES Power Rating	250 Watts
Program Power	500 Watts

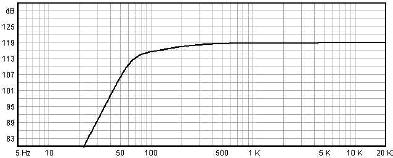

Frequency Response	65Hz - 6.0kHz
Sensitivity (1W/1m)	95dB
Voice Coil Diameter	2.5" / 62.4mm
Recom. Enclosure Volume	.35-1.06 ft3 / 10-30 Liters
Voice Coil Length	16 mm
Air Gap Height	7 mm
X Damage (peak to peak)	23 mm
BL Factor	12.2 N/A
Magnetic Assembly Weight	6.6 lb. / 3 kg.
Overall Diameter	8.35" / 212mm
Bolt Circle Diameter	7.8" / 198mm
- Front Mount	7.125" / 181mm
- Rear Mount	7.125" / 181mm
No. Of Mounting Holes	8
Volume Displaced By Driver	0.05 ft3 / 2 Liters
Overall Depth	3.78" / 96mm
Net Weight	7.26 lb. / 3.3 kg.
Shipping Weight	7.6 lb. / 3.45 kg.
Basket	Die-Cast Aluminum
Cone	Paper
Spider	Treated Cotton Fiber
Surround	Treated Cloth
Voice Coil	Aluminum Wire
Former	Fiber Glass
Metal Parts	Anti-Corrosion
Magnet	High Currie Temperature Ferrite
Resonant Frequency (fs)	70 Hz
Coil Inductance (Le)	1.3 mH
Mechanical Q (Qms)	6.83
Electrical Factor (Qes)	.38
Total Q (Qts)	.36
Comp. Equivelant Vol. (Vas)	.6 ft3 / 17 Liters
Voice Coil Overhang (Xmax)	6.5 mm
Surface Area of Cone (Sd)m2	0.0220m2
Diaphragm Mass (Mms)	21 Grams
