Beyma | SKU:
Beyma CP22FB
Regular price
$139.95
Unit price
Beyma CP22FB is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 1-3 days
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Beyma CP22FB
Regular price
$139.95
Unit price
Beyma CP22FB is backordered and will ship as soon as it is back in stock.
Description
Description
- New 1" H.F. Bullet Tweeter
- Powdered Coated Black Matte Finish
- 8 Ohms
- Improved Power Handling
- 35 Watts RMS
- 70 Watts Program
- 107dB SPL
- 40° Conical Dispersion
- 1.5" Aluminum Edgewound Voice Coil
- Ferro Fluid Cooled
- Extremely smooth sounding
- Awesome Supertweeter In Bass Guitar Cabinets
Specifications
| H.F. DRIVER MODEL | CP22FB |
| Impedance | 8 ohms |
| Minimum Impedance | 8 ohms @ 10 kHz |
| D.C. Resistance | 6.3 ohms |
| AES Power Rating | 35 Watts |
| Program Power | 70 Watts |
| Sensitivity (1W/1m) | 107dB SPL |

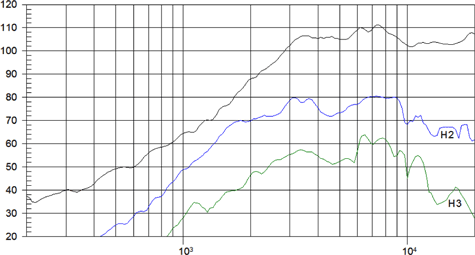

| Frequency Response | 5kHz - 20kHz |
| Recommended Crossover | 5.0 kHz or higher |
| Dispersion (H x V) | 40° Conical |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Flux Density | 1.55T |
| BL Factor | 5.2 N/A |

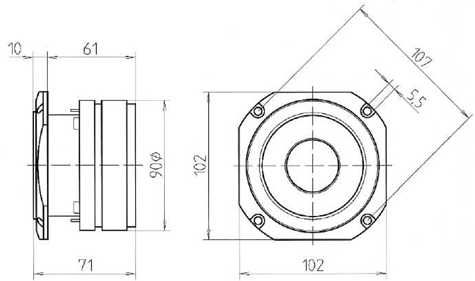

| Overall Diameter | 4" x 4" / 102mm x 102mm |
| Overall Depth | 2.79" / 71mm |
| Baffle Cutout Dimensions | 3.62" / 92mm |
| Bolt Circle Diameter | 4.21" / 107mm |
| Net Weight | 3.5 lb. / 1.6 kg. |
| Shipping Weight | 3.75 lb. / 1.7 kg. |
| Diaphragm | Aluminum |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Cooling | Ferro Fluid |
| Finish | Powder Coated Black Matte |
| Magnet | Ferrite |
