Ciare | SKU:

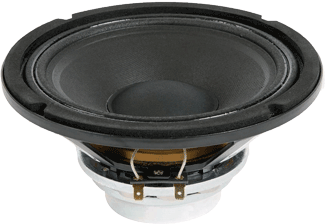

Ciare NDi8.50W
Regular price
$163.68
Unit price
Ciare NDi8.50W is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 1-3 days
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Ciare NDi8.50W
Regular price
$163.68
Unit price
Ciare NDi8.50W is backordered and will ship as soon as it is back in stock.
Description
Description
- New 8" High Quality Midrange / Mid-Bass Speaker
- Lightweight Neodymium Magnet
- Wide Frequency Range From 70Hz-5.5kHz
- High 4.5mm Xmax
- 220 Watts AES
- 450 Watts Program
- Available In 8 Ohms
- High Motor Strength (BL) of 12.8T-M For A Tight Controlled Cone
- Loud Midrange That Is Super Clean & Detailed W/ Tight Mid-Bass
- Great For All Midrange / Mid-Bass Speaker Applications!
Specifications
| SPEAKER MODEL | NDi8.50W |
| Nominal Basket Diameter | 8" / 200mm |
| Impedance | 8 ohms |
| AES Power Rating | 220 Watts |
| Program Power | 450 Watts |

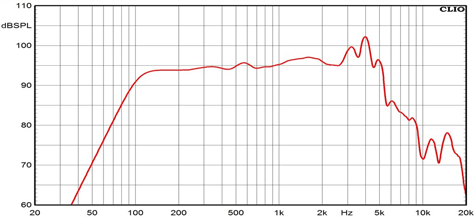

| Frequency Response | 70Hz - 5.5kHz |
| Sensitivity (1W/1m) | 96dB SPL |
| Voice Coil Diameter | 2" / 50mm |

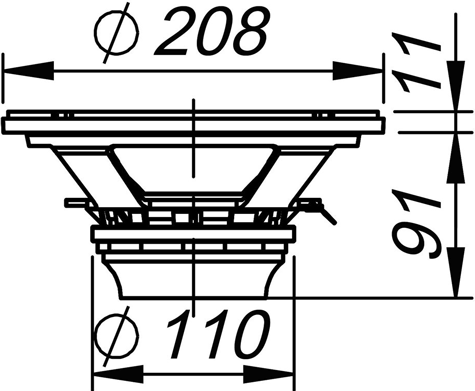

| Overall Diameter | 8.19" / 208mm |
| Bolt Circle Diameter | 7.64" / 194mm |
| Baffle Cutout Diameter | 7.28" / 185mm |
| Depth | 4.02" / 102mm |
| No. Of Mounting Holes | 4 |
| Mounting Hole Diameter | .2" / 5mm |
| Flange Thickness | .43" / 11mm |
| Net Weight | 3.1 lbs./ 1.41 kg. |
| Basket | Cast Aluminum |
| Cone | Doped Cellulose Fiber |
| Surround | Nomex Fabric |
| Surround Shape | Two Roll |
| Suspension Material | Nomex Fabric |
| Spider | Cotton Fabric |
| Voice Coil | Aluminum |
| Former | Aluminum |
| Magnet | Neodymium |
| Resonant Frequency (fs) | 81 Hz |

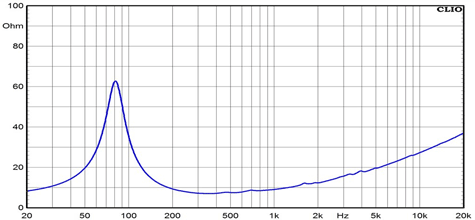

| Impedance (Re) | 5.8 ohms |
| Electrical Factor(Qes) | .36 |
| Mechanical Q (Qms) | 3.5 |
| Total Q (Qts) | .33 |
| Compliance Equiv. Vol. (Vas) | 13 Liters/.46 cu. ft. |
| Voice Coil Overhang (Xmax) | 4.5mm |
| BL Factor | 12.8 T-M |
| Diaphragm Mass (Mms) | 19.5 grams |
| Surface Area of Cone (Sd)m2 | 0.0227m2 |
| Reference Efficiency (%) | 1.9% |
| Coil Inductance (Le) | .6mH |
