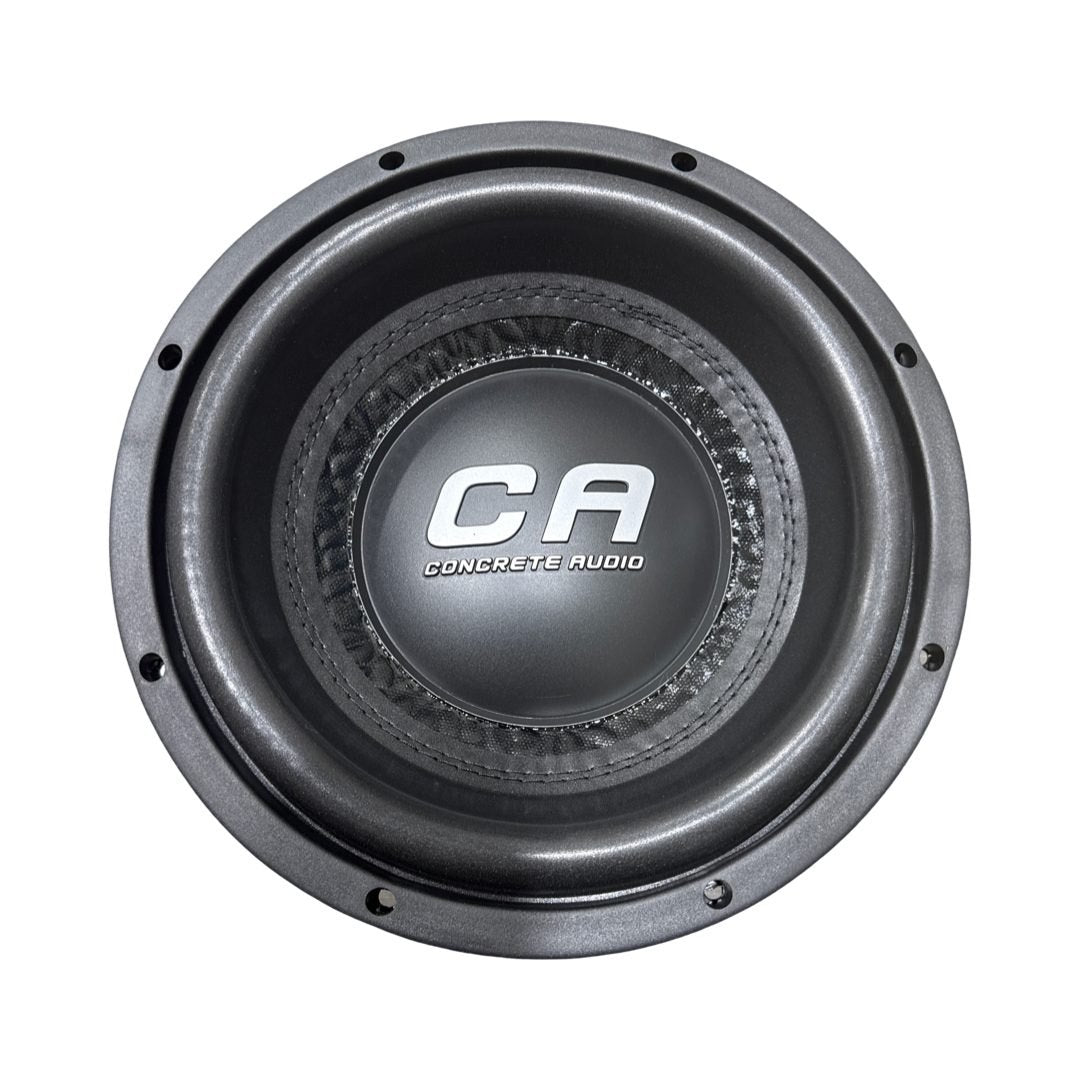

Concrete Audio C010S4V2

C010S4V2

Nominal Diameter (inch): 10

Black Finished Stamped Steel Basket

Hard Paper Cone with Stitched Foam Surround

2.5 inch High Temp Voice Coil

2 * 50 oz High Grade Magnet

4 ohms

Power 400 Watts RMS

Cut out: 9″
Mounting depth: 5.75″
Outer Diameter 10.3/8″
Magnet Diameter 6.3/8″
SPL: 81.47 1W/1m
R(e): 3.356 Ohms
Q(ts): 0.5894
Q(es): 0.6377
Q(ms): 7.784
L(e): 1.478 mh(10k)
M(ms): 240.5 grams
V(as): 0.3975 cu ft

Enclosure Spec’s

1.25 CUBIC FEET NET
12.5 SQUARE INCH PORT
20 INCHES DEEP
MUST ADD PORT DISPLACEMENT TO REAR CHAMBER
SPEAKER DISPLACEMENT 0.04 CUBIC FEET
MUST ADD SPEAKER DISPLACEMENT TO REAR CHAMBER
