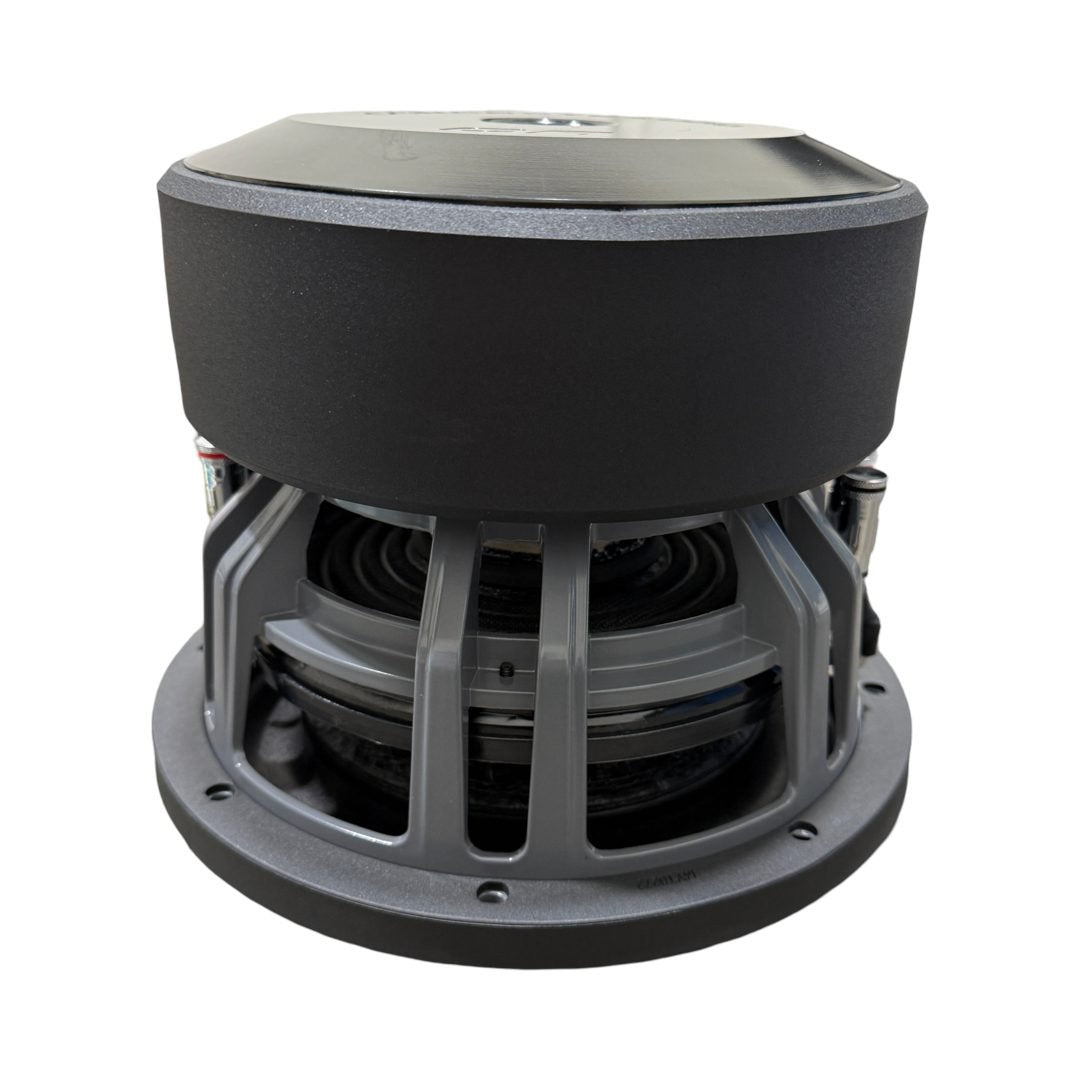

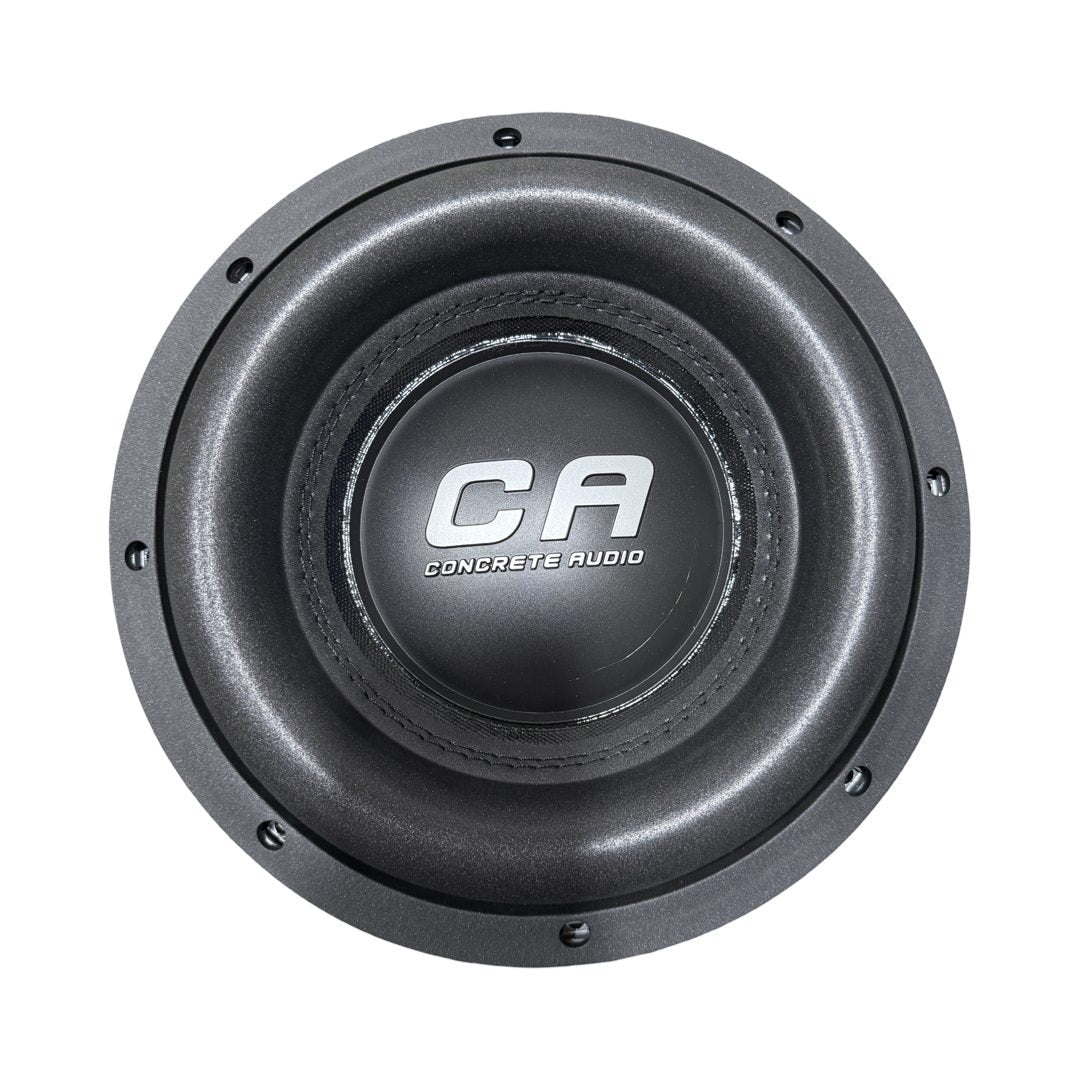

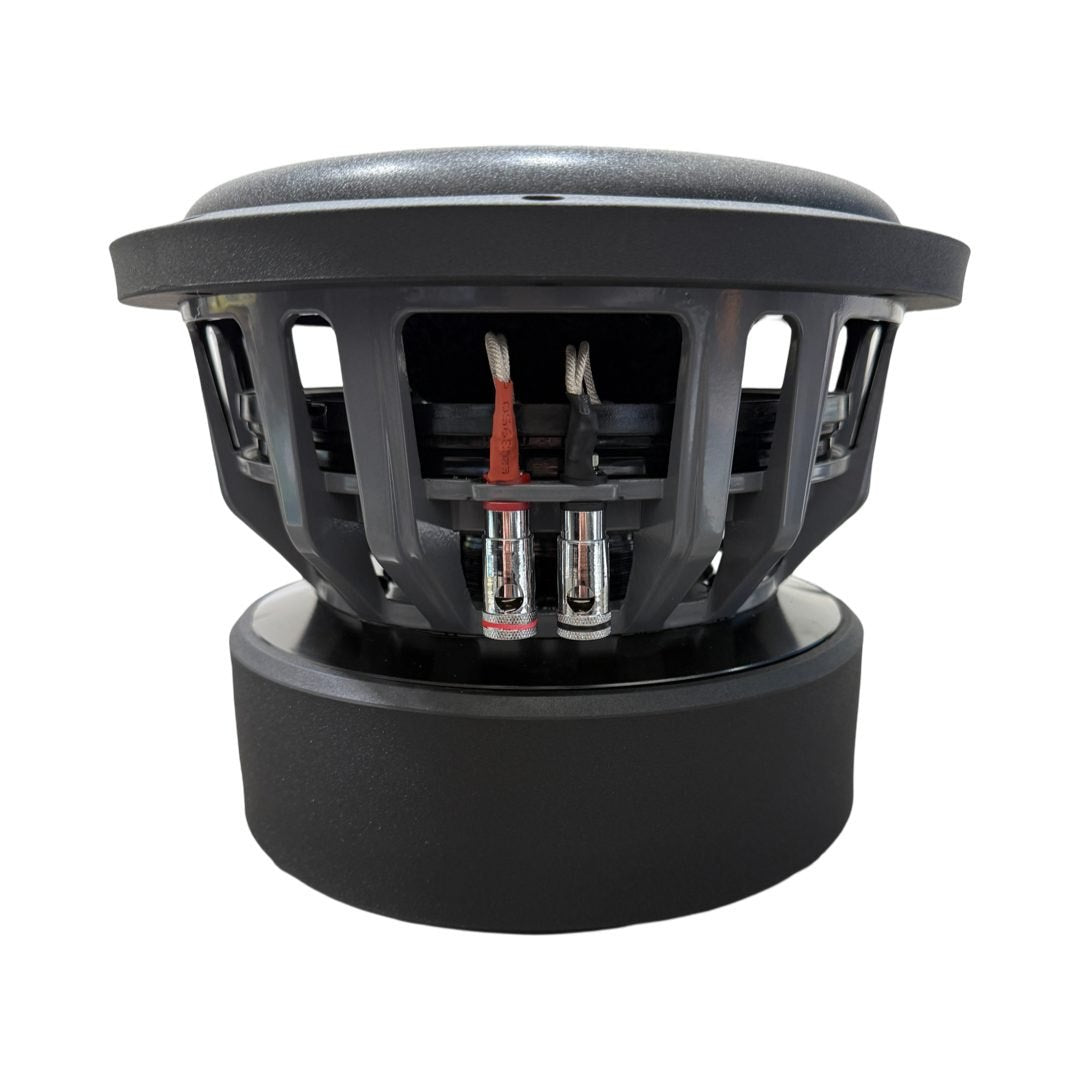

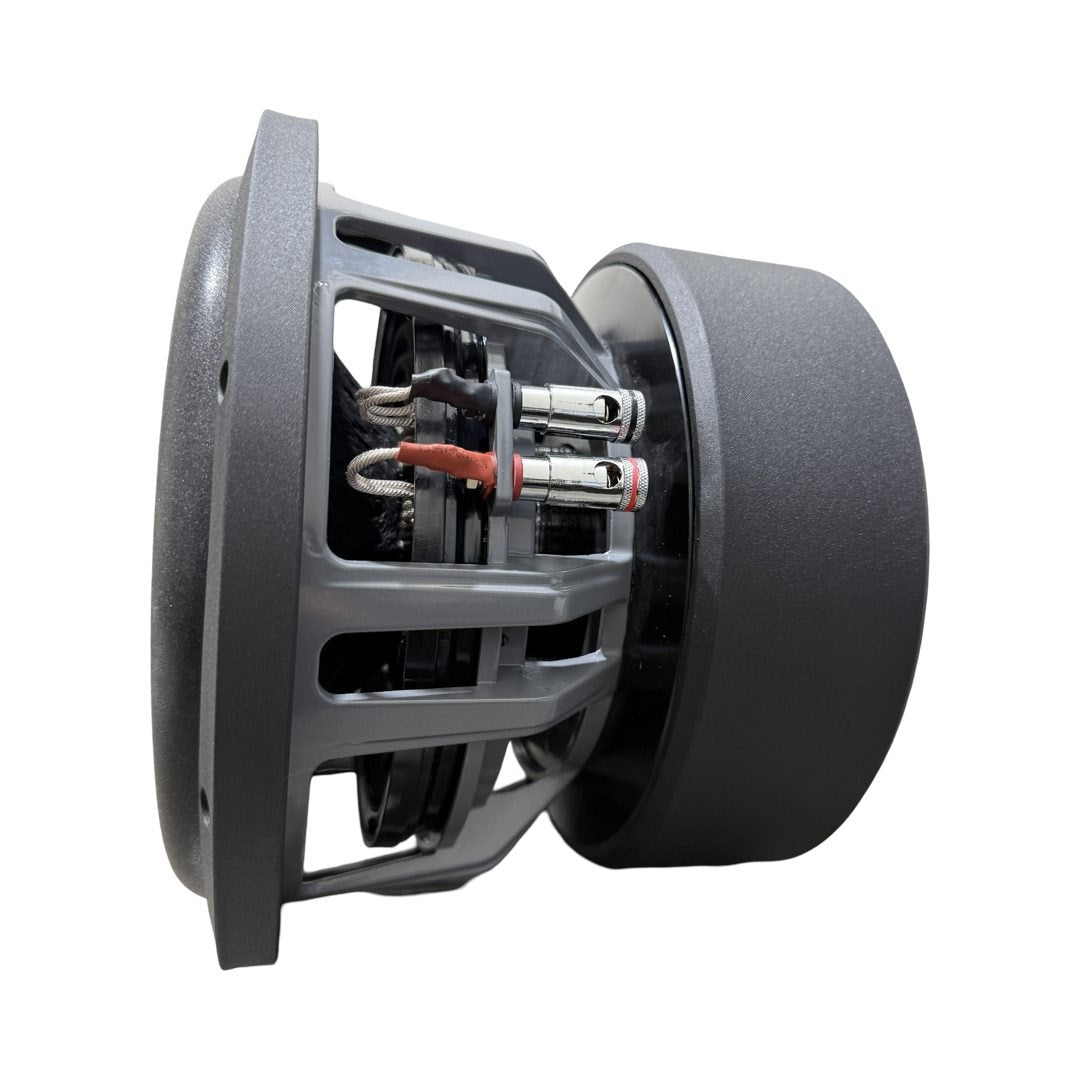

Concrete Audio C310LD4-USAVC

C310LD4-USA Voice Coil

C310LD2
10″ Subwoofer
Gloss Grey Die Cast Aluminum Basket
High Roll Foam Surround Double Stitched
Triple Joint Ring For Reinforced Connection Of Voice Coil to Spider
2 Layer Nomex Spider With Bolt Down Ring
3″ High Temp USA Voice Coil
3-100 Oz High Grade Magnet
Dual 4 Ohm
1000 Watts RMS 2500 Watts Max
Outer Diameter 10.75″
Mounting Depth 7 3/8″
Cut Out 9.25″
Magnet Diameter 8 7/8″ (With Boot)

Box Specs

1.5 CUBIC FEET NET
18.5 SQUARE INCH PORT
24 INCHES DEEP
MUST ADD PORT DISPLACEMENT TO REAR CHAMBER.
SPEAKER DISPLACEMENT 0.09 CUBIC FEET
MUST ADD SPEAKER DISPLACEMENT TO REAR CHAMBER.
