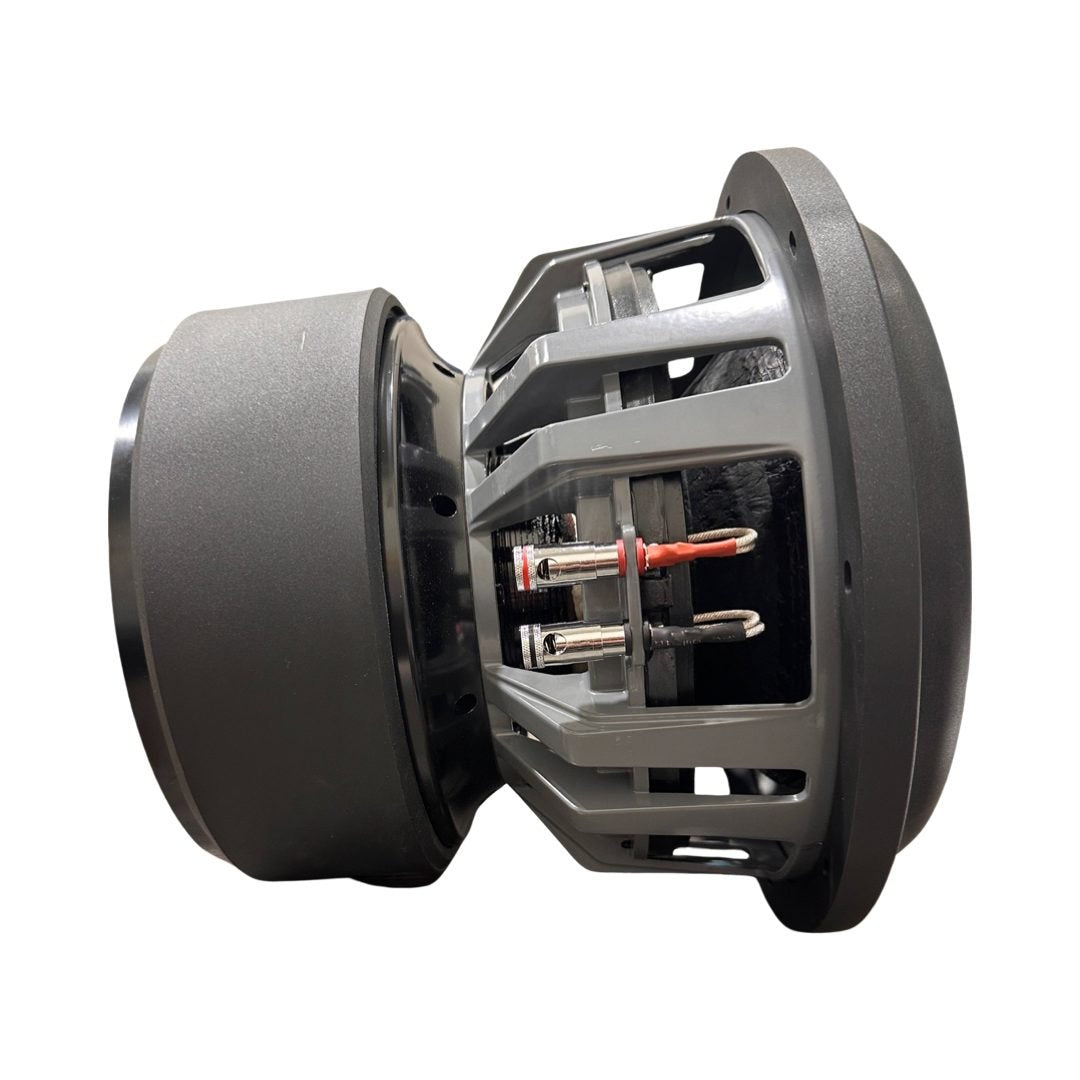

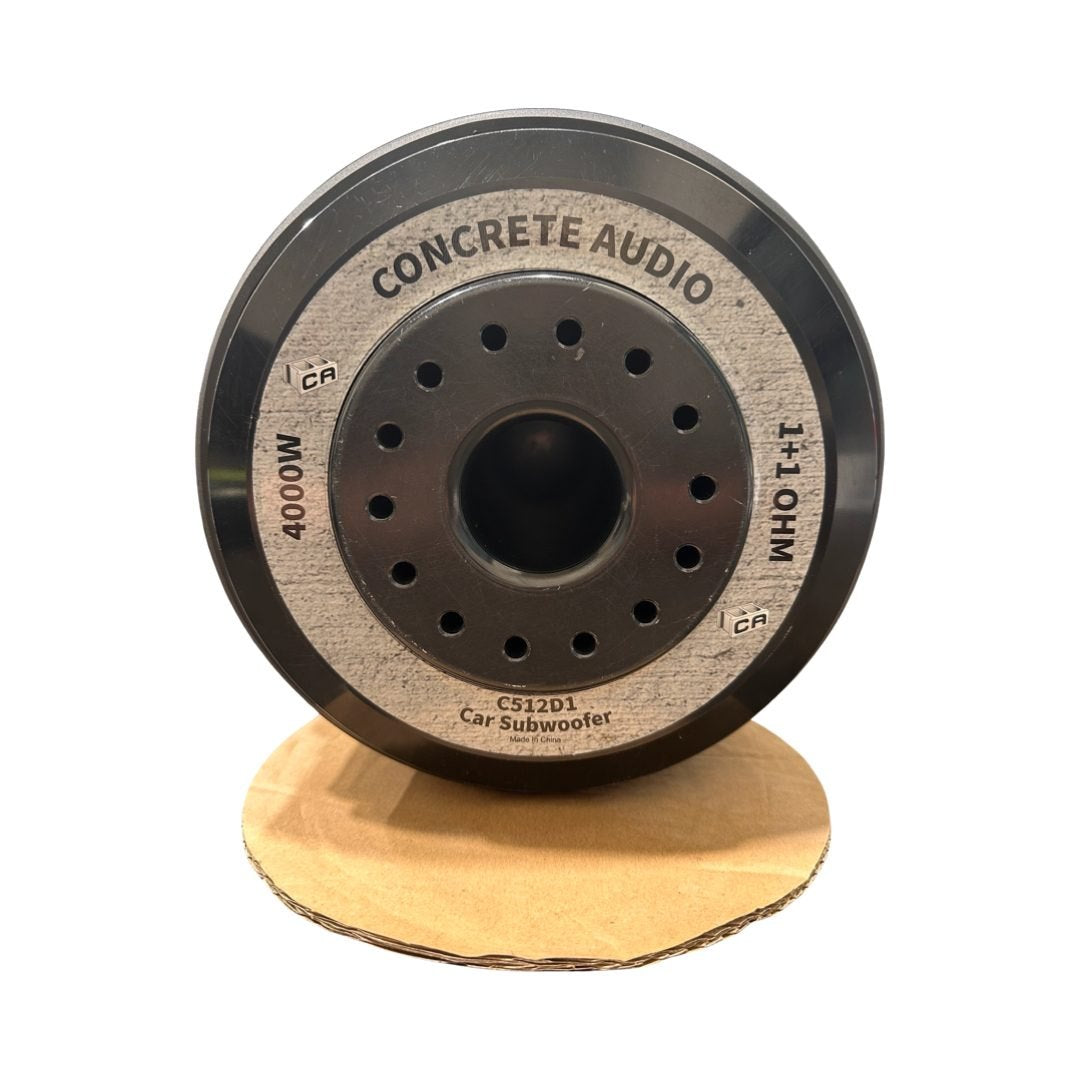

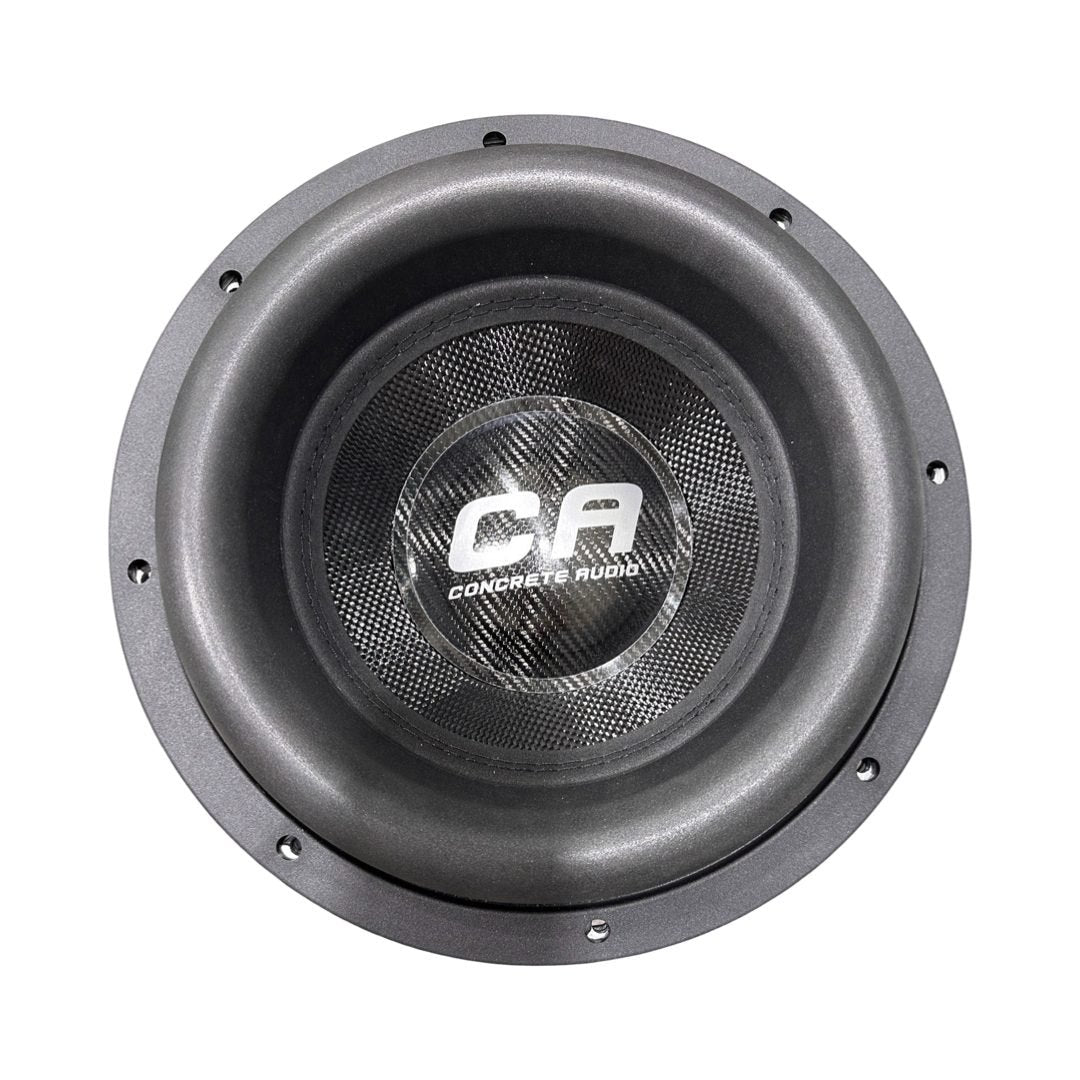

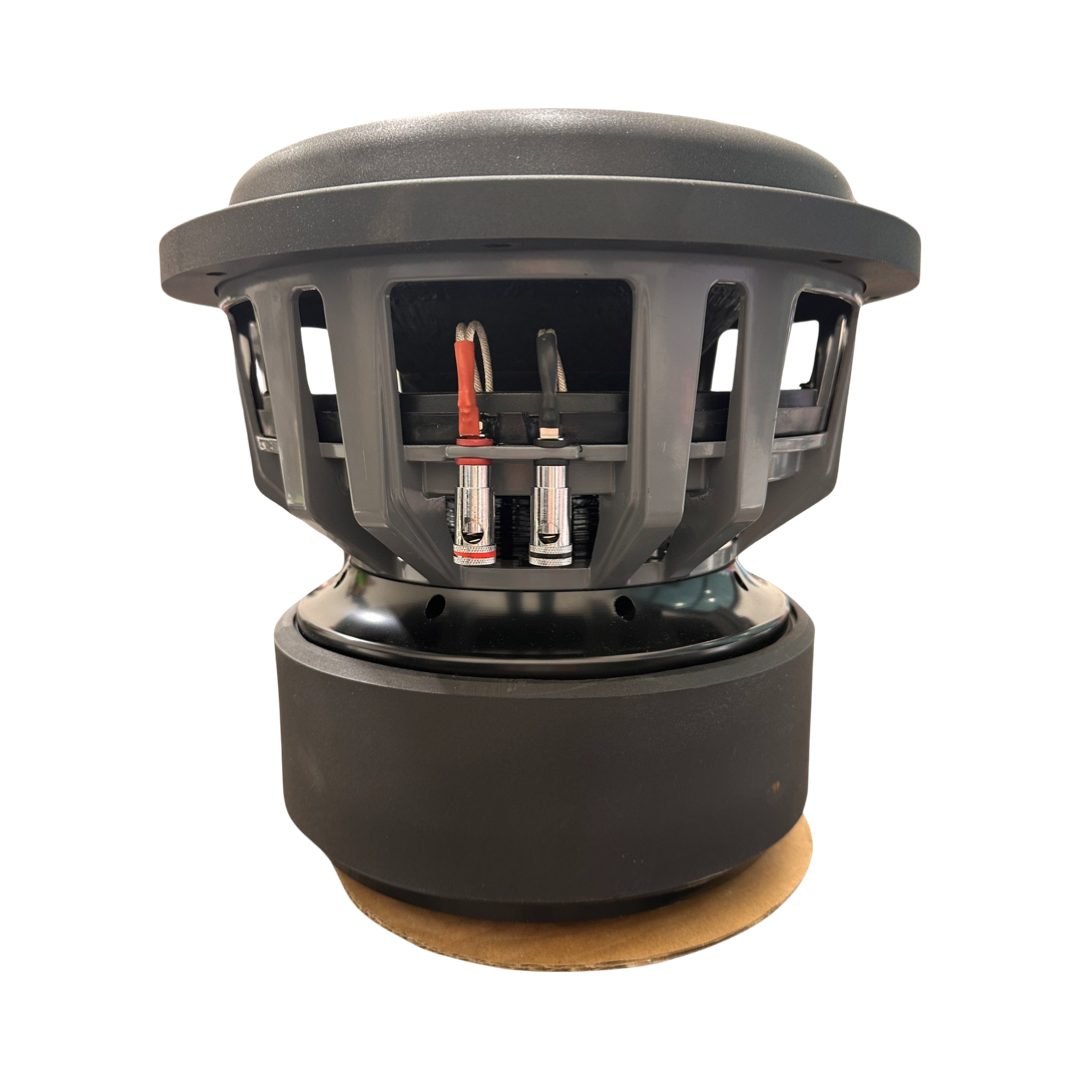

Concrete Audio C512D1-USAVC

C512D1

Nominal diameter (inch): 12
Gloss Gray Die Cast Aluminum Basket
High Roll Foam Surround Double Stitched
Gloss Carbon Fiber Dust Cap Glass Fiber Reinforced Paper Cone
Doubled Woven Tinsel Leads on 4 Layer Upper and 4 Layer Lower Nomex Spider with Bolt Down Ring
4 Inch 8 Layer High Temp USA Voice Coil
3- 165 Oz High Grade Magnet
Dual 1 Ohm
4000 Watts RMS
Mounting Depth 10.25″
Outer Diameter 13.25″
Cut Out 11 1/8″
Magnet Diameter 10″ (with boot)
Shipping Weight 90 lbs.

Box Specs
2.5 net
38 square inch port 32 7/8 deep
