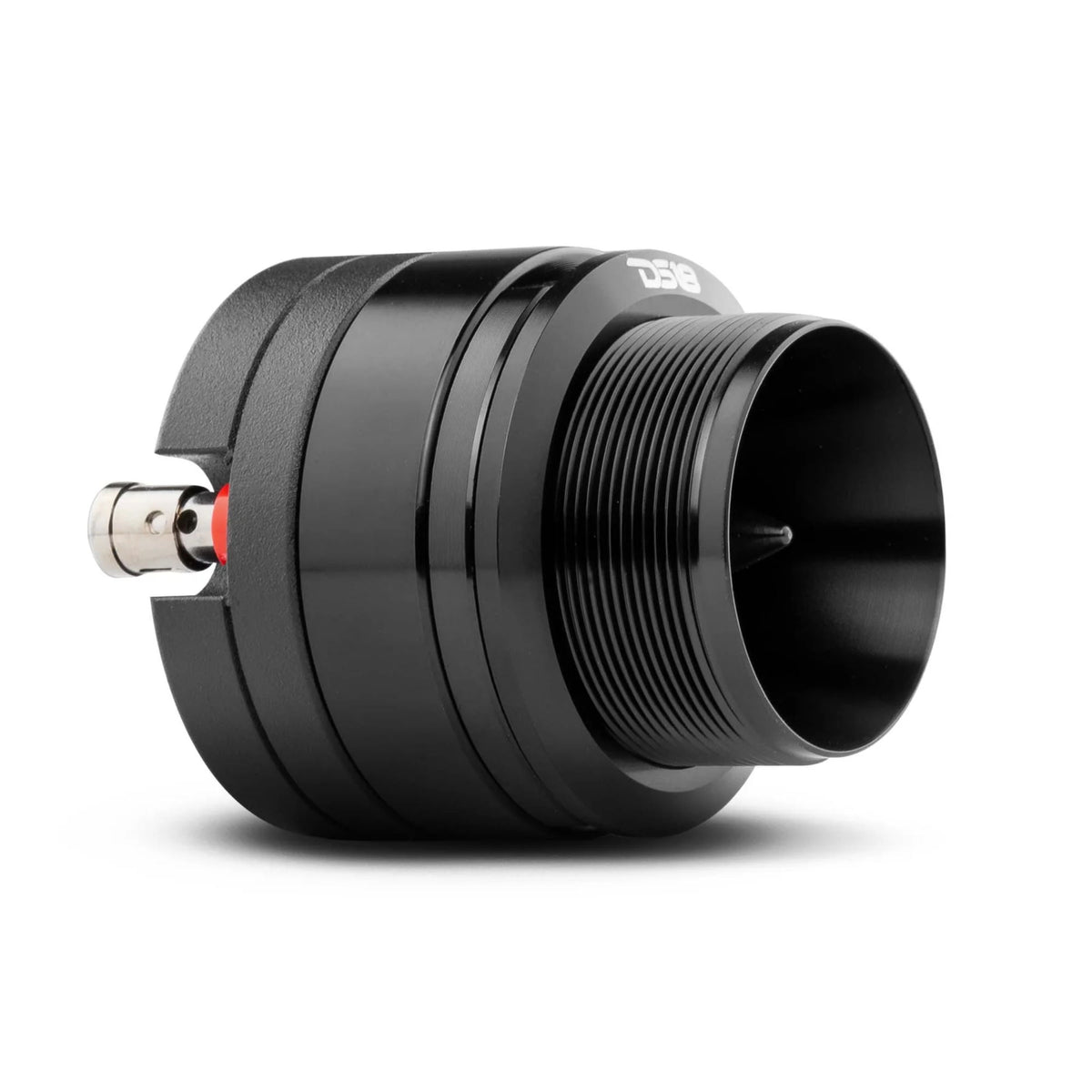

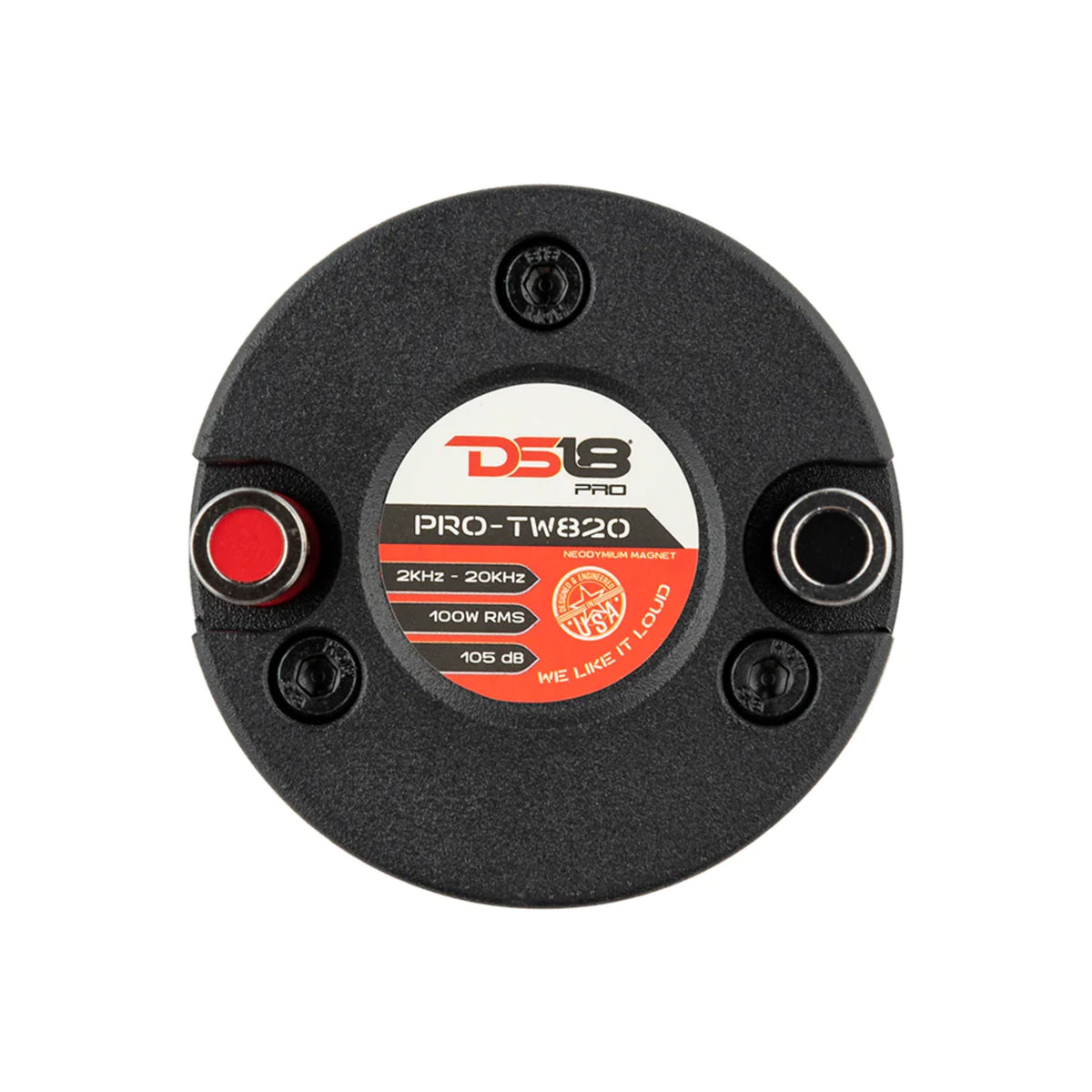

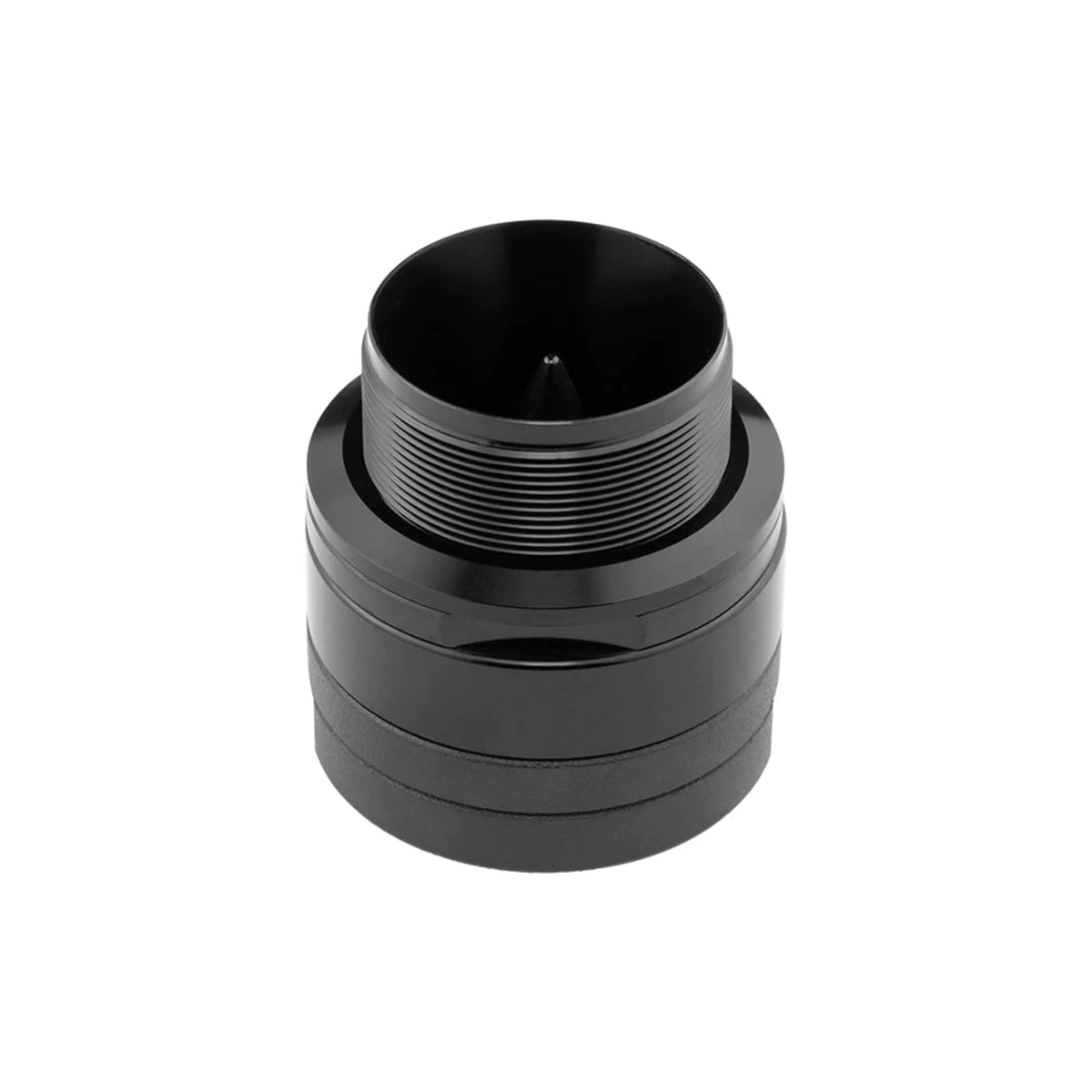

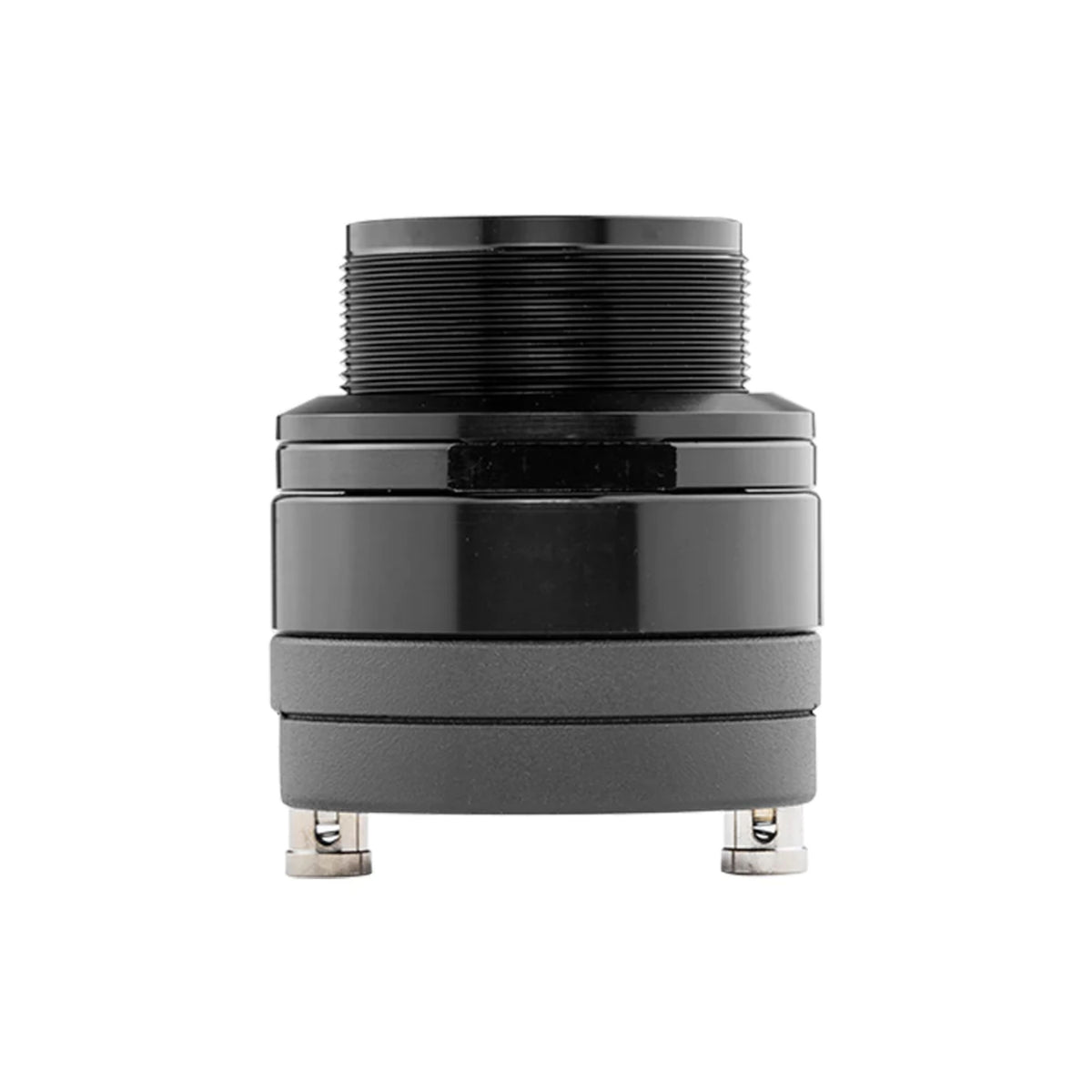

DS18 1" 200 Watt 4 Ohm Super Tweeter High Compression Neodymium Bullet PRO-TW820

DS18 1" 200 Watt 4 Ohm Super Tweeter High Compression Neodymium Bullet PRO-TW820

Engineered and Designed in the US, the DS18 PRO Tweeters are the top of the line in the Pro Audio/Voceteo market. These bad boys deliver so much power that you'd think with one tweeter your whole sound system is ready for a major concert. Simply put, there are no tweeters that can compare to the sophistication, beauty, and precision of these tweeters especially in the Pro Audio/Voceteo World.

FEATURES
- Amazingly powerful and extremely loud super tweeter for its size.
- Adjustable mounting depth is easily modifiable using the supplied rings used to clamp the surface of the mounting area.
- Easily disassembled and can be repaired on the spot in 60 seconds if you find yourself pushing them past their limits.

SPECIFICATIONS
Nominal Diameter: 2.3"
AES Power Handling: 50W
Program Power Handling: 100W
Peak Power Handling: 200W
Magnet Material: Neodymium
Frequency Response: 2KHz-20KHz
Recommended Hi Pass Crossover: 3KHz
Sensitivity (1w/1m): 105 dB
Impedance: 4 Ohm
MOTOR
Voice Coil Diameter: 1? (25.4 mm)
Voice Coil Former Material: KAPTON
Winding Material: CCA
Diaphragm Material: Aluminum
Body Material: Aluminum

MEASUREMENTS
Overall Diameter: 2.28" (58 mm)
Overall Depth: 2.67" (68 mm)
Front Mount Baffle Cutout: 1.69" (43 mm)
Mounting Depth: 1.65~2.55" (42~65 mm)
