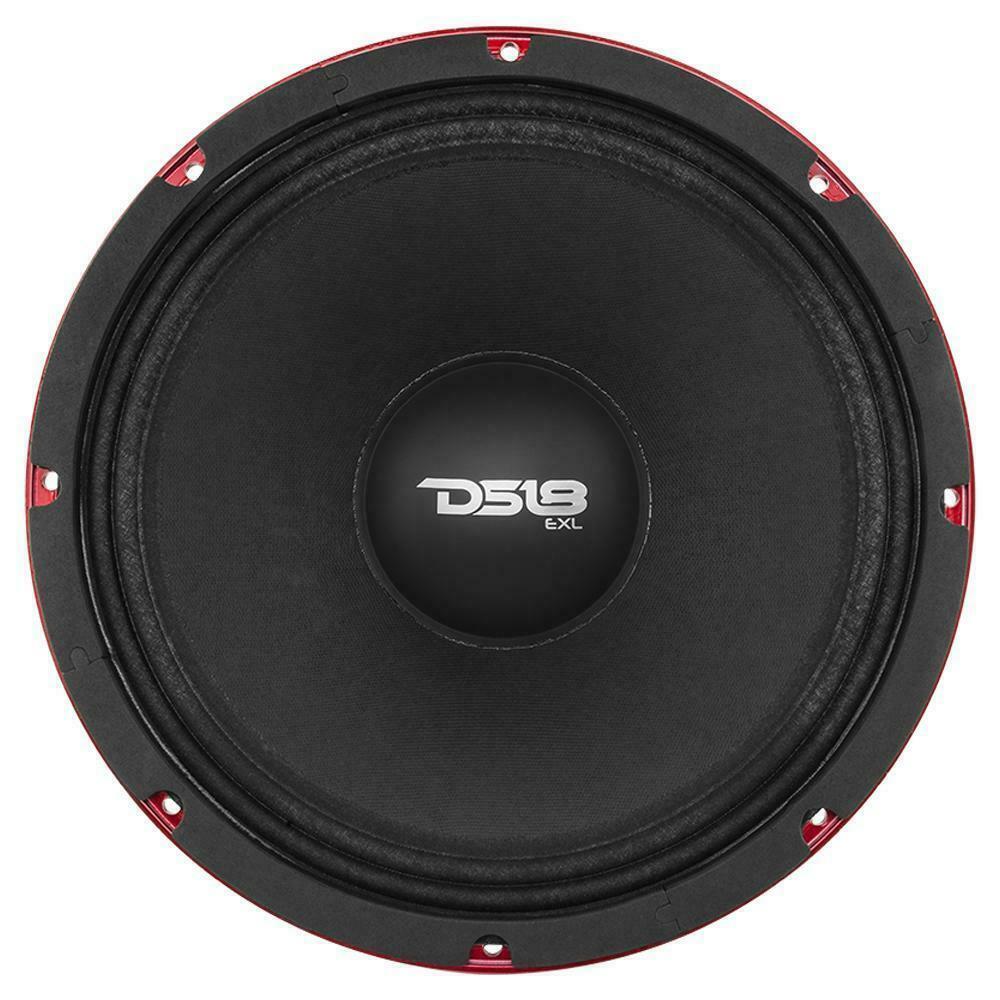

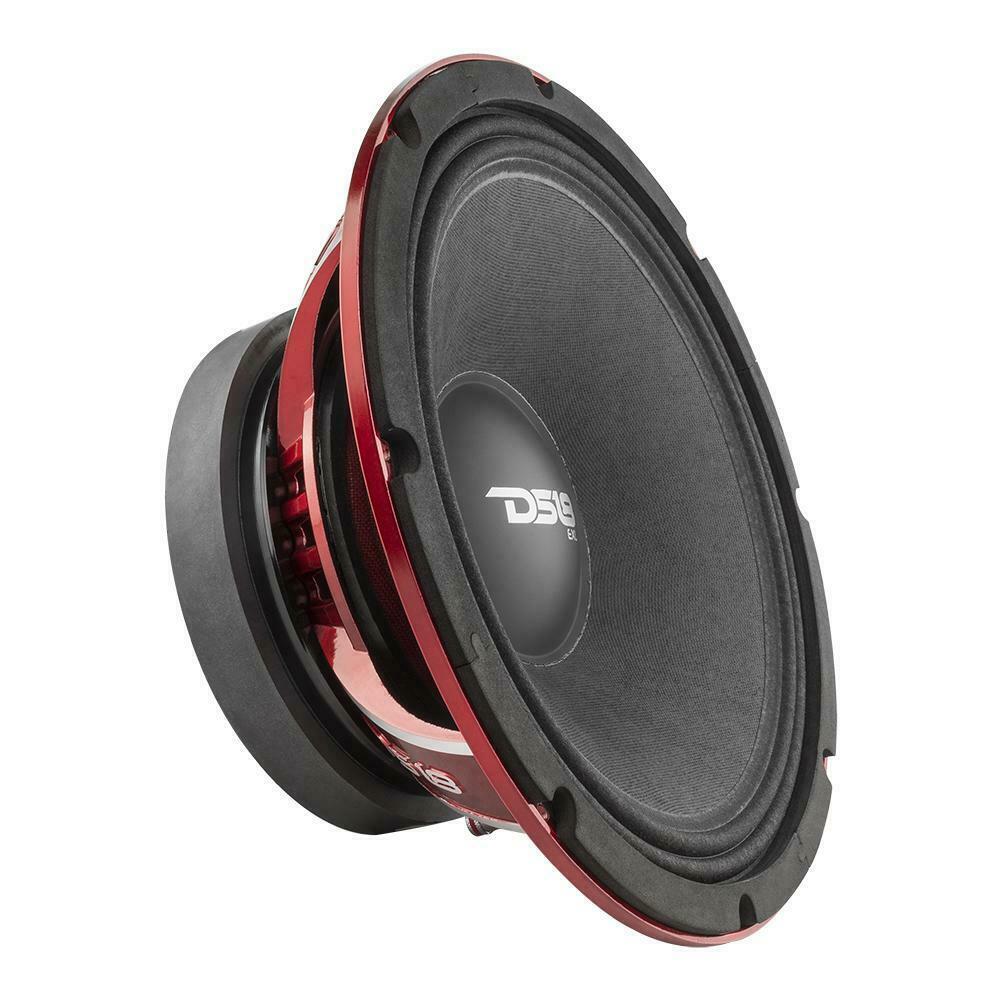

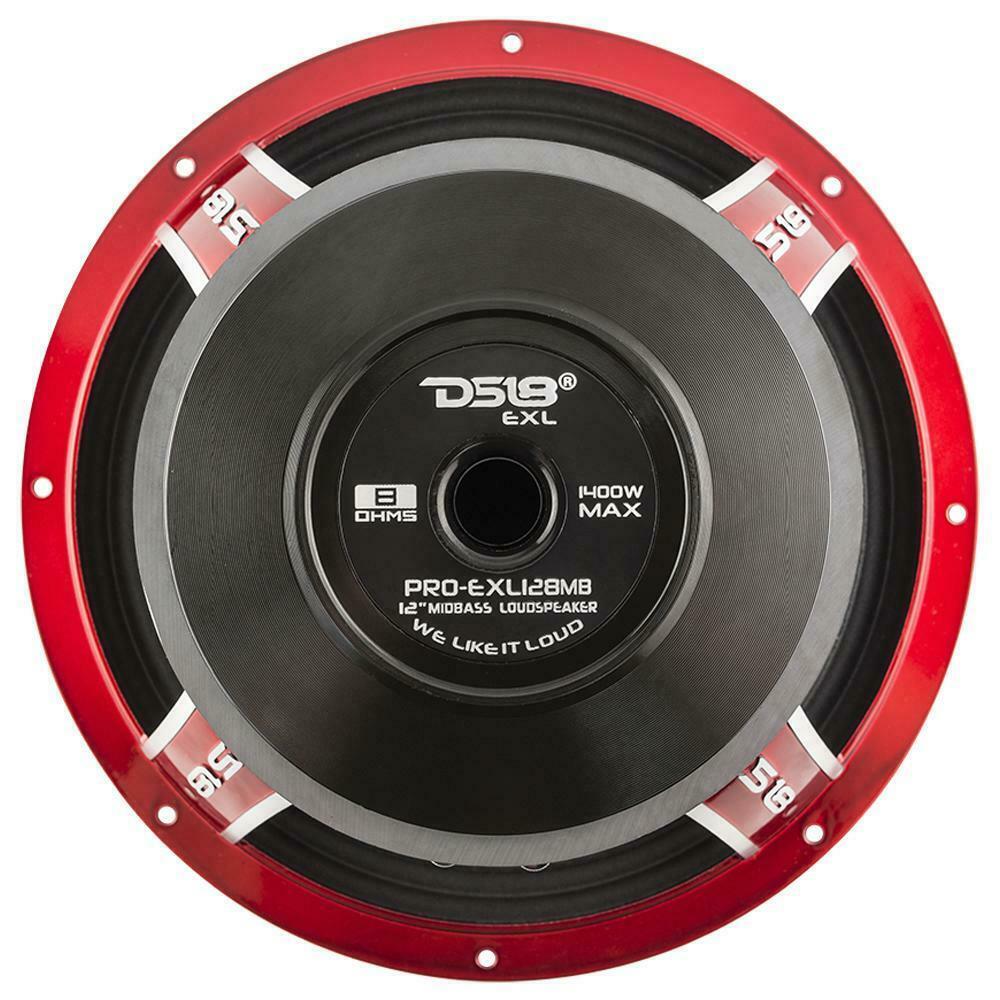

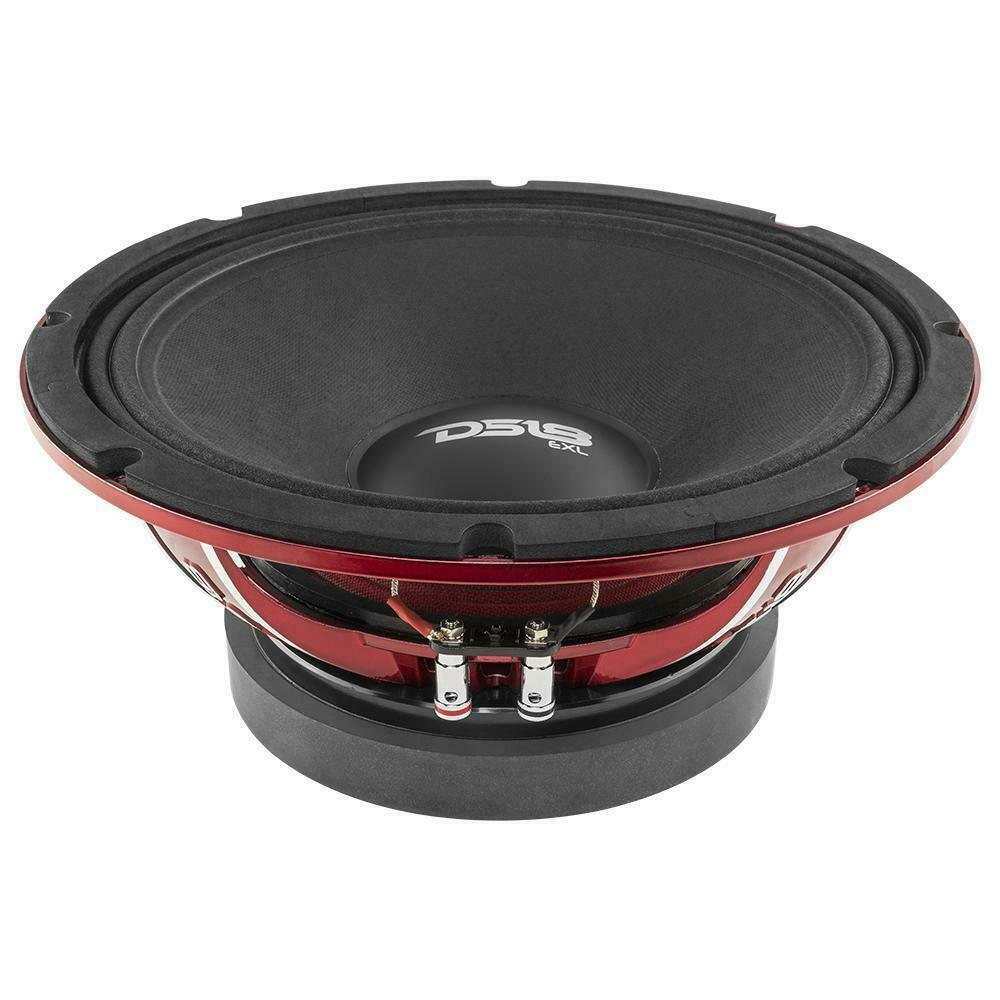

DS18 Car Audio 12" Competition Midrange Loudspeaker 1400 Watt 8 Ohm PRO-EXL128MB

DS18 Car Audio 12" Competition Midrange Loudspeaker 1400 Watt 8 Ohm PRO-EXL128MB

The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud midrange series. They are the epitome of competition-quality midranges. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 Ohm or 4 Ohm impedance; these are only the basic components, the rest is pure DS18 technology.

This Listing Includes:
(1) DS18 12" Midrange Loudspeaker PRO-EXL128MB

SPECIFICATIONS:
Nominal Diameter: 12"
Nominal Impedance: 8 Ohm
MAX Power Handling: 1400 Watts
RMS Power Handling: 700 Watts
Sensitivity (1w/1m): 97 dB
Frequency Response: 62 Hz ~ 6.3 KHz
Recommended HI Pass Crossover: 80 Hz

MOTOR:
Voice Coil Diameter: 3" (76.5mm)
Voice Coil Former Material: Glass Fiber
Winding Material: CCAW
Cone Material: Non-pressed Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 110 Oz

THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 39.414L
Excursion: X-max - 11mm
Free Air Resonance: Fs - 64.3 Hz
Mechanical Factor: Qms - 9.745
Electrical Factor: Qes - 0.346
Total Factor: Qts - 0.335
Dc Resistance: Re - 5.745 Ohm
Moving Mass: Mms - 59.61g
Compliance: Cms - 0.027 mm/N
Force Factor: BI - 20.17 N/A
Voice Coil Inductance: Le - 1.193 mH
Diaphragm Area: Sd - 530.93 cm?
Mechanical Mass without Air: Mmd - 53.06g

DIMENSIONS:
Overall Diameter: 12.4" (315mm)
Front Mount Baffle Cutout: 11.22" (285mm)
Mounting Depth: 5.19" (132mm)
Overall Depth: 5.72" (145.5mm)
Motor Diameter: 7.87" (200mm)
