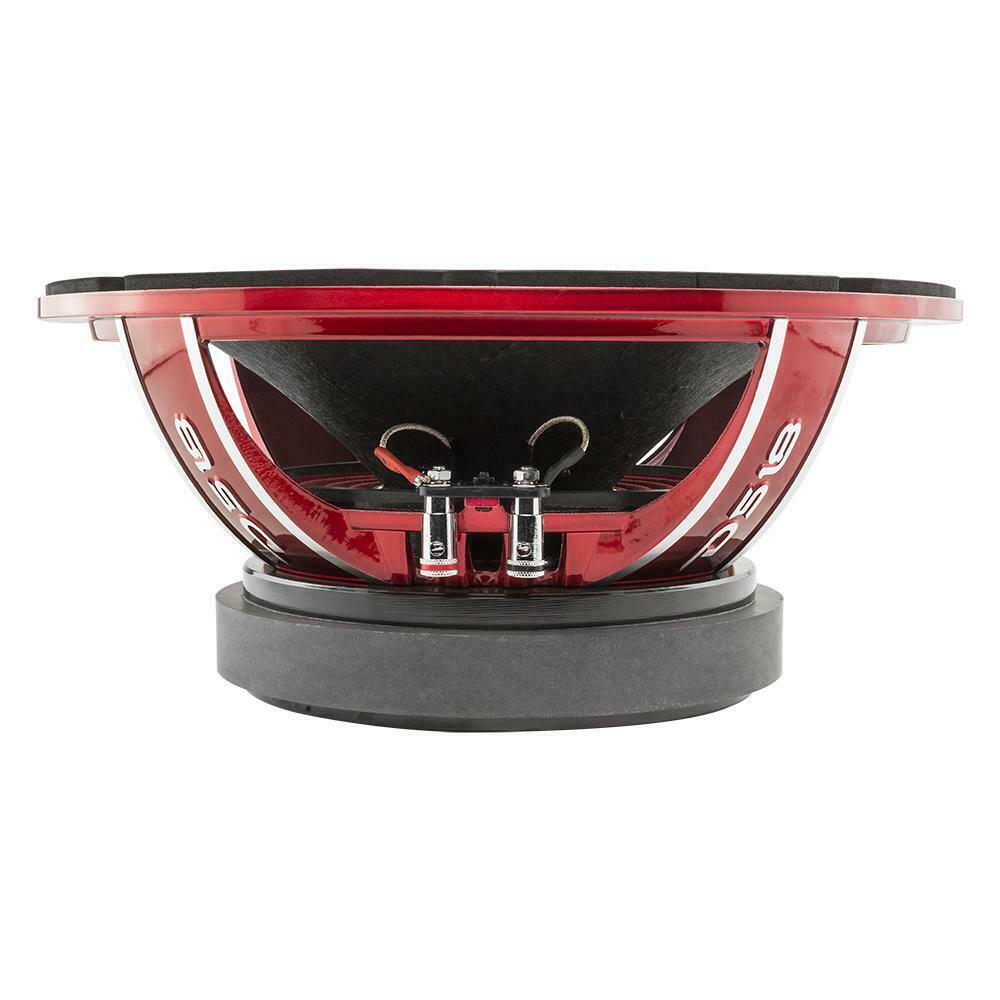

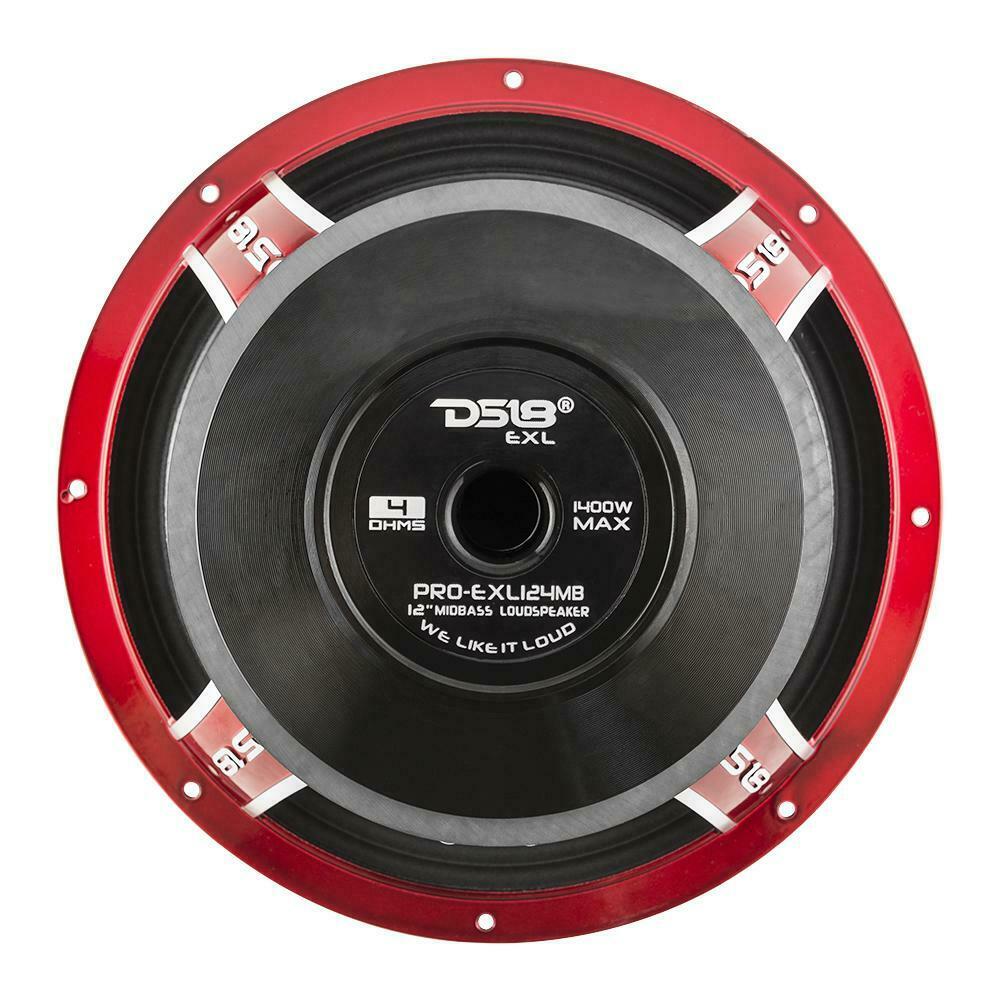

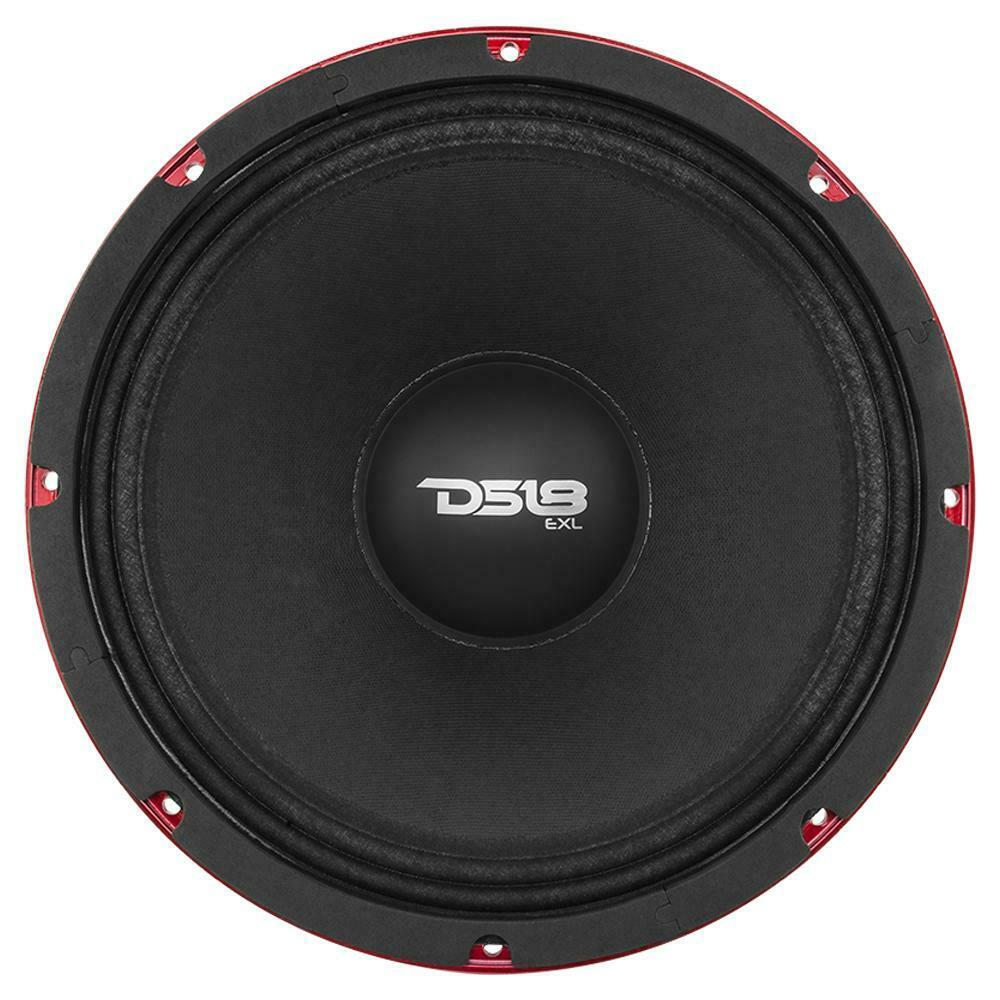

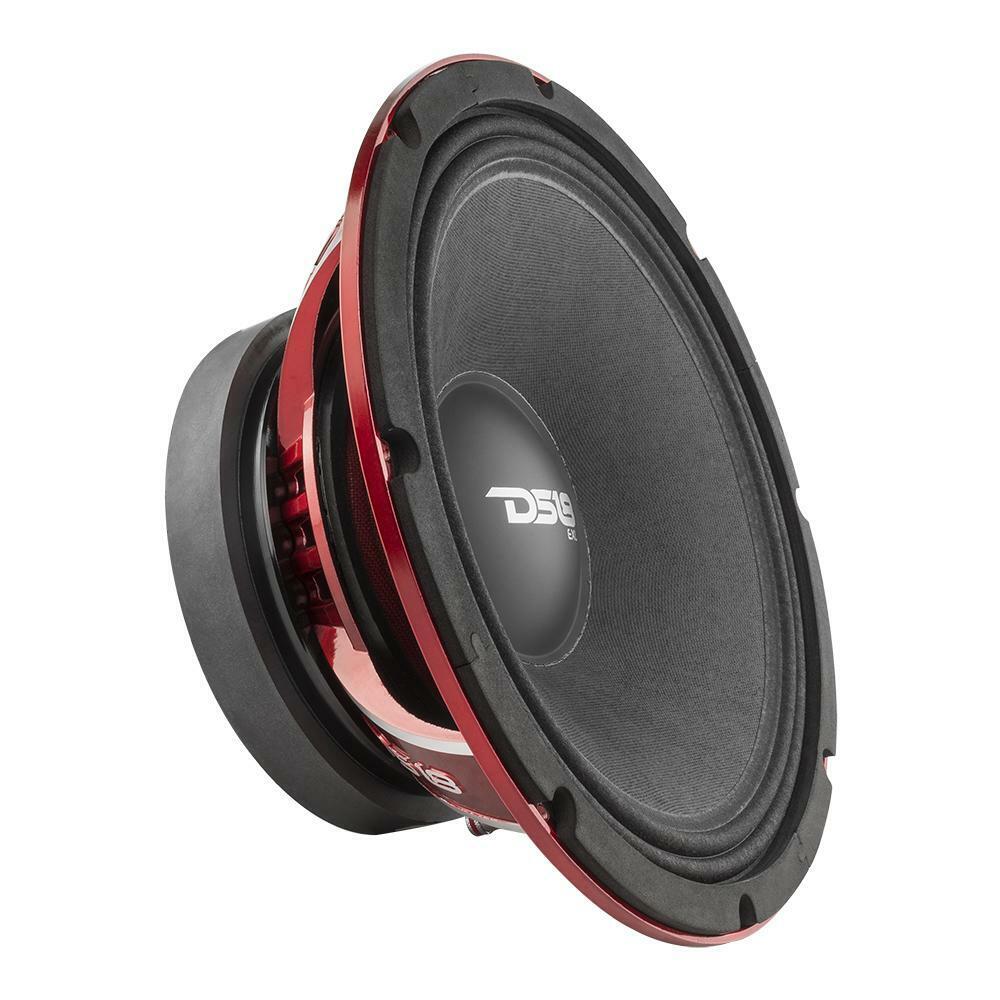

DS18 Car Audio 12" Midbass Loudspeaker 1400 Watt 4 Ohm Red Basket PRO-EXL124MB

DS18 Car Audio 12" Midbass Loudspeaker 1400 Watt 4 Ohm Red Basket PRO-EXL124MB

The people who live and breathe car audio demanded a higher-performing, extremely effective, and dynamic product series. After several months, and money allocated to R&D, DS18 is proud to launch the PRO-EXL Extremely Loud mid-bass series. They are the epitome of competition-quality mid-bass. Red aluminum baskets, cloth-edges, non-pressed paper cone, and the option for 8 ohms or 4 ohms impedance; these are only the basic components, the rest is pure DS18 technology.

Highlights
- Flagship of DS18 Pro Audio Series producing more mid-bass, midrange, and vocals for serious pro audio enthusiasts.
- Oversized DS18 tooled basket in brilliant red with brushed DS18 logos.
- Large push style connectors for large wire and maximum power flow from your amp.

This listing includes:
(1) DS18 PRO-EXL124MB 12" Midbass Loudspeaker

SPECIFICATIONS PER SPEAKER:
Nominal Diameter: 12?
Nominal Impedance: 4 Ohm
MAX Power Handling: 1400 Watts
RMS Power Handling: 700 Watts
Sensitivity (1w/1m): 99.9dB
Frequency Response: 62Hz ~ 6.3KHz
Recommended HI Pass Crossover: 100Hz

MOTOR:
Voice Coil Diameter: 3? (76.5mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Basket Material: Aluminum
Frame Material: Aluminum
Magnet Material: Ferrite
Magnet Weight: 110 Oz

THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 47.739L
Excursion: X-max - 11mm
Free Air Resonance: Fs - 61.5Hz
Mechanical Factor: Qms - 4.82
Electrical Factor: Qes - 0.435
Total Factor: Qts - 0.406
Cone Area: Sd - 547.39 cm?
DC Resistance: Re - 3.2 Ohms
Moving Mass: Mms - 69.68g
Mechanical Mass Without Air: Mmd - 54.86g
Compliance: Cms - 0.134 mm/N
Force Factor: BL - 17.12 N/A
Inductance: Le = 23.63mH

DIMENSIONS PER SPEAKER:
Overall Diameter: 12.4? (315mm)
Front Mount Baffle Cutout: 11.22? (285mm)
Mounting Depth: 5.20? (132mm)
Overall Depth: 5.73? (145.5mm)
