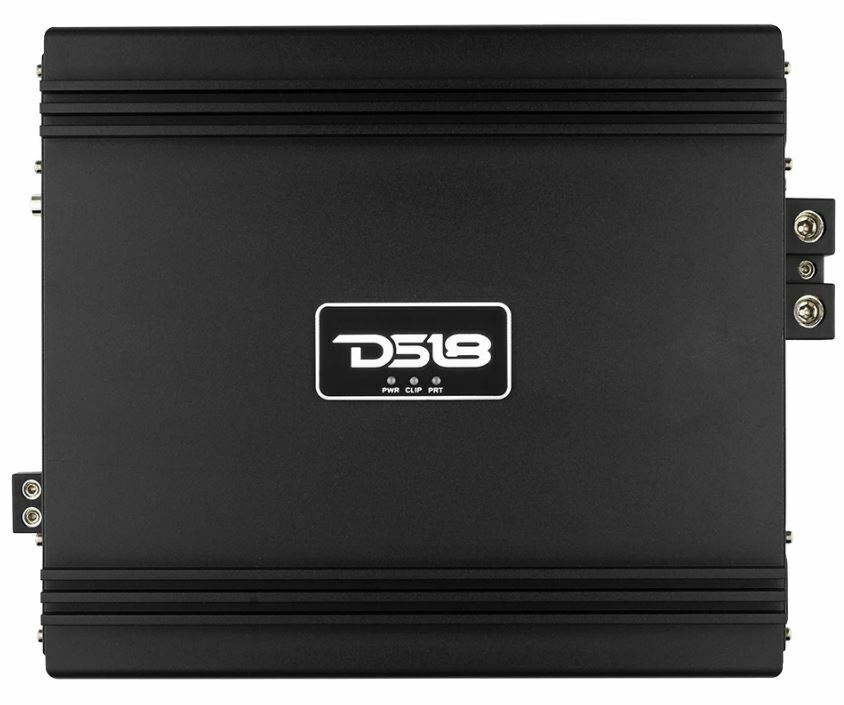

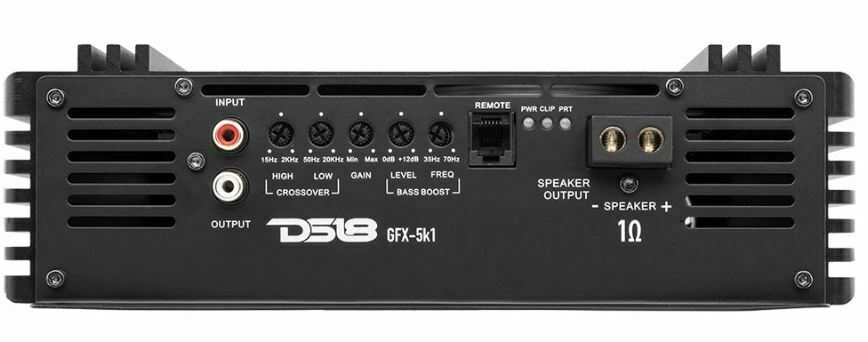

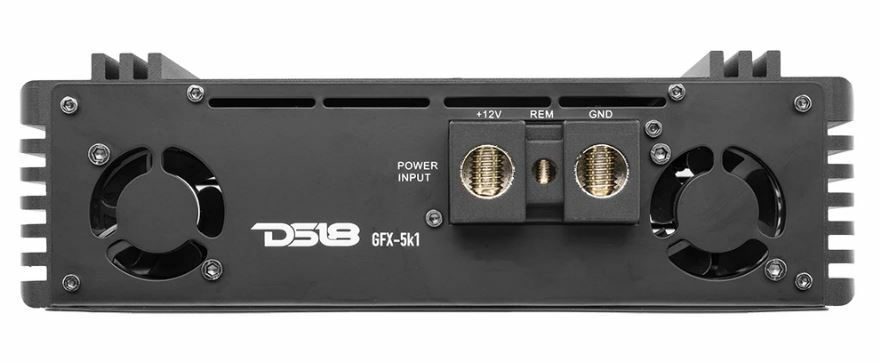

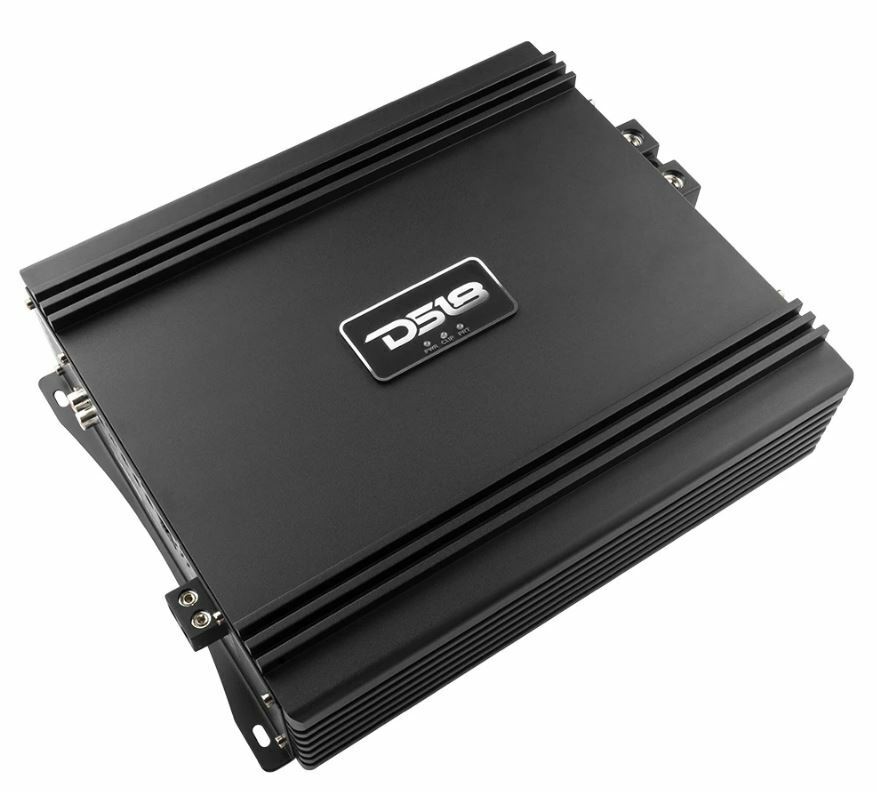

DS18 GFX Series Monoblock 5000 Watts 1 Ohm Class D Full Range Amplifier GFX-5K1

DS18 GFX Series Monoblock 5000 Watts 1 Ohm Class D Full Range Amplifier GFX-5K1

The DS18 GFX series of amps are for the enthusiast that is serious about squeezing every watt possible out of your sound system for a concert hall type of sound that can be heard for miles away!

This Listing Includes:
(1) Amplifier

Features:
- Full range Capable Class - D Amp
- Compact Size and wide Band Crossover for more applications
- Variable Full Crossover Filter
- Surface Mount Component
- Audio Precision Quality Control Verification
- Stable & Reliable Four Layers PCB Trace Layout
- Heavy Duty Heat-sink Chassis and Forced Cooling System Build In

Specifications:
Model - GFX-5K1
Power @ 1 ohms (14.4V) - 5000W
Power @ 2 ohms (14.4V) - 3500W
Minimum Speaker Load - 1 OHM
THD - 1%
Input Sensitivity - 0.5-8V
Hi Pass Crossover (12dB/Oct) - 15Hz-2KHZ
Lo Pass Crossover (12dB/Oct) - 50Hz-20KHZ
Frequency Response - 15Hz-20KHZ
Bass Boost - 0-12dB
Bass Boost Frequency - 35Hz-70Hz
Working Voltage - 9-15V
Input Terminal Size - 1/0AWG
Output Terminal Size - 8 AWG


Dimensions
(mm) 291 x 236 x 72
