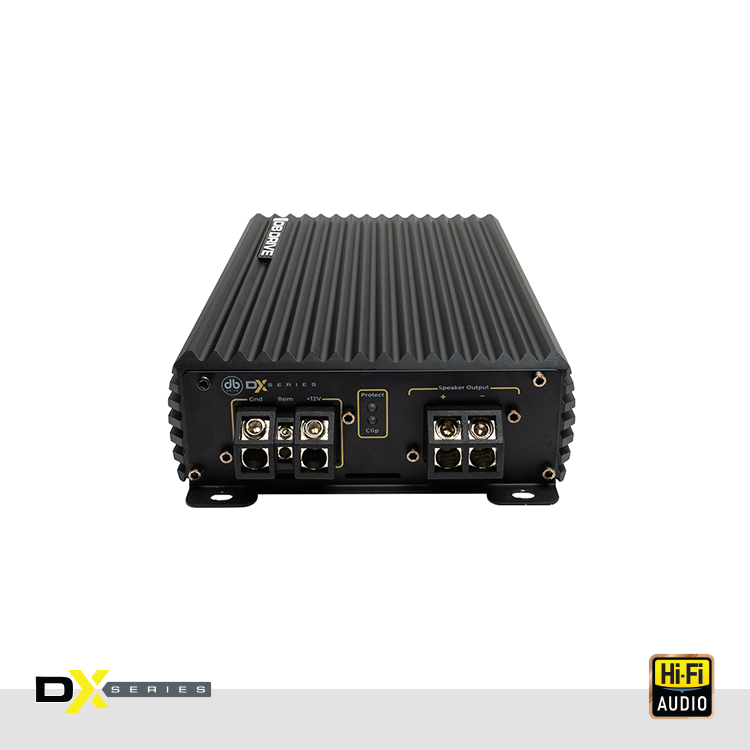

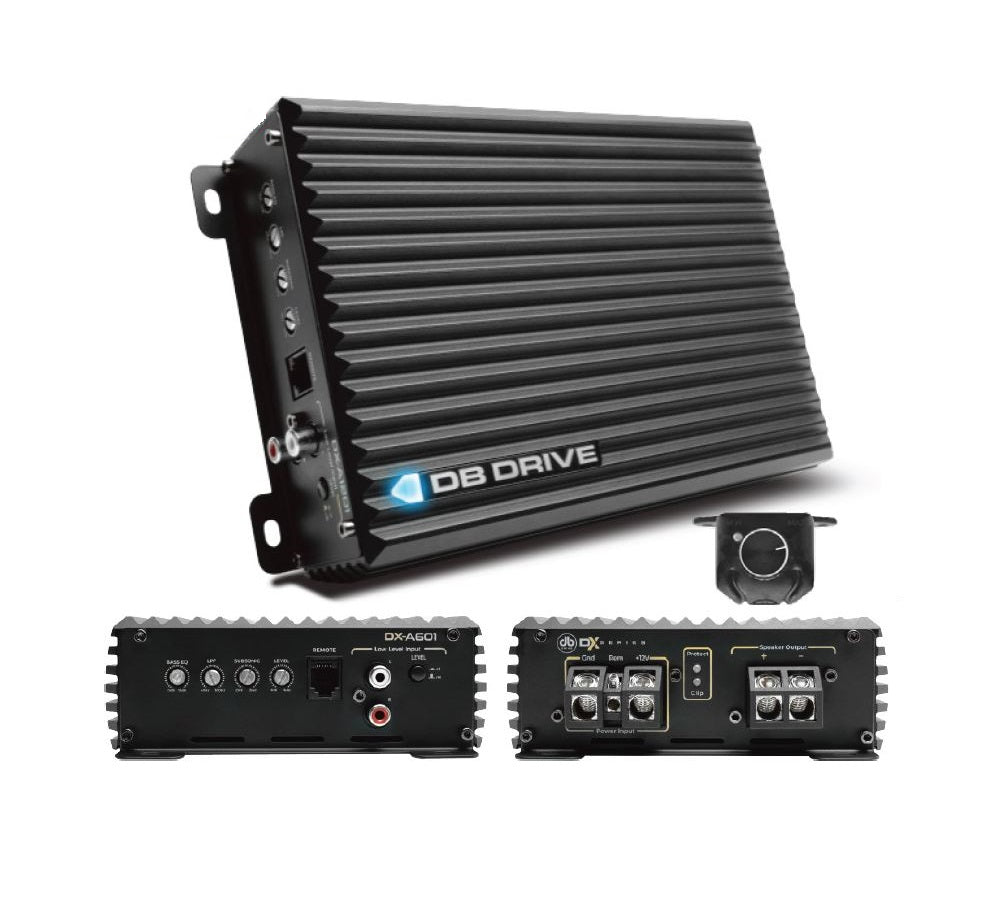

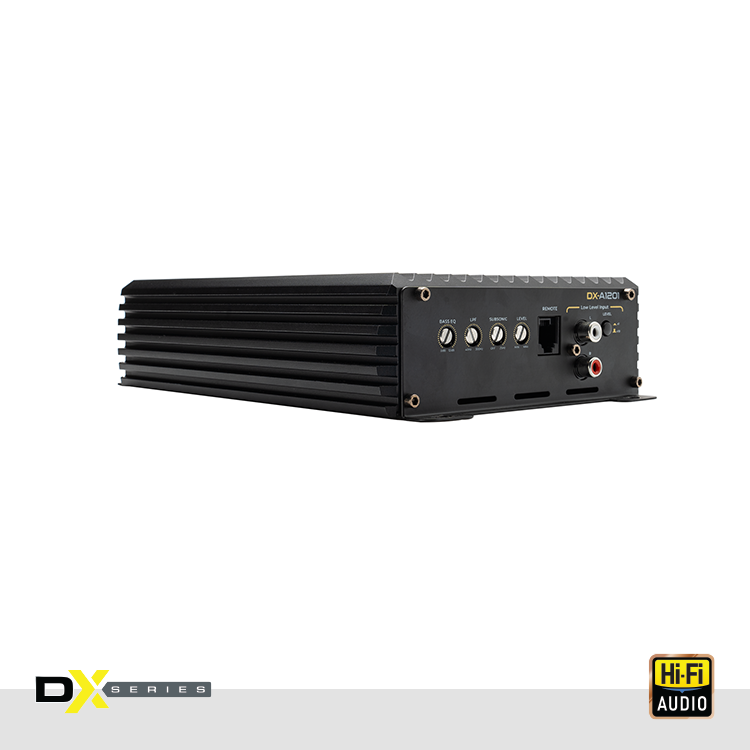

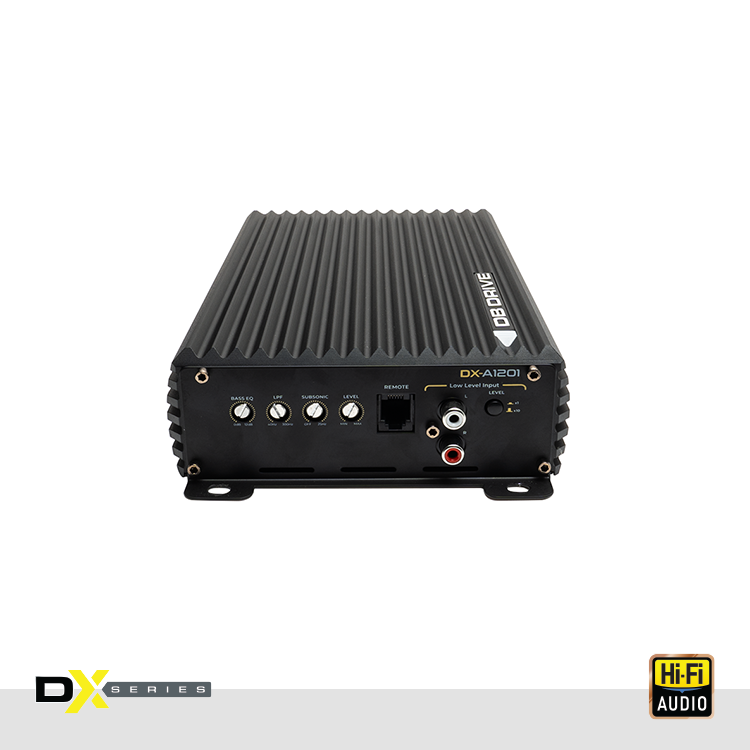

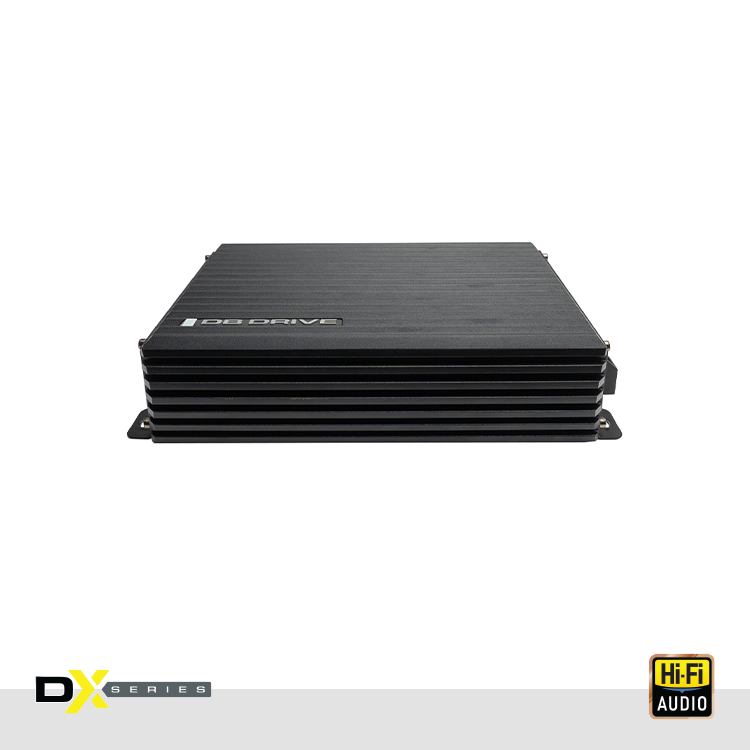

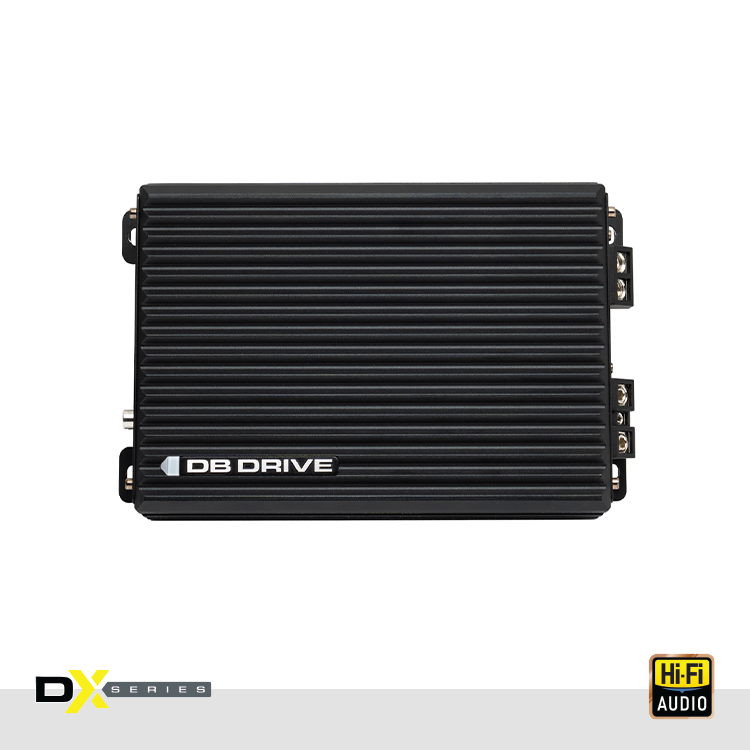

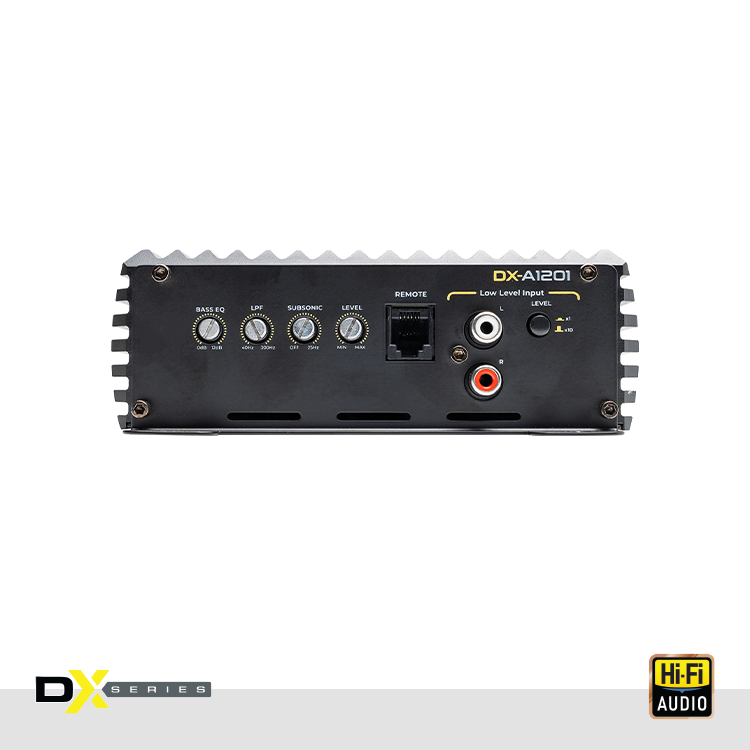

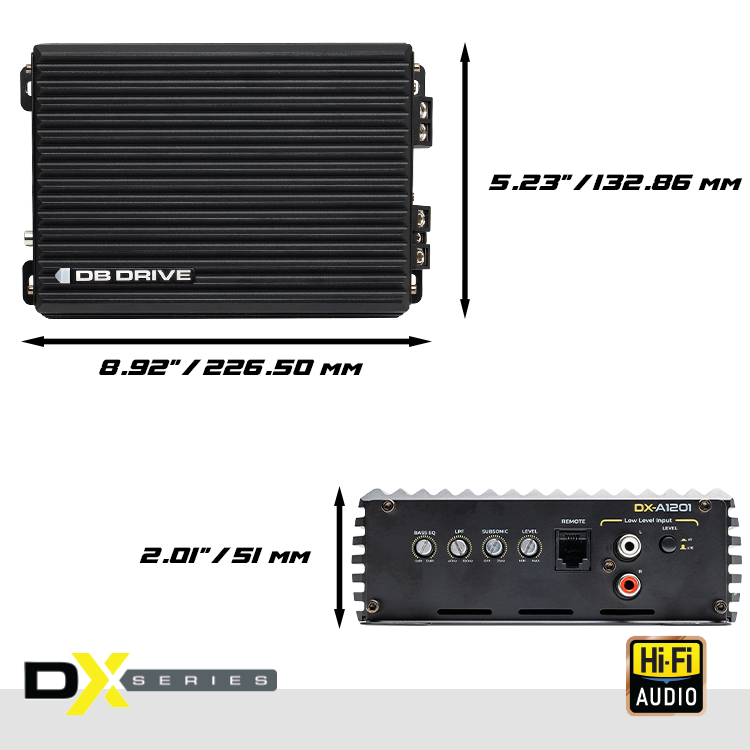

DB Drive DX-A1201 : Monoblock Class D Amplifier

Features

• Class D Technology

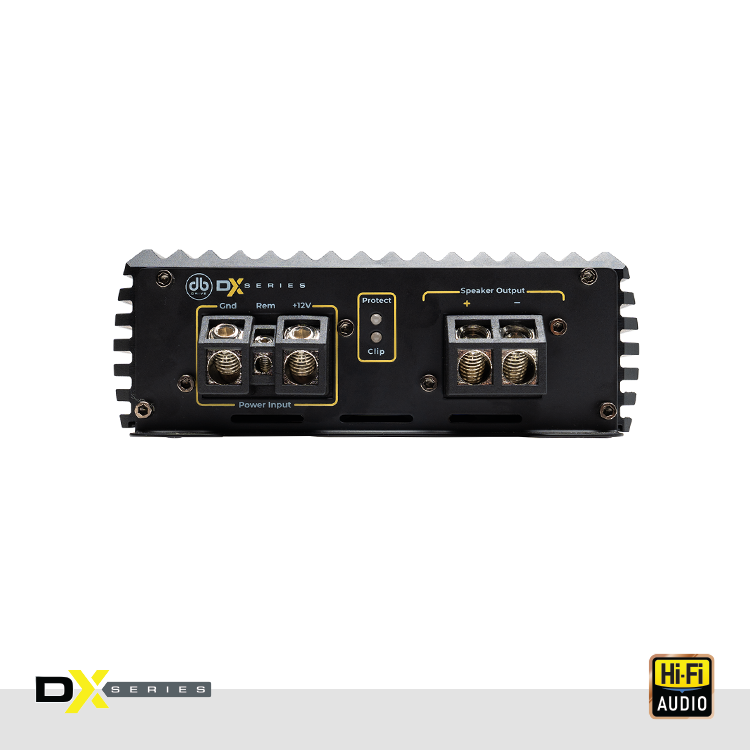

• Direct Connect Speaker Terminals

• Large Gauge Power Wire Inputs

• PWM Mosfet Regulated Power Supply

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status indicator

• CHM - Collective Heat Management

• 1Ω Capability

• Remote Bass Control Included

Specifications

• Dynamic Power: 1 x 1200 Watts @ 1Ω

• Dynamic Power: 1 x 650 Watts @ 2Ω

• Dynamic Power: 1 x 350 Watts @ 4Ω

• Rated Power: 1 x 1050 Watts @ 1Ω

• Rated Power: 1 x 550 Watts @ 2Ω

• Rated Power: 1 x 250 Watts @ 4Ω

• Low Pass Filter: 40Hz - 300Hz

• Subsonic Filter: 0 - 25 Hz

• Bass Boost @ 45Hz : 0-12dB

• Input Sensitivity: 250Mv -  6V

• Signal to Noise Ratio :>90dB

• Frequency Response:10Hz-350Hz

Description

For powerful, dynamic bass, the DB DRIVE DX-A1201 Monoblock subwoofer amplifier is built for audiophiles and casual listeners alike.  Key Features:  Powerful Output: 1200W x 1 at 1 ohm for deep, accurate bass. Flexible Compatibility: Works with 1, 2, or 4-ohm loads. High-Efficiency Design: Integrates with modern electrical systems. Adaptive Crossover: Fine-tune your subwoofer setup for optimal sound. Hi-Fi Playback: Delivers distortion-free, high-resolution audio. Remote Dash Control: Adjust bass settings on-the-fly. Precision Tuning: Metal potentiometers ensure stable settings. 4-Layer PCB: Provides cleaner, more accurate sound. Compact Design: Easy installation in tight spaces. Transform your car's sound with the DB DRIVE DX-A1201 and experience bass like never before.

Product Manual

Product Manual PDF
