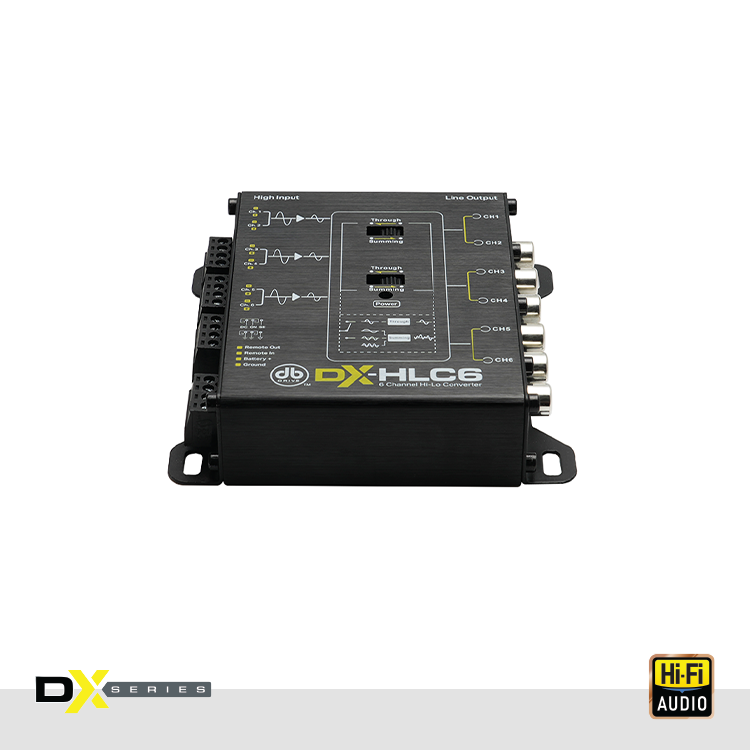

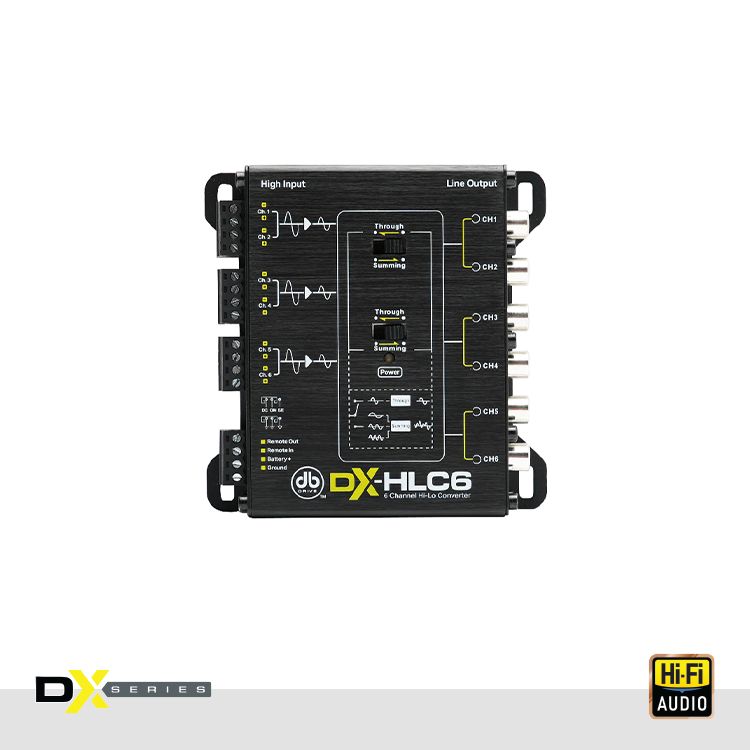

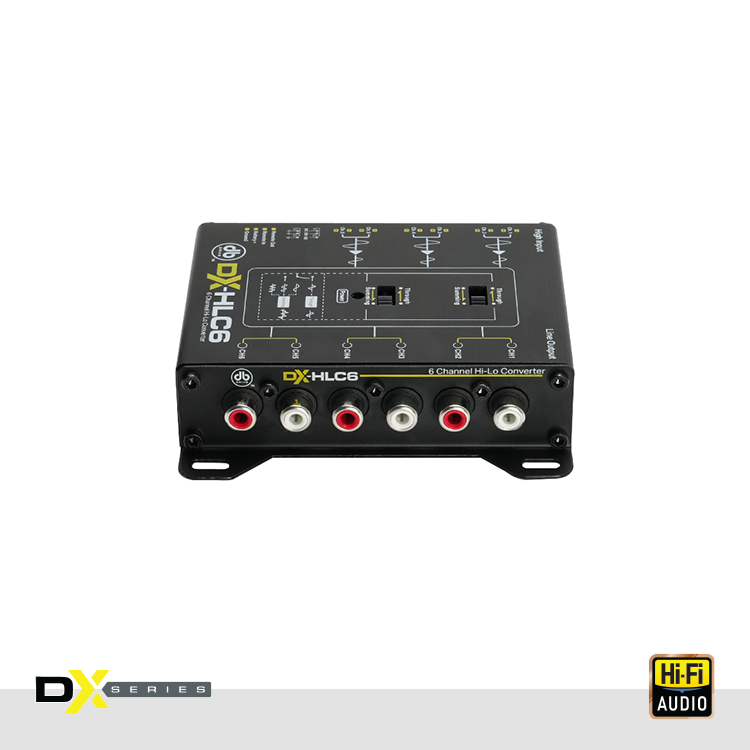

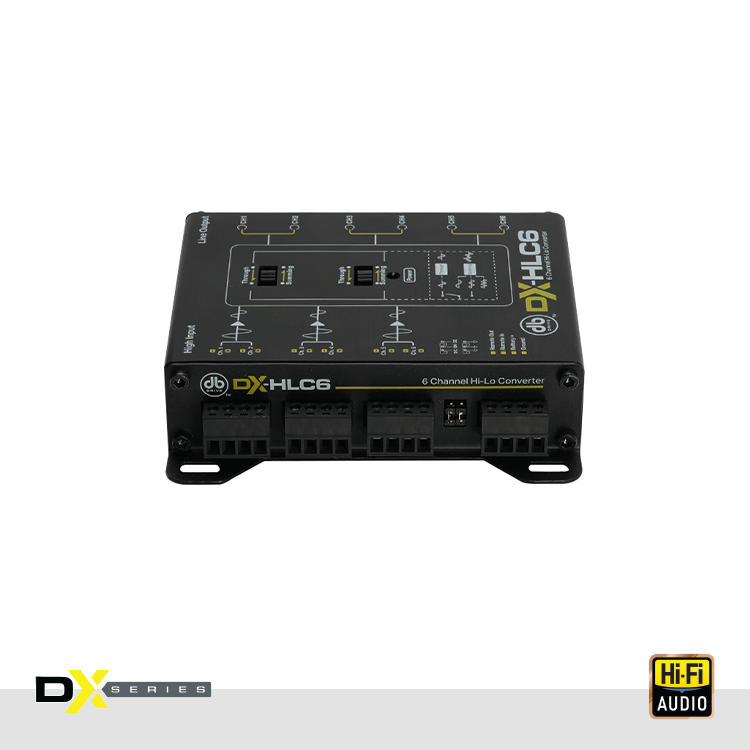

DB Drive DX-HLC6 : 6 Ch High Low-Level Converter With Summing Capability

Features

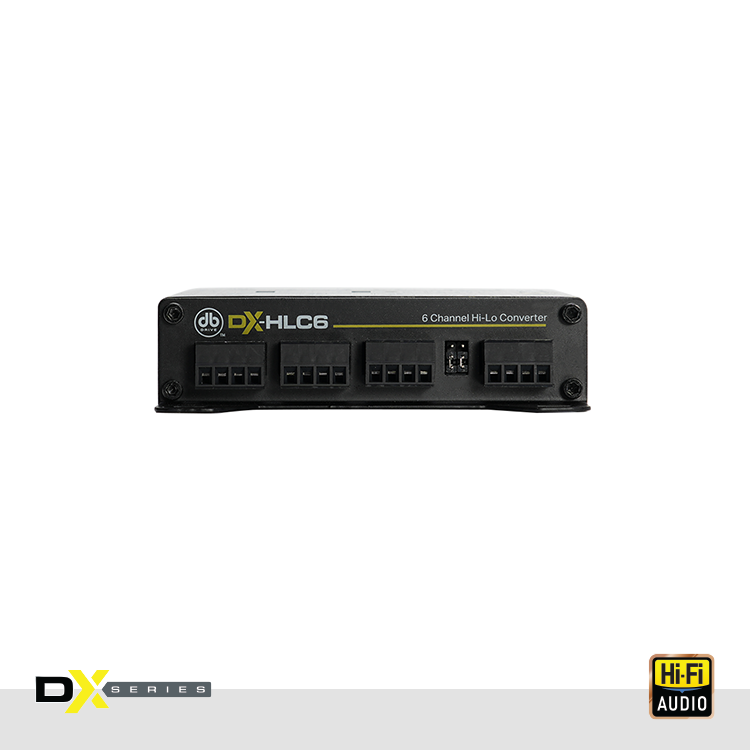

• 6 Channel speaker level inputs

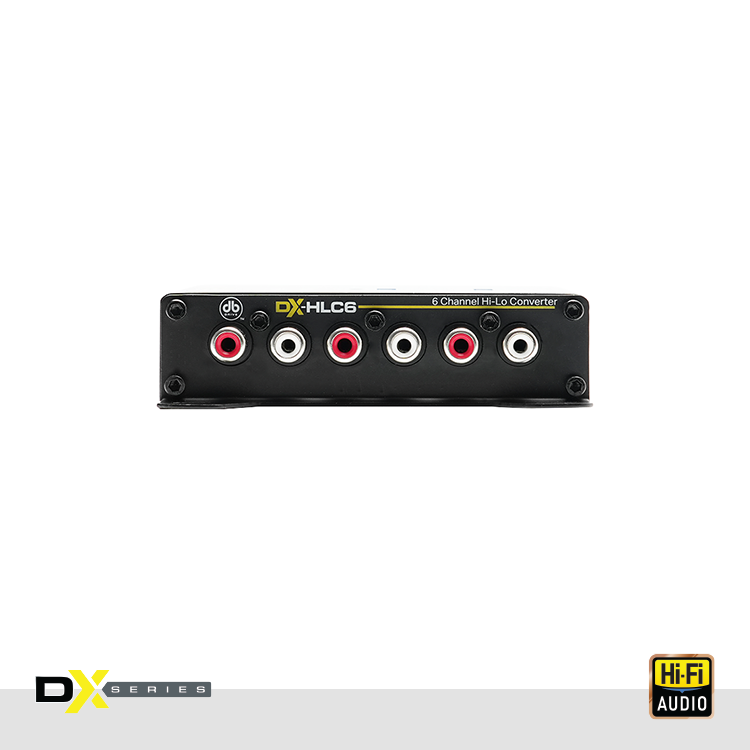

• 6 - low level RCA output channels

• selectable summing input switches

• Signal Sensing remote turn on

• Variable level Matching output gains

• Built-in OEM load compatible

• 12 Volt -DC Remote Trigger Output

Specifications

• Operating Voltage: 8-16V

• Current Draw: 100mA

• Input Impedance: 1 Ω

• Output Voltage: 8.5V

• Channel Separation: >65dB

• Output T.H.D.: 0.01%

• S/N: >100dB

• REM Output Current: 12V>100mA

• Frequency Response (+/-1dB): 10Hz-20KHz

• Input Sensitivity: 2-30V

Description

The DB DRIVE DX-HLC6 is the perfect solution for integrating high-quality sound into your factory audio system, designed for audiophiles and enthusiasts.  Key Features:  Selectable Summing Switches: Customize your system's bi-amplified outputs for optimal performance. Variable Output Gains: Adjust output for balanced, dynamic sound at any volume. Auto Audio Sensing: Automatically detects the audio signal for easy amplifier activation. OEM Load Compatibility: Seamlessly integrates with modern factory radios. Upgrade your car's audio effortlessly with the DB DRIVE DX-HLC6 and experience exceptional sound quality.

Product Manual

Product Manual PDF
