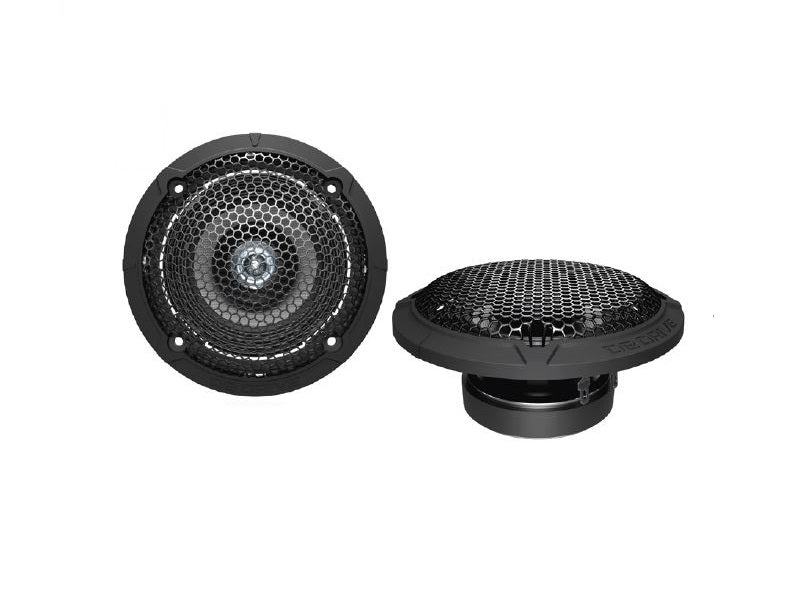

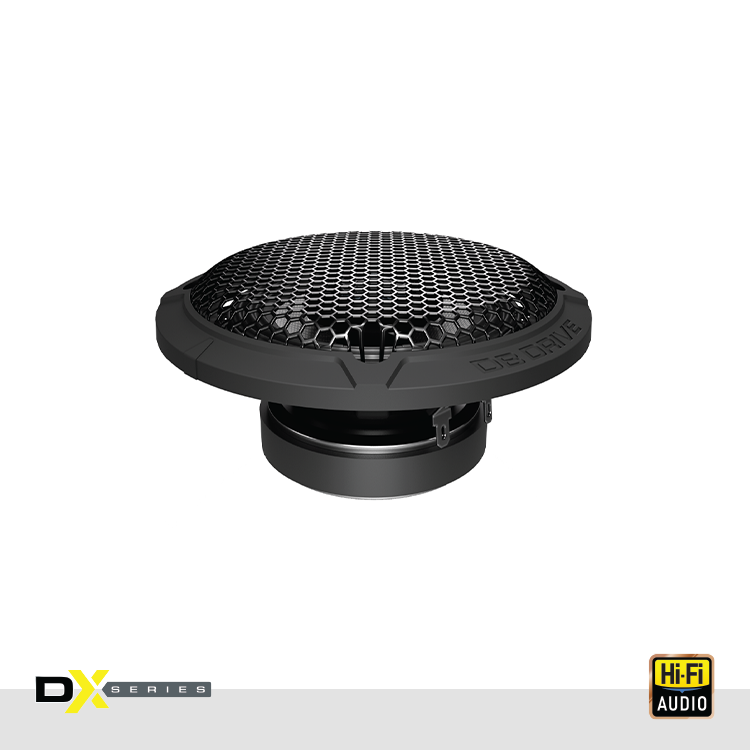

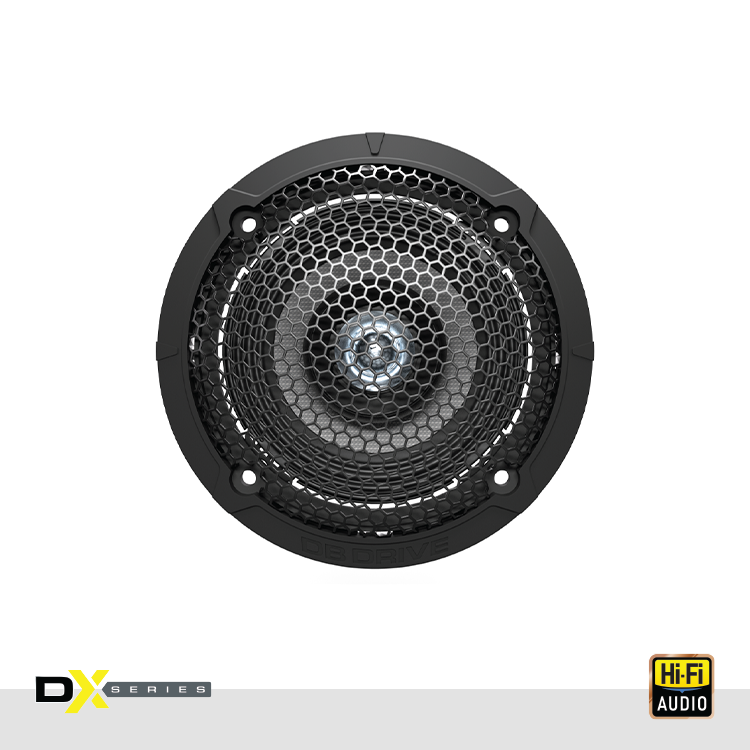

DB Drive DX-S35 : 3.5" 2-way Loudspeaker (1 Pair)

Features

• 0.50" PEI dome tweeter with optimized off-axis frequency response

• Injection molded PP composite midrange Cone with rubber surround

• 1" oversized midrange voice coil with enhanced thermal capacity

• Optimized frequency bandwidth design

• Forged motor plates with linear gauss geometry

• Ferrite oxide magnet with optimized motor force

• Stamp cast  steel basket

• Onboard 6db crossover

Specifications

• Max Power : 95 Watts

• Nominal Power Handling : 35 Watts

• Frequency Response: 180 Hz - 20KHz

• Impedance:  4Ω

• Sensitivity: 87 dB

Description

The DB DRIVE DX-S35 3.5" 2-way speaker offers exceptional sound quality in a compact design, perfect for enhancing car audio systems in limited spaces.  Key Features:  0.50" PEI Dome Tweeter: Clear highs and expanded soundstage with optimized off-axis response. Injection-Molded PP Composite Cone: Crisp, accurate midrange with minimal distortion. 1" Oversized Voice Coil: Superior power handling and consistent performance. Forged Motor Plates & Ferrite Magnet: Enhanced clarity and efficiency for reliable performance. Onboard 6dB Crossover: Smooth frequency transitions for precision sound. Power Handling:  Dynamic: 95W Nominal: 35W Ideal for factory upgrades or custom systems, the DX-S35 delivers precise, high-quality sound with ease.
