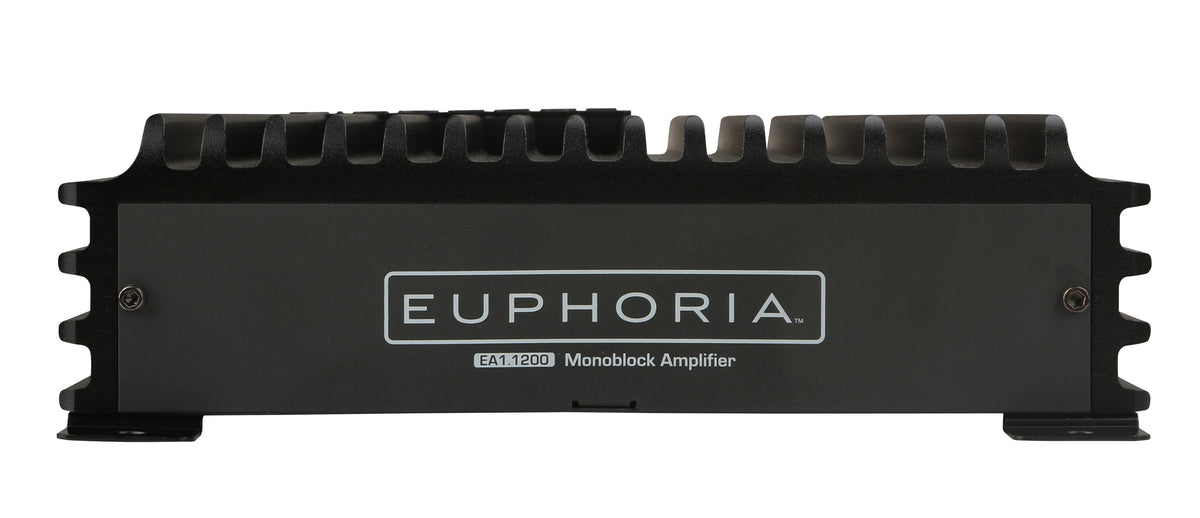

Euphoria EA1.1200 : Mono Class D Amplifier

Overview

A Higher Standard of Sound. A full range Class D amplifier with refined control, efficient power, and protected performance.

Features

• High efficiency full range Class D Technology

• Audiophile Grade tiffany RCA connectors

• ACT- adaptive Low-Pass filter

• ACT- adaptive Subsonic filter

• SESI- Operation status indicator

• Bass optimization EQ

• Direct Connect Speaker Outputs

• Large Gauge Power Wire Inputs

• APC - Audio Circuit Protection

• Remote gain control (Included)

Specifications

• 1 x 1200 Watts @ 1 ohm

• 1 x 600 Watts @ 2 ohms

• 1 x 300 Watts @ 4 ohms

• Low Pass Filter : 40 Hz - 250 Hz

• Sub Sonic Filter: 10 Hz - 50 Hz

• Bass EQ @ 45Hz : 0dB -12 dB

• Working Voltage: 9-16 Volts

• Frequency Response: 20 Hz - 250K Hz

• Signal to Noise Ratio: <85dB

• Damping Factor @ 100Hz - 4volts/4-ohms <400

• Selectable Low Level Input ranges: 350MV - 6.75V

Description

For those who demand premium sound, the Euphoria EA1.1200 Monoblock Subwoofer Amplifier delivers powerful, dynamic bass performance for audiophiles and casual listeners alike. Key Features: •    Power Output: 1200W x 1 at 1 ohm for deep and precise bass. •    Flexible Compatibility: Supports 1, 2, or 4-ohm loads for versatile setups. •    High-Efficiency Class D Design: Ideal for modern electrical systems. •    Adaptive Crossover: Customize your subwoofer for optimal performance. •    Remote Dash Control: Adjust bass levels effortlessly. •    Precision Tuning: Durable metal potentiometers ensure stable settings. •    4-Layer PCB: Provides cleaner, more accurate audio. •    Compact Design: Fits easily into tight spaces. Elevate your car audio experience with the Euphoria EA1.1200 and enjoy bass like never before.
