Euphoria EA8.1200 : 8-channel Class D amplifier

Overview

A Higher Standard of Sound. Full range eight-channel amplification with refined connectivity, robust protection, and installation-focused power handling.

Features

• High efficiency full range Class D Technology

• Audiophile Grade tiffany RCA connectors

• ACT-adaptive High-Pass filter on Ch 1-2 , 5-6

• ACT-adaptive Low-Pass, Band-Pass,  High-Pass filter on Ch 3-4 , 7-8

• Direct Connect Speaker Outputs

• Large Gauge Power Wire Inputs

• APC-Audio Circuit Protection

• SESI-Operation status indicator

Specifications

• 8 x 125 Watts @ 4 ohms

• 8 x 200 Watts @ 2 ohms

• 4 x 300 Watts @ 4ohm (Bridged)

• Ch 1/2 High Pass Filter Variable: 50 Hz - 5K Hz

• Ch 3/4 High Pass Filter Variable: 20 Hz - 5K Hz

• Ch 3/4 Low Pass Filter Variable: 50 Hz - 5K Hz

• Ch 5/6 High Pass Filter Variable: 50 Hz - 5K Hz

• Ch 7/8 High Pass Filter Variable: 20 Hz - 5K Hz

• Ch 7/8 Low Pass Filter Variable: 50 Hz - 5K Hz

• Working Voltage: 9- 16 Volts

• Frequency Response: 20Hz - 50KHz

• Signal to Noise Ratio: <92dB

• Damping Factor @ 100Hz - 4volts/4-ohms <100

• Selectable Low Level Input ranges : 400MV - 6.75V

Description

For those who demand premium sound, the Euphoria EA8.1200 8-channel amplifier is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio.
Key Features:
•  Power Output: 125W x 8 at 4 ohms, 200W x 8 at 2 ohms, delivering clear, full-range sound.
•  Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance.
•  High-Efficiency Class D Design: Ideal for modern electrical systems.
•  Adaptive Crossover: Fine-tune your audio for optimal sound.
•  Precision Tuning: Metal potentiometers ensure stable settings.
•  4-Layer PCB: Delivers cleaner, more accurate sound.

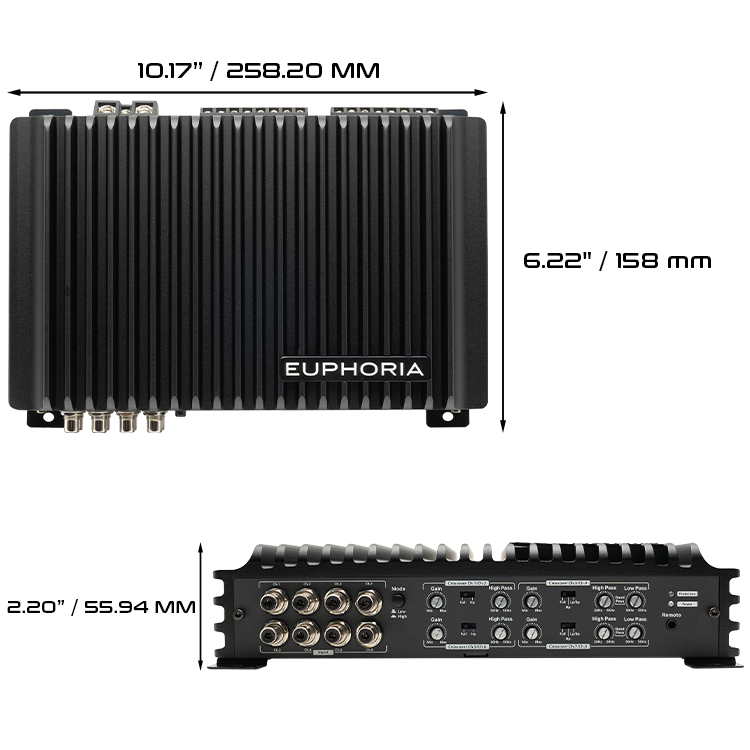

•  Compact Design: Easy to install without compromising on power.
Elevate your car audio experience with the Euphoria EA8.1200 for sound like never before.

Product Manual

Product Manual PDF
