Euphoria | SKU:
810180462044

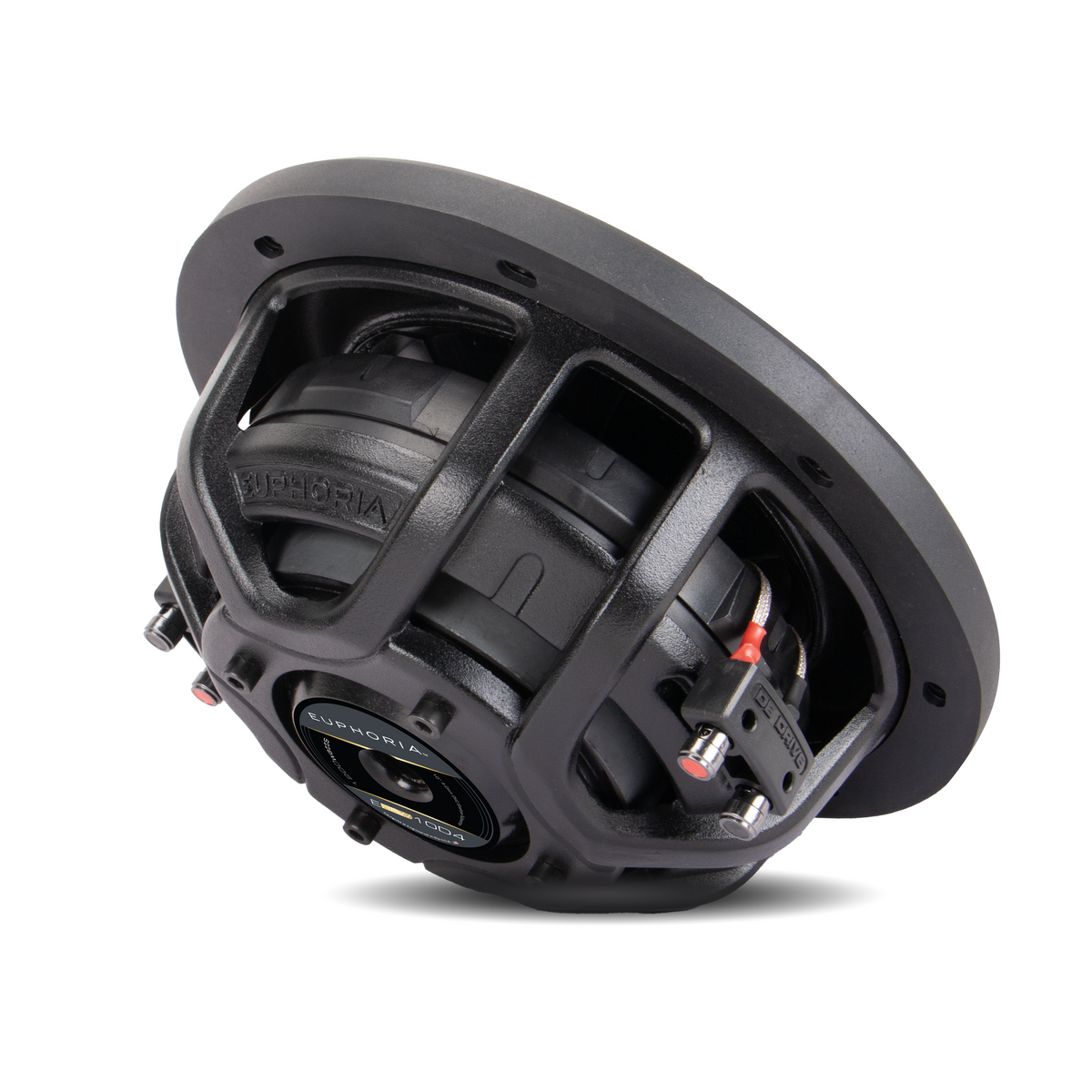

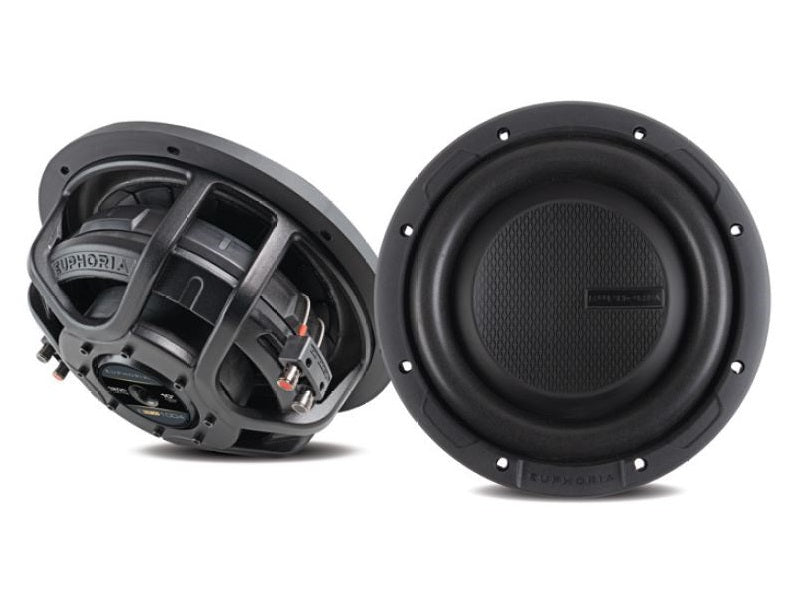

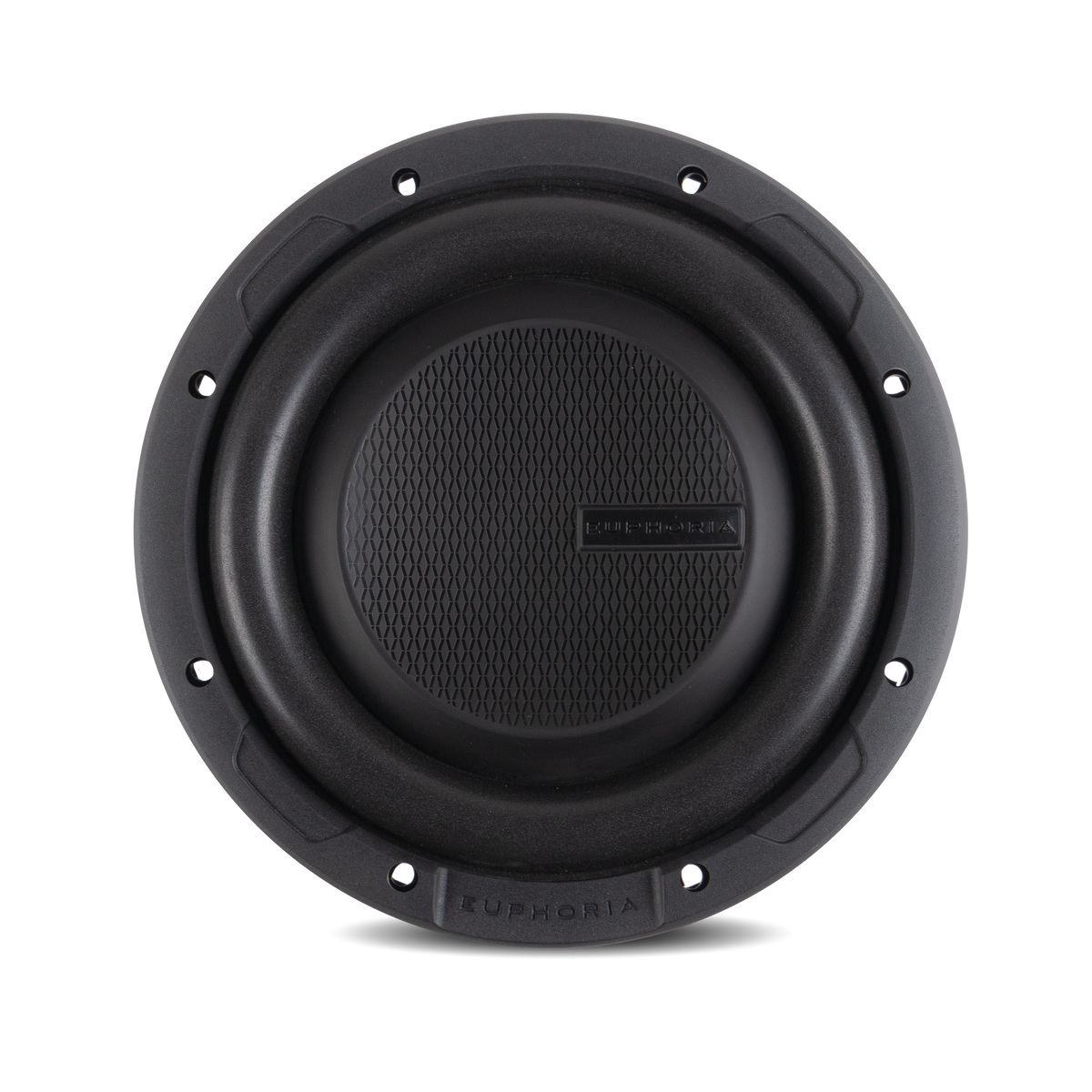

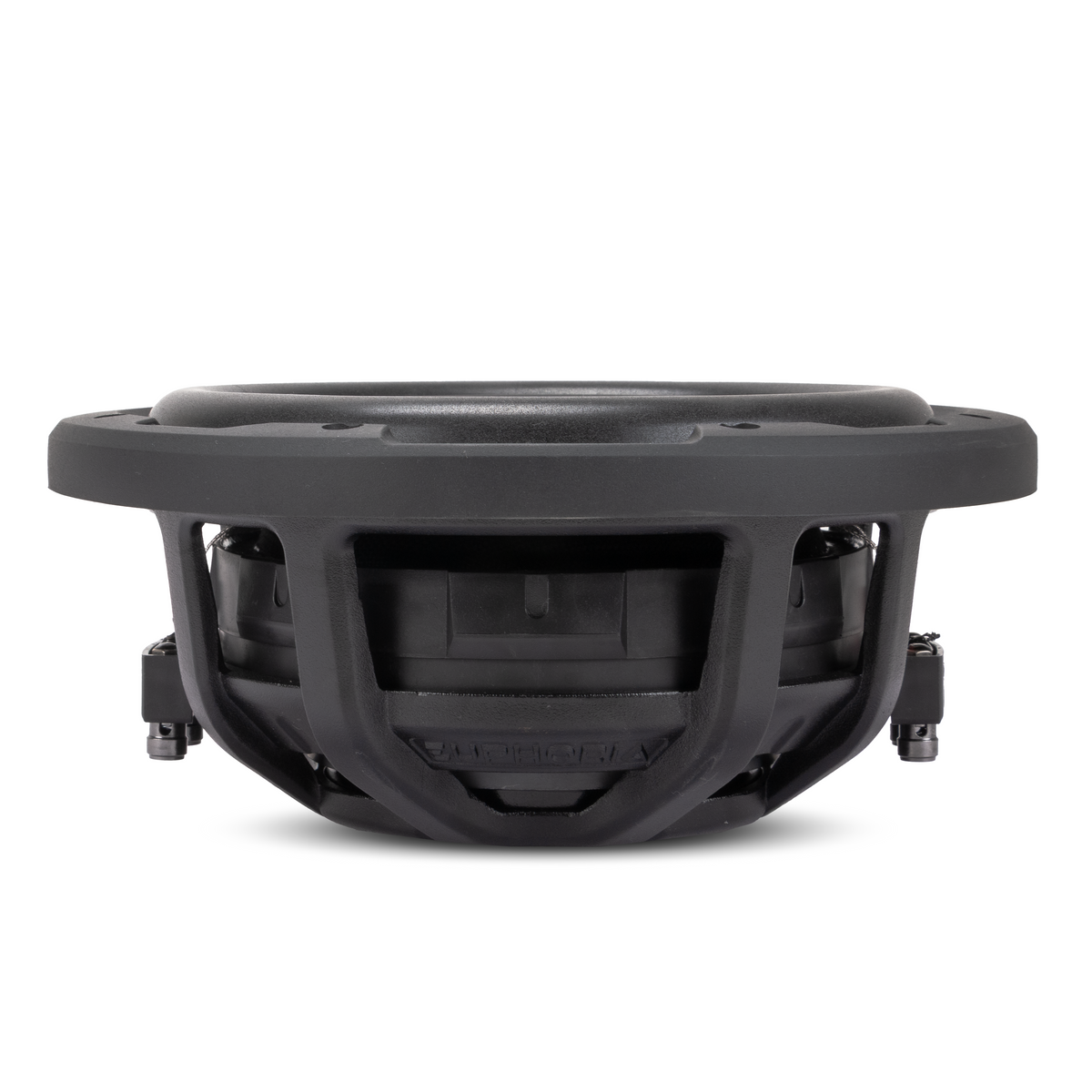

Euphoria ERFW10D4 : 10” Diecast 4 Ohm DVC Shallow Subwoofer
Regular price
$299.98
Unit price
Euphoria ERFW10D4 : 10” Diecast 4 Ohm DVC Shallow Subwoofer is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 24 hours
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Euphoria ERFW10D4 : 10” Diecast 4 Ohm DVC Shallow Subwoofer
Regular price
$299.98
Unit price
Euphoria ERFW10D4 : 10” Diecast 4 Ohm DVC Shallow Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Overview
A Higher Standard of Sound. Compact subwoofer delivering controlled bass through efficient cooling and precise cone movement.
Features
▪ High Temp Voice Coil Wire Around Vented KSV Former
▪ Radial Basket Vents for Voice Coil Cooling
▪ Large Gauge Push Button Speaker Wire Terminals
▪ Proprietary Injection Molded Polypropylene Cone
▪ High Excursion Foam Surround
▪ Extended Linear Roll Progressive Dampener
▪ Stealth Gasket for Custom Mounting Applications
▪ Anti-Resonance Heavy Gauge Shallow Die-Cast basket
▪ Optimized Motor for Low Frequency Response
▪ Radial Basket Vents for Voice Coil Cooling
▪ Large Gauge Push Button Speaker Wire Terminals
▪ Proprietary Injection Molded Polypropylene Cone
▪ High Excursion Foam Surround
▪ Extended Linear Roll Progressive Dampener
▪ Stealth Gasket for Custom Mounting Applications
▪ Anti-Resonance Heavy Gauge Shallow Die-Cast basket
▪ Optimized Motor for Low Frequency Response
Specifications
▪ Nominal Power Handling: 600 Watts
▪ Peak Power Handling: 1200 Watts
▪ Impedance: Dual 4Ω Voice Coil
▪ Free Air Resonance (Fo) 32.035 Hz
▪ D.C. Voice Coil Resistance (Re): 6.400 Ω
▪ Mechanical Quality Factor (Qms): 3.968
▪ Electrical Quality Factor (Qes): 0.719
▪ Total Quality Factor (Qts): 0.609
▪ Equivalent Air Volume (Vas): 18.550 L
▪ Mass of Diaphragm/Coil (Mms): 205.825 g
▪ Force Factor (BL): 19.199 TM
▪ Sound Pressure Level (SPL): 81.2 dB
▪ Effective Diaphragm Area (Sd): 33.006m
▪ Compliance of Mechanical Suspension (Cms): 119.912 mm/N
▪ Moving Mass of Diaphragm (Mmd): 202.377 m Kg
▪ MMd: 190.000g
▪ Peak Power Handling: 1200 Watts
▪ Impedance: Dual 4Ω Voice Coil
▪ Free Air Resonance (Fo) 32.035 Hz
▪ D.C. Voice Coil Resistance (Re): 6.400 Ω
▪ Mechanical Quality Factor (Qms): 3.968
▪ Electrical Quality Factor (Qes): 0.719
▪ Total Quality Factor (Qts): 0.609
▪ Equivalent Air Volume (Vas): 18.550 L
▪ Mass of Diaphragm/Coil (Mms): 205.825 g
▪ Force Factor (BL): 19.199 TM
▪ Sound Pressure Level (SPL): 81.2 dB
▪ Effective Diaphragm Area (Sd): 33.006m
▪ Compliance of Mechanical Suspension (Cms): 119.912 mm/N
▪ Moving Mass of Diaphragm (Mmd): 202.377 m Kg
▪ MMd: 190.000g
Dimensions
▪ Overall Diameter: 10.71”/ 272 mm
▪ Mounting Depth: 3.68”/ 93.5 mm
▪ Cutout Diameter: 9.13”/ 232mm
▪ Mounting Depth: 3.68”/ 93.5 mm
▪ Cutout Diameter: 9.13”/ 232mm
