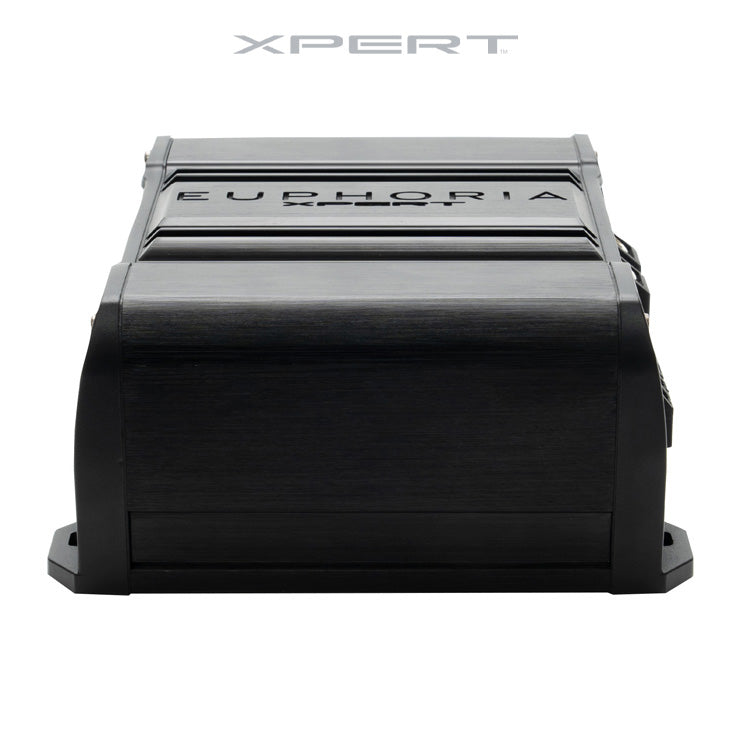

Xpert EX100.4 : 4 Channel Full Range Class D Amplifier

Features

◦ 4 Channel Class D Circuitry
◦ ACT - Adaptive Crossover Technology
◦ High efficiency Full Range Class D Technology

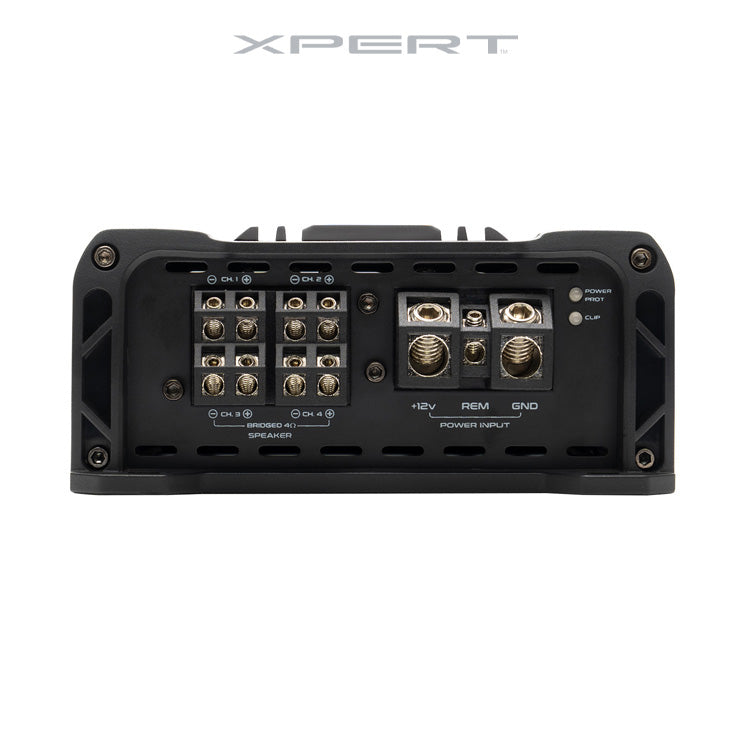

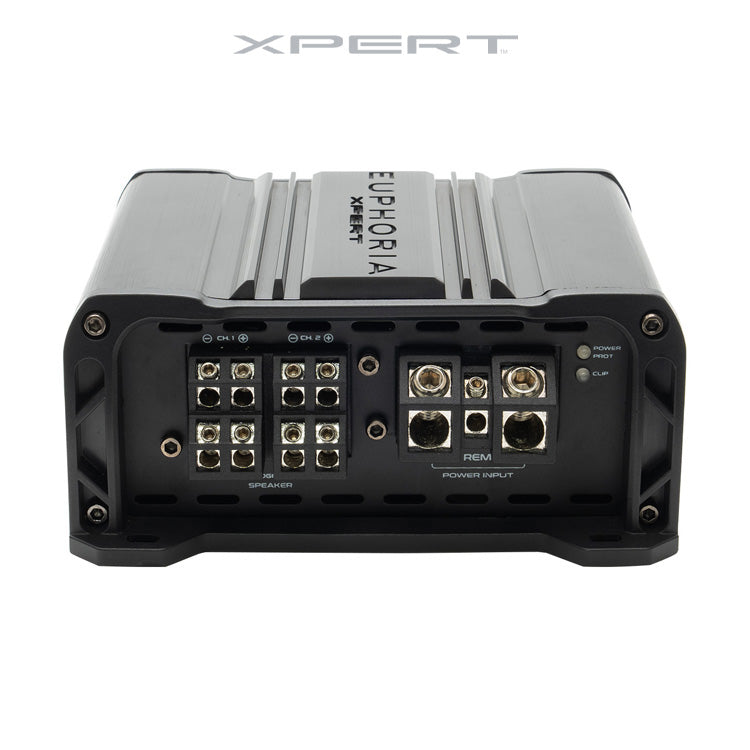

◦ Direct Connect Speaker Terminals
◦ Large Gauge Power Wire Inputs
◦ APC - Audio Protection Circuit
◦ SESI - Signal Evaluation Status Indicator

Specifications

@14.4 Volts - 1% THD

• 4 x 50 Watts @ 4 Ohm
• 4 x 100 Watts @ 2 Ohm

• 2 x 200 Watts @ 4 Ohm (Bridged)

• Working Voltage: 10 - 16 Volts

• Frequency Response: 10Hz - 20KHz

• Signal to Noise Ratio: < 85dB

• Damping Factor @ 4 Ohm > 57/ 1KHz

• Low Level Input: 6V - 0.2V

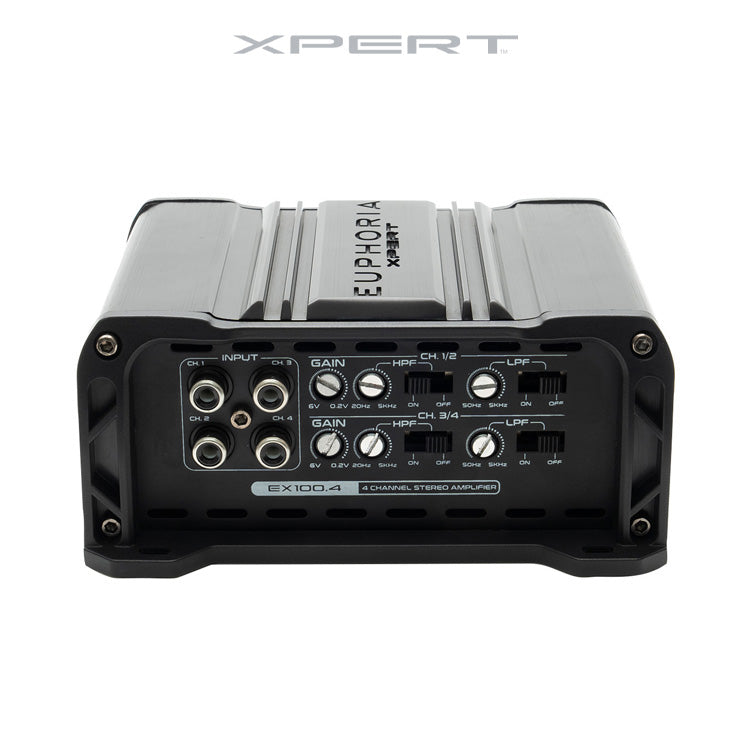

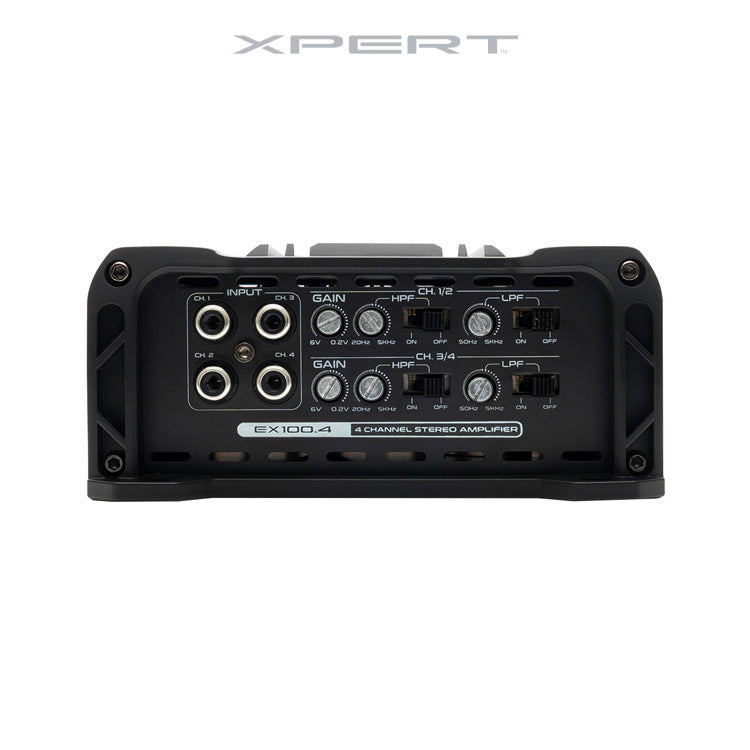

• Ch 1/2 High Pass Filter Variable: 20Hz - 5KHz

• Ch 1/2 Low Pass Filter Variable: 50Hz - 5KHz

• Ch 3/4 High Pass Filter Variable: 20Hz - 5KHz

• Ch 3/4 Low Pass Filter Variable: 50Hz - 5KHz

• Minimum Working Impedance: 2 Ohm Stereo

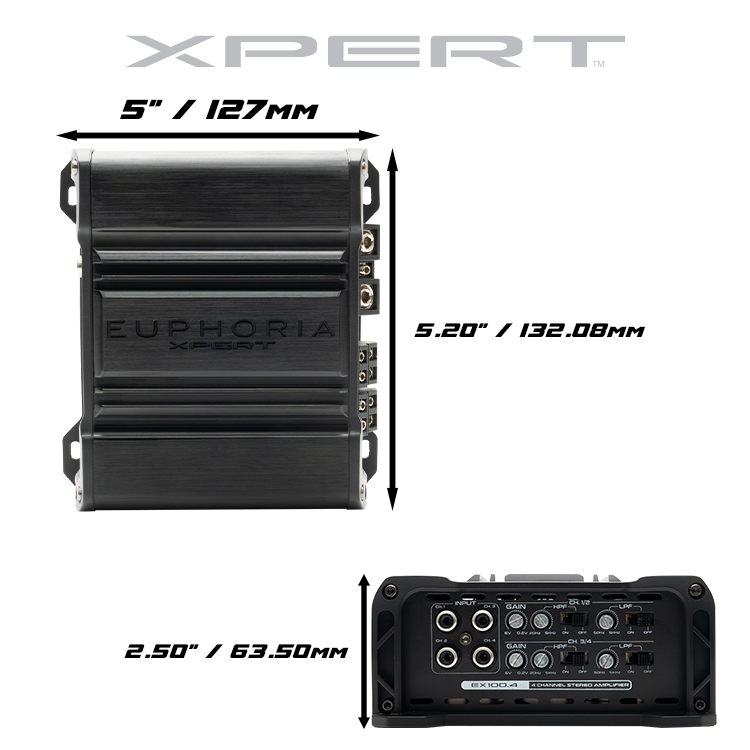

DIMENSIONS

• L - 5" / 127mm

• W - 5.20" / 132.08mm

• H - 2.50" / 63.50mm

Description

Expertly designed for optimal performance, the EX100.4 Mini 4 Channel Full Range Class D Amplifier delivers powerful and clean sound. With 4 ohm @ 14.4 volts & 1% THD, this compact amplifier provides 4 x 50 Watts to enhance your audio experience. Its advanced features, such as the variable high and low pass filters, ensure precise tuning for a frequency response of 10Hz - 20KHz. Achieve superior sound quality with the EX100.4.
