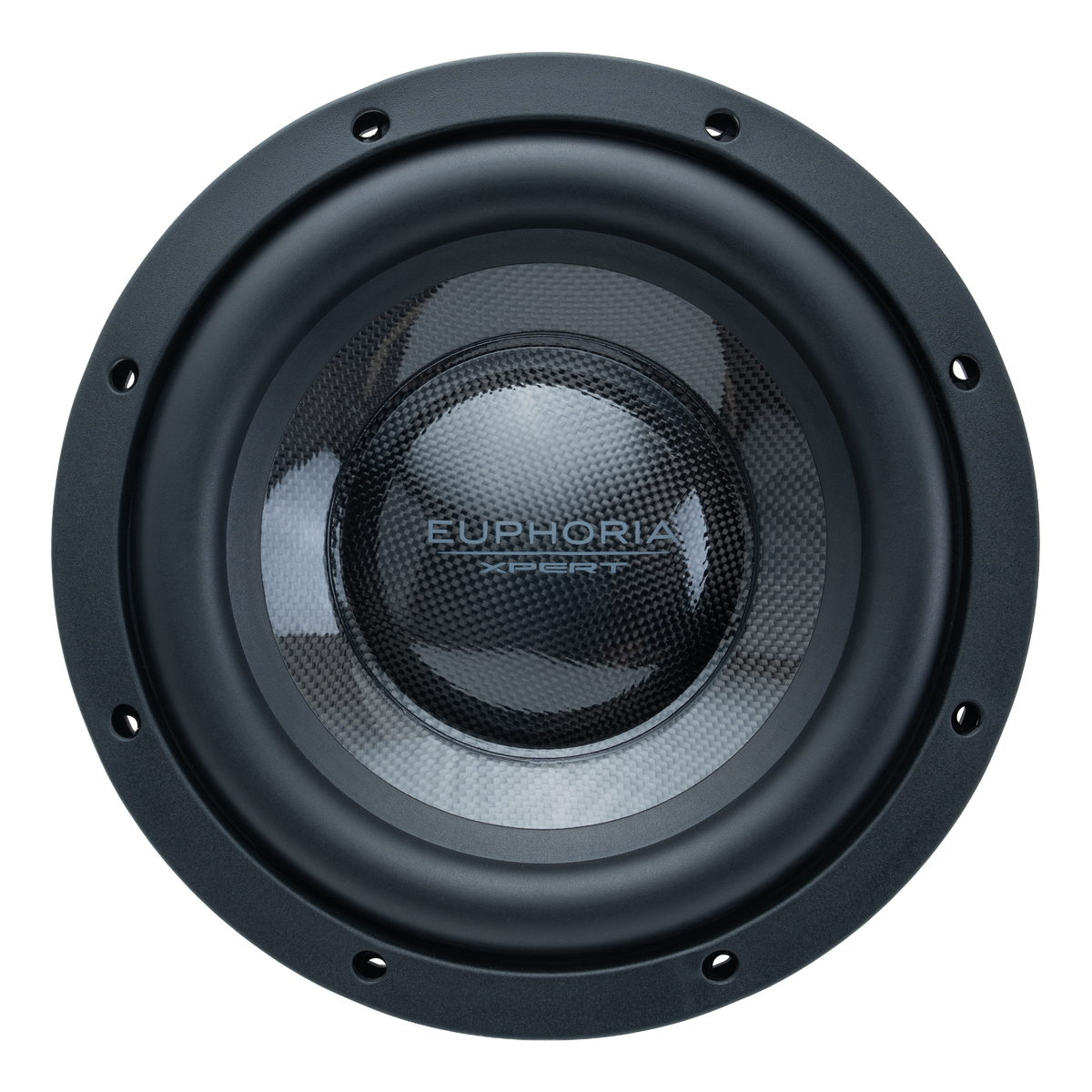

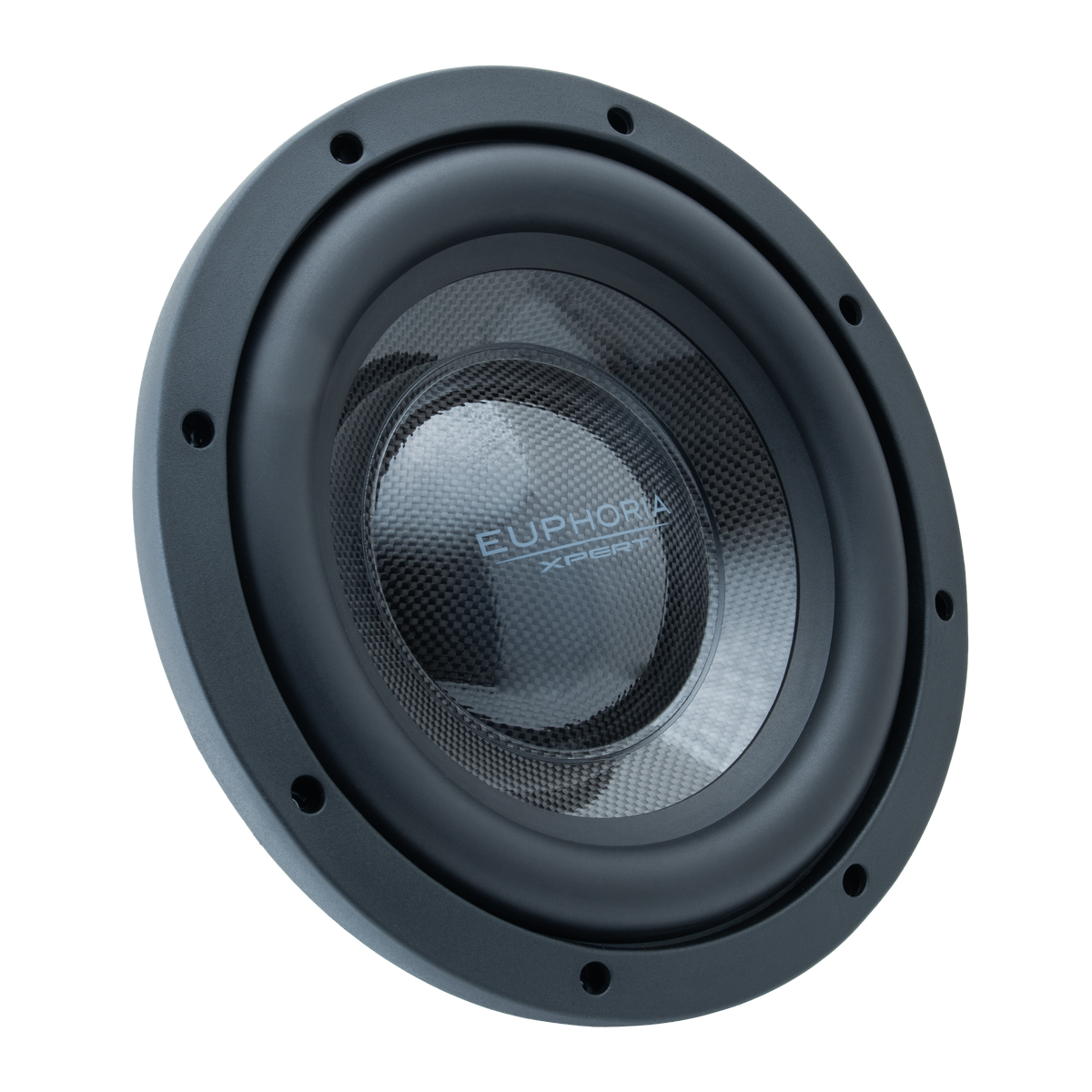

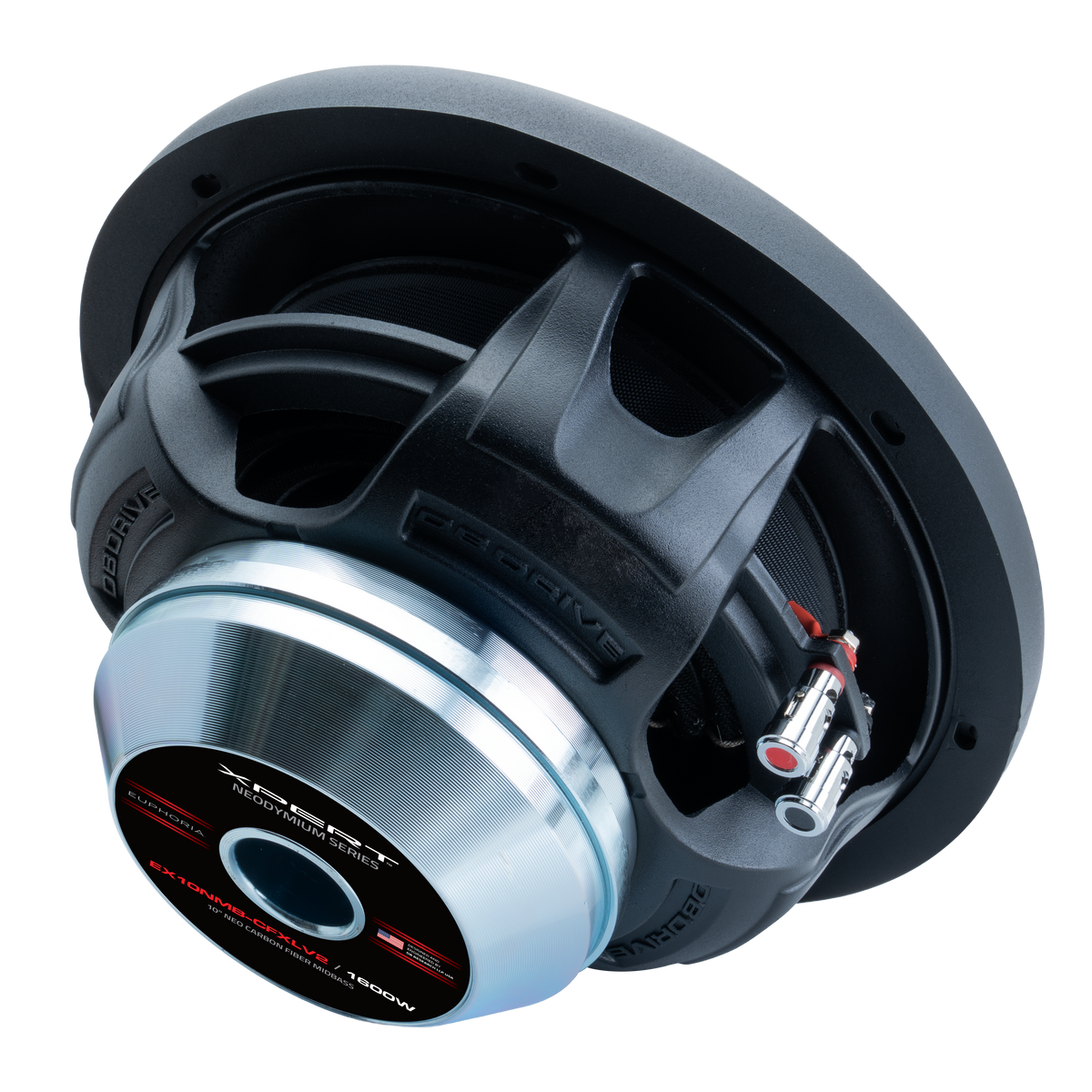

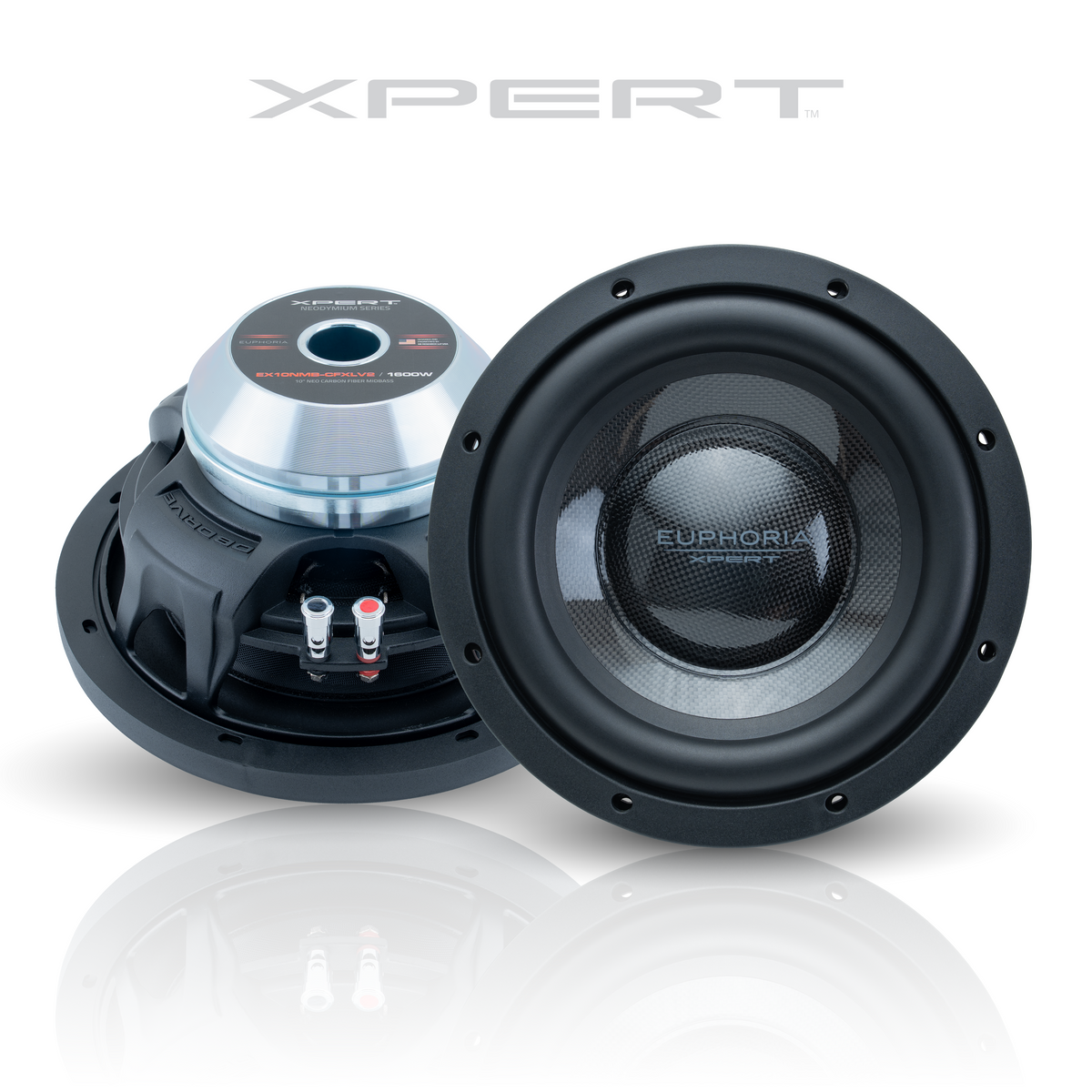

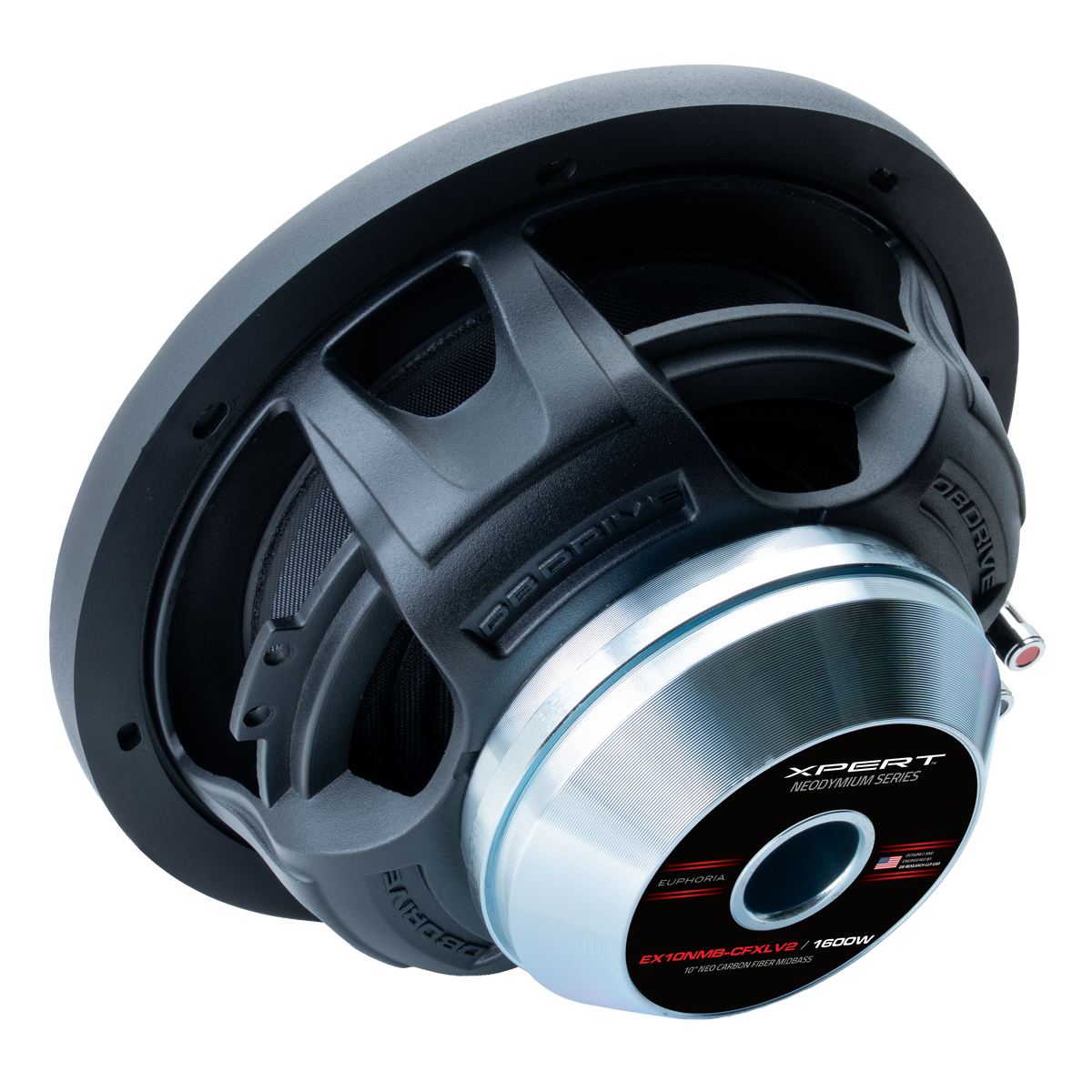

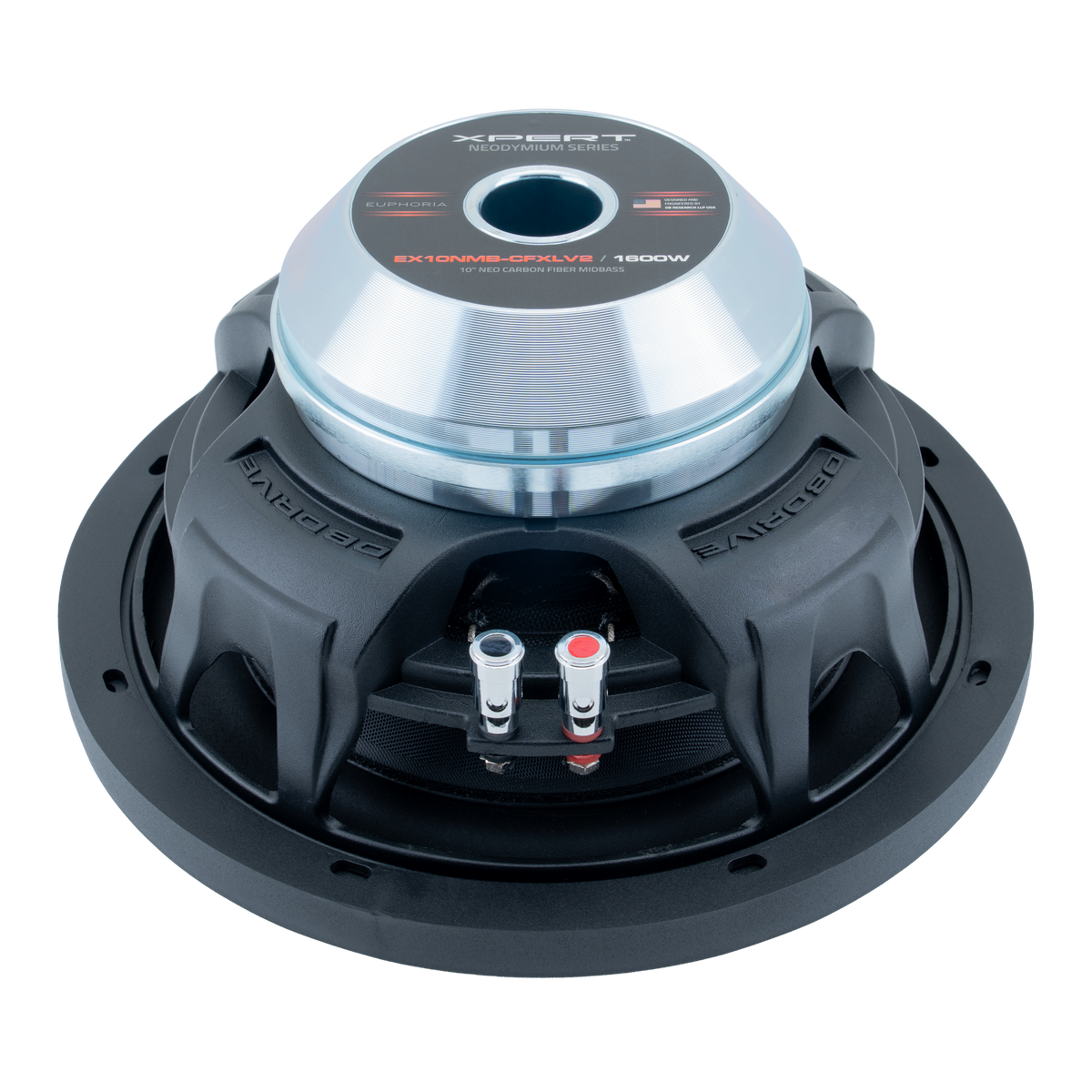

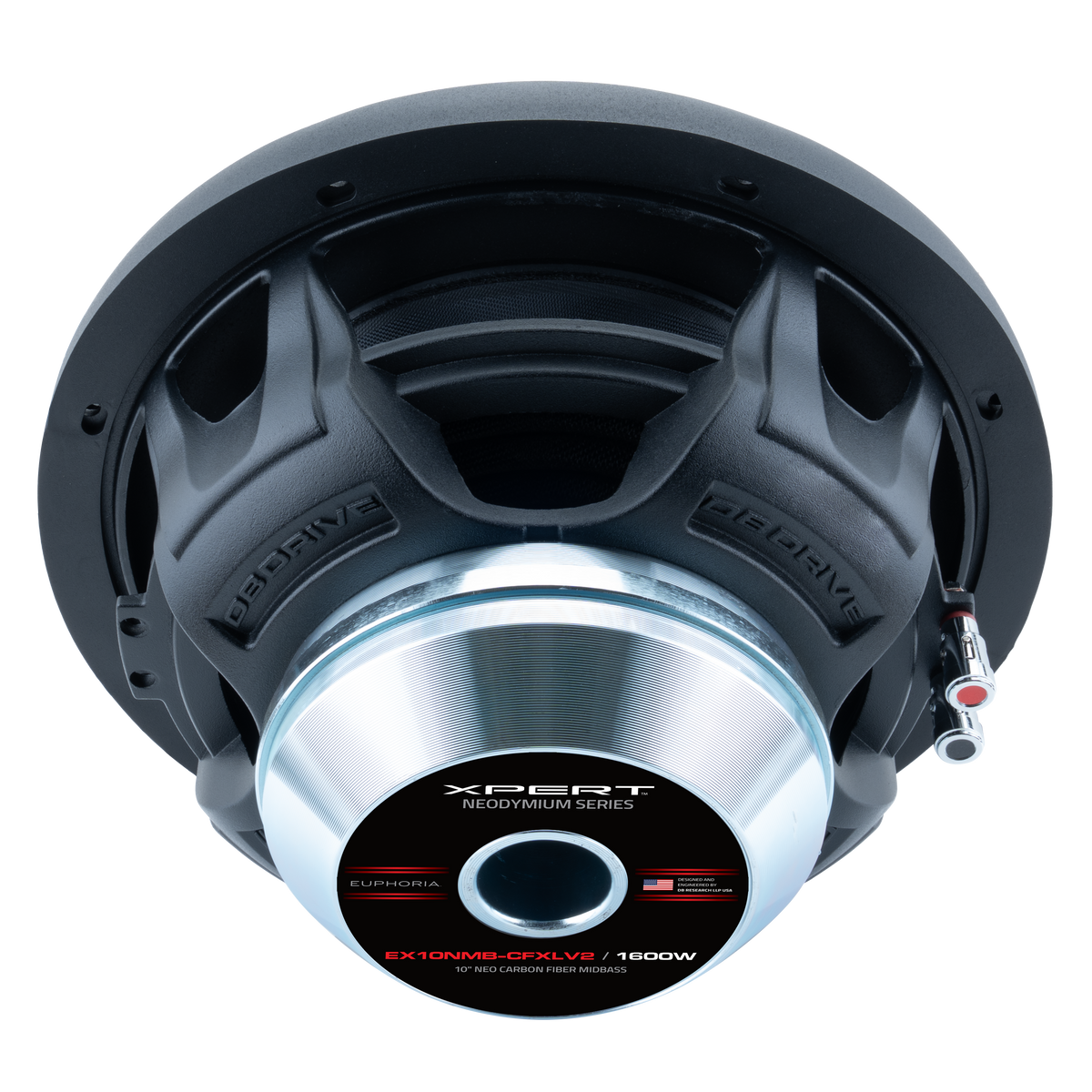

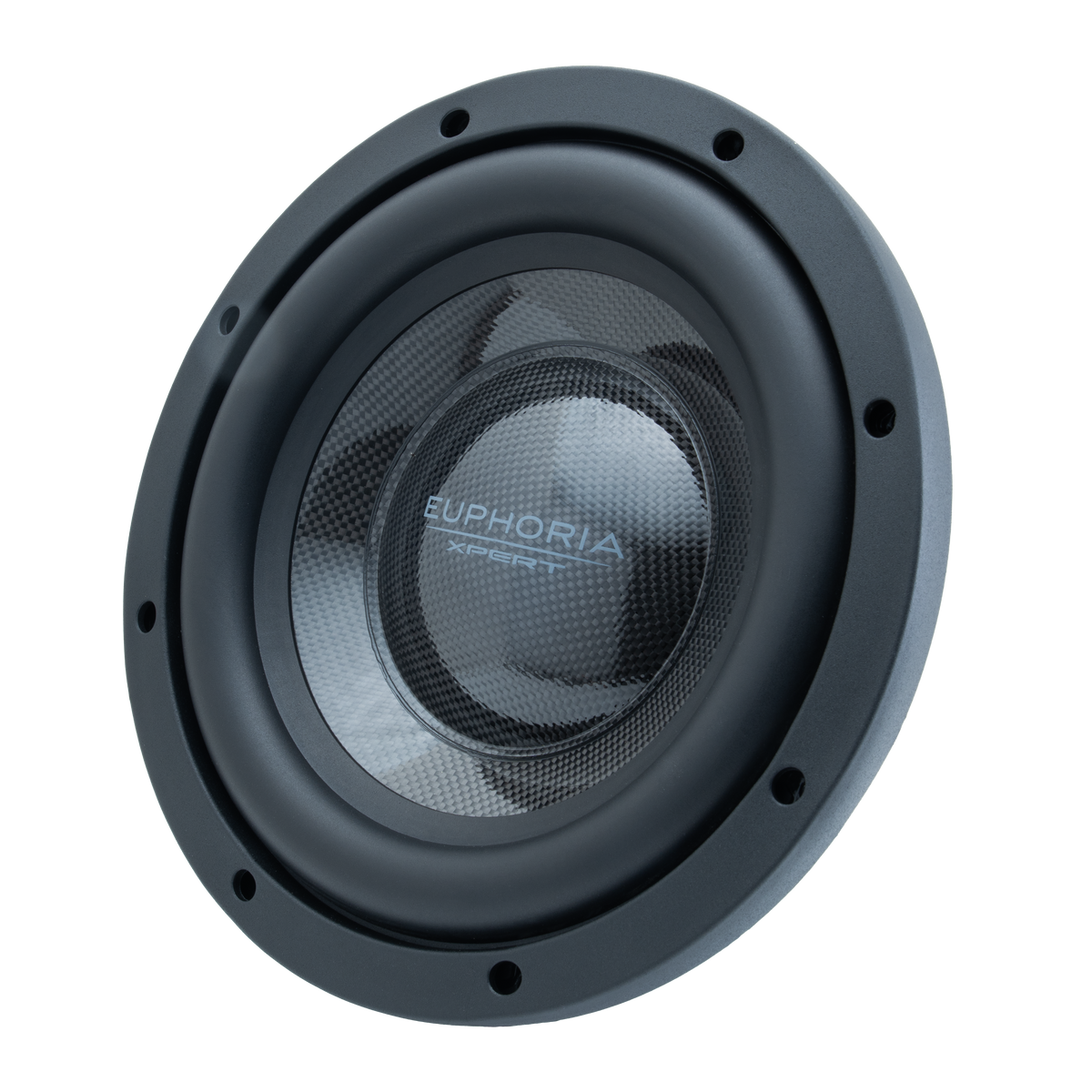

Xpert EX10NMB-CFXLV2 : Limited Edition Carbon Fiber 10 in. Midbass

Features

• 3″ (63.5mm) Voice Coil

• Neodymium M-Ring Magnet Assembly

• Optimized for High Output SQ Sound Systems

• Weather Resistant Carbon Fiber Cone with Rubber Surround

Specifications

• Power Handling: 800 Watts

• Dynamic Wattage: 1600 Watts

• Resonant Frequency (fs): 78.70 Hz

• D.C. Voice Coil Resistance (Re): 3Ω

• Mechanical Quality Factor (Qms): 4.04

• Electrical Quality Factor (Qes): 0.96

• Total Quality Factor (Qts): 0.77

• Compliance Equivalent Volume (Vas): 12.06 L

• Mechanical Compliance (Cms): 70.46 mm/N

• Sensitivity (1w/1m): 93 dB

• Impedance: 3Ω

• DIMENSIONS

• Overall Diameter: 10.85"/ 275.50 mm

• Cutout Diameter: 9.25"/ 234.88 mm

• Mounting Depth: 4.64"/ 117.75 mm
