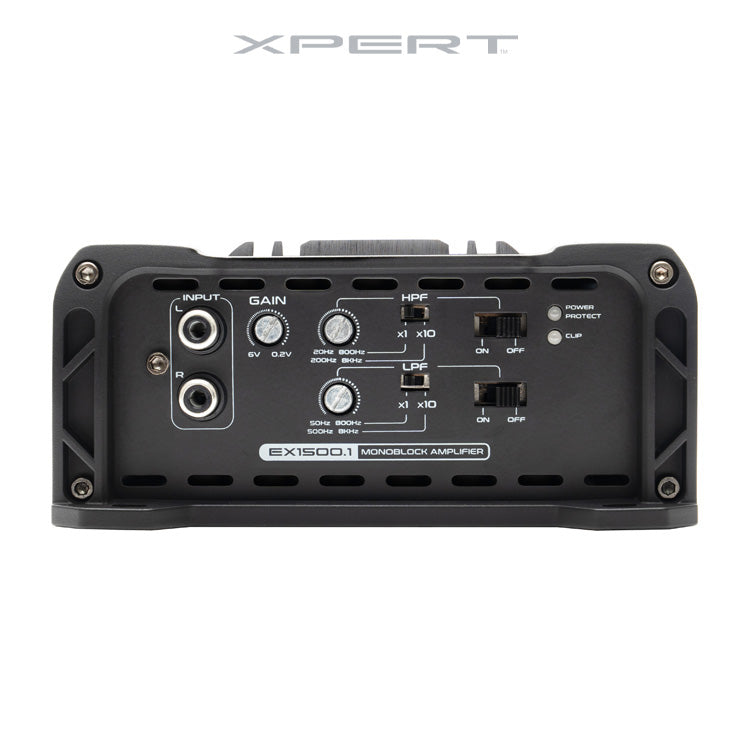

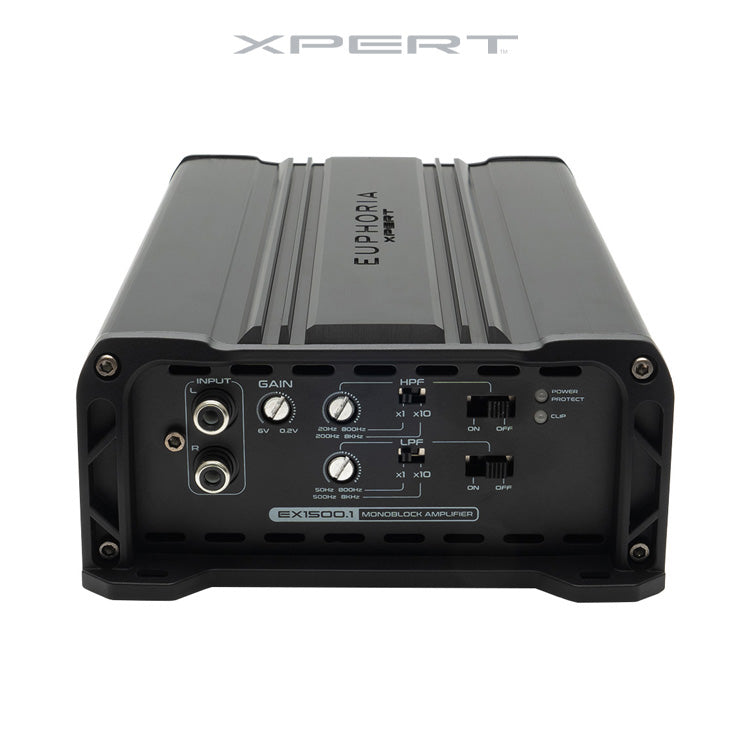

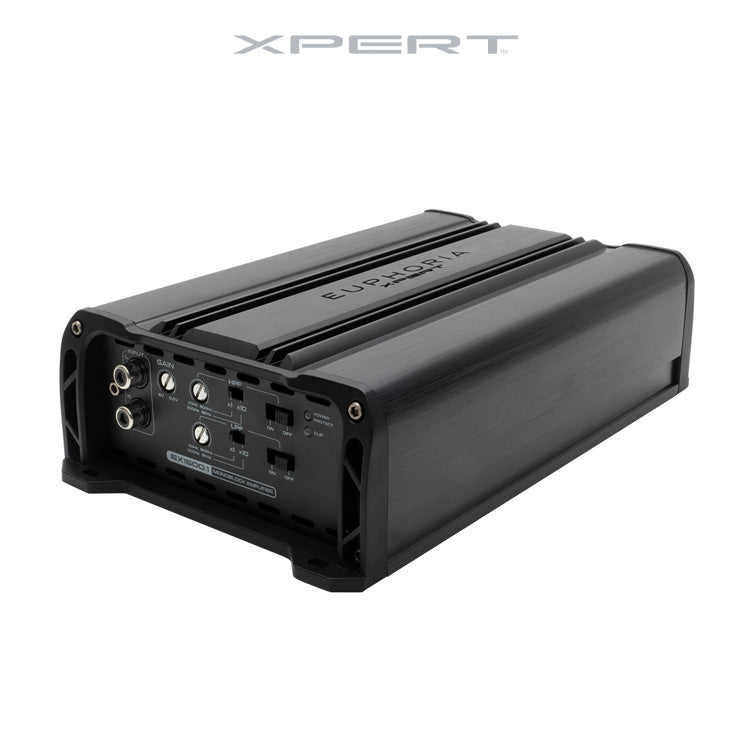

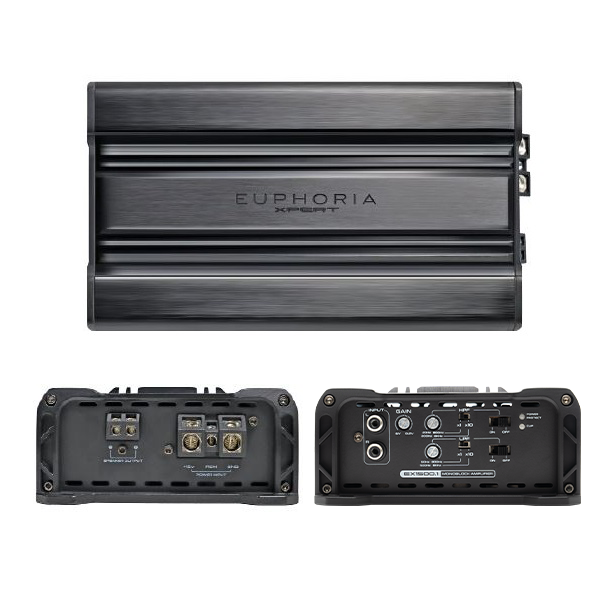

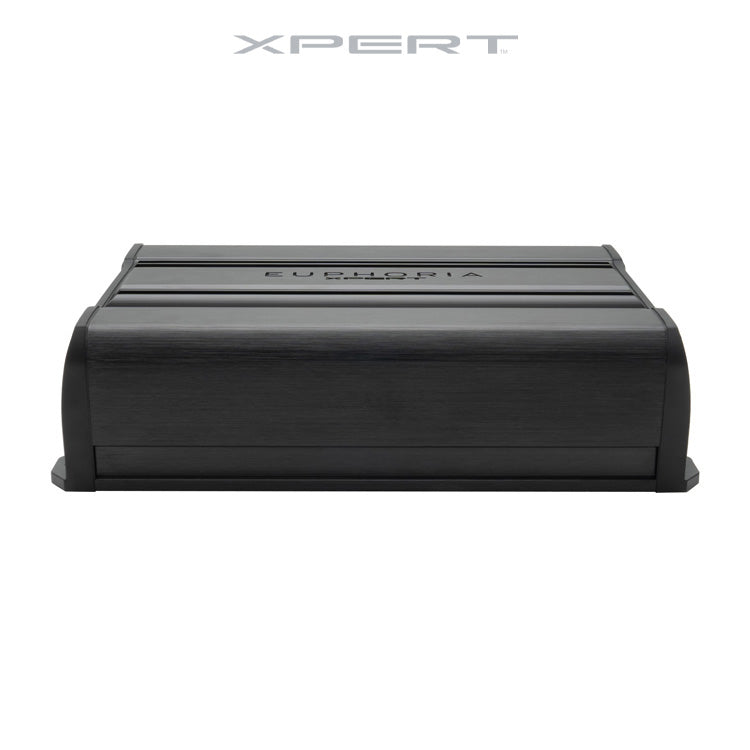

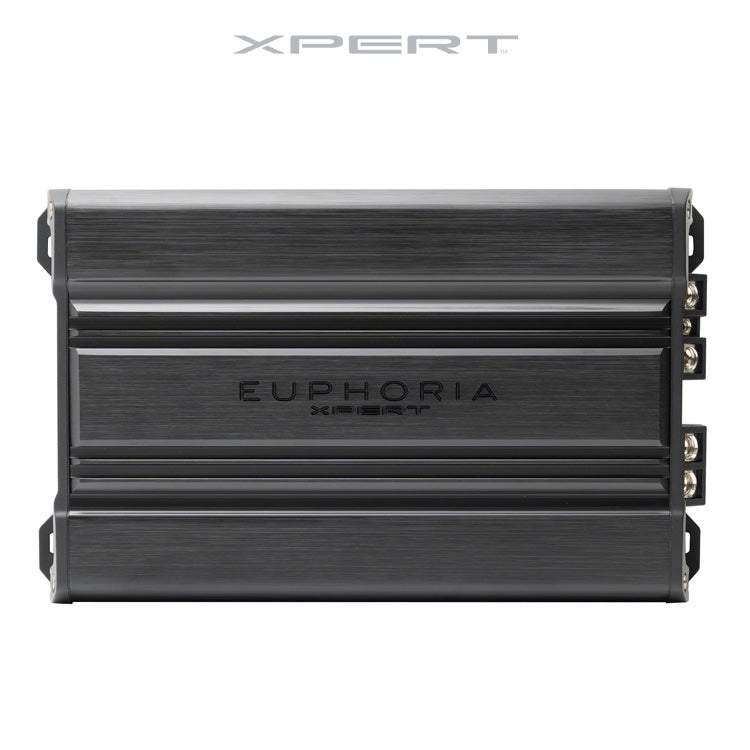

Xpert EX1500.1 : Full Range Class D Monoblock Amplifier

Features

◦ ACT - Adaptive Crossover Technology
◦ High Efficiency Full Range Class D Technology

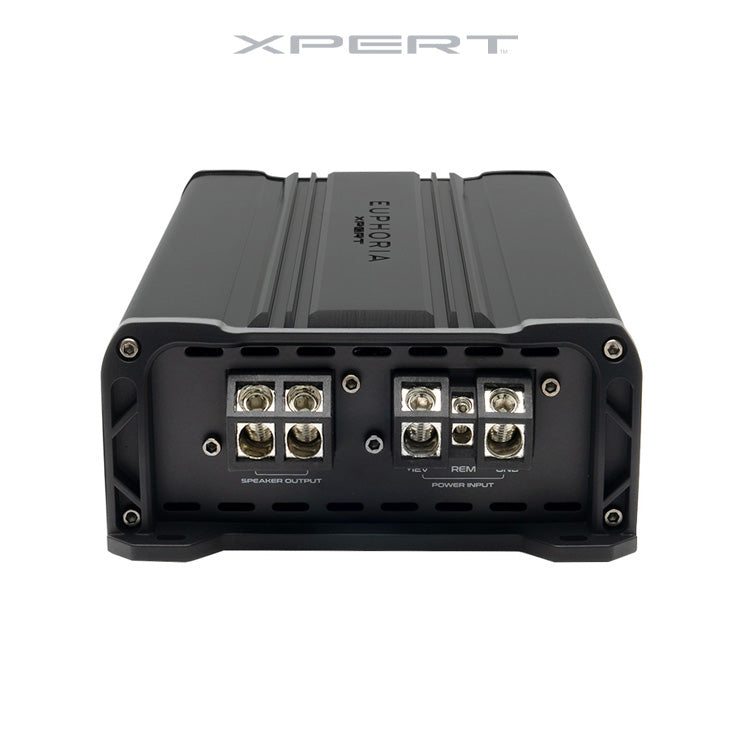

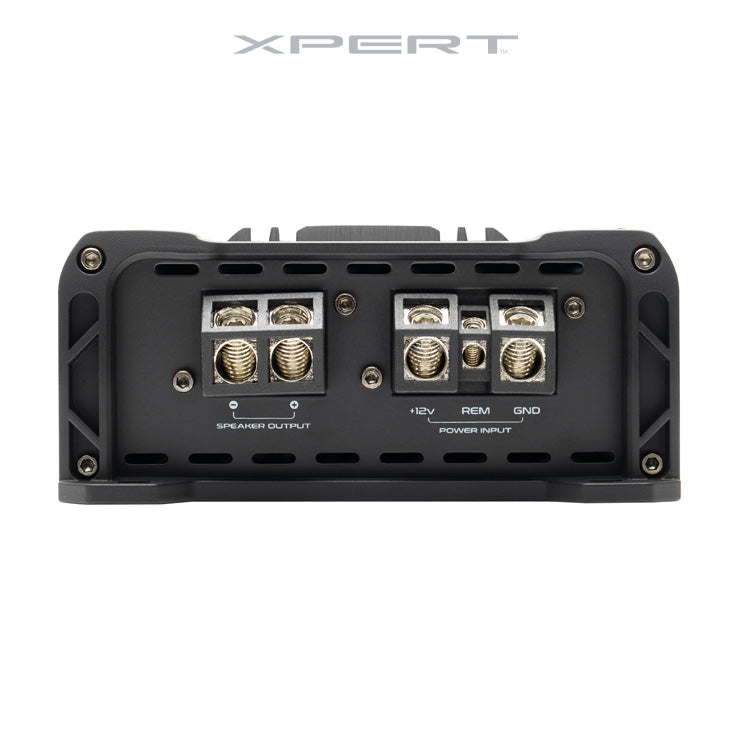

◦ Direct Connect Speaker Terminals
◦ Large Gauge Power Wire Inputs
◦ APC - Audio Protection Circuit
◦ SESI - Signal evaluation status indicator

Specifications

@ 14.4 Volts - 1% THD

• 1 x 1500 Watts @ 1 Ohm
• 1 x 750 Watts @ 2 Ohm
• 1 x 325 Watts @ 4 Ohm

• Working Voltage: 10 - 16 Volts

• Frequency Response: 10Hz - 20KHz

• Signal to Noise Ratio: < 95dB

• Damping Factor @ 4 Ohm > 91/1 KHz

• Low Level Input: 6V - 0.2V

• High Pass Variable Filter Ranges: 20Hz - 800Hz / 200Hz - 8KHz

• Low Pass Variable Filter Ranges: 50Hz - 800Hz / 500hz - 8KHz

• Minimum working Impedance: 1 Ohm

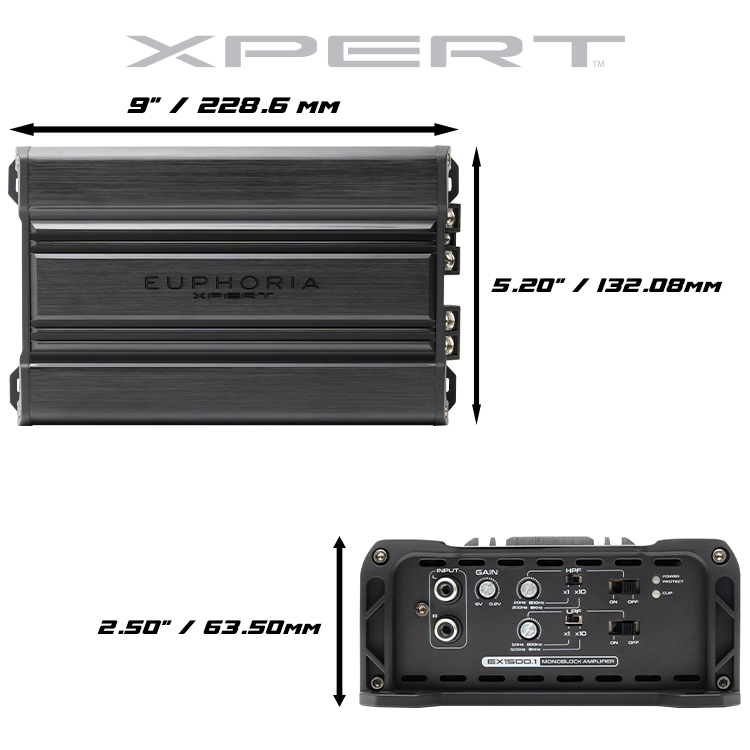

DIMENSIONS

• L - 9" / 228.6 mm

• W - 5.20" / 132.08 mm

• H - 2.50" / 63.50 mm

Product Manual

Product Manual PDF

Dyno Testing
