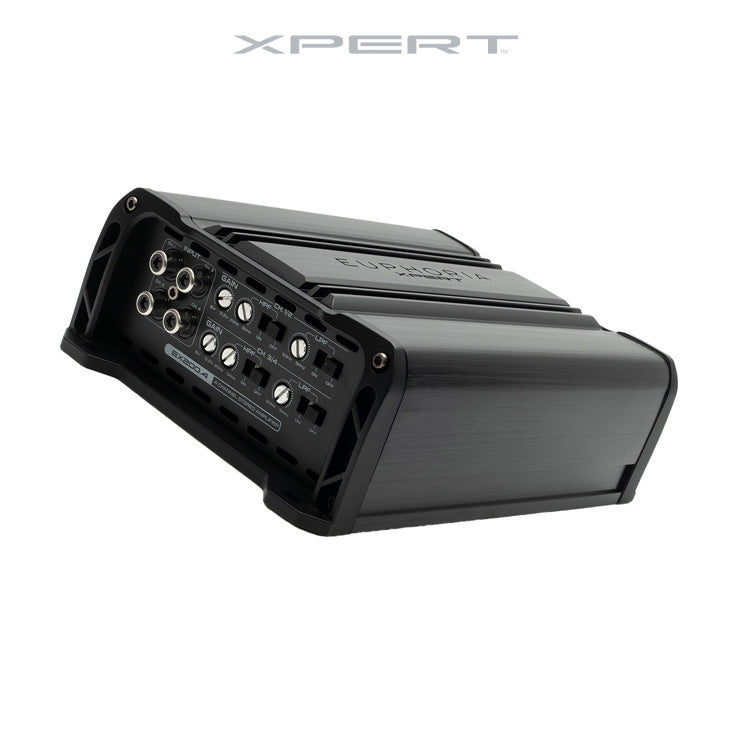

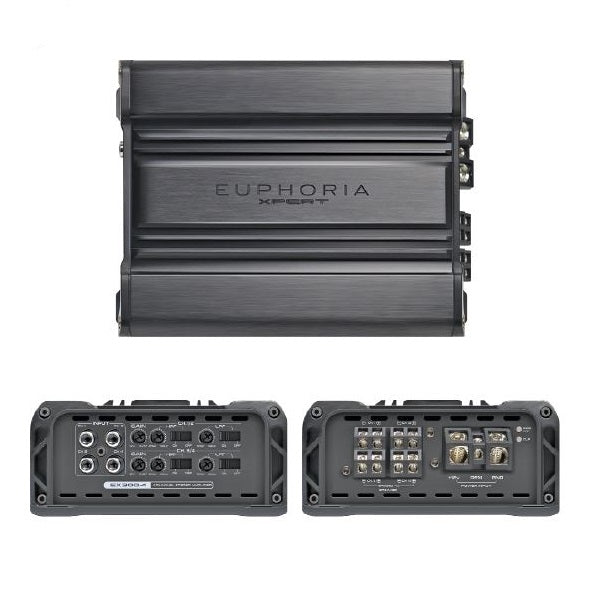

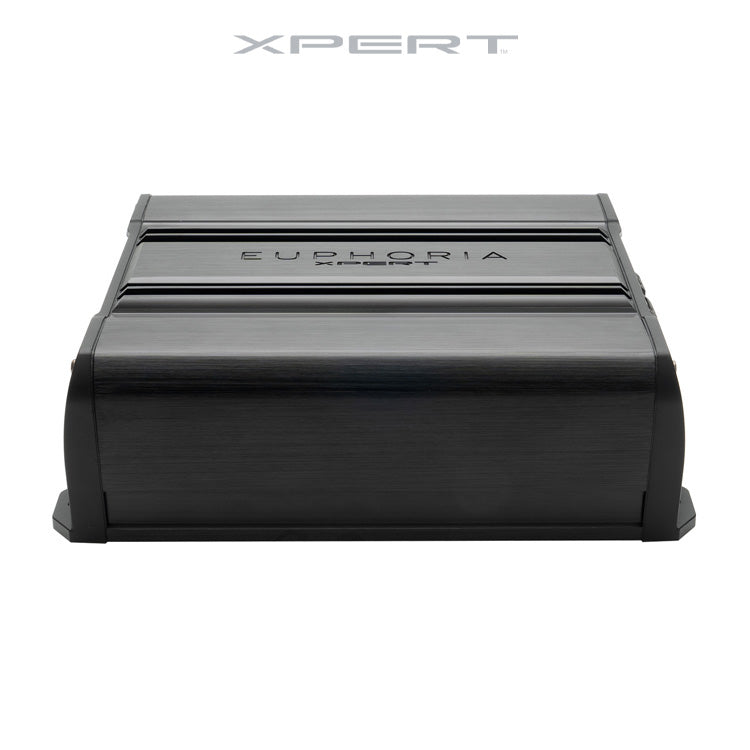

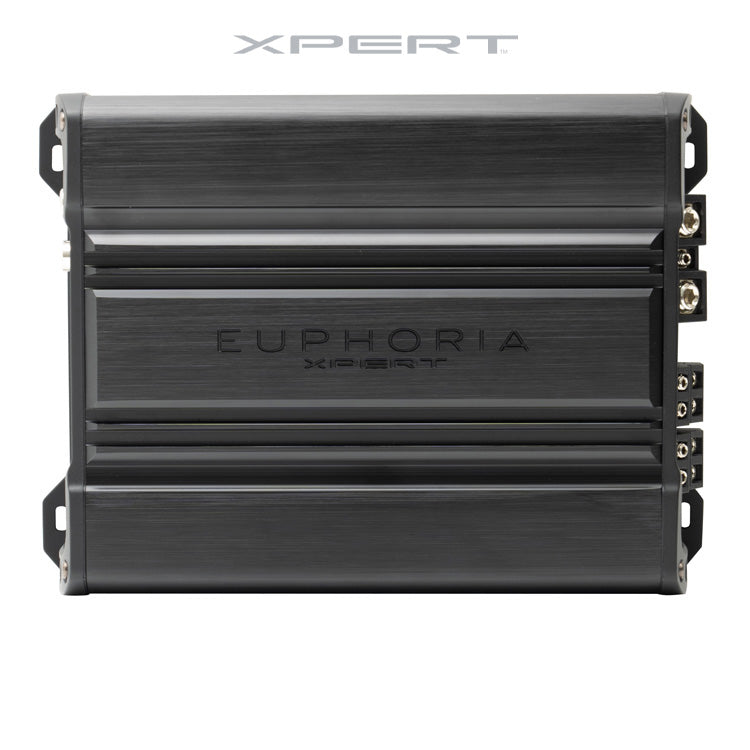

Xpert EX200.4 : 4 Channel Full Range Class D Amplifier

Features

◦ 4 Channel Class D Circuitry
◦ ACT - Adaptive Crossover Technology
◦ High efficiency Full Range Class D Technology

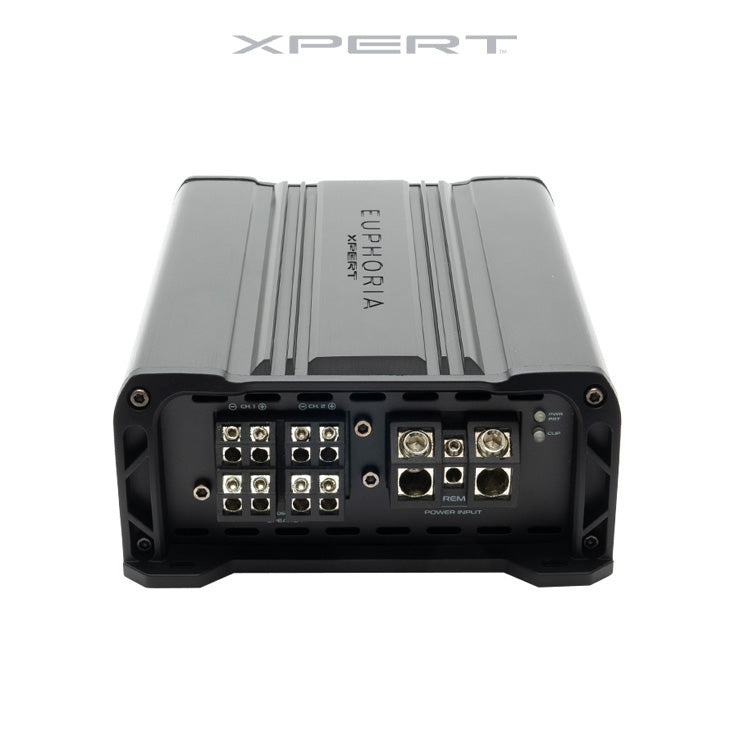

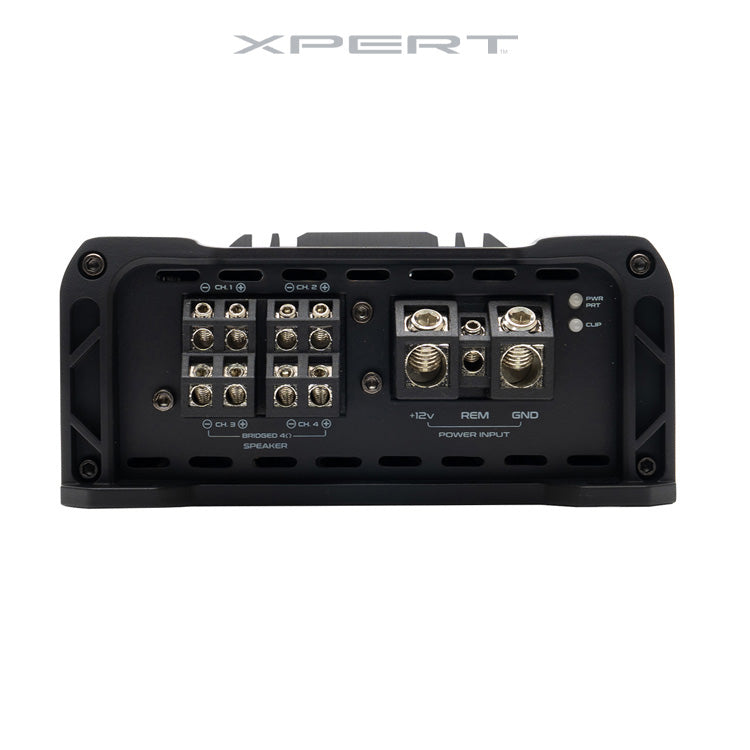

◦ Direct Connect Speaker Terminals
◦ Large Gauge Power Wire Inputs
◦ APC - Audio Protection Circuit
◦ SESI - Signal evaluation status indicator

Specifications

@14.4 Volts - 1% THD

• 4 x 200 Watts @ 4 Ohm

• 4 x 300 Watts @ 2 Ohm
• 2 x 400 Watts @ 4 Ohm (Bridged)

• Working Voltage: 10 - 16 Volts

• Frequency Response: 10Hz - 20KHz

• Signal to Noise Ratio: < 95dB

• Damping Factor @ 4 Ohm > 101/1KHz

• Low Level Input: 6V - 0.2V

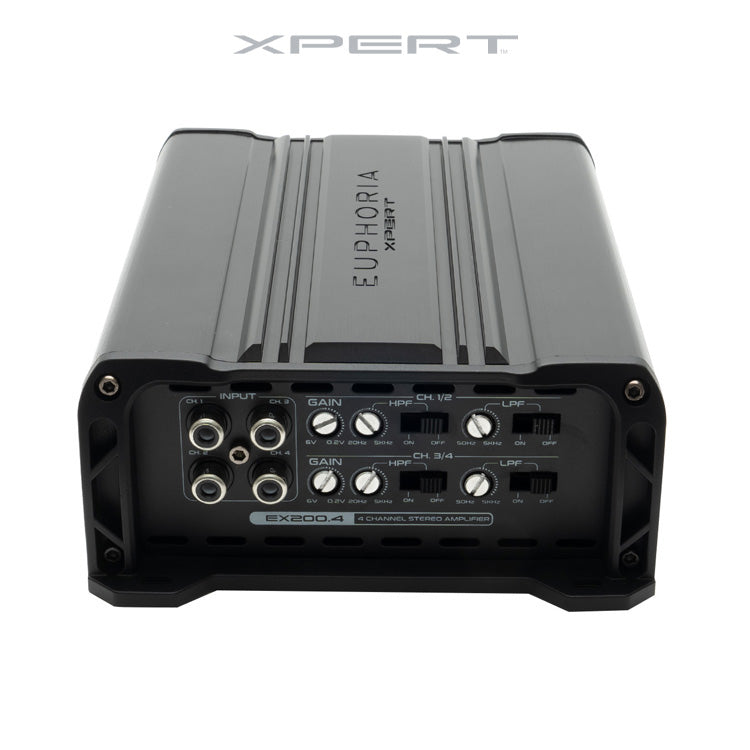

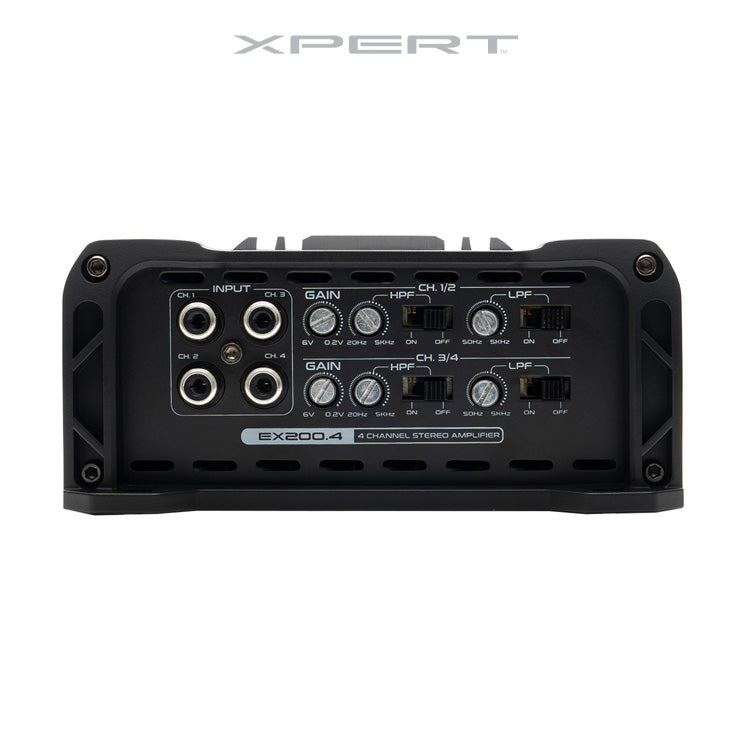

• Ch 1/2 High Pass Filter Variable: 20Hz - 5KHz

• Ch 1/2 Low Pass Filter Variable: 50Hz - 5KHz

• Ch 3/4 High Pass Filter Variable: 20Hz - 5KHz

• Ch 3/4 Low Pass Filter Variable: 50Hz - 5KHz

• Minimum Working Impedance: 2 Ohm Stereo

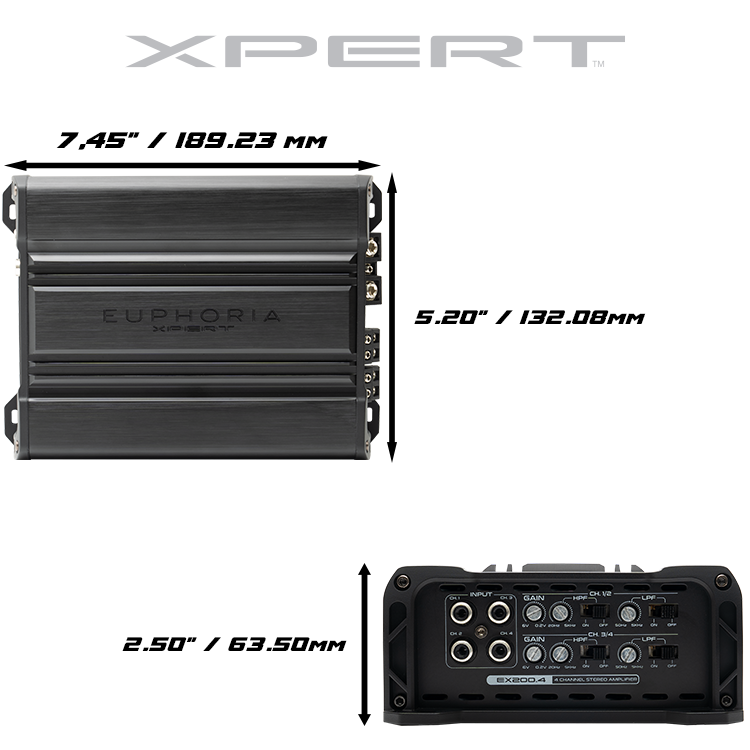

DIMENSIONS

• L - 7.45"/ 189.23 mm
• W - 5.20"/ 132.08 mm

• H - 2.50"/ 63.50 mm
