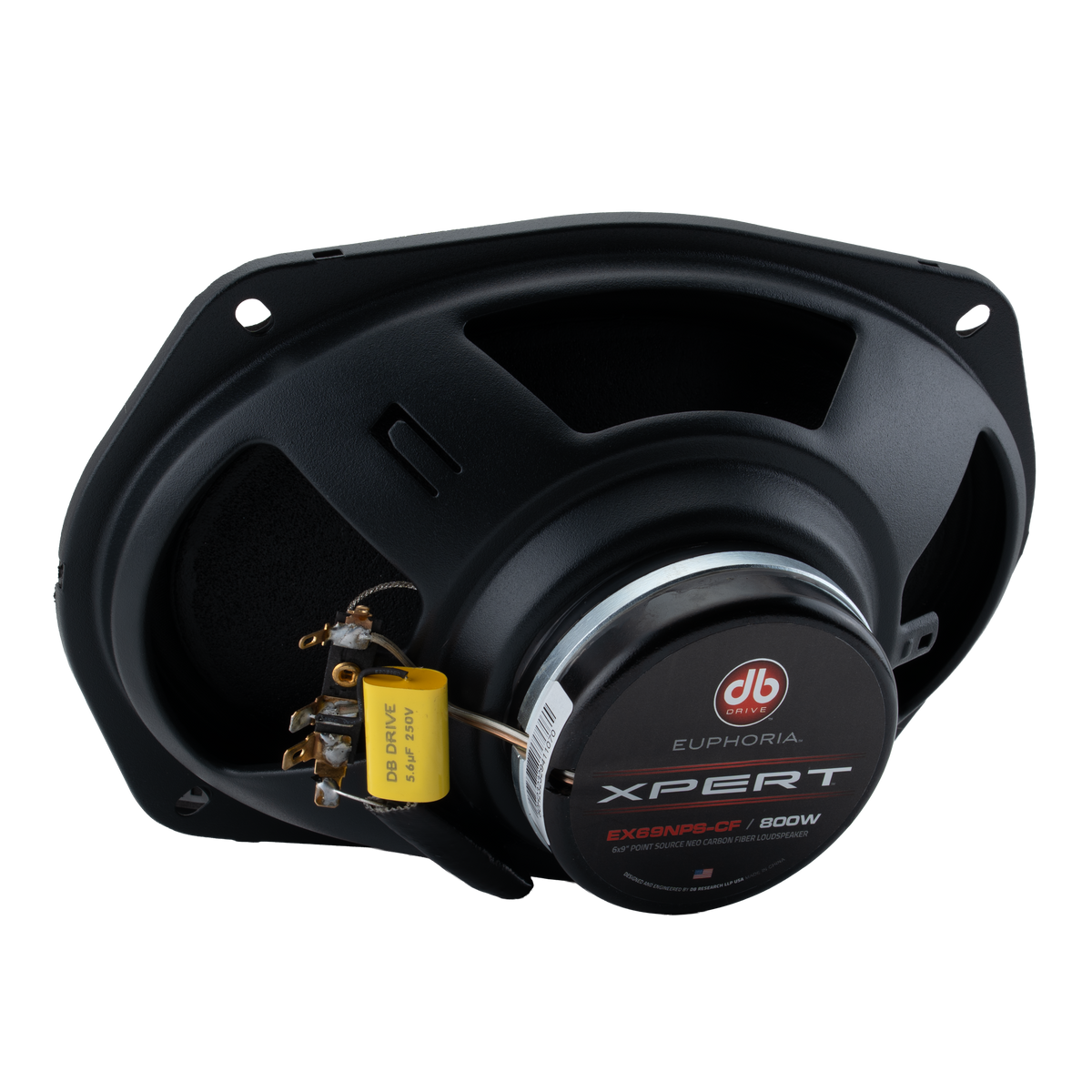

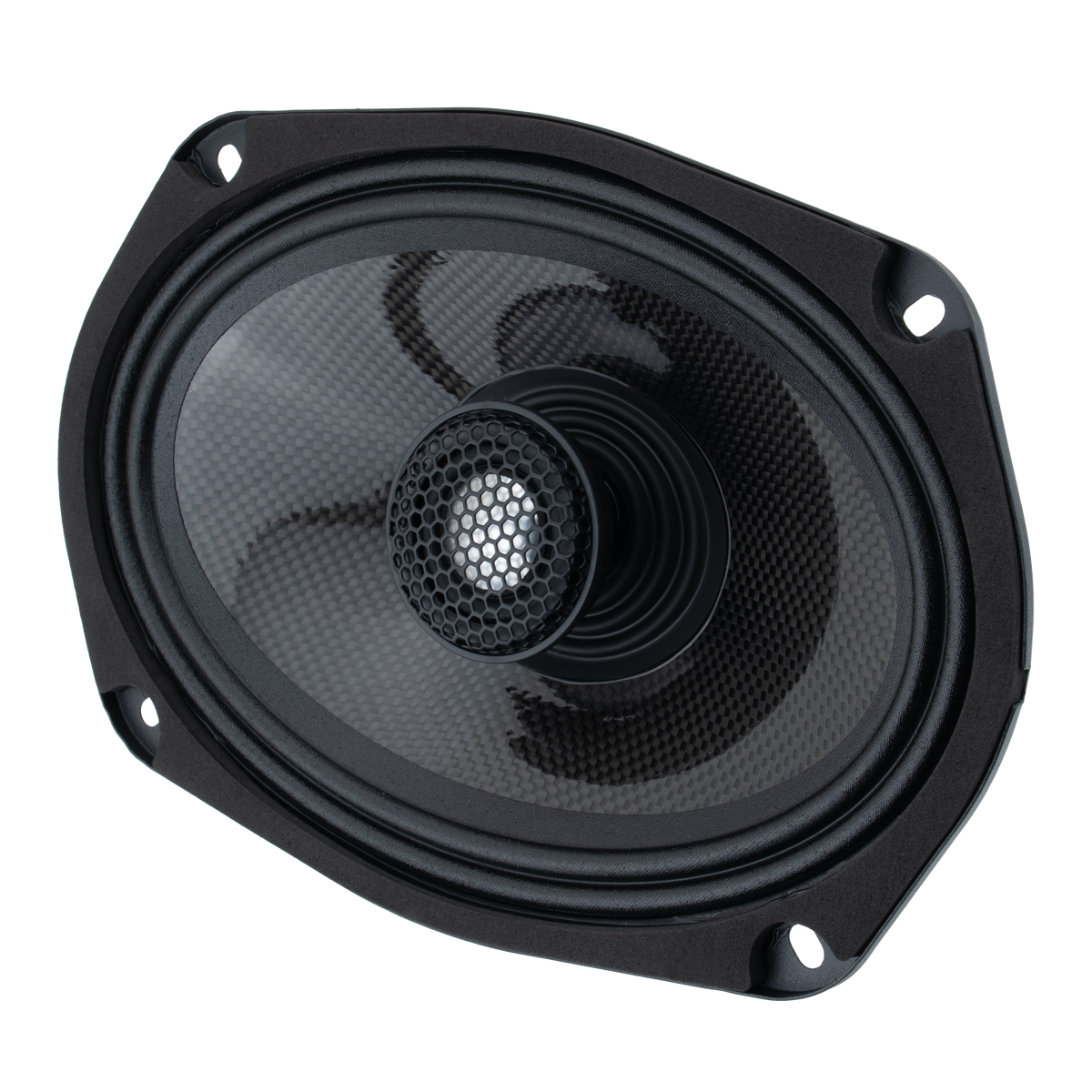

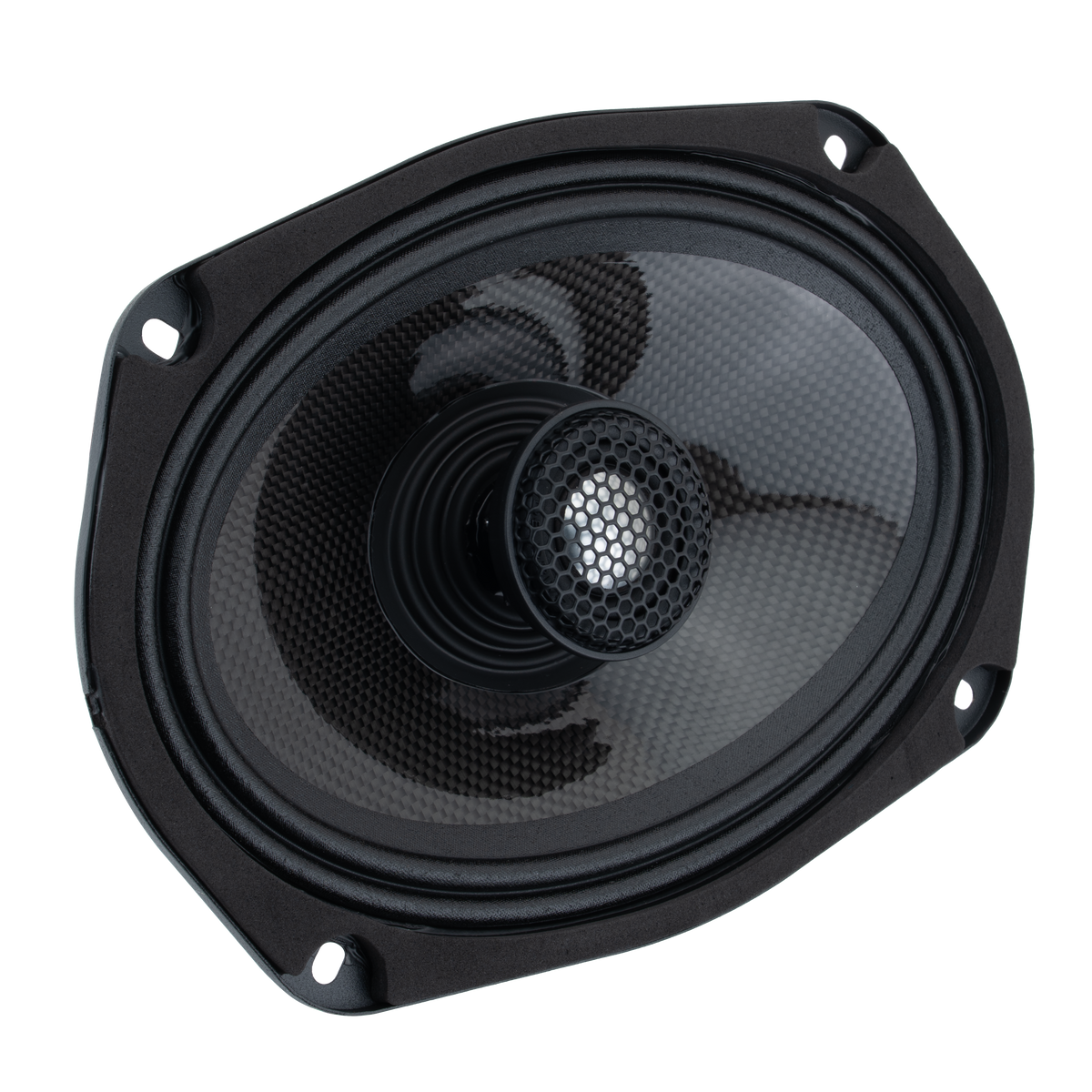

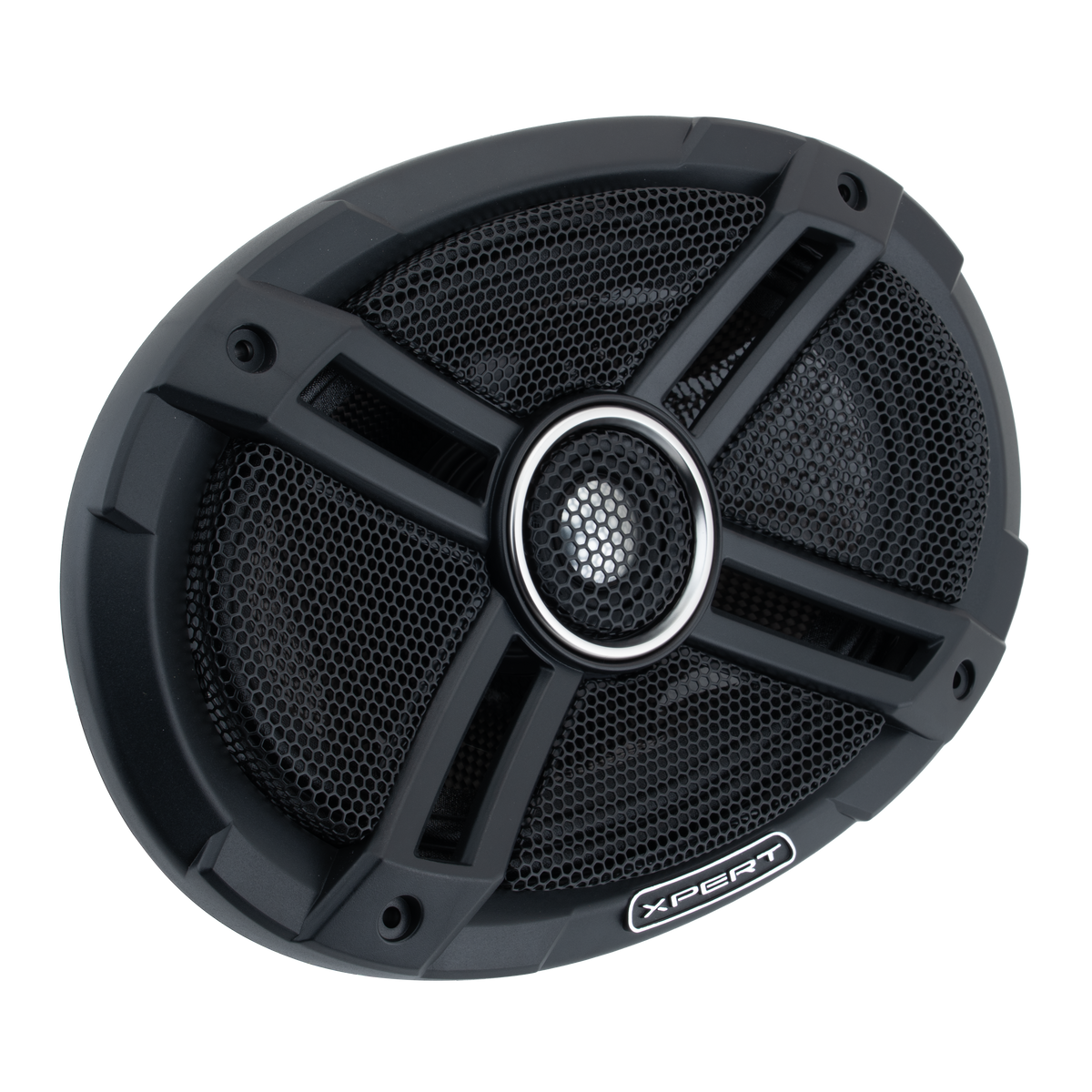

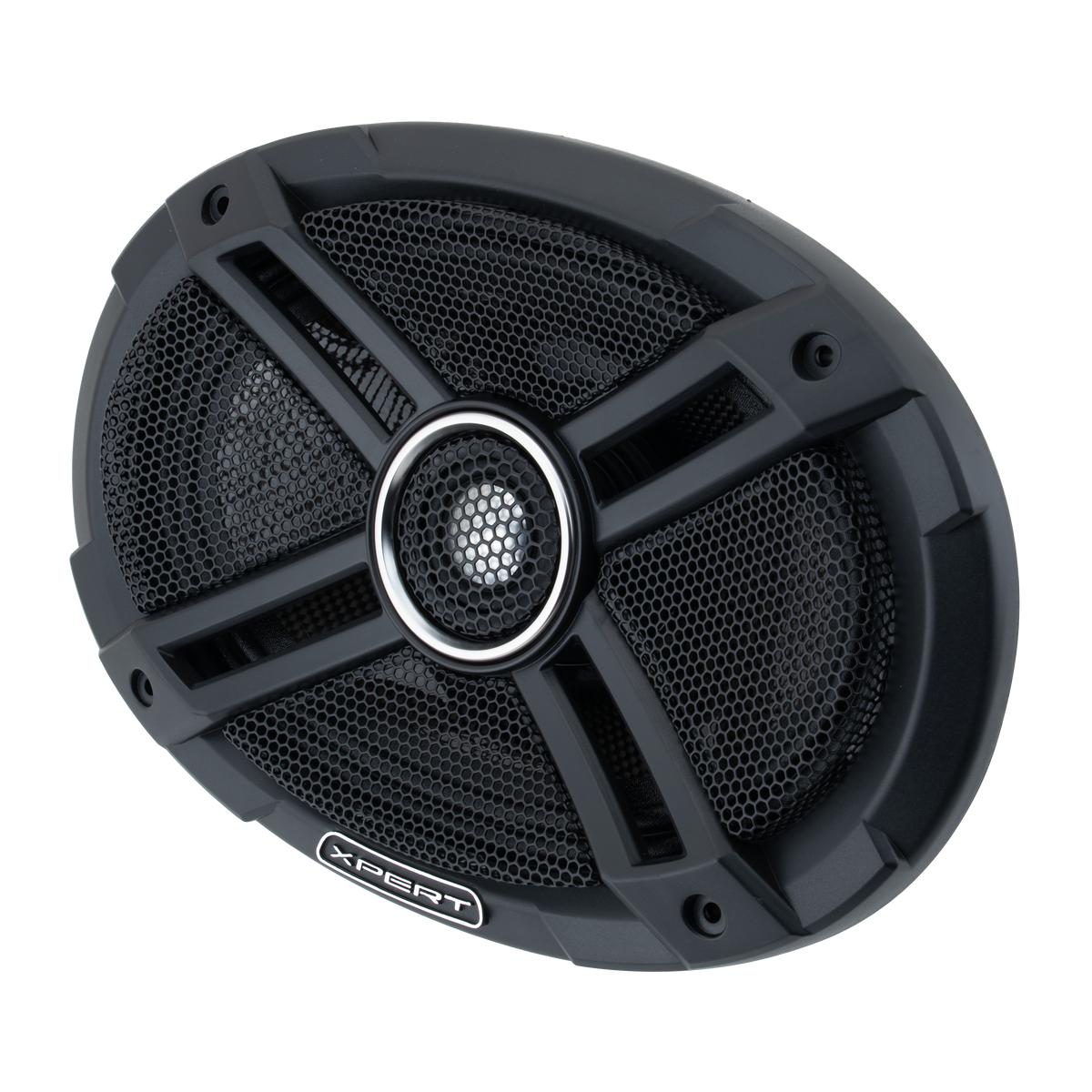

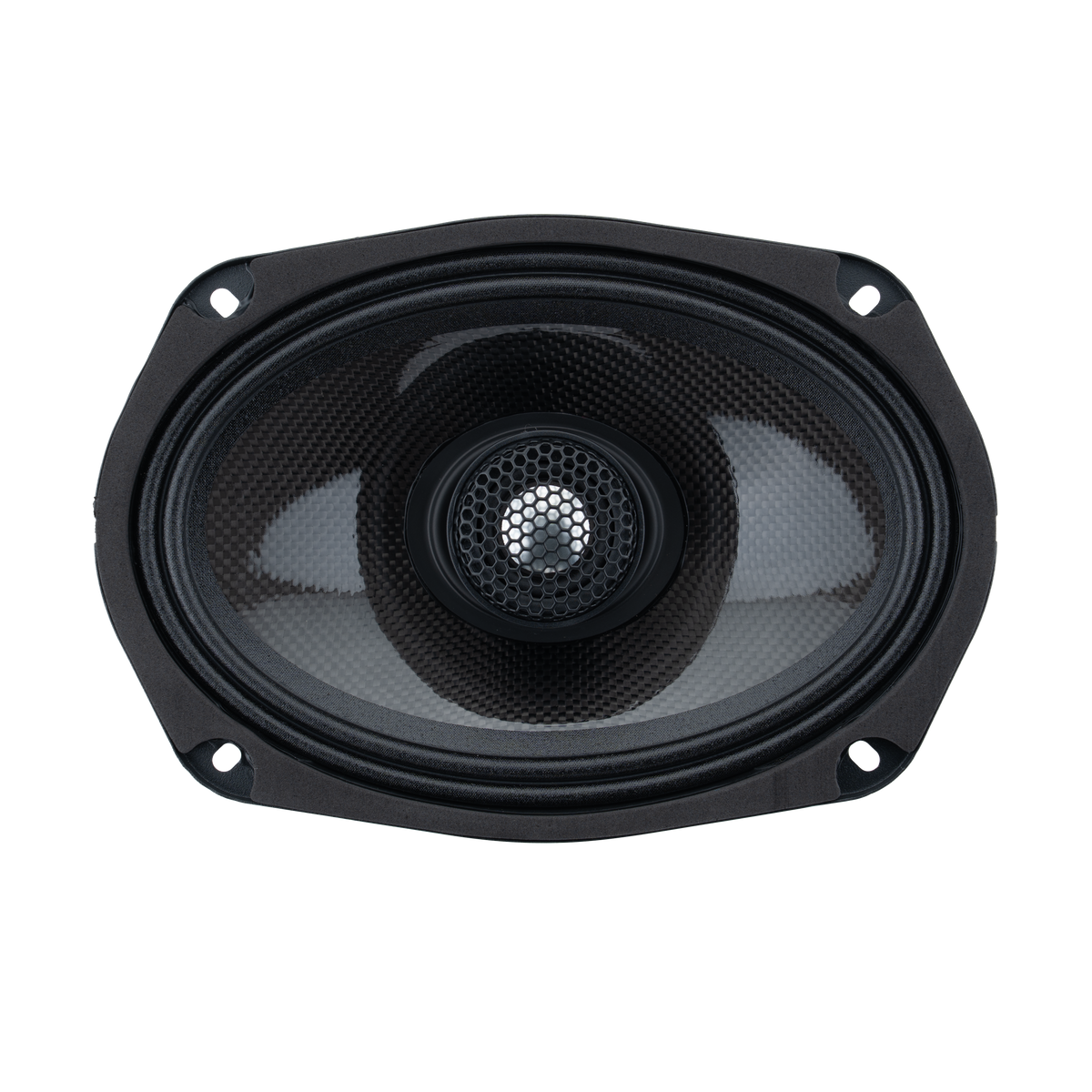

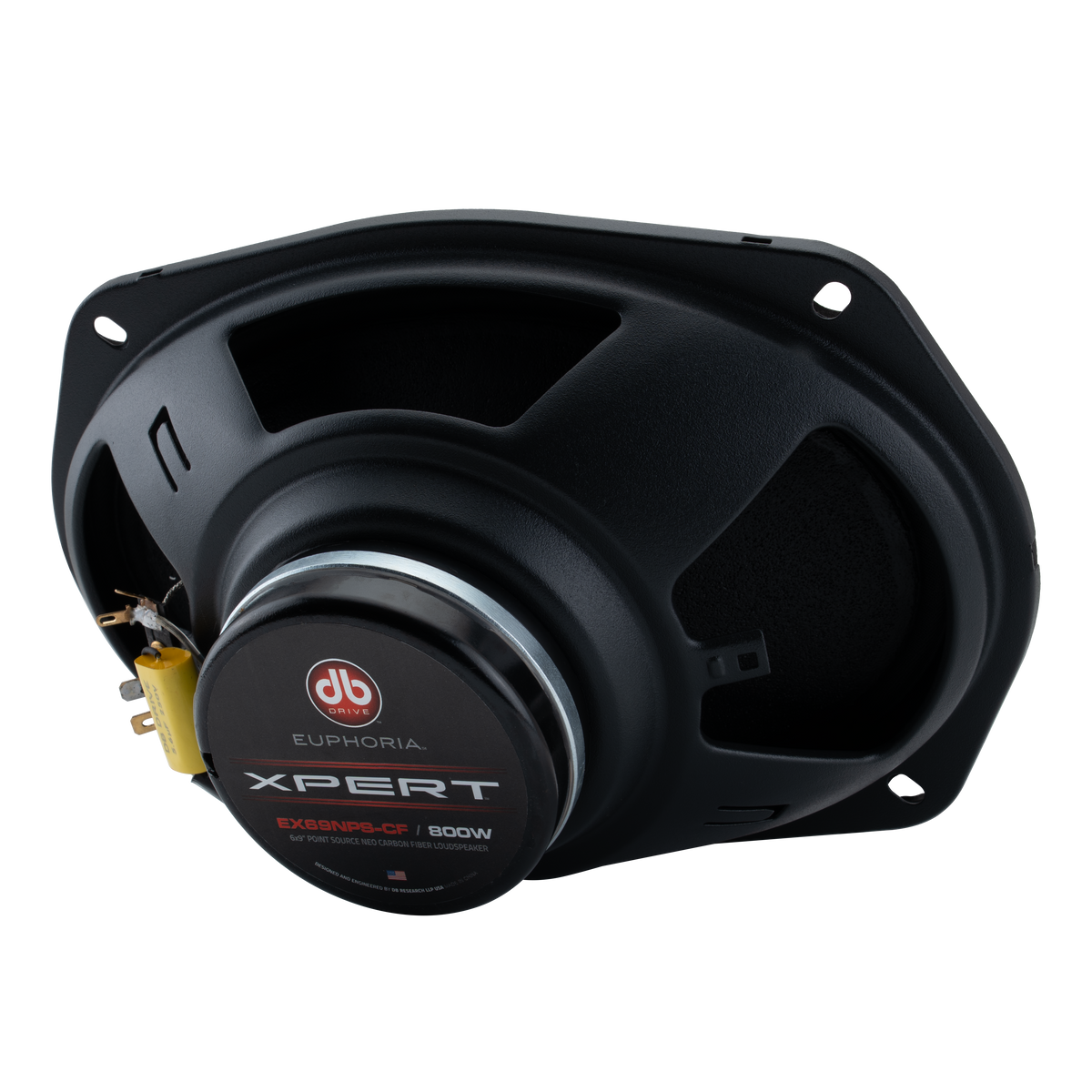

Xpert EX69NPS-CF : 6"×9" 2-way NEO Carbon Fiber Point Source Loudspeaker

Features

• 1.5″ (38.1mm) Midrange voice coil
• High-intensity NEO ring magnet
• IP65 rated weather resistant Carbon fiber cone
• Cloth surround
• Stamped steel basket
• Wide dispersion 1″ aluminum dome tweeter

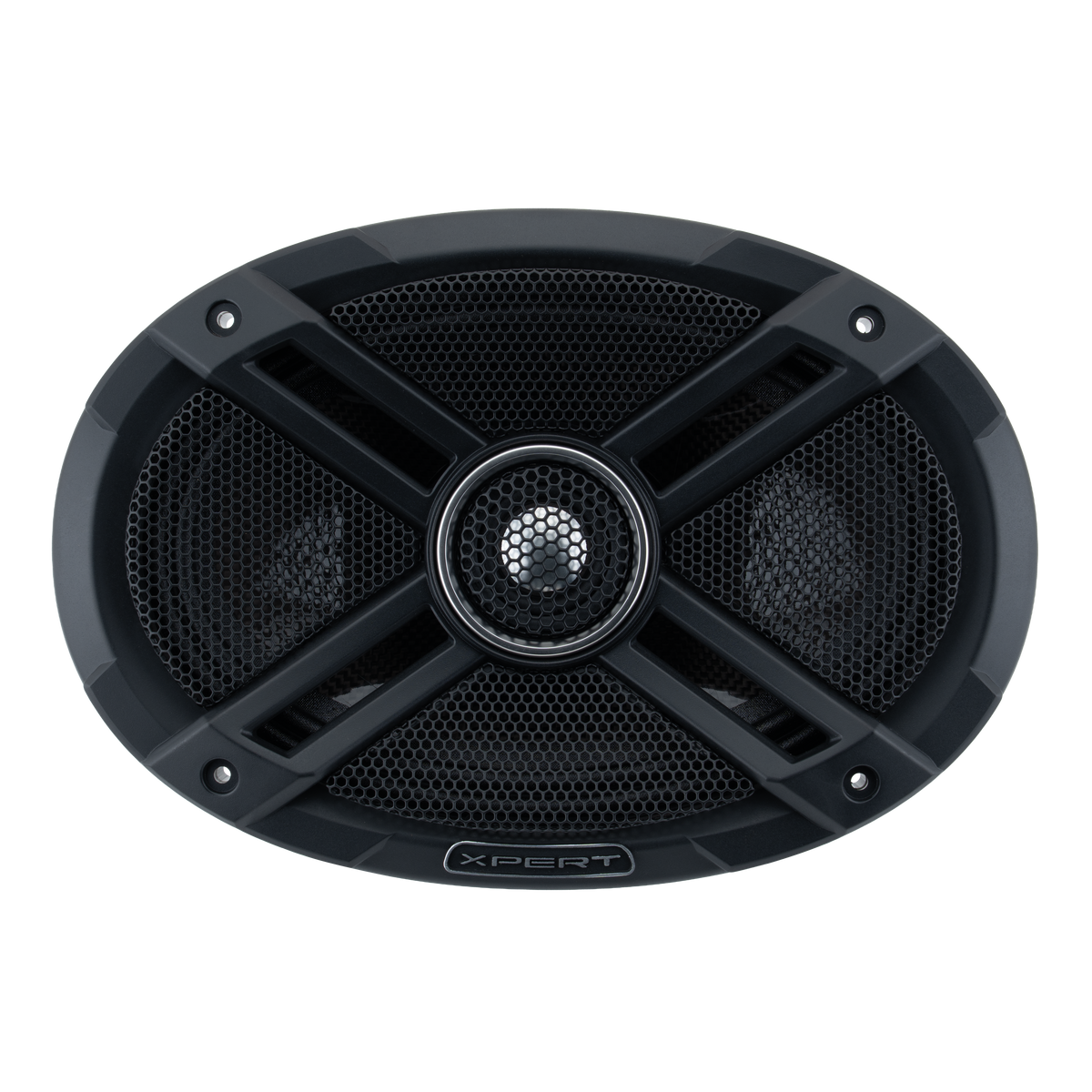

• Protective grill

Specifications

Resonant Frequency (fs)	68.8Hz
D.C. Voice Coil Resistance (Re)	3.2Ω
Mechanical Quality Factor (Qms)	9.95
Electrical Quality Factor (Qes)	0.44
Total Quality Factor (Qts)	0.42
Compliance Equivalent Volume (Vas)	14.1L
Mechanical Compliance (Cms)	0.20 mm/N
Nominal Impedance	4Ω
Power Handling	400 Watts
Dynamic Wattage	800 Watts
Sensitivity (1w/1m)	92 dB
Frequency Response	77Hz – 19KHz

Product Manual

Product Manual PDF

Description

Turn up the volume with the XPERT EX69NPS-CF: Your ultimate sound solution!

Get ready to experience sound like never before with the XPERT EX69NPS-CF: 6in X 9in NEO Carbon Fiber Point Source speaker! Featuring a high-intensity NEO ring magnet and an IP65-rated weather-resistant carbon fiber cone, this speaker is built to withstand the elements and deliver top-notch performance. The treated cloth surround and stamped steel basket ensure durability and stability, while the wide dispersion 1” aluminum dome tweeter provides crystal clear highs. With a frequency response of 77Hz to 19KHz and an impedance of 4Ω, this speaker is designed to deliver rich, full sound. The 1.5” voice coil and protective grills included add to the overall quality, making the XPERT EX69NPS-CF the perfect choice for any audio enthusiast. Elevate your sound game and enjoy unparalleled audio excellence with XPERT!
