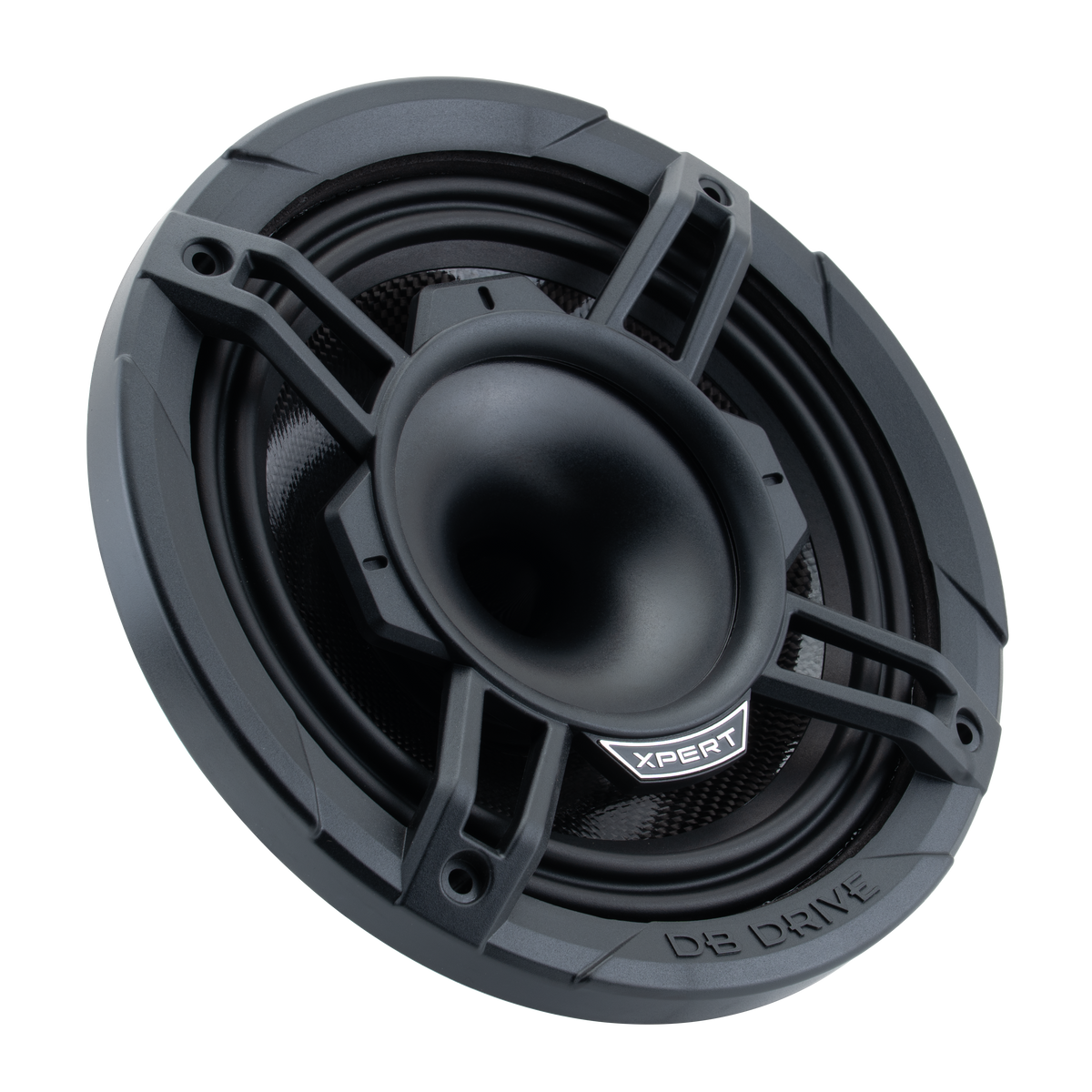

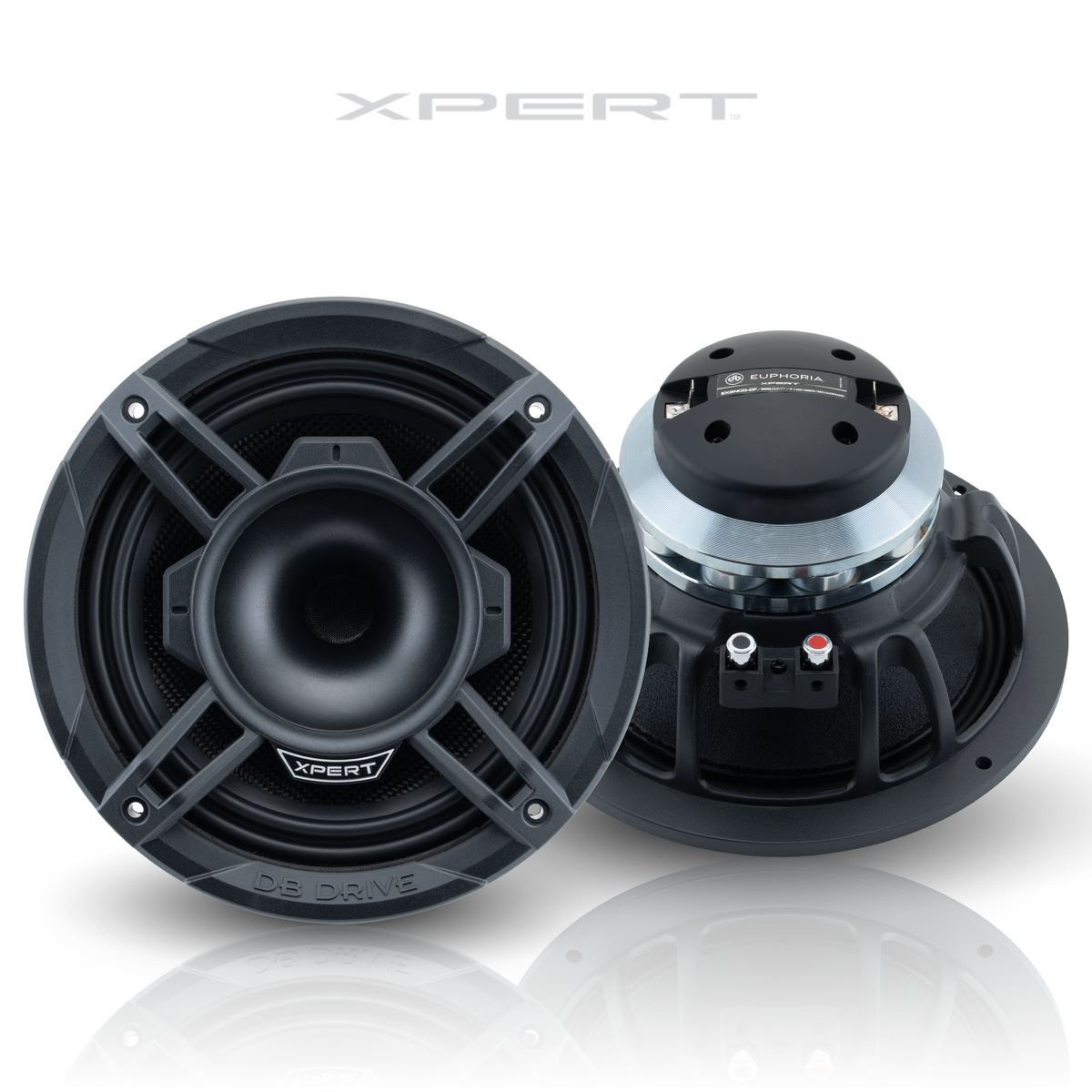

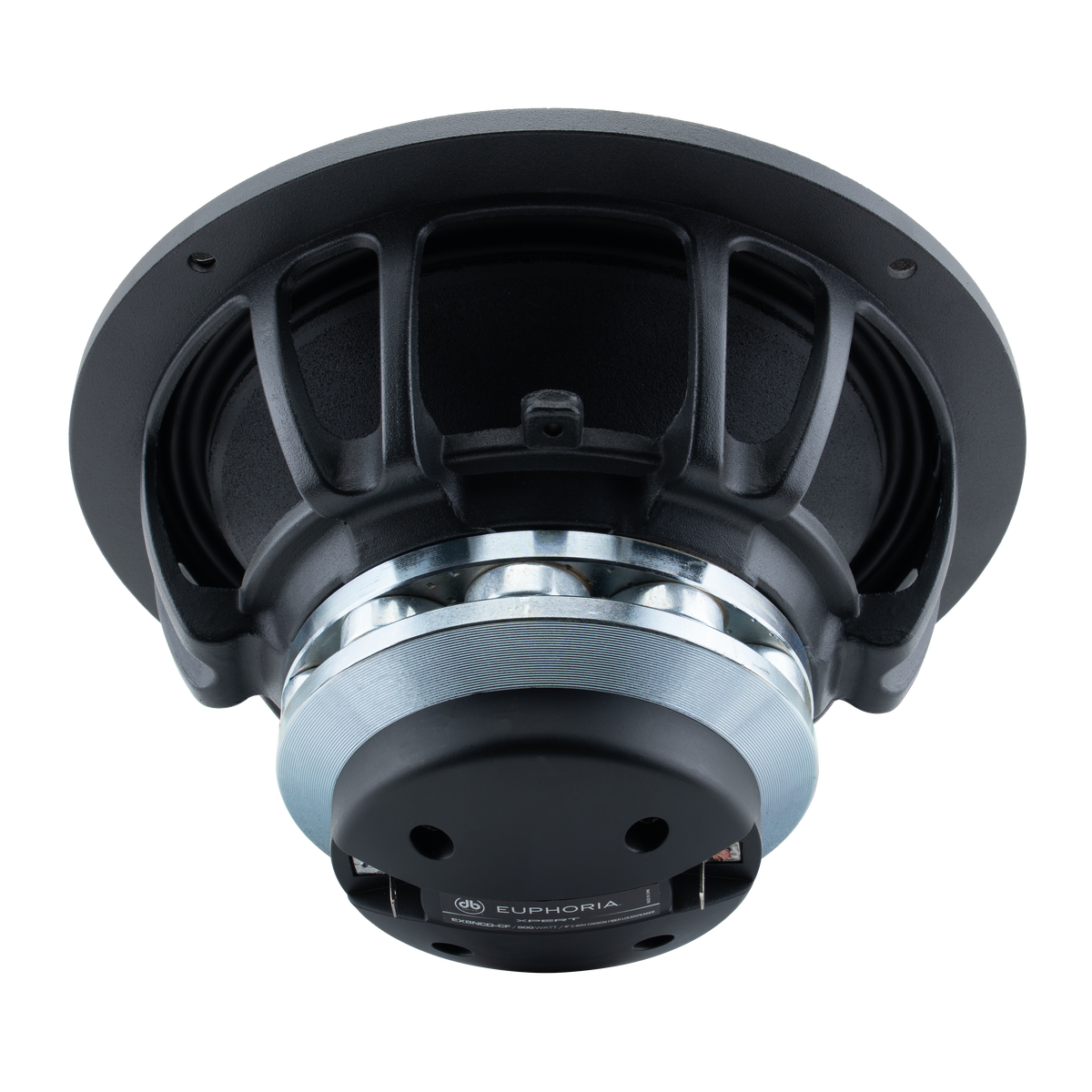

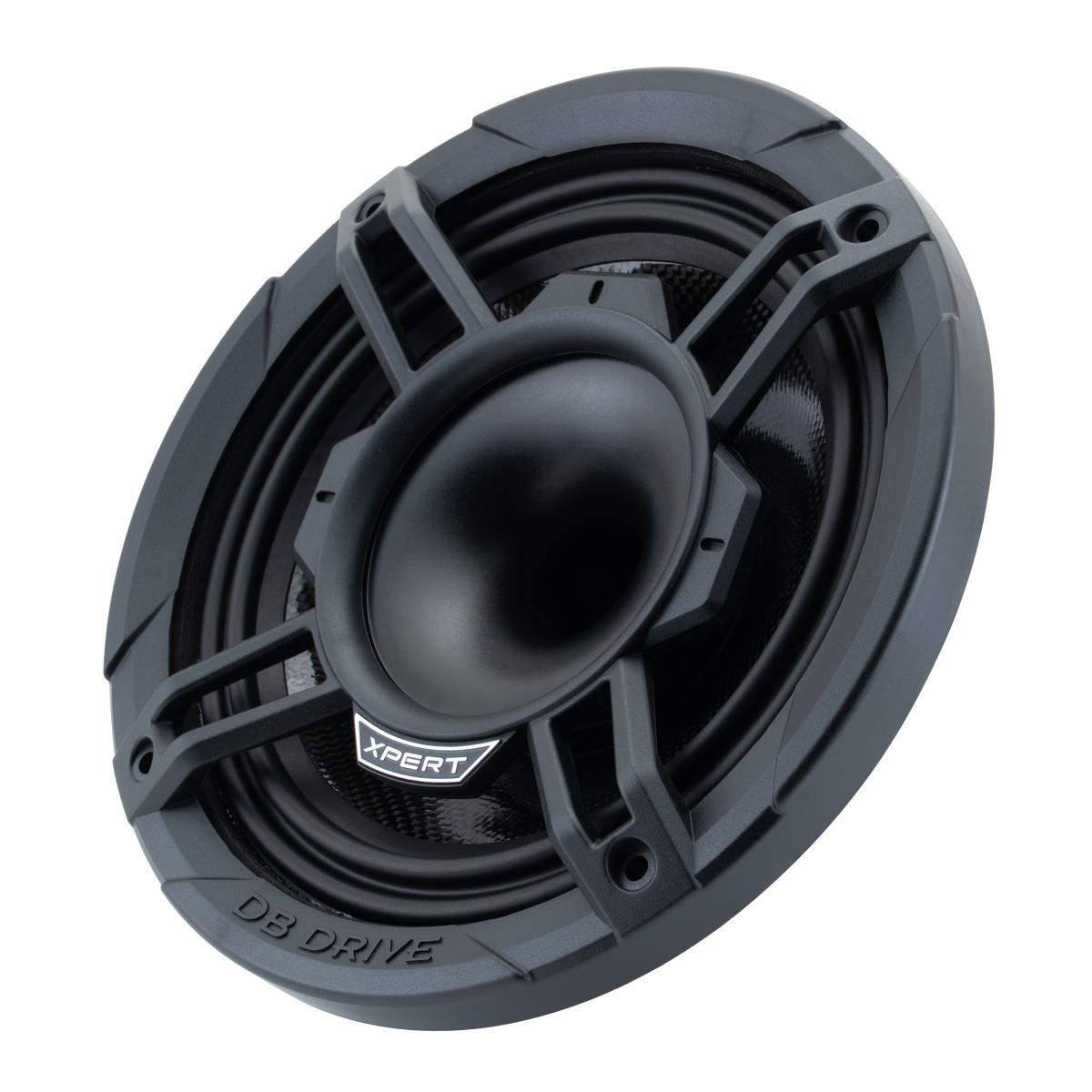

Xpert EX8NCD-CF : 8 in. 2-Way Carbon Fiber Loudspeaker W/ Back Mounted Compression Driver
Xpert EX8NCD-CF : 8 in. 2-Way Carbon Fiber Loudspeaker W/ Back Mounted Compression Driver is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 24 hours
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Xpert EX8NCD-CF : 8 in. 2-Way Carbon Fiber Loudspeaker W/ Back Moun...
Xpert EX8NCD-CF : 8 in. 2-Way Carbon Fiber Loudspeaker W/ Back Mounted Compression Driver is backordered and will ship as soon as it is back in stock.
Description
Description
Features
- 8″ 2-Way Carbon Fiber Loudspeaker
- 2.0″ (51mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly

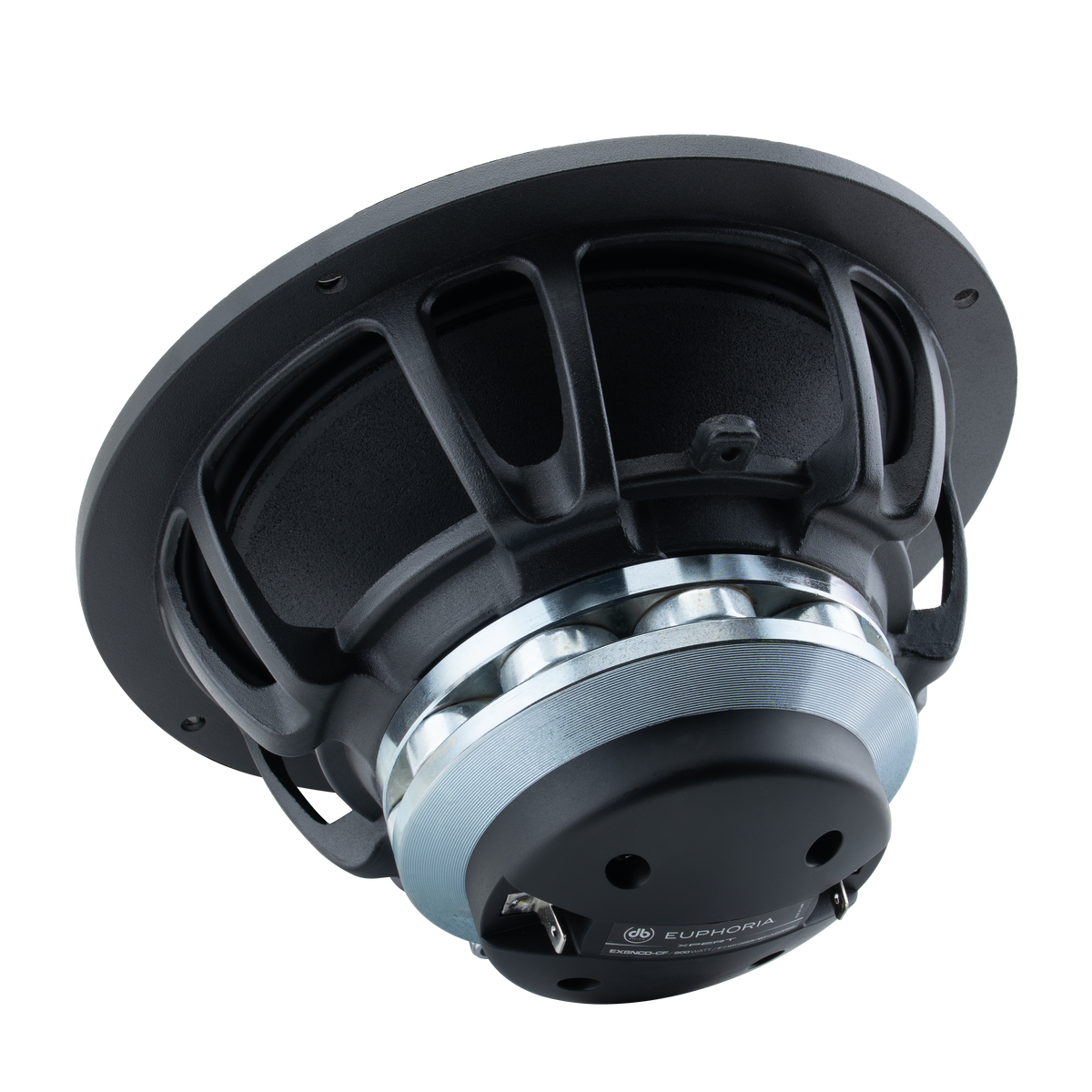

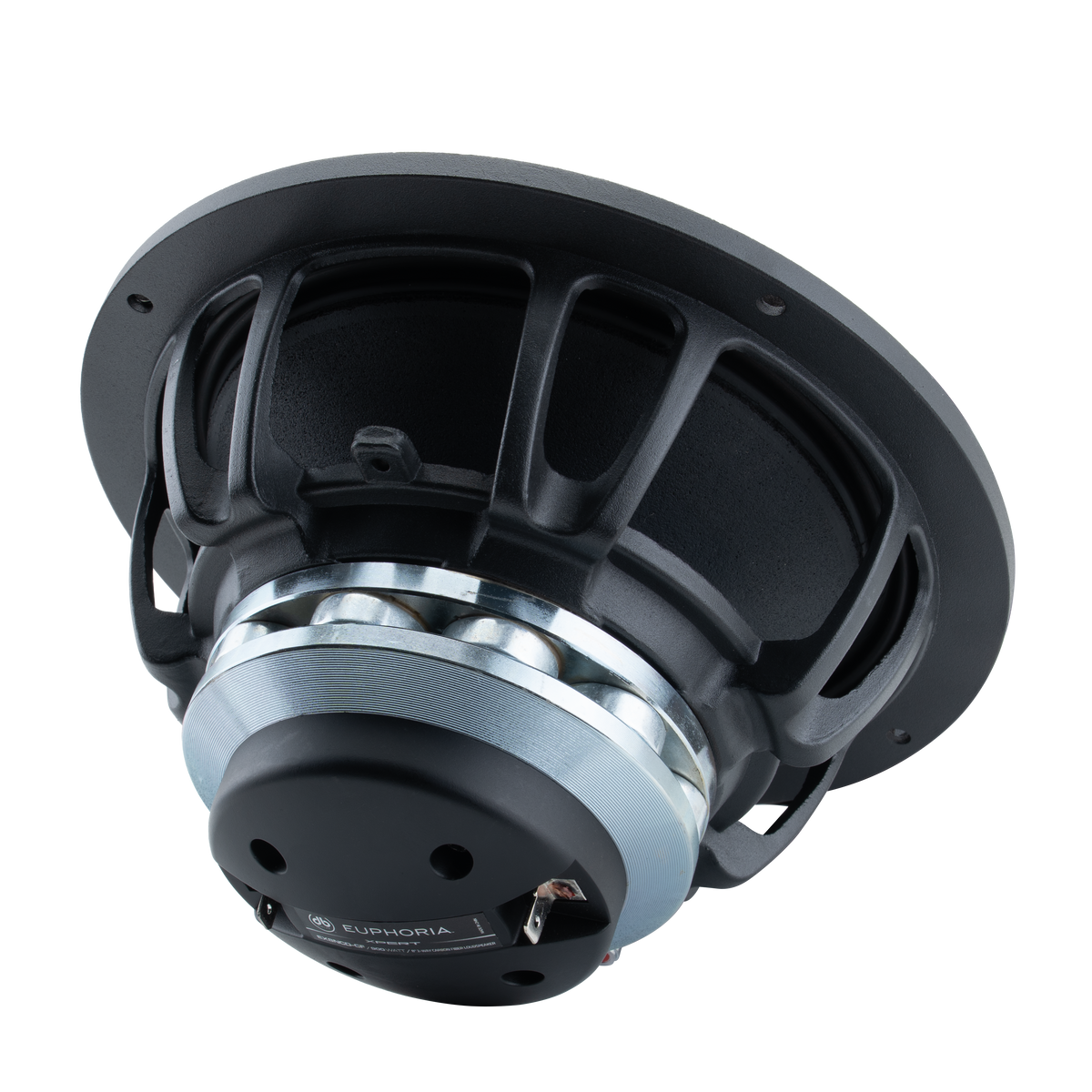

- Rear Mounted Full Sized Compression Driver

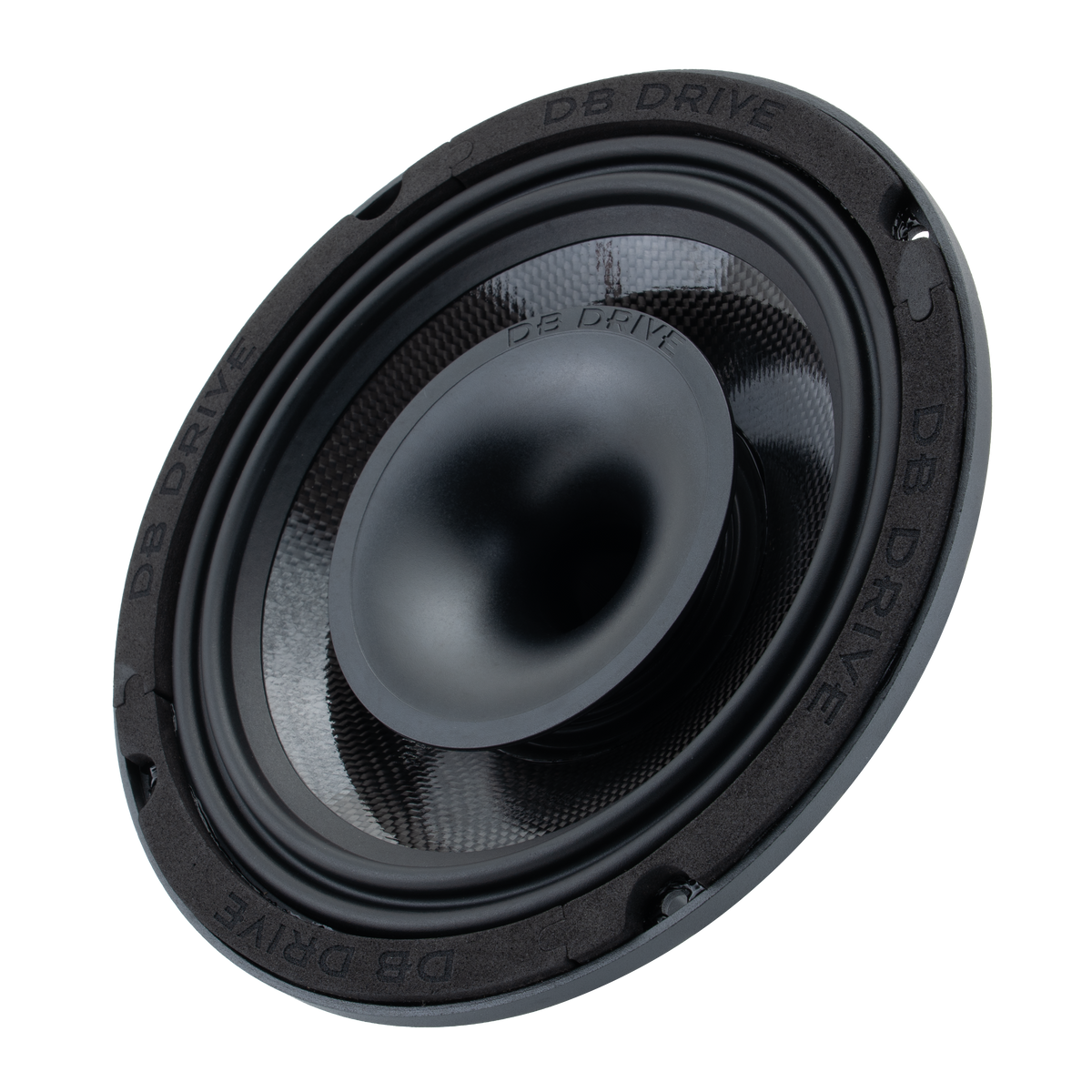

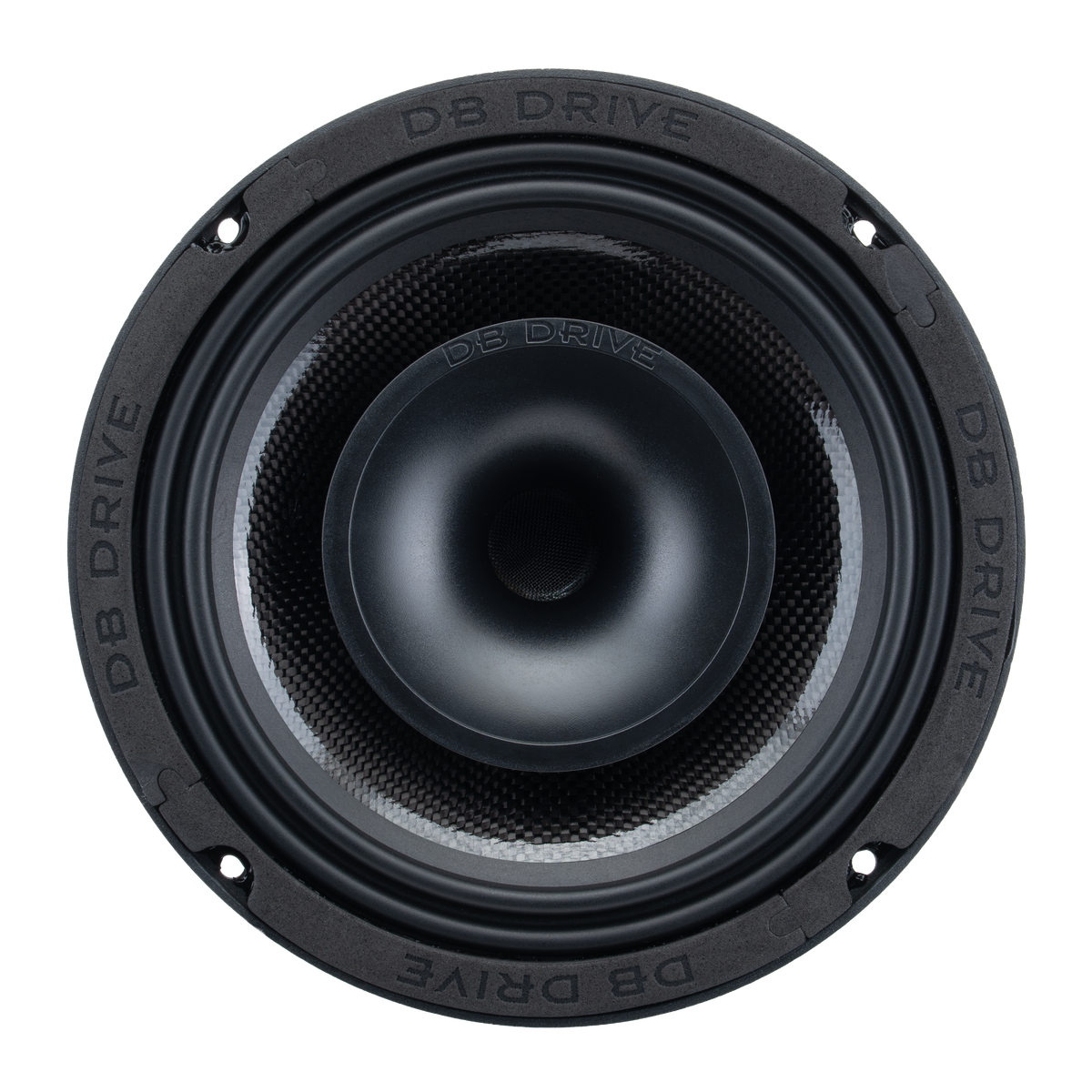

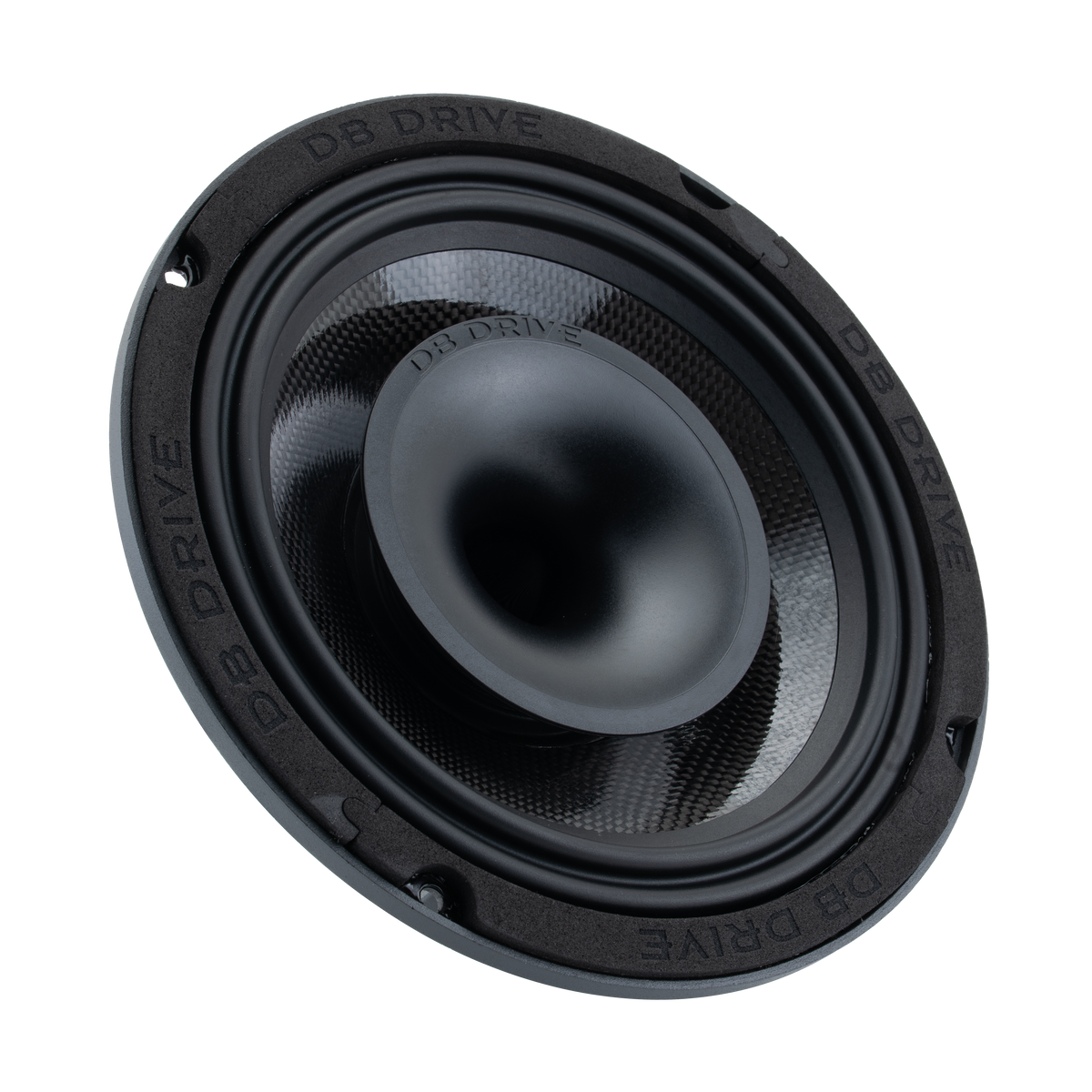

- IP54 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
- Die-Cast Aluminum Basket with Radial Venting
- 1.4″(36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide
- 12dB Passive Crossover Included

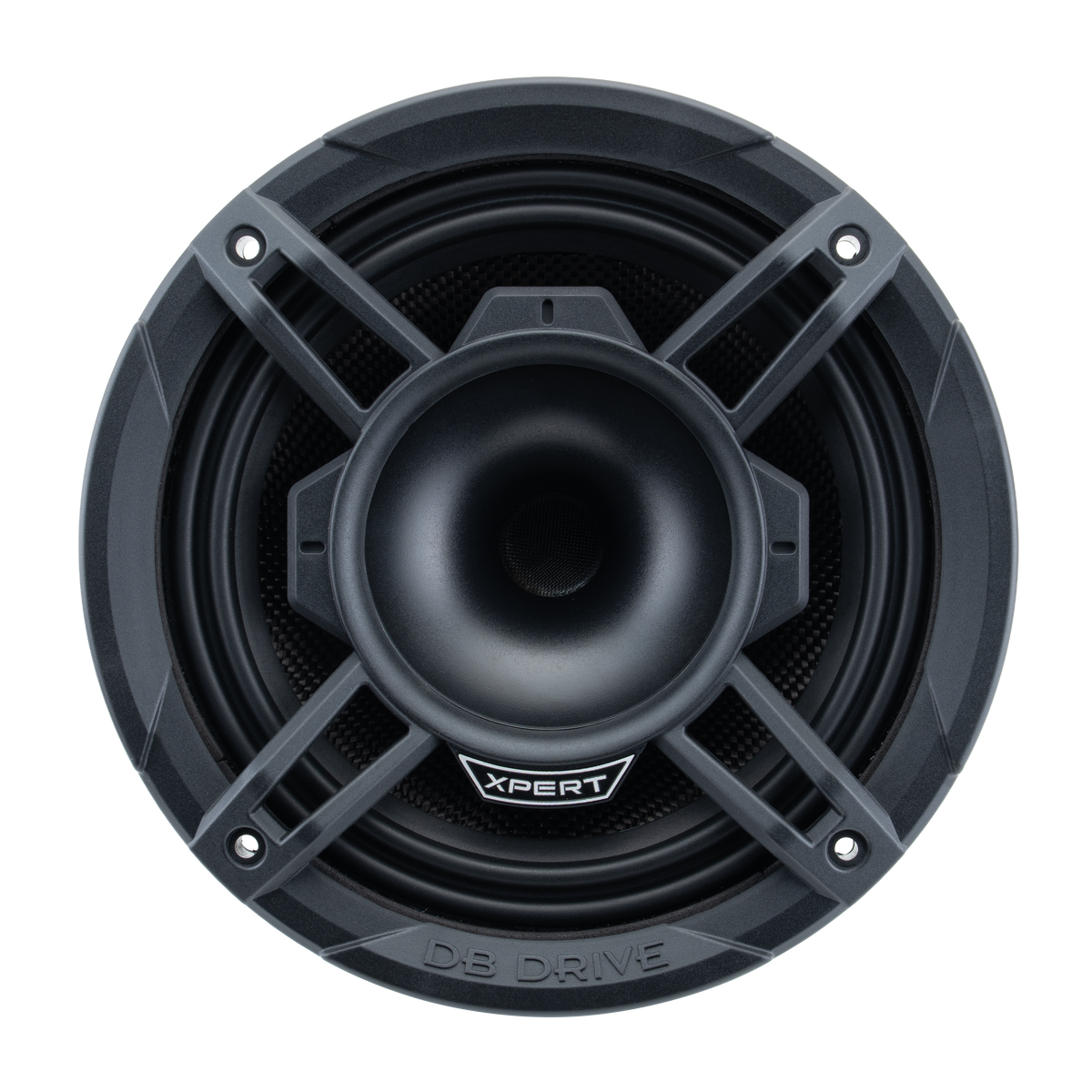

- Protective Grills Included
Specifications
| Resonant Frequency (fs) | 66.2Hz |
|---|---|
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 6.16 |
| Electrical Quality Factor (Qes) | 0.47 |
| Total Quality Factor (Qts) | 0.44 |
| Compliance Equivalent Volume (Vas) | 18.1L |
| Mechanical Compliance (Cms) | 0.27 mm/N |
| Nominal Impedance | 4Ω |
| Power Handling | 450 Watts |
| Dynamic Wattage | 900 Watts |
| Sensitivity (1w/1m) | 105.7 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
Product Manual
Product Manual PDF
Description
Introducing the XPERT EX8NCD-CF: the ultimate 8-inch NEO Mid Speaker with Compression Driver and Passive Crossover. This speaker is designed to revolutionize your audio setup with its cutting-edge features. Boasting a powerful neodymium magnet assembly and a rear-mounted full-sized compression driver, it delivers crystal-clear sound with wide dispersion thanks to the conical HF waveguide. The IP54-rated weather-resistant carbon fiber cone ensures durability, while the 1.4” polyester tweeter diaphragm adds a touch of sophistication to your high frequencies. With a frequency response of 50Hz to 20KHz and an impedance of 4Ω, this speaker is engineered to provide an immersive sound experience. The die-cast aluminum basket with radial venting keeps your speaker cool, even during intense sessions. Plus, the included protective grills and 12dB passive crossover make installation a breeze. Elevate your sound system with the XPERT EX8NCD-CF and experience the pinnacle of audio innovation.
Recone Available
EXNCD-RC : Replacement Tweeter Diaphragm For EXNCDs
EX8NCD-CF-MRC : Replacement Diaphragm For EX8NCD-CF Mid
