Faital Pro | SKU:
Faital Pro 10PR320
Regular price
$284.95
Unit price
Faital Pro 10PR320 is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 1-3 days
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Faital Pro 10PR320
Regular price
$284.95
Unit price
Faital Pro 10PR320 is backordered and will ship as soon as it is back in stock.
Description
Description

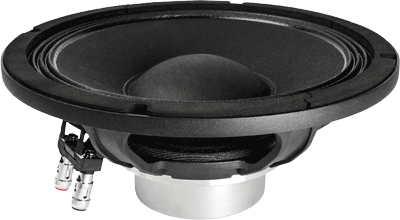

- 10" Bass / Mid-Bass Speaker
- Lightweight Neodymium Magnet
- 50Hz-4kHz
- 300 Watts AES
- 600 Watts Program
- 96dB SPL
- 7.37mm Xmax
- Weighs 5.6lbs.
- Works Great As A Bass Guitar Speaker, PA Speaker, Etc.
- 8 Ohms
Specifications
| WOOFER MODEL | 10PR320 |
| Nominal Basket Diameter | 10" / 250mm |
| Impedance | 8 ohms |
| AES Power Rating | 300 Watts |
| Program Power | 600 Watts |

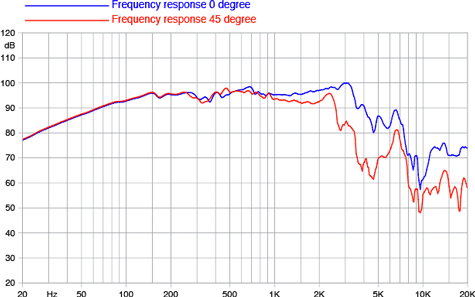

| Frequency Response | 50Hz - 4.0kHz |
| Sensitivity (1W/1m) | 96dB SPL |
| Voice Coil Diameter | 2.56" / 65mm |
| Winding Depth | .69" / 17.4 mm |
| Magnetic Gap Depth | .31" / 8.0mm |
| X Damage | 17 mm |
| Flux Density | 1.2 T |
| BL Factor | 13.5 N/A |

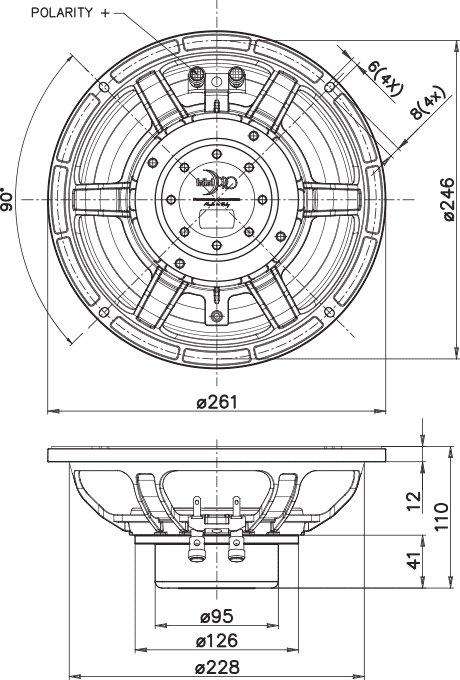

| Overall Diameter | 10.28" / 261mm |
| Bolt Circle Diameter | 9.69" / 246mm |
| Baffle Cutout Diameter-Front Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 4.33" / 110mm |
| Flange & gasket Thickness | 0.47" / 12mm |
| Net Weight | 5.6 lb. / 2.55 kg. |
| Shipping Weight | 6.8 lb. / 3.1 kg. |
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
| Resonant Frequency (fs) | 48 Hz |

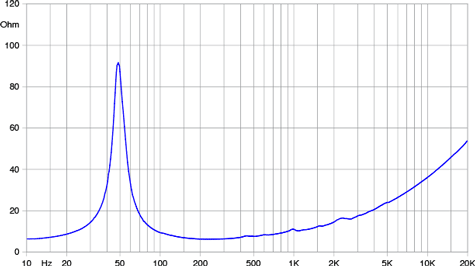

| Impedance (Re) | 5.3 ohms |
| Coil Inductance (Le) | 0.57 mH |
| Mechanical Q (Qms) | 4.6 |
| Electrical Factor (Qes) | .31 |
| Total Q (Qts) | .29 |
| Comp. Equivelant Vol. (Vas) | 1.62 ft3 / 45.9 Liters |
| Voice Coil Overhang (Xmax) | 7.37 mm |
| Surface Area of Cone (Sd)m2 | 0.0321m2 |
| Reference Efficiency | 1.6% |
| Diaphragm Mass (Mms) | 35 Grams |
| Mechanical Compliance (Cms) | .31 mm/N |
| Mechanical Resistance (Rms) | 2.31kg/s |
