Faital Pro 10RS430-8
Regular price
$309.95
Unit price
Faital Pro 10RS430-8 is backordered and will ship as soon as it is back in stock.
Description
Description

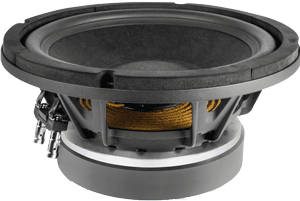

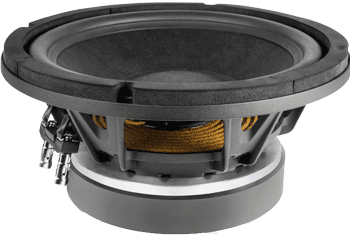

- New 10" Bass / Mid-Bass Speaker
- 30Hz-2.5kHz
- 400 Watts AES
- 800 Watts Program
- 91dB SPL
- Very High Xmax of 13.57mm
- Weighs 15.0lbs.
- Strong Tight Deep Bass & Good Mids
- Available in 8 Ohms
- Designed For Speaker Systems That Require Clean Deep Bass
Specifications
| WOOFER MODEL | 10RS430 |
| Nominal Basket Diameter | 10" / 250mm |
| Impedance | 8 ohms |
| AES Power Rating | 400 Watts |
| Program Power | 800 Watts |

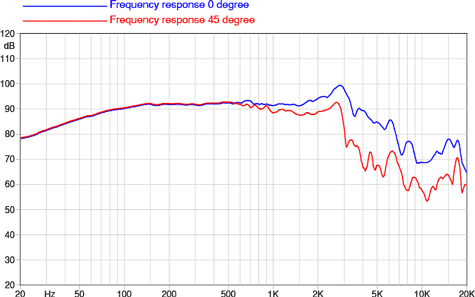

| Frequency Response | 30Hz - 2.5kHz |
| Sensitivity (1W/1m) | 91dB SPL |
| Voice Coil Diameter | 2.56" / 65mm |
| Voice Coil Length | 29.8 mm |
| Air Gap Height | 8.0 mm |
| X Damage | 21.5 mm |
| BL Factor | 18 N/A |

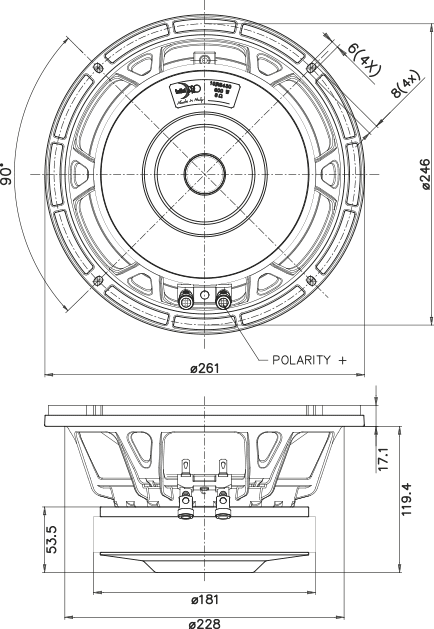

| Overall Diameter | 10.28" / 261mm |
| Bolt Circle Diameter | 9.69" / 246mm |
| Baffle Cutout Diameter-Front Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 5.35" / 136mm |
| Flange & gasket Thickness | 0.67" / 17mm |
| Net Weight | 15.0 lb. / 6.8 kg. |
| Shipping Weight | 16.1 lb. / 7.3 kg. |
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Rubber |
| Surround Shape | Half Roll |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Demodulation Ring | Aluminum |
| Magnet | Ferrite |
| Resonant Frequency (fs) | 32 Hz |
| Impedance (Re) | 6.8 ohms |
| Coil Inductance (Le) | 0.78 mH |
| Mechanical Q (Qms) | 10 |
| Electrical Factor (Qes) | .29 |
| Total Q (Qts) | .28 |
| Comp. Equivelant Vol. (Vas) | 2.09 ft3 / 59.2 Liters |
| Voice Coil Overhang (Xmax) | 13.57 mm |
| Surface Area of Cone (Sd)m2 | 0.0344m2 |
| Reference Efficiency | .65% |
| Diaphragm Mass (Mms) | 69 Grams |
| Mechanical Compliance (Cms) | .36 mm/N |
