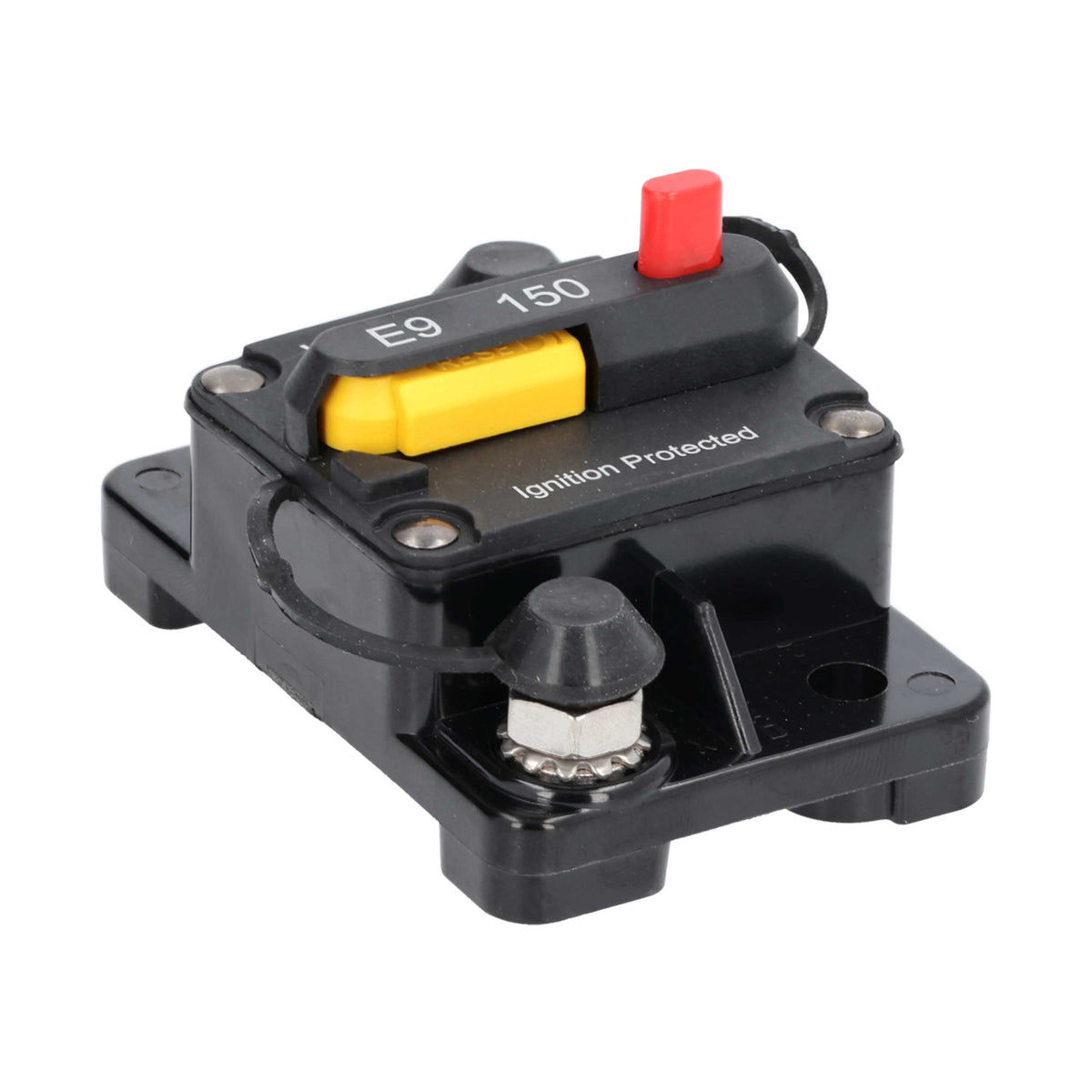

Install Bay Circuit Breaker Manual Reset w/LED 150 AMP - EL-CB150MR

Circuit Breaker Manual Reset w/LED 150 AMP

• High amp circuit breakers are typically used in auxiliary and accessory circuits for trucks, buses, RVs and marine applications. All high amp circuit breakers comply with the SAE J1171 standard for ignition protection and have applications in battery charging systems that use battery isolators to manage and protect batteries in multi-battery installations.
• Red LED on top of the device gives a visual indication of when the breaker has been tripped open.
• Type III — manual reset
• Red LED lights when tripped.
• Flush mount with push-to-trip button, 42 Vdc
• Waterproof, sealed housing
• 1/4-28 threaded studs
• SEMS nuts installed
• 150 Amp
• Each

Part number: EL-CB150MR
