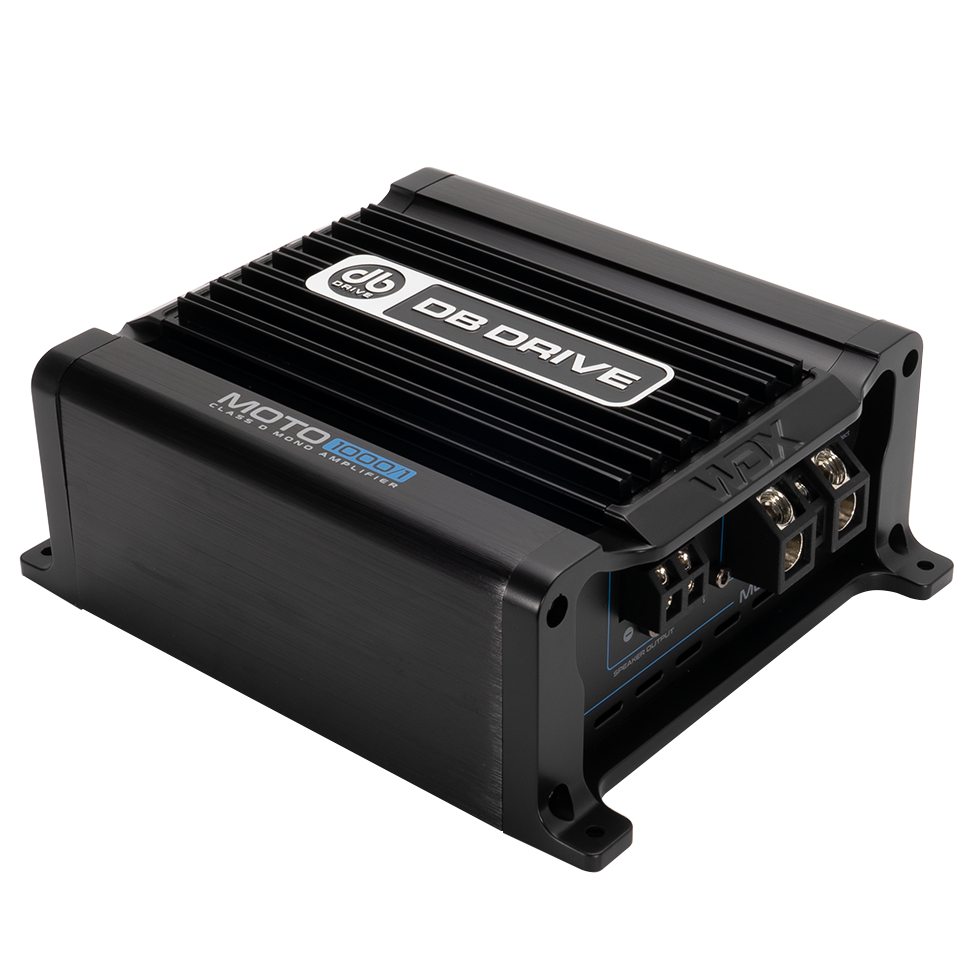

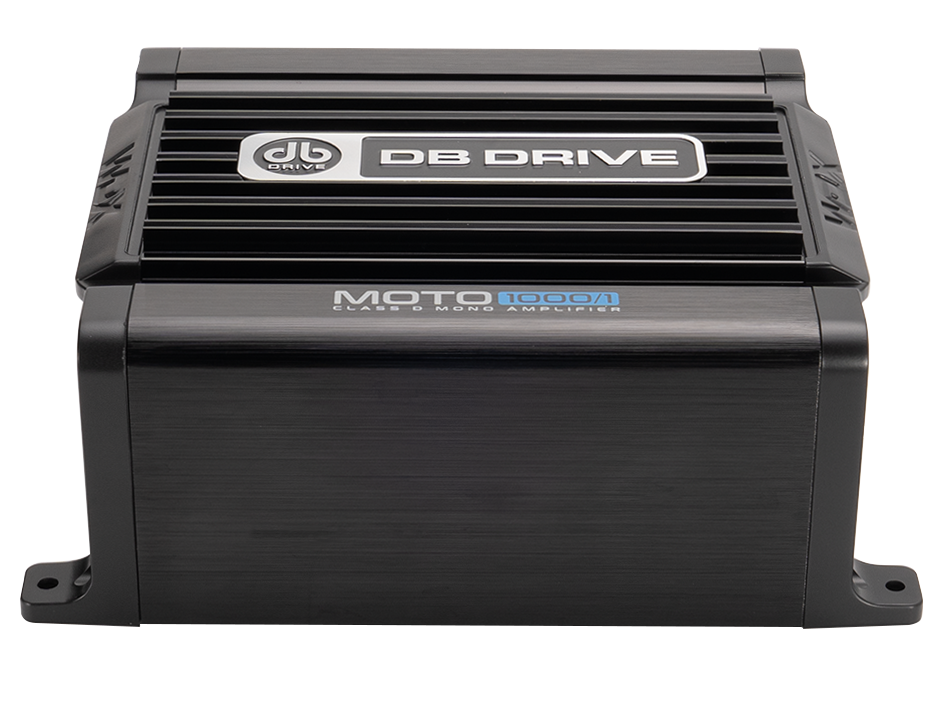

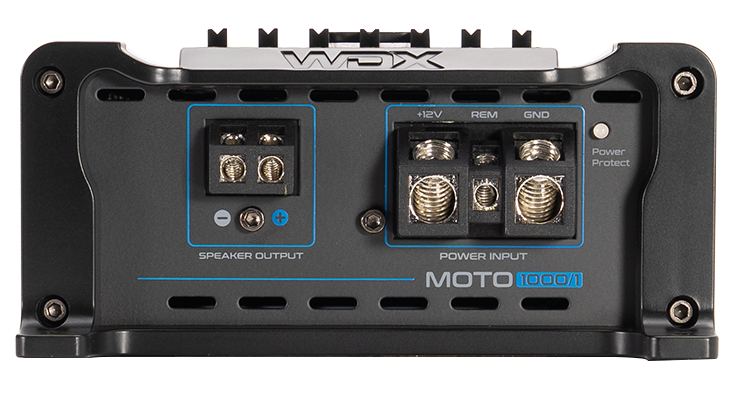

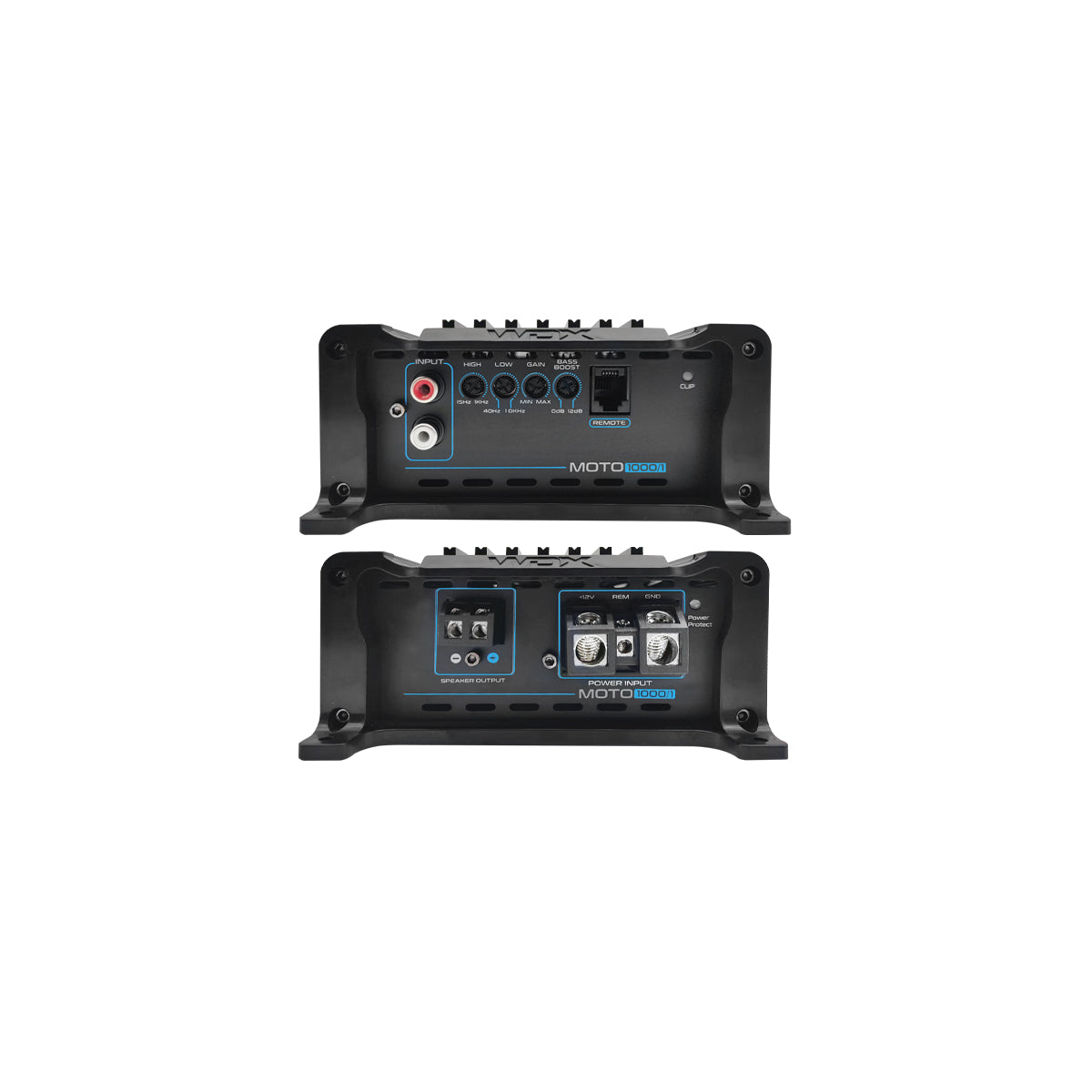

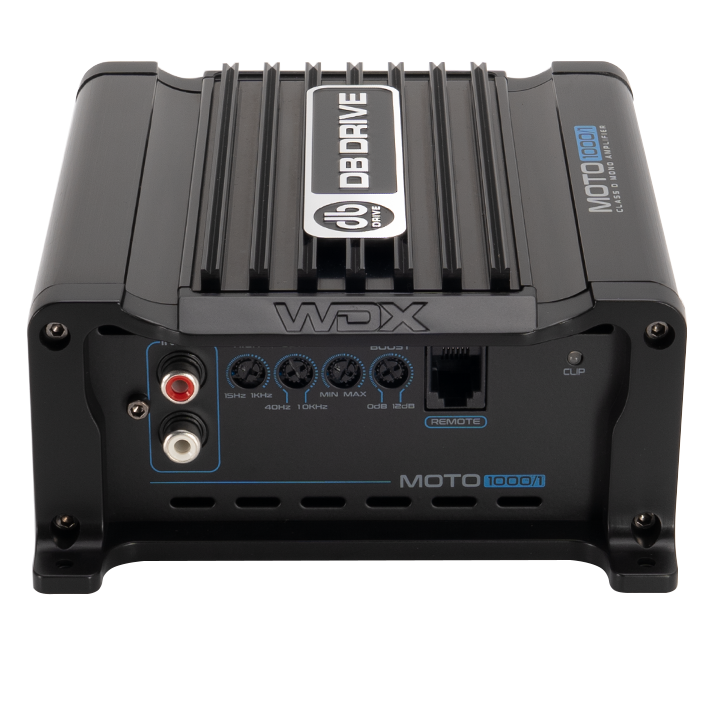

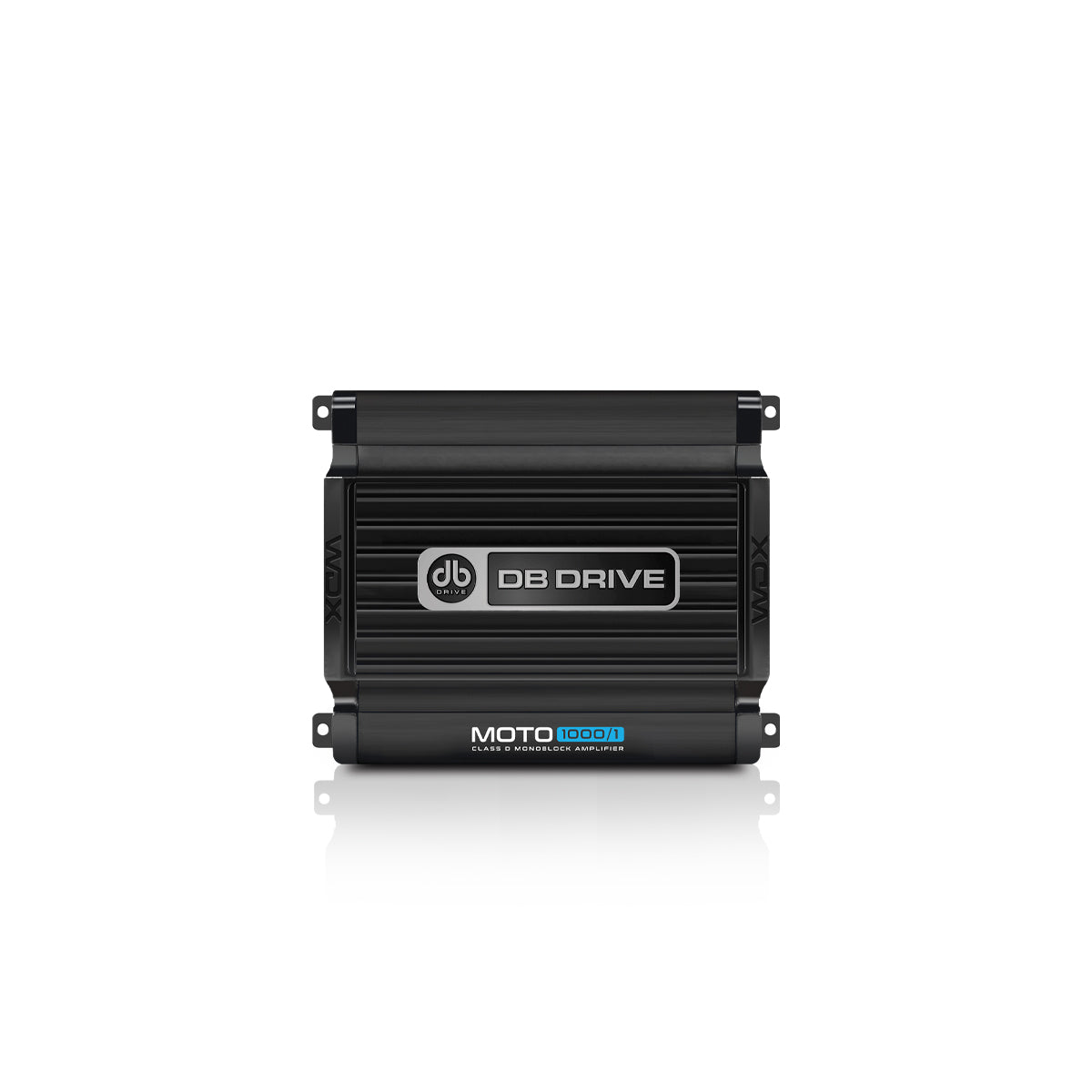

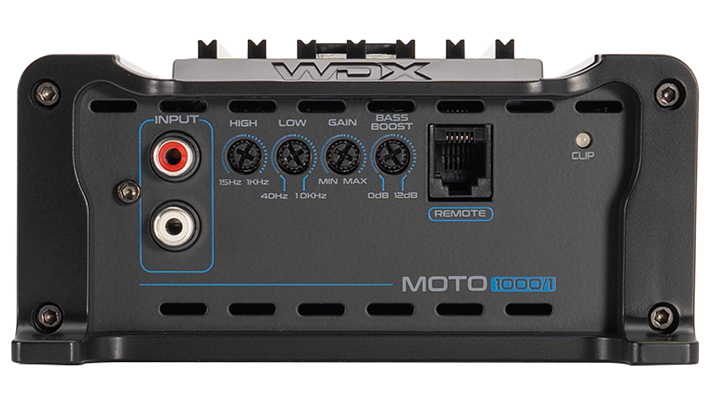

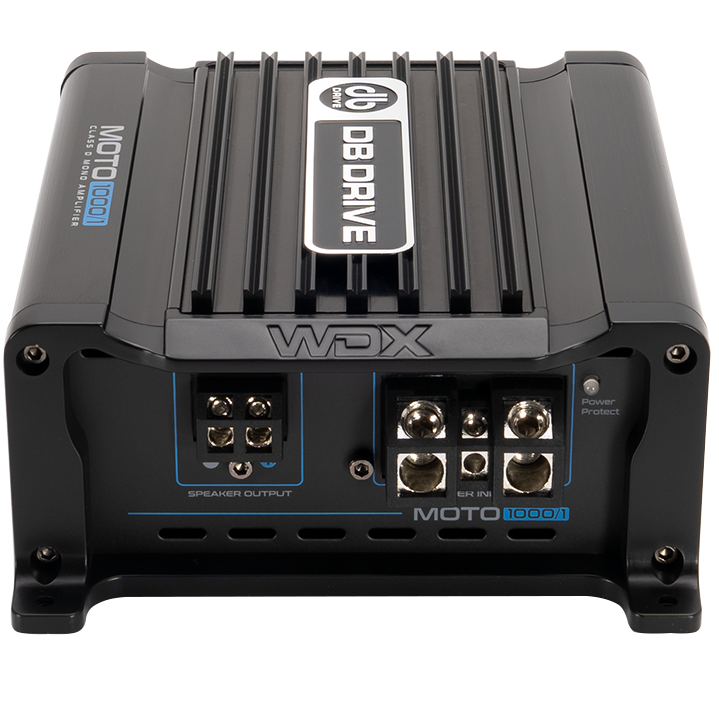

DB Drive MOTO1000/1 : WDX MOTO Mono Amplifier

Features

• Conformal PCB Coating
• CHM- Collective Heat Management
• ACT – Adaptive Crossover Technology
• APC – Audio Protection Circuit
• Full Range Class “D” Circuitry
• 4 Gauge

Specifications

Rated Power @14.4 Volts
	1 x 1000 Watts @ 1Ω
	1 x 500 Watts @ 2Ω
	1 x 250 Watts @ 4Ω

Dimensions

• L - 6.65in (168.9mm)
• H - 2.46in (62.5mm)
• W - 5.32in (135.1mm)

Parameters

Low Level Input	6V - 0.2V
Bass Boost	Variable 0 ~ 12dB
High Pass Filter (@ 12dB Slope)	Variable 40Hz ~ 10Kz
Low Pass Filter (@ 12dB Slope)	Variable 15Hz ~ 1Khz
Minimum Working Impedance	1 Ohm
Working Voltage	12 - 15 Volts

Description

Introducing the DB Drive MOTO1000/1 : WDX MOTO Monoblock Amplifier, the ultimate powerhouse for your audio needs! Get ready to experience unparalleled power and performance like never before. With its incredible 1Ω Mono capability, this amplifier is designed to deliver mind-blowing sound quality and unbeatable output. Featuring advanced technologies such as Conformal PCB Coating, Collective Heat Management, and Adaptive Crossover Technology, this amplifier is built to withstand the toughest conditions while ensuring optimal performance. The Monoblock Class D internal circuitry guarantees maximum efficiency and power delivery. With a rated power of 1000 Watts at 1Ω, 500 Watts at 2Ω, and 250 Watts at 4Ω, this amplifier will take your audio experience to the next level. Don't settle for anything less than extraordinary, choose the DB Drive MOTO1000/1 : WDX MOTO Monoblock Amplifier and unleash the true power of your music!
