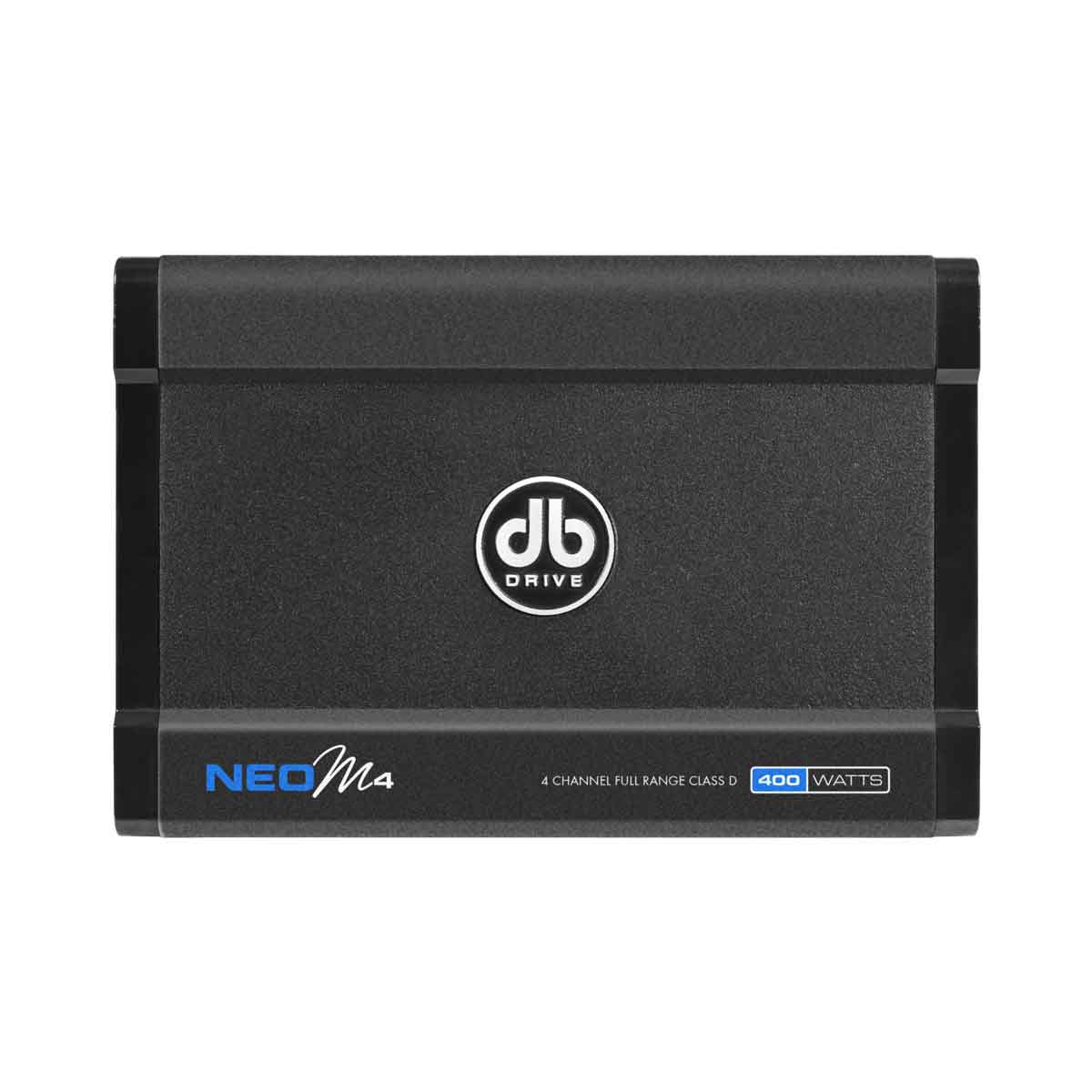

DB Drive NEO-M4 : Marine NEO 4-Channel Class D Mini Amplifier

Features

• 4 Channel Class D Full Range Technology
• 2Ω Stereo load Capability
• Audiophile Grade Nickel Plated RCA connectors
• 12db High-Pass crossover filter
• Marine Grade Conformal Coated Double Sided PCB
• Compatible with any 4/2Ω Loudspeaker

Specifications

Rated Power @14.4 Volts
	4 x 50 Watts @ 4Ω
	4 x 100 Watts @ 2Ω
PARAMETERS
THD (100Hz @1Ω)	0.04%
Bandwidth (-3 dB)	18Hz ~ 22KHz
Damping Factor (1KHz @ 4Ω)	100
S/N Ratio (as weighted @ 1 Volt)	99db
Input Sensitivity	0.20V ~ 9.0V RMS
Minimum Load Impedance	2Ω
Low Pass Filter Range	50Hz ~ 150Khz
Sub-Sonic Filter Range	15Hz ~ 50Hz

Introducing the NEO-M4 Marine NEO Mini 4 Channel Amplifier, a powerful addition to your audio system. With a compact size and audiophile-grade nickel plated RCA connectors, this amplifier from DB Drive is designed to deliver exceptional performance. Its marine-grade conformal coated double-sided PCB ensures durability and reliability, making it perfect for any environment. The 4 channel Class D internal circuitry provides impressive power, with a rated power of 4x100 Watts at 2Ω and 4x50 Watts at 4Ω. Whether you're looking to enhance your car audio or marine audio setup, this amplifier is the ideal choice. Take your audio experience to new heights with the NEO-M4 Marine NEO Mini 4 Channel Amplifier.
