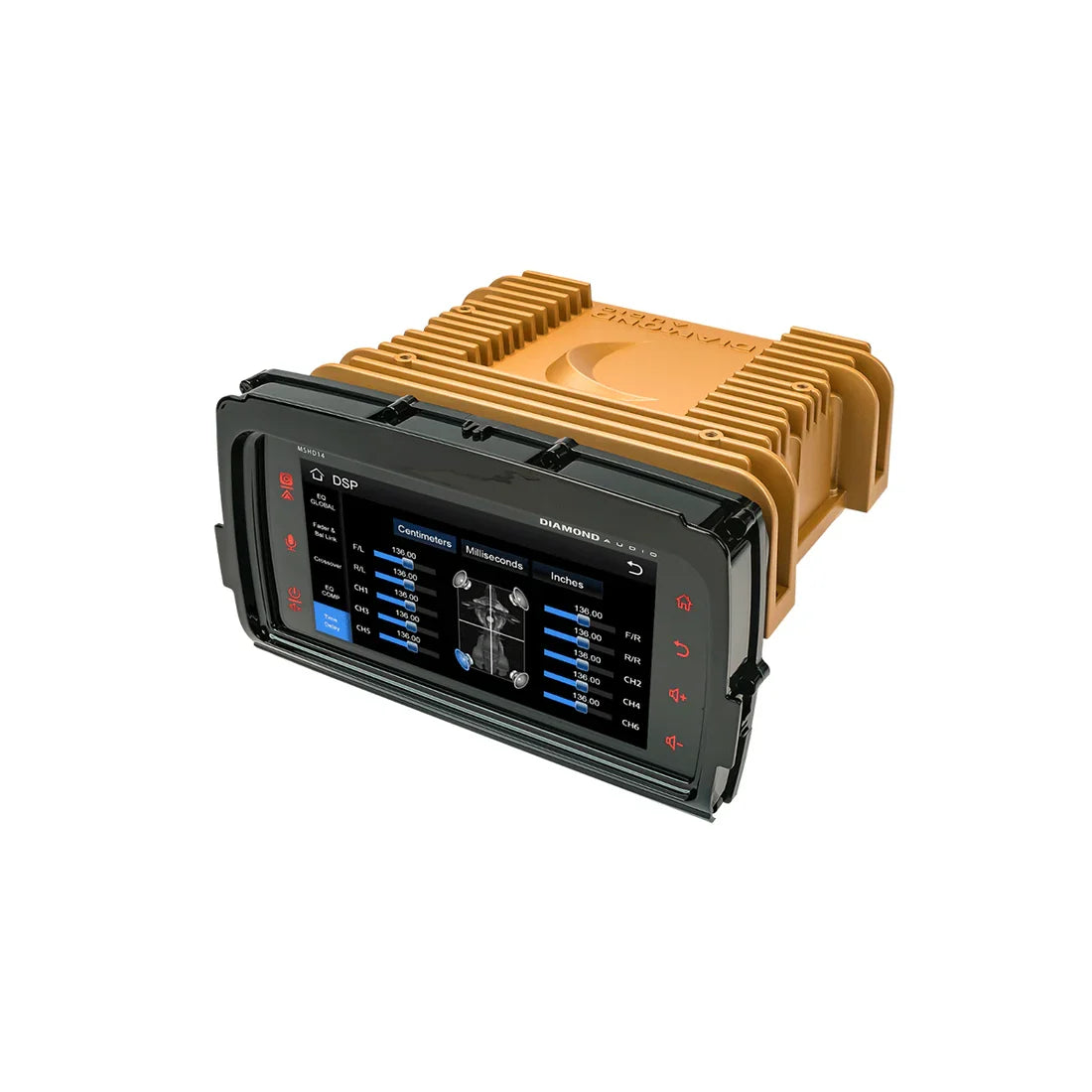

DIAMOND AUDIO 7" HEAD UNIT

$1,099.00

Style

Street Glide 13 & Under Road Glide 13 & Under MSHD14 - Plug N-Play Digital Media Receiver for 2014-2023 Harley Davidson

Pickup available at Audio Hoggz

Usually ready in 24 hours

Delivery and Shipping

Please allow 2-3 business days for shipments to process.

Description

Diamond Audio products represent the latest advances in acoustic technology in sound reproduction for your Harley-Davidson. Diamond products are designed, developed, and engineered in the USA using the latest innovative materials and components to provide the finest sound reproduction possible.

This unit is NOT compatible with Harley Boom amplifiers

Specifications

10 CHANNEL - CLIP FREE INDEPENDENT OUTPUTS
(6) 5V RMS RCA OUTPUTS + (4)
50X4@2Ω/25X4@4Ω RMS CLIPFREE

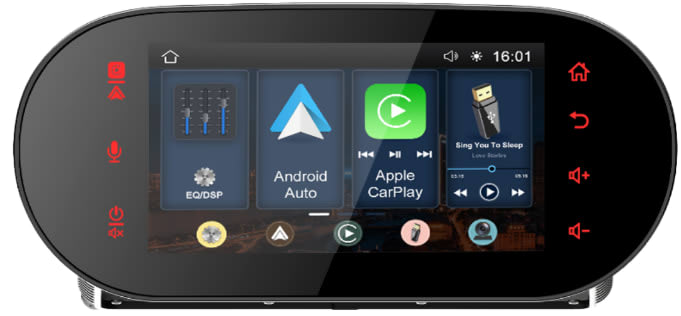

WIRELESS APPLE CARPLAY
7" ULTRA BRIGHT, 1000 NIT LCD TOUCHSCREEN
GLOVE-FRIENDLY TOUCHSCREEN
INTERNAL MAESTRO RR2 CANBUS INTERFACE (WORLDS FIRST)
6 PROGRAMMABLE AUXILIARY TRIGGERS FOR CONTROLLING LIGHTING, KICKSTANDS AND ACCESSORIES VIA TOUCHSCREEN, TIMERS/TRIGGERS OR HANDLEBAR CONTROLS

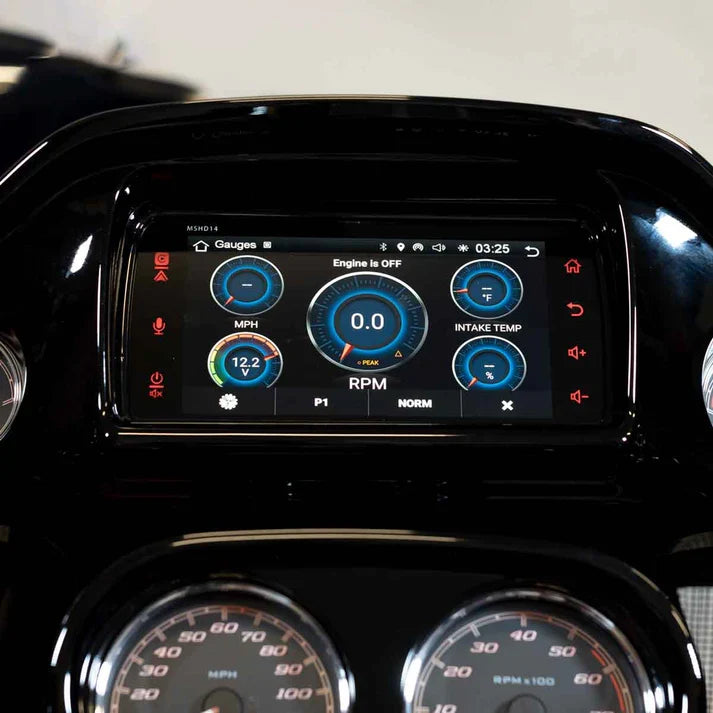

VEHICLE DATA SCREENS, SPEED/OIL PRESSURE/VOLTAGE/0-60 TIME AND MANY OTHERS (USER SELECTABLE)
RETAINS HANDLEBAR CONTROLS, RECONFIGURABLE THOUGH PROGRAMMING
6 INDEPENDENT EQ'S FOR THE ULTIMATE SOUND CUSTOMIZATION (1 GLOBAL, 5 FOR SETUP)
10CH DSP FEATURES TIME DELAY, HP/LP/BP CROSSOVERS WITH ADJUSTABLE 6,12,18,24DB SLOPES INDEPENDENT CHANNELS CAN BE LINKED TOGETHER OR SEPERATED FROM FADER CONTROL (DEFAULT)
IPX6 WATER RESISTANCE / WEATHERPROOF TRIM GASKET INCLUDED
AM/FM/WEATHERBAND
MEDIA PLAYER SUPPORTS MP3, AAC, WMA, APE, FLAC, WAV, MPEG4, H.263, H.264, H.265, XVVID, AVI, VP8, VP9
BLUETOOTH 5.2 STREAMING / HANDS-FREE CALLING (MICROPHONE INCLUDED)
USB MEDIA INPUT / CHARGER 2.1A
BACKUP CAMERA INPUT
BLUETOOTH LINE DRIVER FOR MAXIMUM OUTPUT
BOOM2 COMPATABLE
MULTIPLE PATENTED FEATURES AND TECHNOLOGIES
