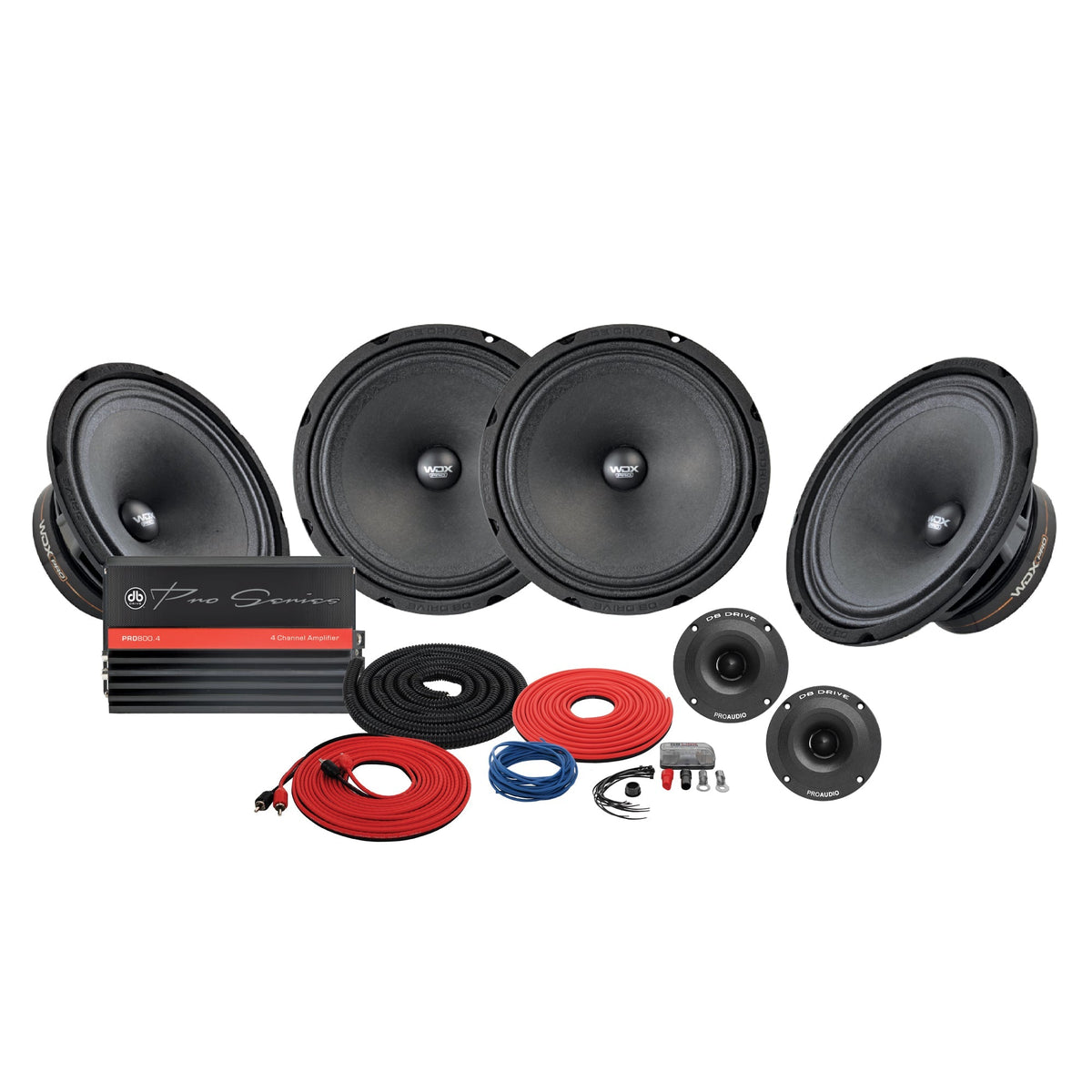

DB Drive PRO-K2000 : 2 Pro Tweeters, 4 Pro 6.5 Mids, 4-Ch Amplifier, and 4 Gauge Wiring kit Pro Mid package

Features

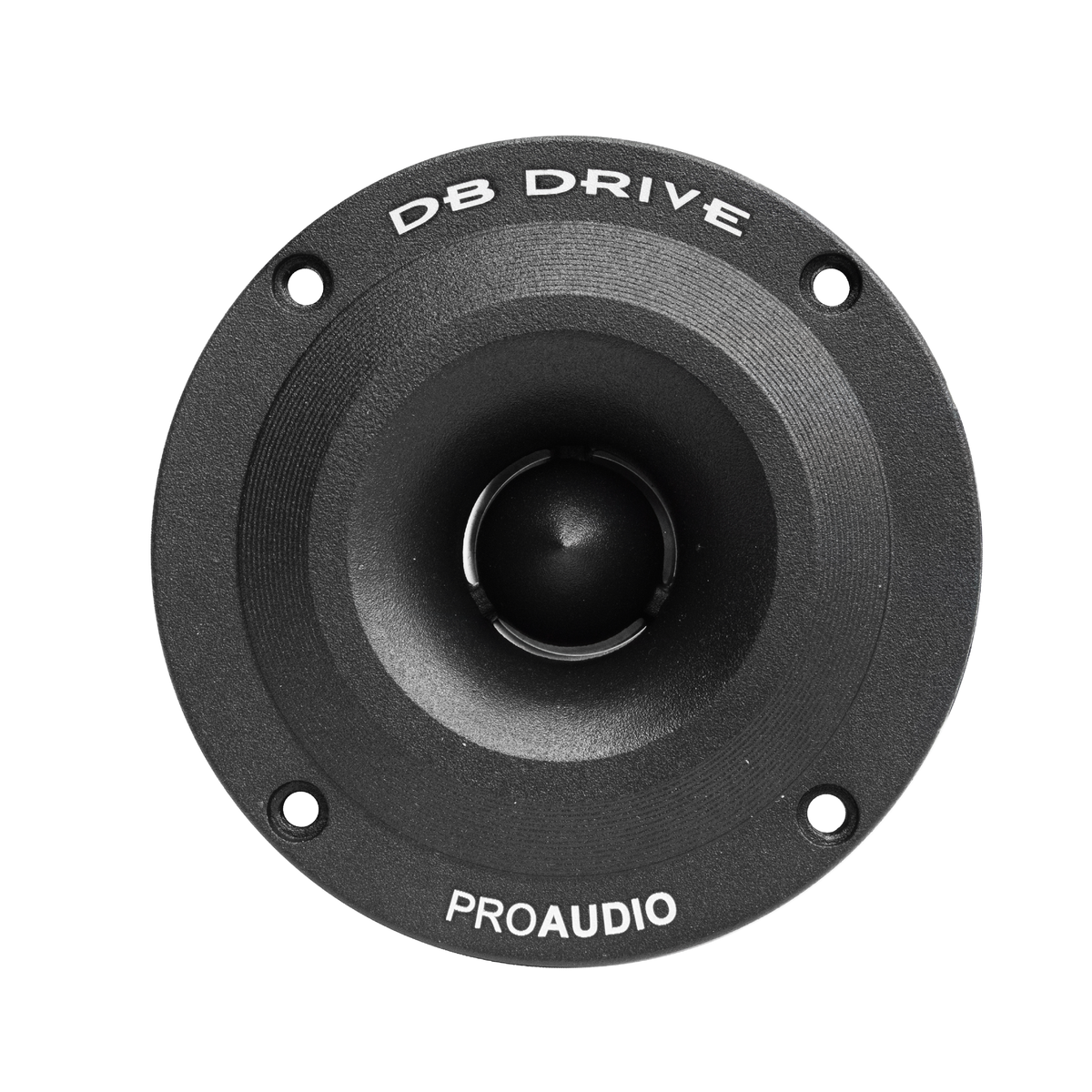

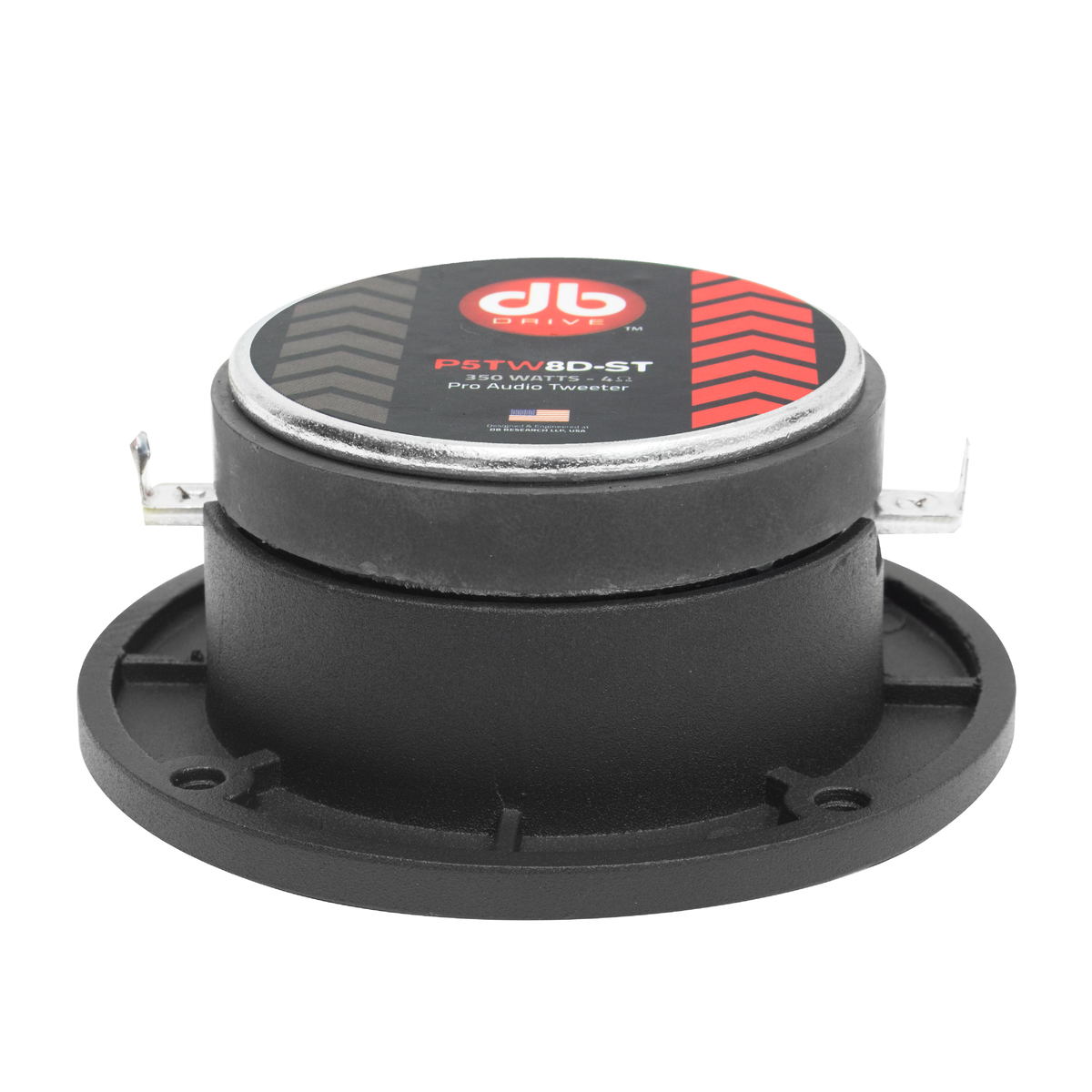

P5TW8D-ST
2 x PRO AUDIO SUPER TWEETERS

• Diaphragm Material: Aluminum
• Integrated 6 dB Crossover
• 1" Voice Coil

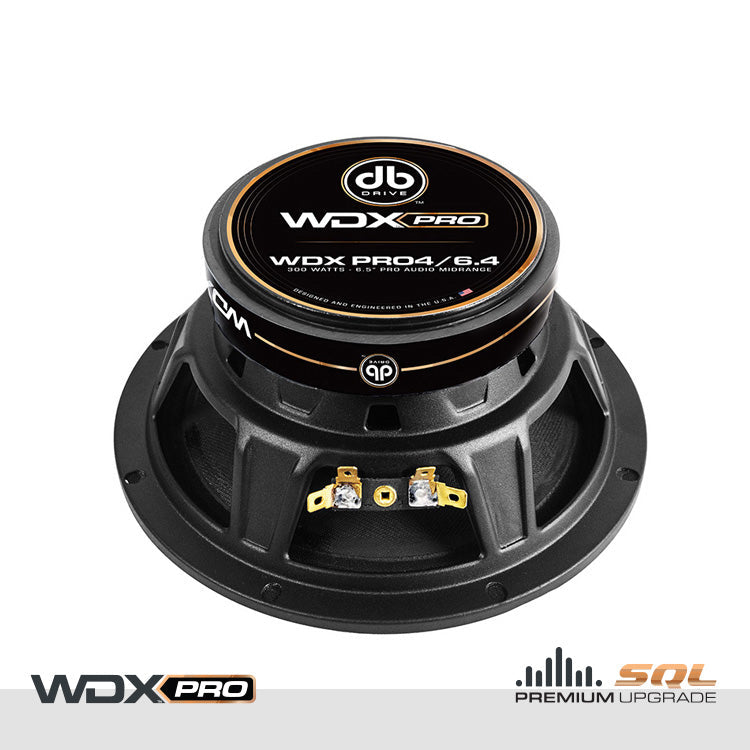

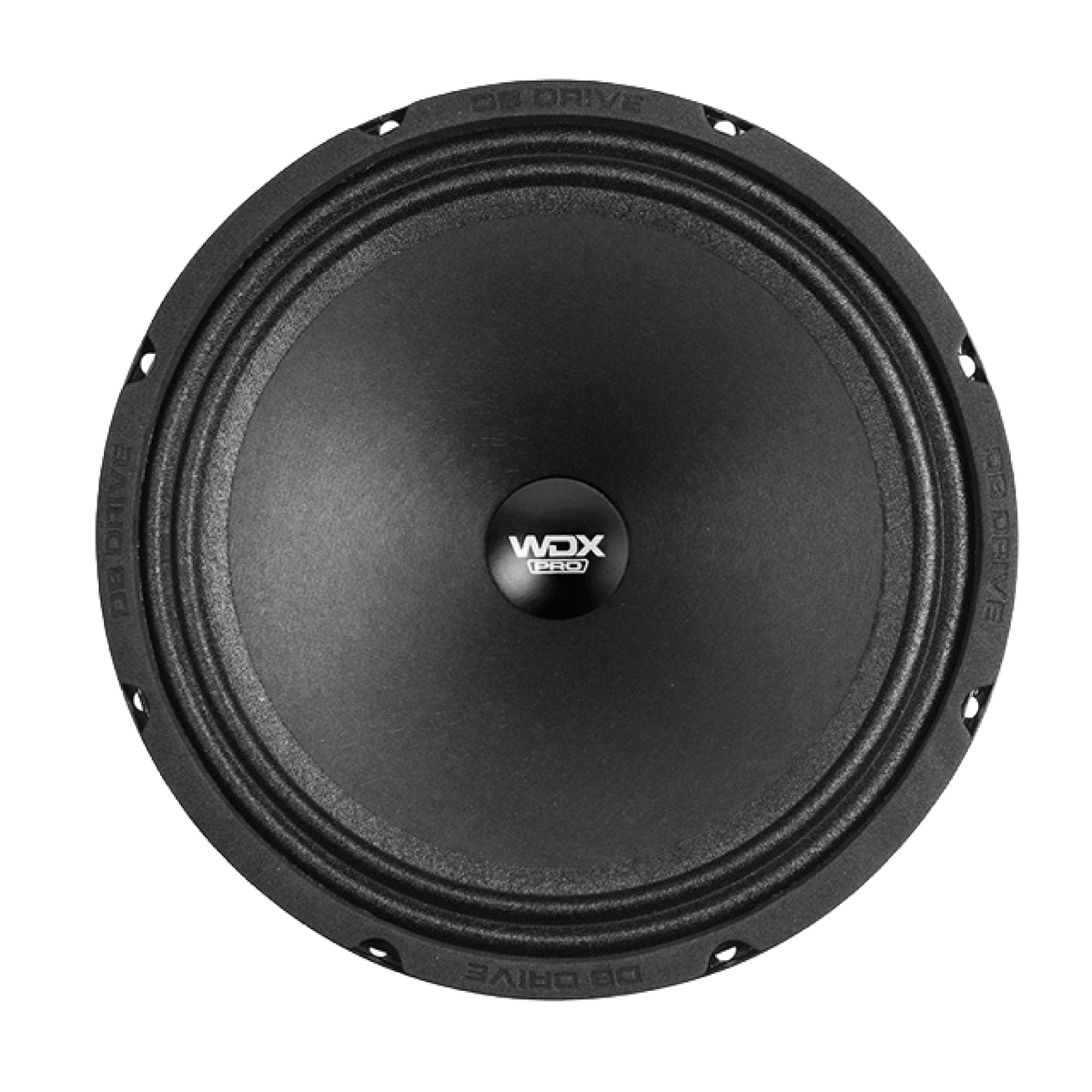

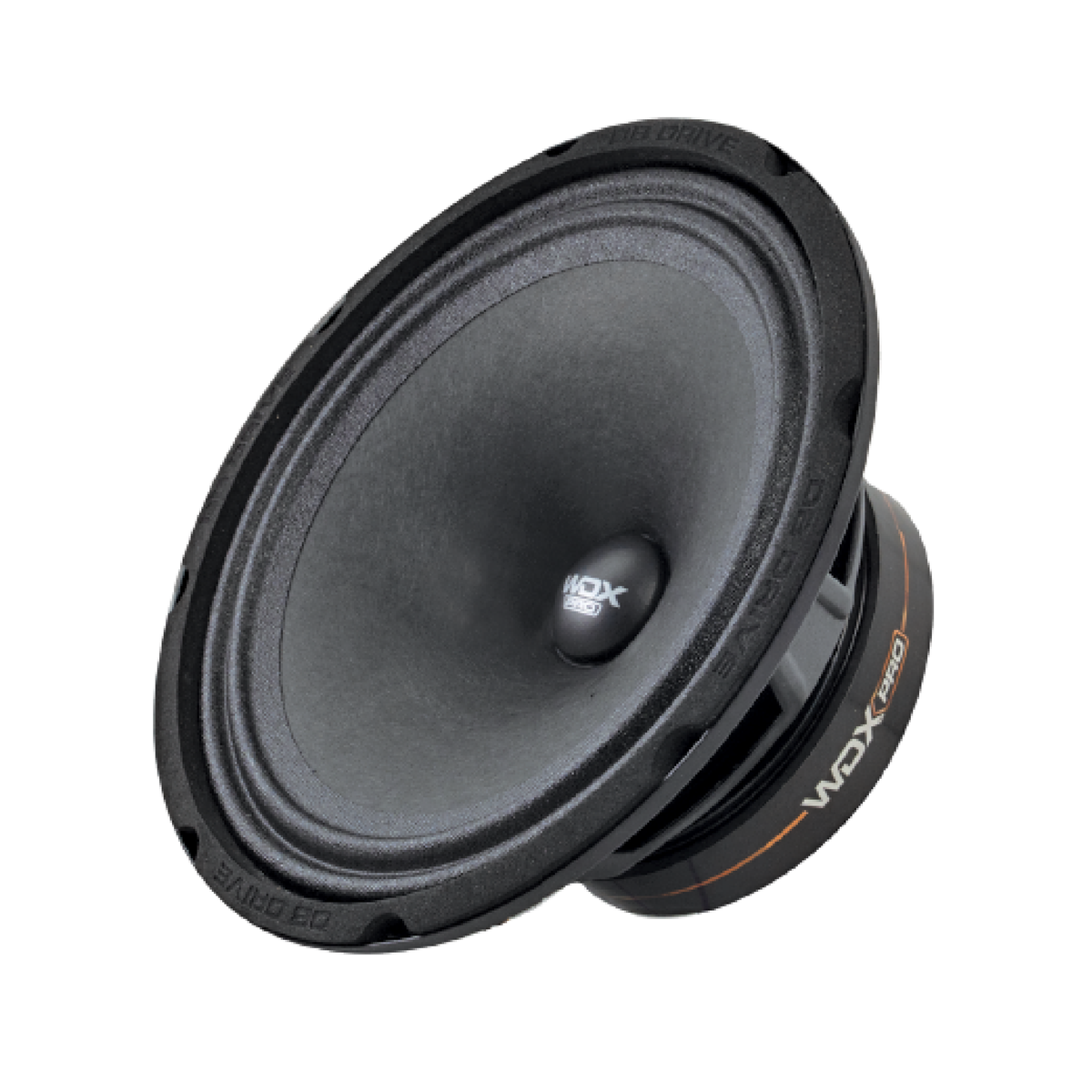

WDXPRO4/6.4
4 x 6.5" PRO AUDIO MIDRANGES

• High Temperature Voice Coil with Shorting Ring
• High Strength Ferrite Oxide Magnet
• Treated Paper Cone with Cloth Surround
• Stamped Steel Basket
• EVA Mounting gasket
• Direct Connect Tab Terminals

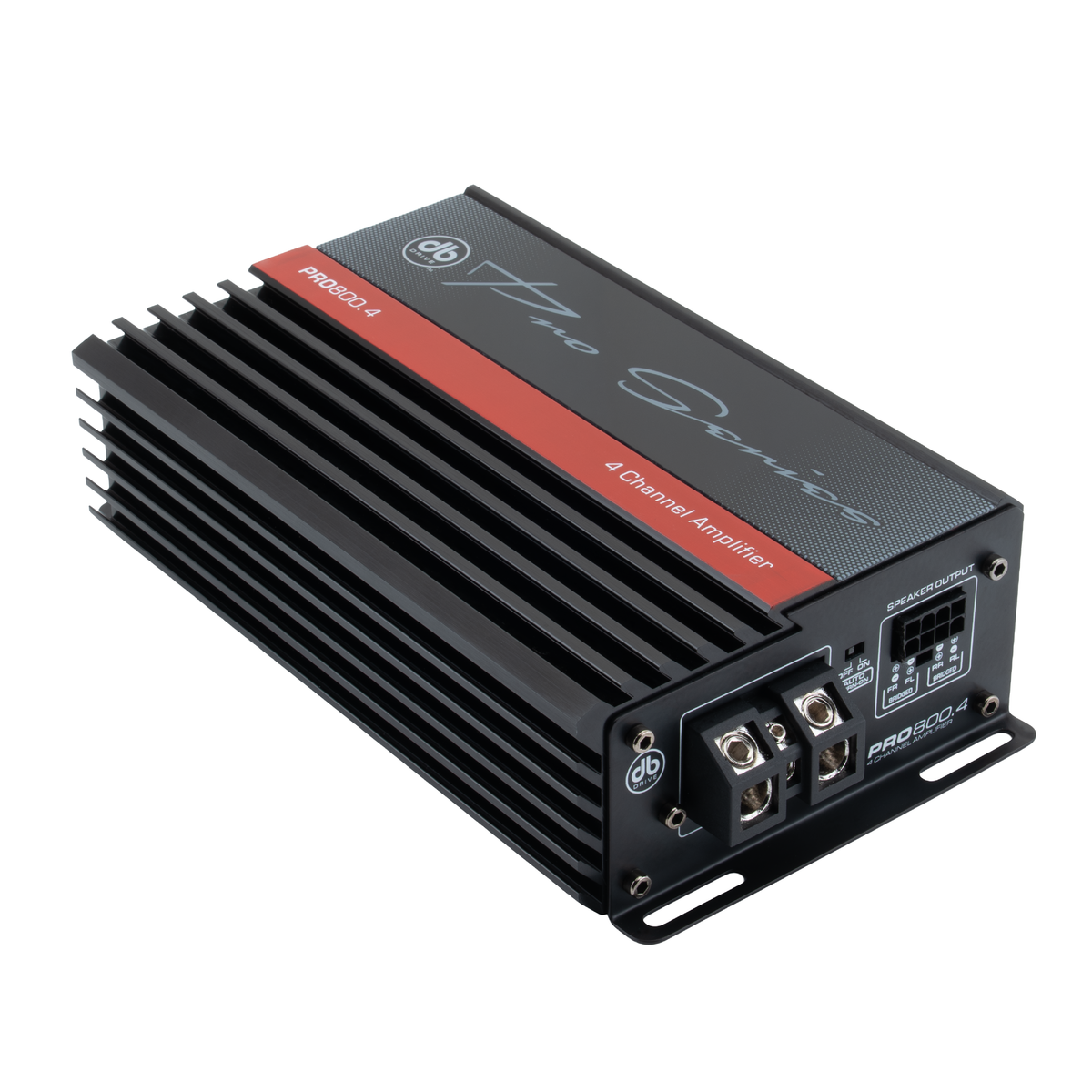

PRO800.4
1 x 800 WATT 4-CHANNEL AMPLIFIER

• Class D Circuitry
• Direct Connect Speaker Harness
• 4 Gauge Power Wire Input
• CHM - Collective Heat Management
• ACT - Adaptive Crossover Technology
• SESI - Signal Evaluation Status Indicator
• APC - Audio Protection Circuit
• High Level Inputs

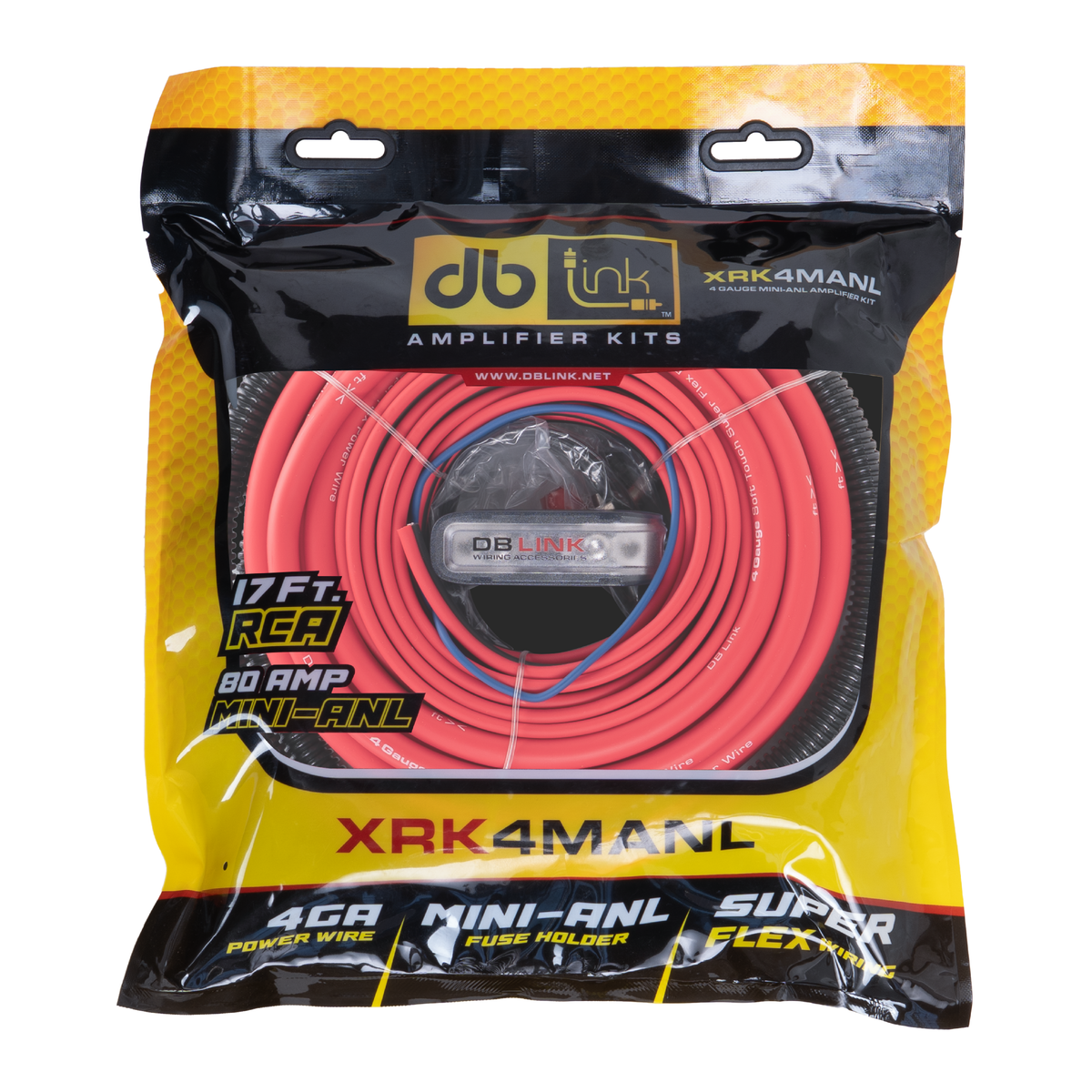

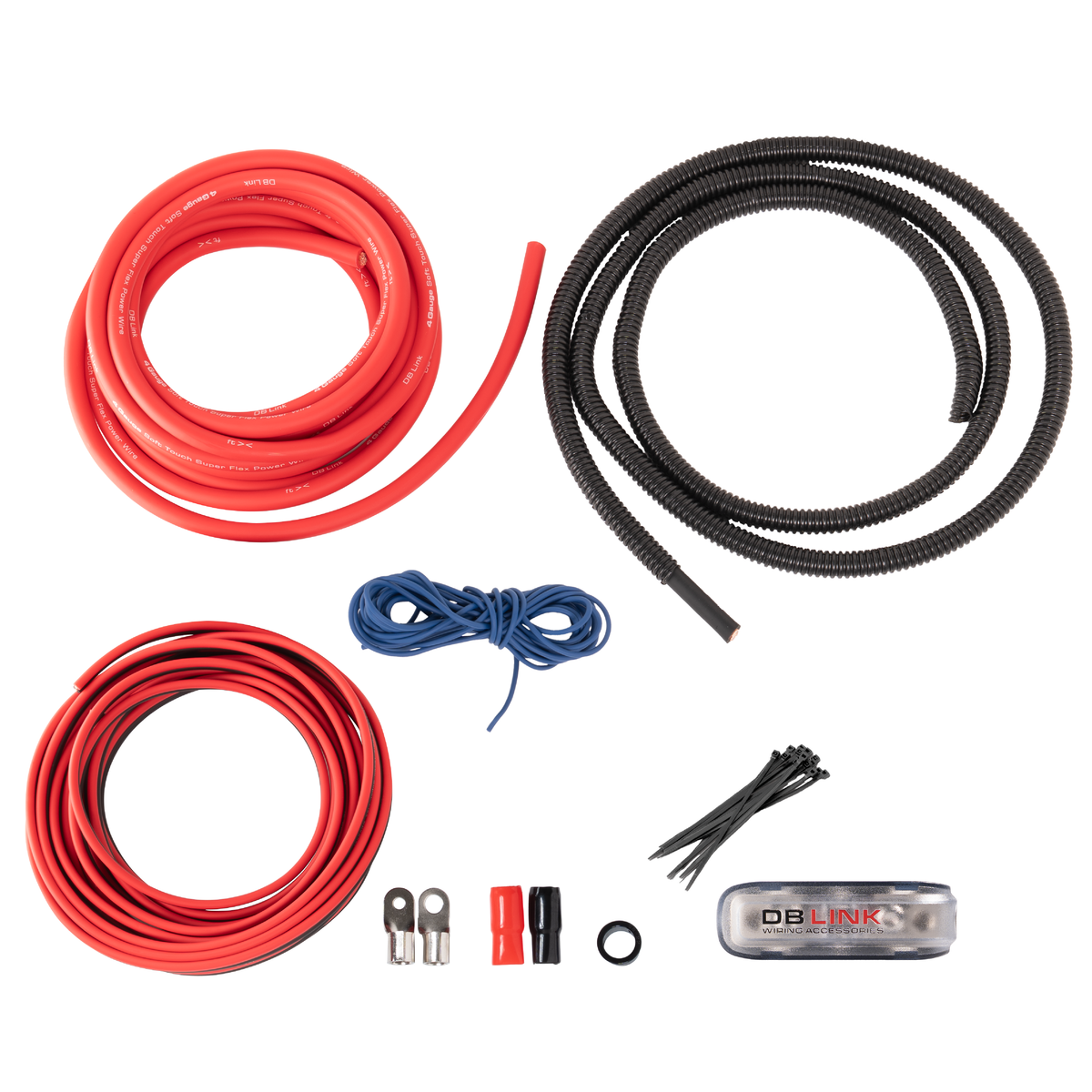

XRK4MANL
1 x 4 GAUGE AMPLIFIER WIRING KIT

• 17' 4 Ga. RED Soft Touch Super Flex Power Wire
• 3' 4 GA. BLACK Soft Touch Super Flex Ground Wire
• 17' RED/BLACK Super Flex RCAs with X GRIP design
• 17' Soft Touch Super Flex Speaker Wire
• 15' to 17' 18 Ga. BLUE Remote Wire
• HIGH Conductivity Mini ANL Fuse Holder
• 80 Amp Mini ANL Fuse
• 6' Split Loom Heat Shielding
• Ring Terminals / Grommet and Cable Ties

Specifications

P5TW8D-ST
2 x PRO AUDIO SUPER TWEETERS

• Peak Power: 350 Watts
• RMS Power: 150 Watts
• Magnet: 5.4 oz
• Frequency Range: 1.8 kHz - 20 kHz
• Rated Impedance: 4 Ohms
• Sensitivity: 103.3 dB

DIMENSIONS

• Overall Diameter: 3.93"/ 100 mm
• Cut Out Diameter: 2.75"/ 70 mm
• Mounting Depth: 1.57"/ 40 mm

WDXPRO4/6.4
4 x 6.5" PRO AUDIO MIDRANGES

• Peak Power Handling: 300w
• Nominal Power Handling: 150w
• Magnet Type: Ferrite Oxide
• VC size: 1" KSV

• Impedance: 4 Ohms

DIMENSIONS

• Overall Diameter: 6.69"/ 170 mm
• Cut Out Diameter: 5.91"/ 150.2 mm
• Mounting Depth: 2.87"/ 73 mm

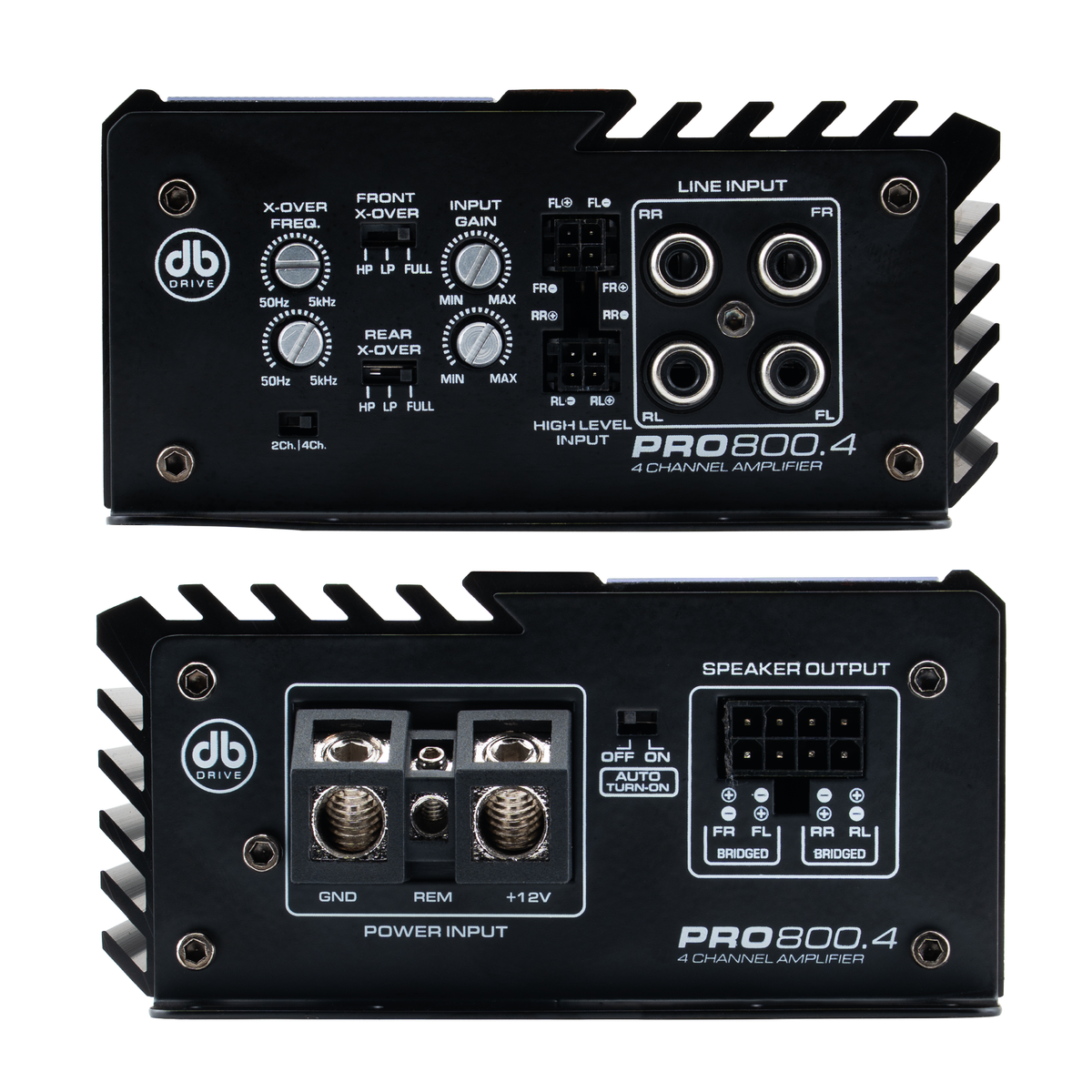

PRO800.4
1 x 800 WATT 4-CHANNEL AMPLIFIER

• Summed Dynamic Power: 800 Watts
• 4 x 100 Watts @ 4 0hms
• 4 x 200 Watts @ 2 Ohms
• 2 x 320 Watts @ 4 Ohms Bridged
• Frequency Response: 20Hz - 20KHz
• Signal to Noise Ratio: 83dB @ 1000Hz
• Low Level Input: 6.5V - 0.250V
• Ch 1-2 High Pass Crossover: 50Hz - 5KHz
• Ch 1-2 Low Pass Crossover: 50Hz - 5KHz
• Ch 3-4 High Pass Crossover: 50Hz - 5KHz
• Ch 3-4 Low Pass Crossover: 50Hz - 5KHz
• Working Voltage: 12 - 15 Volts

DIMENSIONS

• Length: 8"/ 204 mm
• Height: 2.25"/ 57 mm
• Width: 4.63"/ 118 mm
