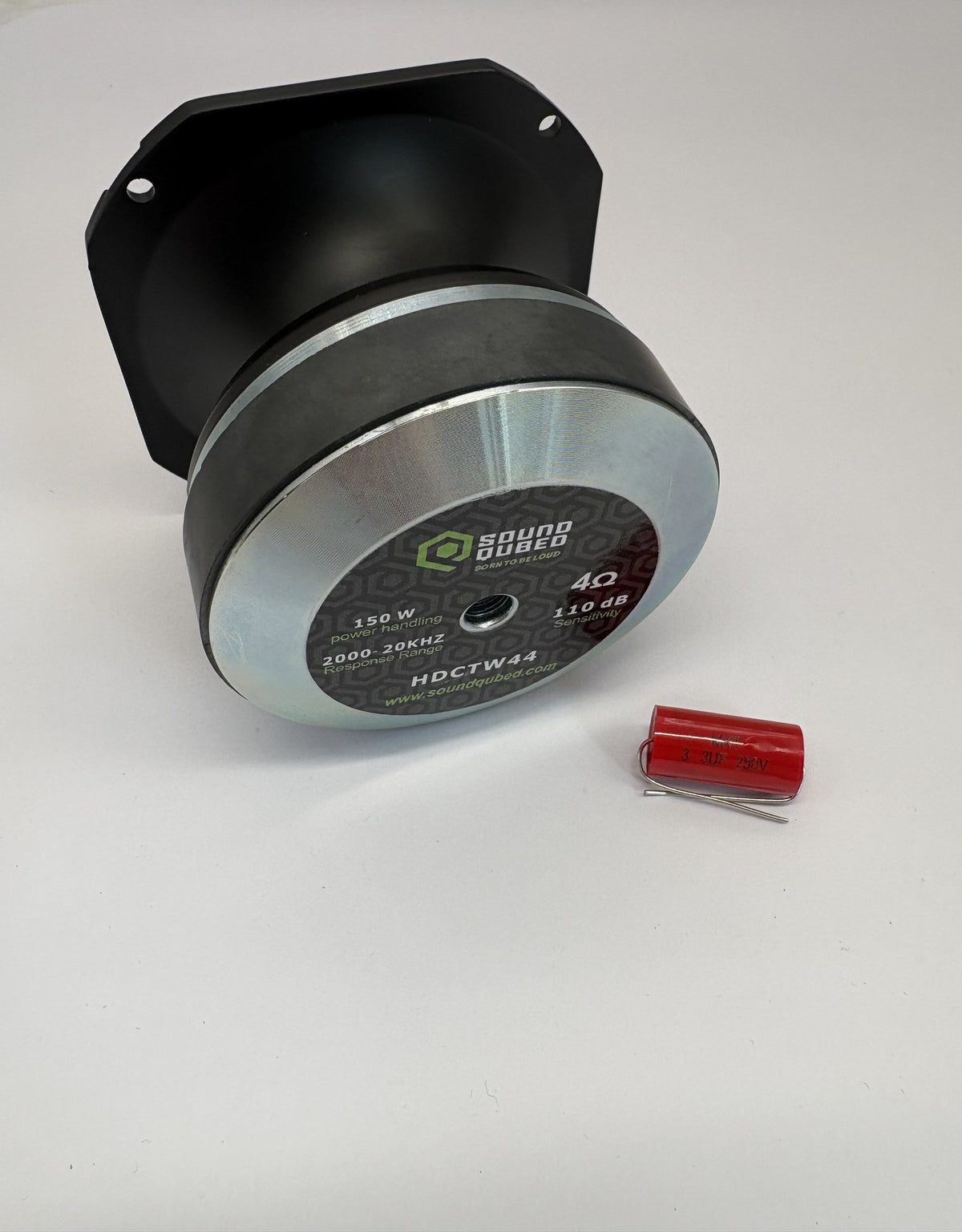

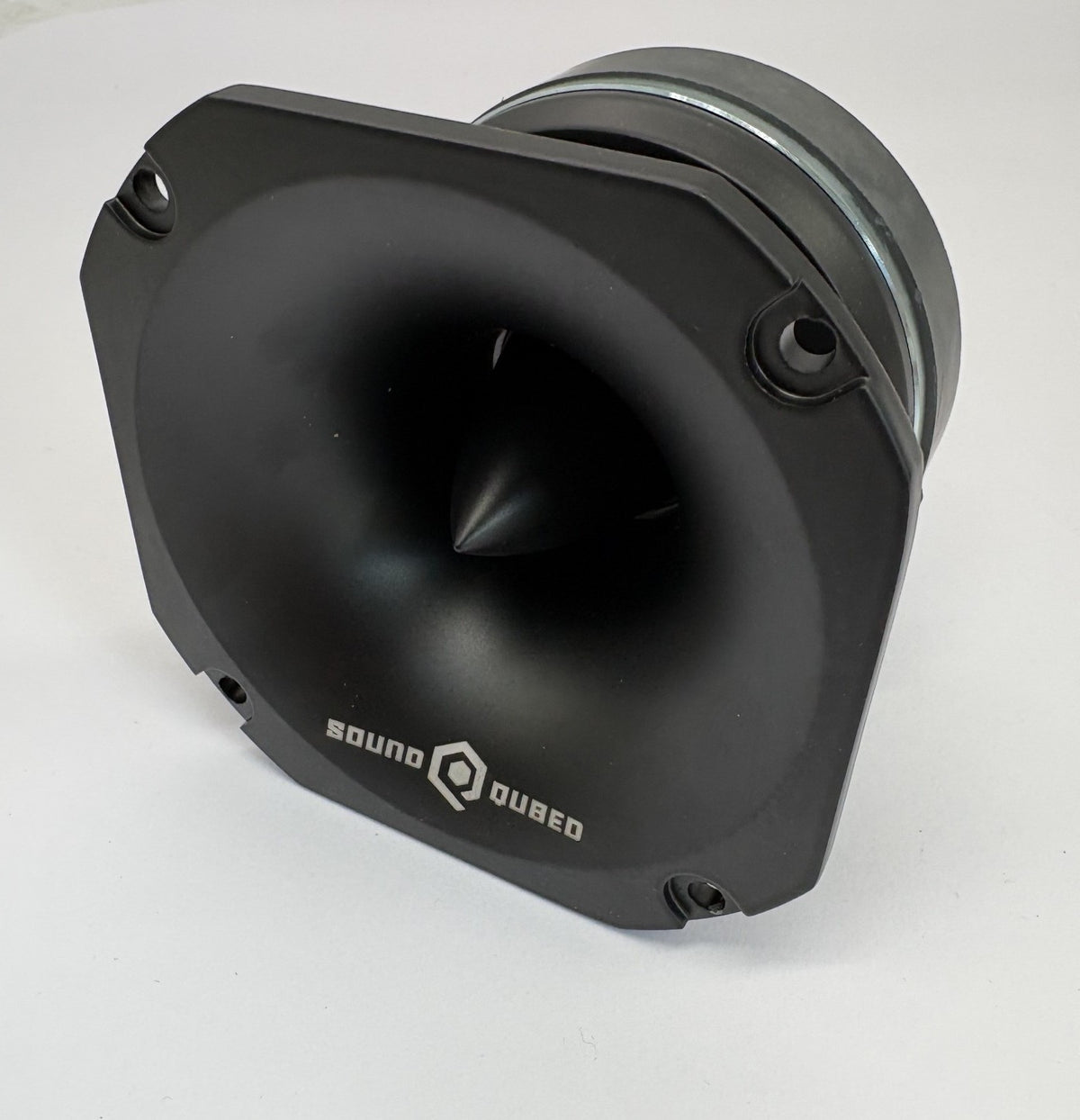

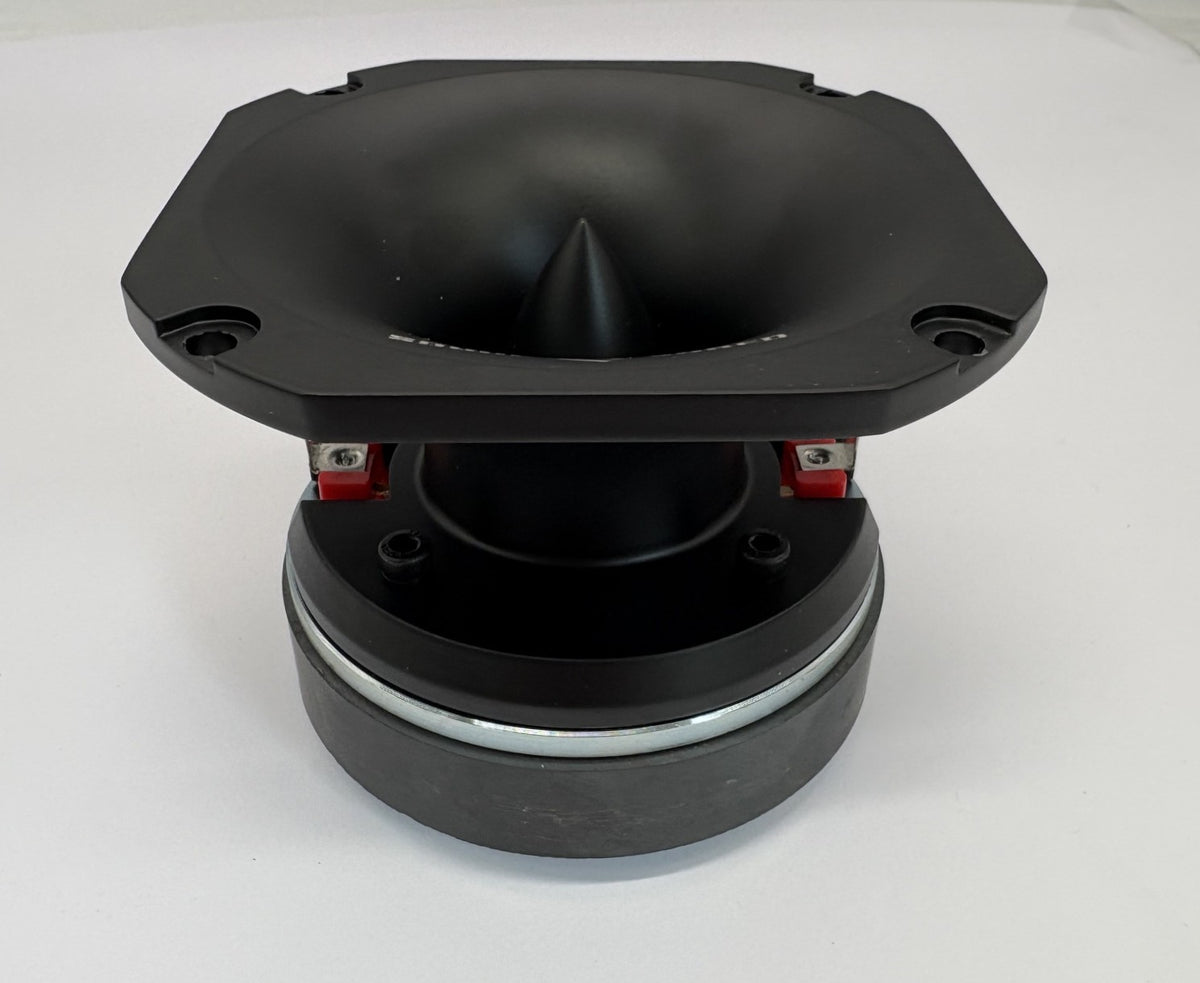

SoundQubed HDC 4" Compression Tweeter (Single)

SoundQubed HDC 4" High-Frequency Compression Tweeter (HDCTW44) - sold individually

37.6 mm (1.5 in) CCAW copper voice coil wound on a Kapton former. High 110 dB sensitivity delivers efficient, articulate high-frequency output.

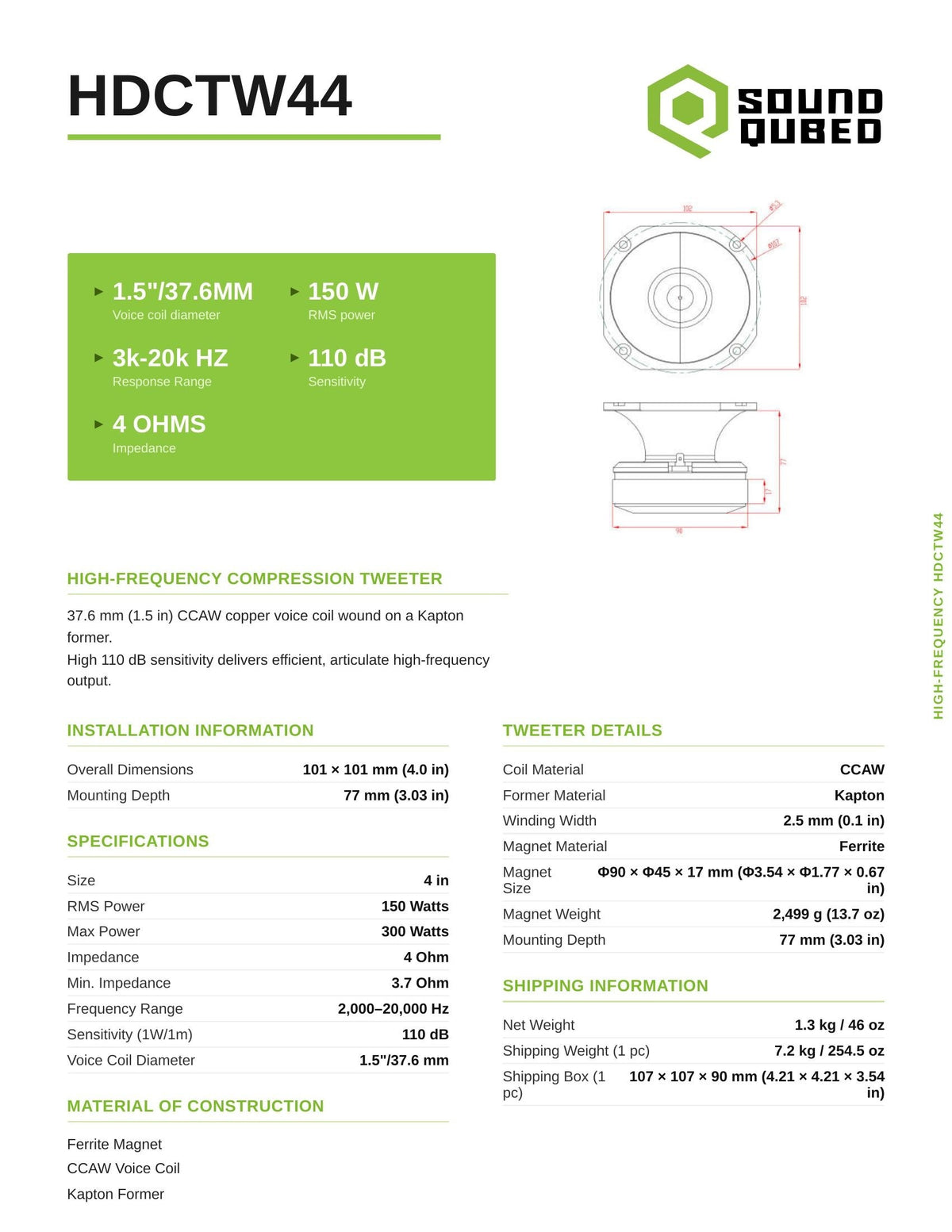

Specifications

• Size: 4 in
• RMS Power: 150 Watts
• Max Power: 300 Watts
• Impedance: 4 Ohm (min. 3.7 Ohm)
• Frequency Range: 2,000-20,000 Hz (response range 3k-20k Hz)
• Sensitivity (1W/1m): 110 dB
• Voice Coil Diameter: 1.5" / 37.6 mm

Installation

• Overall Dimensions: 101 x 101 mm (4.0 in)
• Mounting Depth: 77 mm (3.03 in)

Construction

• Coil / Former: CCAW / Kapton, 2.5 mm (0.1 in) winding width
• Magnet: Ferrite, 90 x 45 x 17 mm (3.54 x 1.77 x 0.67 in), 13.7 oz
• Net Weight: 1.3 kg / 46 oz
