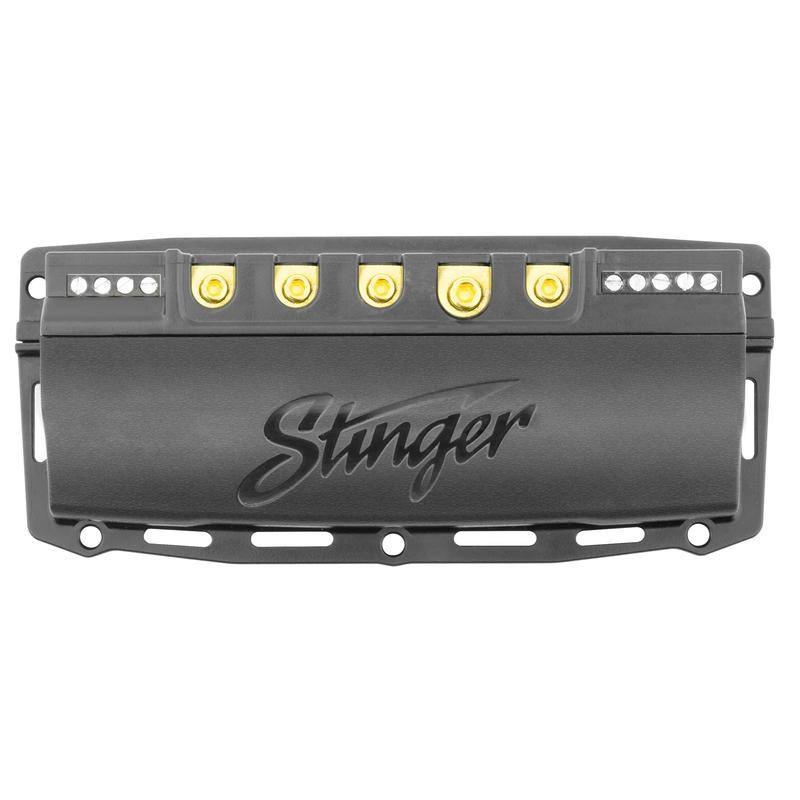

Stinger SPXSH440 : 4 Channel High Current Relay System Switch Hub

SwitchHUB is a solid-state, high current relay block with 4 independent outputs. One 40A and three 20A outputs, for a combined total of 100A continuous. Each output can be independently triggered by either a positive or negative trigger and those outputs can be combined for even more amperage capability. Each output has a thermal overload, and short-circuit protection along with LED status indicators for the Thermal/Overload, Active/Inactive status. SwitchHUB eliminates the clutter of multiple high current relays and the accompanying wiring.

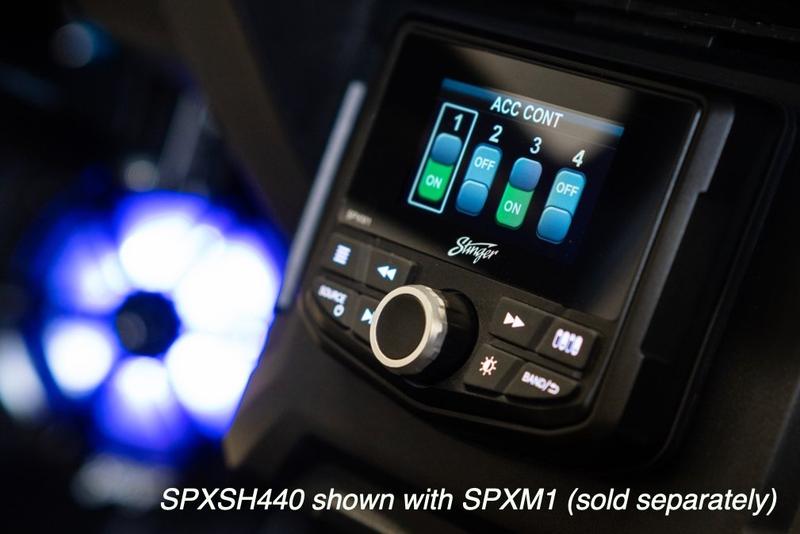

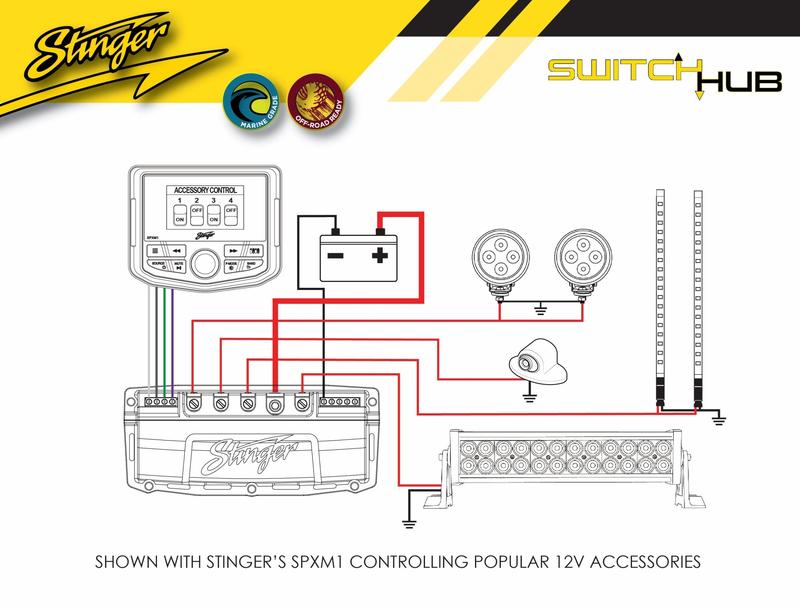

Want more control? Add an SPXM1 multimedia player to your favorite marine or powersports vehicle and control the SwitchHUB with the on-board accessory control interface.

Dimensions: 6.5" X 2.75" X 1"

Solid-state 4-way 40 Amp relay

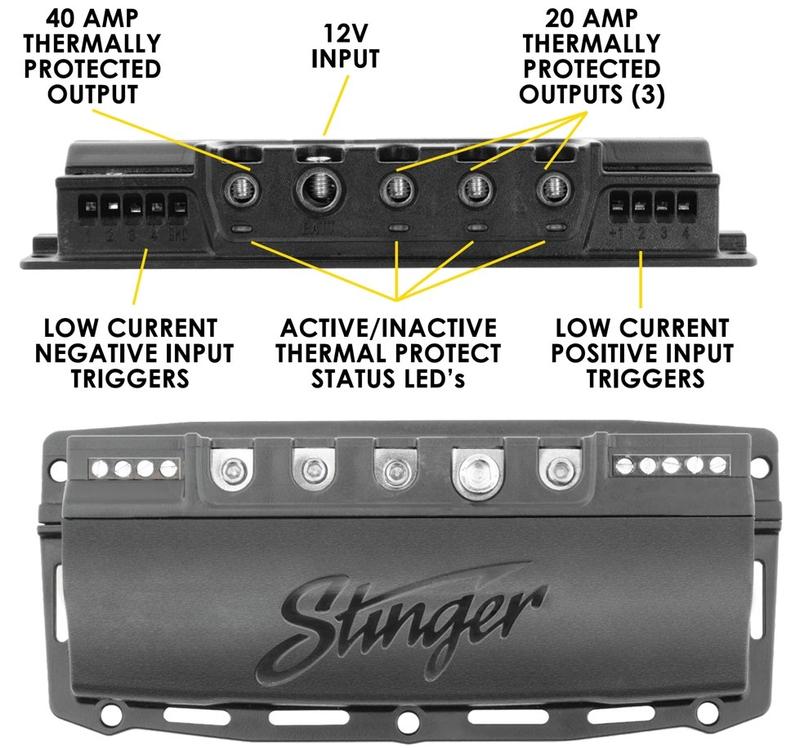

Control up to four high current devices with one 40A output and three 20A outputs for a combined total of 100A continuous.

Four independent outputs

Can be triggered independently by either a positive or negative trigger or combined for greater amperage capability.

IP69-rated weather-resistant design

Features corrosion-resistant terminals and element-resistant housing to ensure long-lasting use.

Automatic thermal overload and short circuit protection

For each output.

LED status indicators

Alerts the driver to thermal/overload and active/inactive status.

Special order item. Please call 832-370-0028 for current lead time before ordering.
