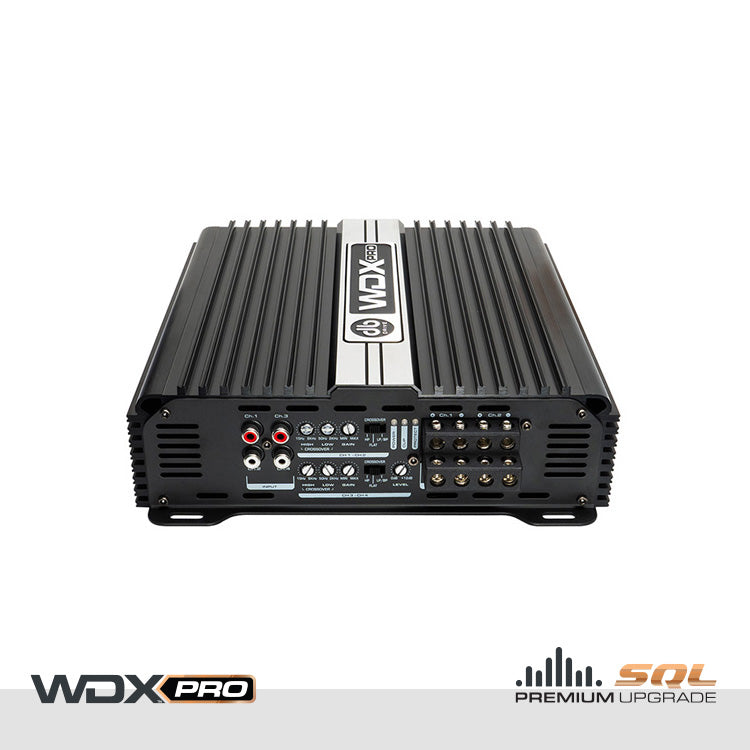

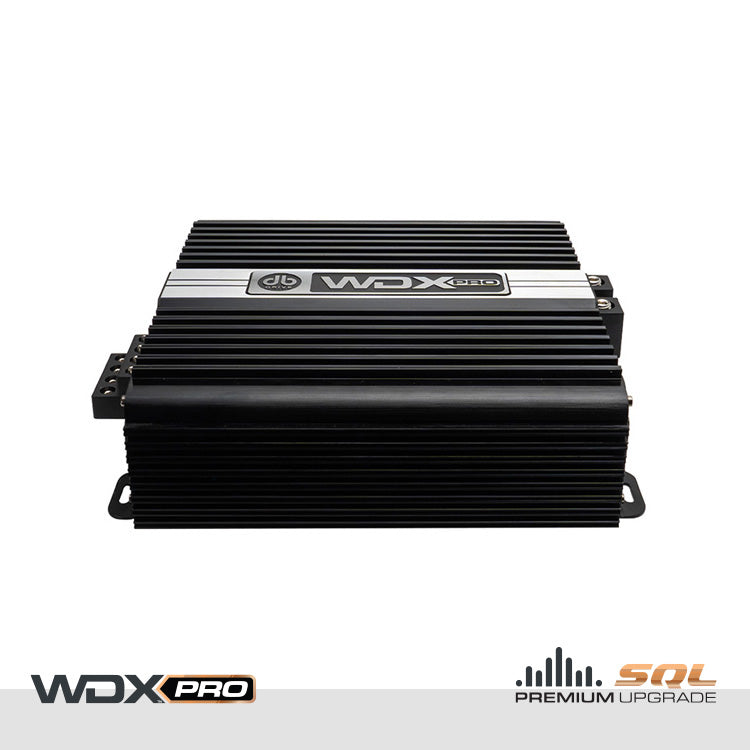

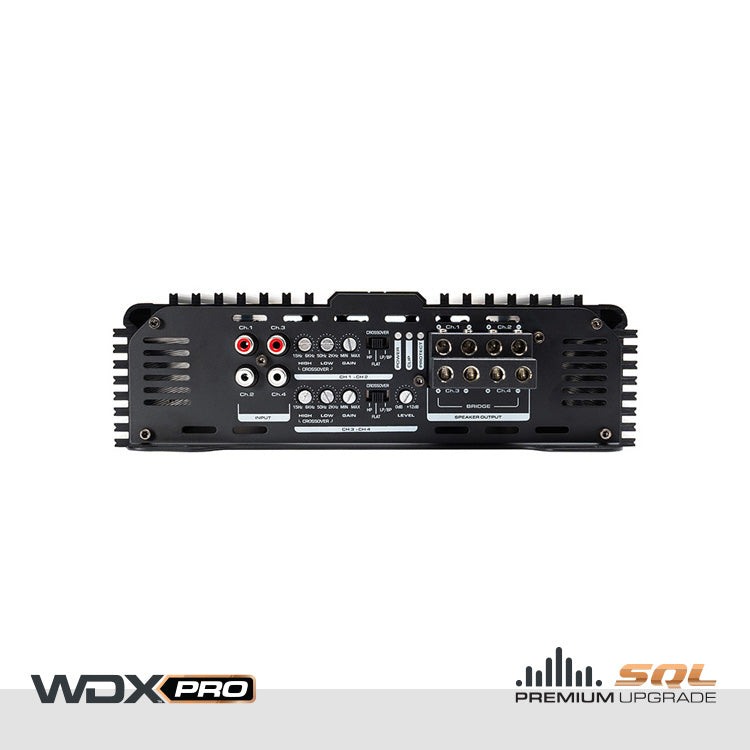

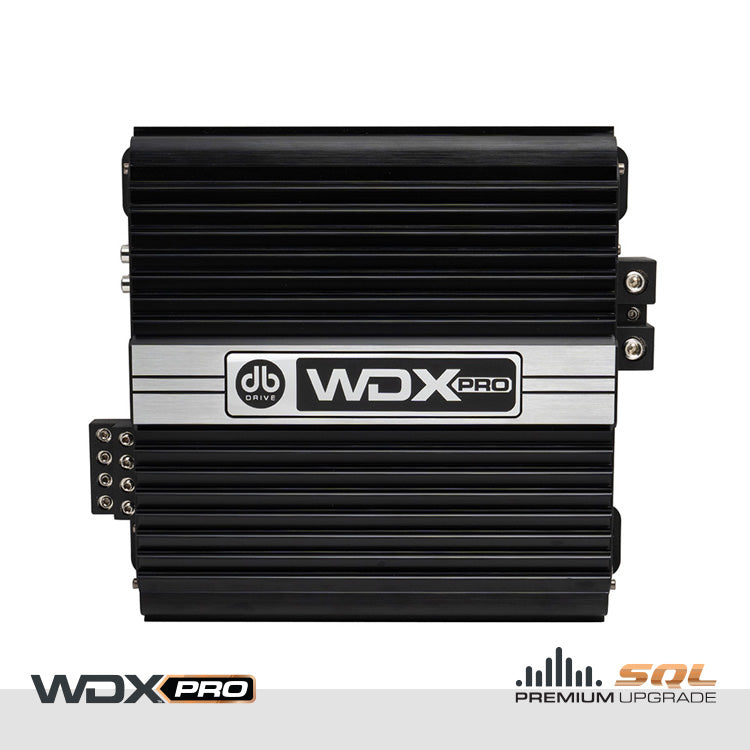

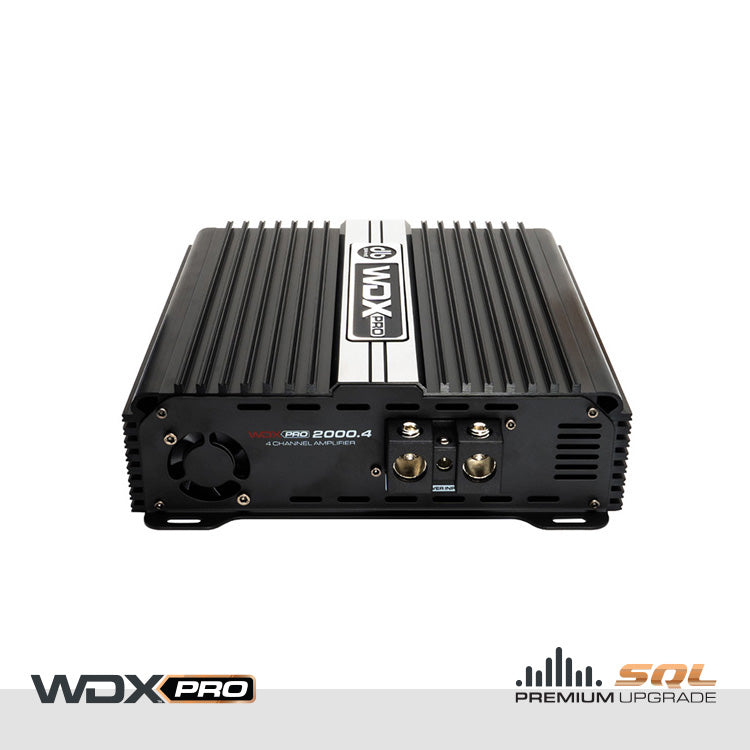

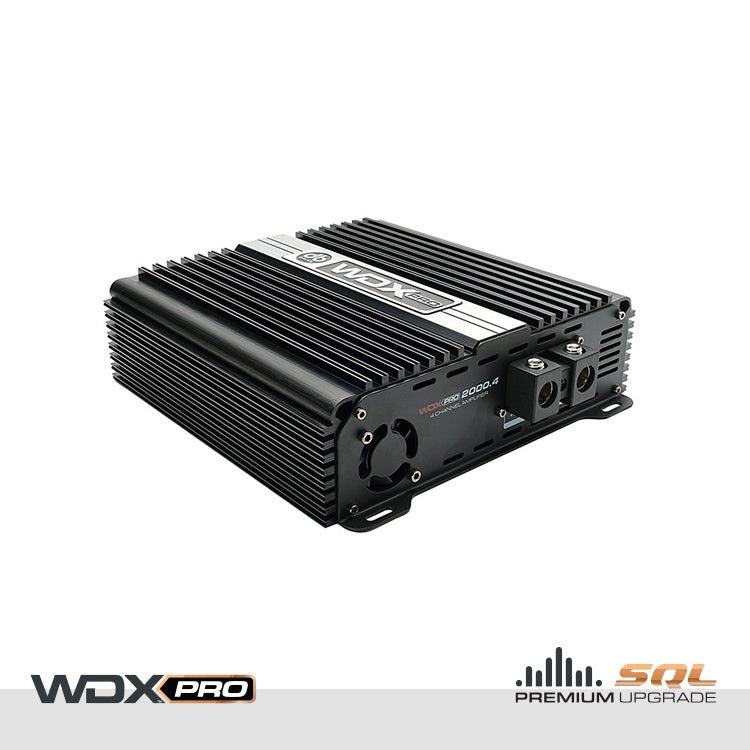

DB Drive WDX PRO2000.4 : 4-Channel Full-Range Class D Amplifier

Features

• ATC - Audiophile RCA Connectors

• ACT - Adaptive Crossover Technology

• High efficiency  Class Full Range Class D Technology

• Direct Connect Speaker Terminals

• 4 Gauge Power Wire Inputs

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status Indicator

• CHM - Collective Heat Management

Specifications

• 4 x 125 Watts @ 4 ohms

• 4 x 250 Watts @ 2 ohms

• 4 x 500 Watts @ 1 ohm

• 4 ohms (Bridged): 2 x 1000 Watts

• Working Voltage: 12-15 Volts

• Frequency Response: 15 Hz - 20k Hz

• Signal to Noise Ratio: 96dB

• ACT - Variable Crossover HP/BP/LP

• Damping Factor: ≥200

• Low Level Input: 6V - 0.2mV

• Ch 1/2 High Pass Filter Variable: 15 Hz - 6k Hz

• Ch 1/2 Low Pass Filter Variable: 50 Hz - 2k Hz

• Ch 3/4 High Pass Filter Variable: 15 Hz - 6k Hz

• Ch 3/4 Low Pass Filter Variable: 50 Hz - 2k Hz

• Minimum working Impedance: 1 ohm stereo / 2 Ohms bridged

Description

Maximize your car audio with the DB Drive WDX PRO21000.4, a powerful 4-channel Class D amplifier built for high output and superior sound. Key Features: •    Adaptive Crossover: Optimizes performance for tweeters, midranges, and midbass. •    CHM: Keeps the amp cool during extended use. •    SESI Circuit: Monitors output to prevent overdriving and protect your gear. •    Large-Gauge Terminals: Support 4-gauge wiring for high-output systems. With 500 Watts per channel at 1Ω, the WDX PRO2000.4 delivers clear, powerful sound, elevating your audio experience.

Product Manual

Product Manual PDF
