DB Drive | SKU:
810180460989

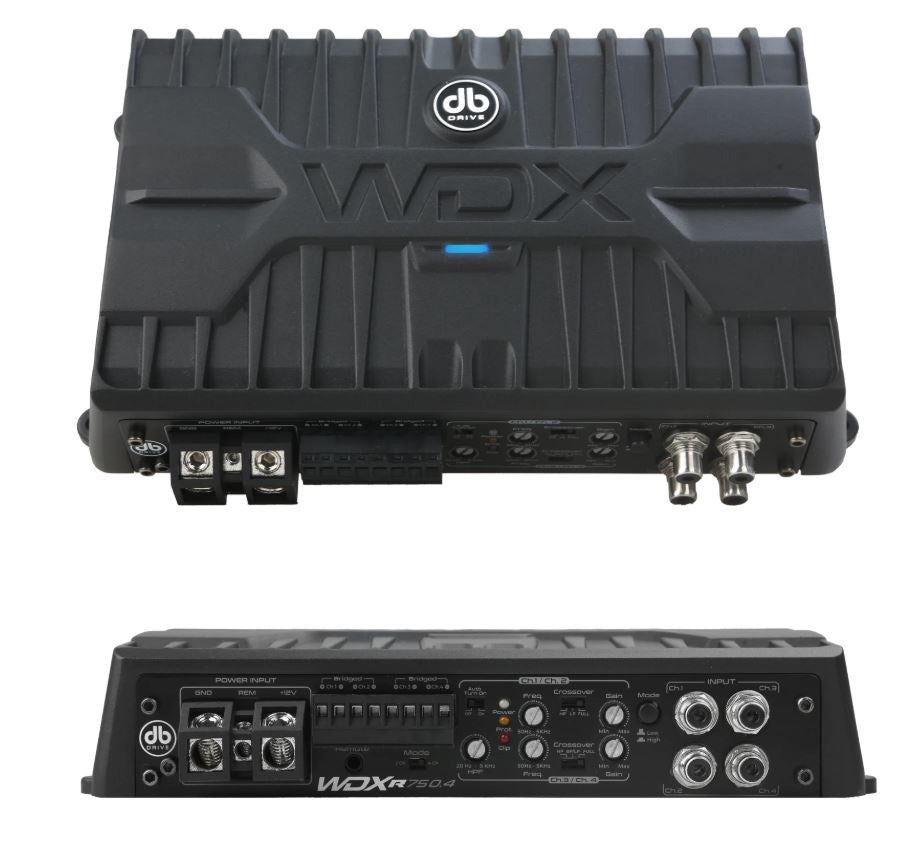

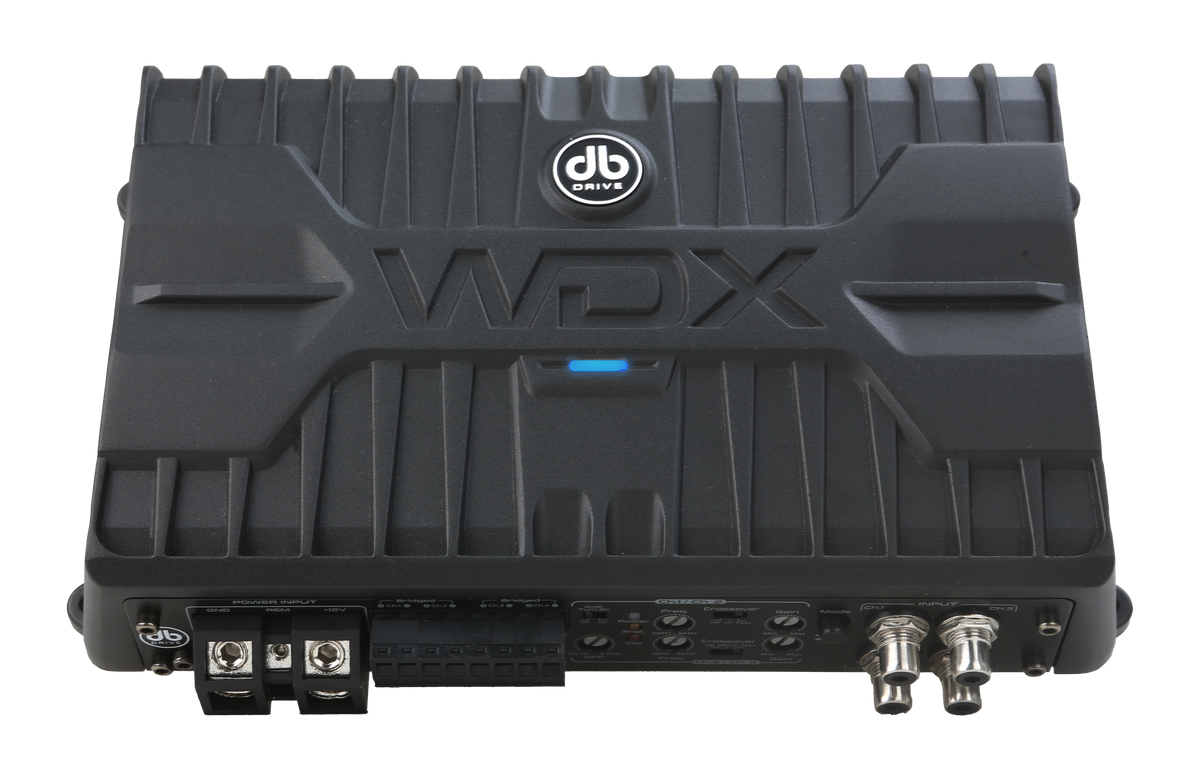

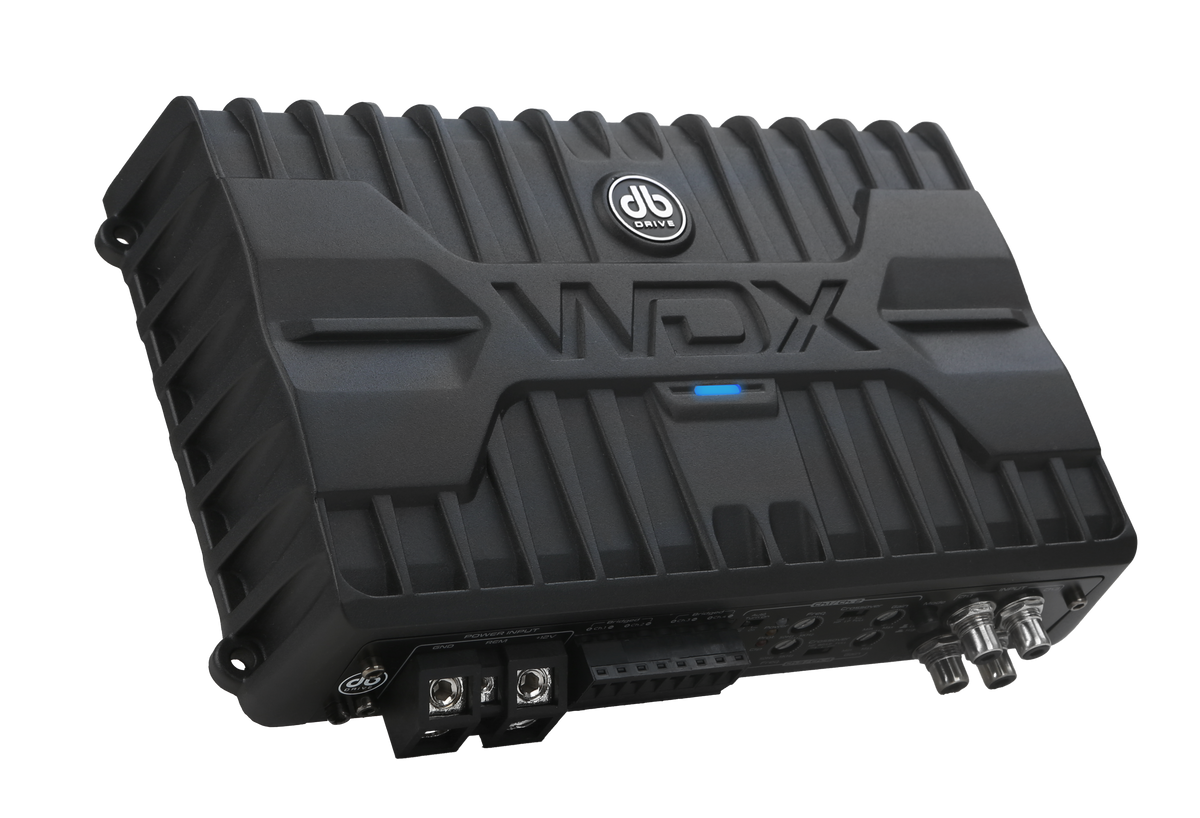

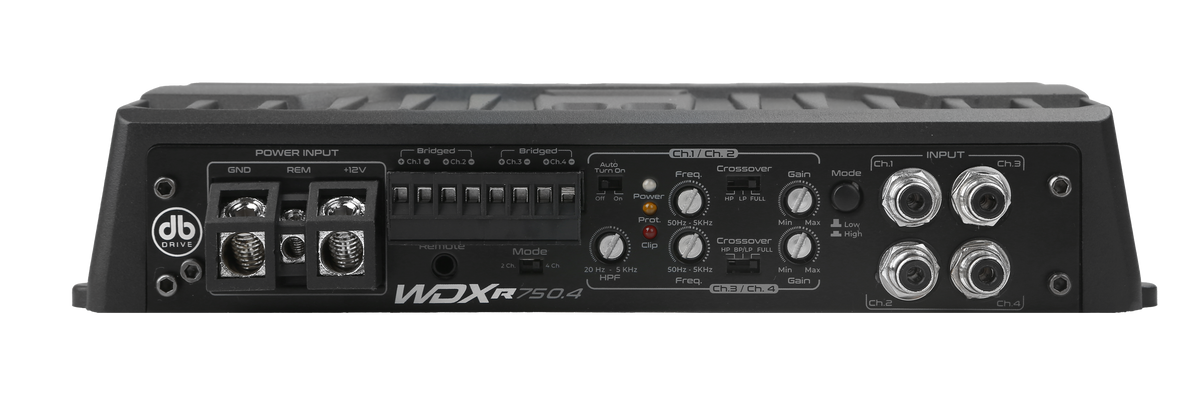

DB Drive WDX-R750.4 : WDX Reference Class-D 4 Channel Amplifier
Regular price
$329.98
Unit price
DB Drive WDX-R750.4 : WDX Reference Class-D 4 Channel Amplifier is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 24 hours
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
DB Drive WDX-R750.4 : WDX Reference Class-D 4 Channel Amplifier
Regular price
$329.98
Unit price
DB Drive WDX-R750.4 : WDX Reference Class-D 4 Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Features
- Class D Technology
- Direct Connect Speaker Terminals
- Large Gauge Power Wire Inputs
- Selectable Low Level RCA Input Range
- ACT- Adaptive Crossover Technology
- PWM Mosfet Regulated Power Supply
- APC - Audio Protection Circuit
- SESI - Signal Evaluation Status indicator
- CHM - Collective Heat Management
- 2Ω stereo / 4Ω Bridged capability
Specifications
| Rated Power: 4 x 165 Watts @ 4Ω |
| Rated Power: 4 x 250 Watts @ 2Ω |
| Rated power: 2 x 550 Watts @ 4Ω (bridged) |
| Ch 1-2 High Pass Crossover: 50Hz- 5kHz |
| Ch 1-2 Low Pass Crossover: 50Hz- 5kHz |
| Ch 3-4High pass Crossover:20Hz- 5kHz |
| Ch 3-4Low pass Crossover: 50Hz- 5kHz |
| Crossover Slope @ 12 dB |
| Input Sensitivity: .425Mv -8.5V |
| Signal to Noise ratio :>90dB |
| DIMENSIONS: |
| L - 9.24"/ 234.6 mm |
| W - 5.51"/ 140 mm |
| H - 1.88"/ 47.7 mm |
