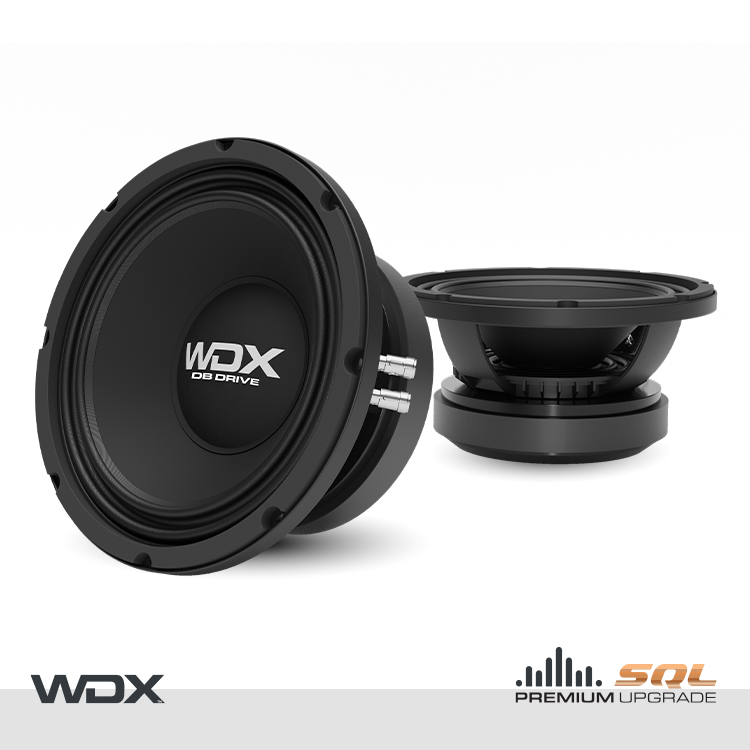

DB Drive WDX10-MB10-8 : 10" PRO Audio Midbass

Features

• 3.5" High Temperature Voice Coil with Shorting Ring

• High Strength Ferrite Oxide magnet

• Treated Paper Cone with Cloth Surround

• Die-Cast Aluminum Basket

• EVA Mounting gasket

• Compression Speaker terminals

Specifications

• Dynamic Power Handling: 1200 Watts

• Nominal Power Handling: 600 Watts

• Impedance: 8Ω Voice Coil

• Resonant Frequency (fs): 58.6 Hz

• D.C. Voice Coil Resistance (Re): 8Ω

• Mechanical Quality Factor (Qms): 3.39

• Electrical Quality Factor (Qes): 0.50

• Total Quality Factor (Qts): 0.43

• Equivalent Air Volume to Cms (Vas): 22.8 L

• Mass of Diaphragm/Coil (Mms): 58.6 g

• Force Factor (BL): 15.3

• Sound Pressure Level (SPL): 91.5dB

• Dimensions

• Outside Diameter: 10.28"/ 261 mm

• Cutout Diameter: 9.06"/ 230 mm

• Mounting Depth: 4.56"/ 115 mm

Description

The WDX10-MB10-8 is a 10-inch midbass speaker engineered for high-output car audio systems. It features a 3.5" high-temperature voice coil with shorting ring  , paired with a ferrite oxide magnet for high efficiency and enhanced power handling . The treated paper cone with a cloth surround is designed to optimize midbass frequency response, delivering exceptional output performance. With a dynamic power handling of 1200 watts and a nominal power rating of 600 watts, this speaker is built for unmatched performance and durability.
